Default do SE and SSEi have different door moulding mounts

If they do, I'm not happy.

Nothing lines up here. If this door is off an SE would the little pins that hold the door moudling brackets on be in different spots than an SSEi?

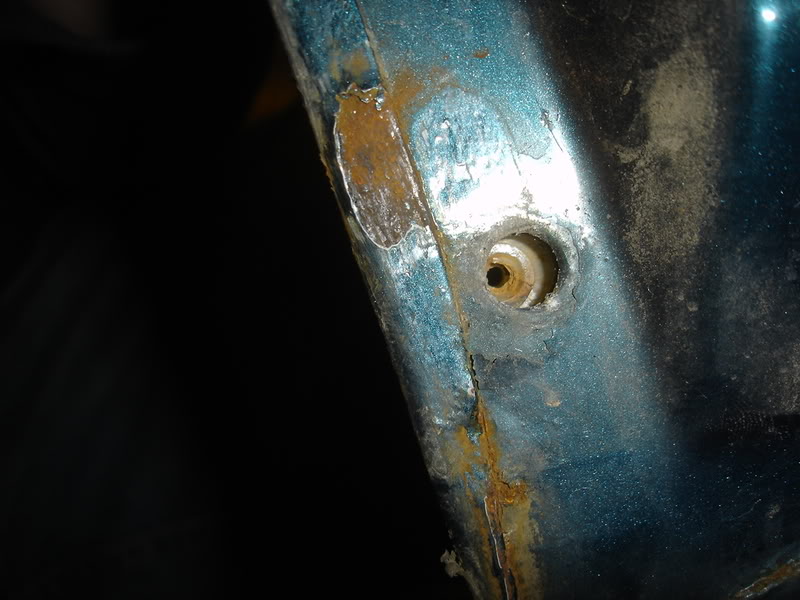

The bottom hole lines up
Name:  DSC00424.jpg
Views: 3
Size:  77.1 KB

but this is how far the top hole is off
Name:  DSC00426.jpg
Views: 3
Size:  50.5 KB

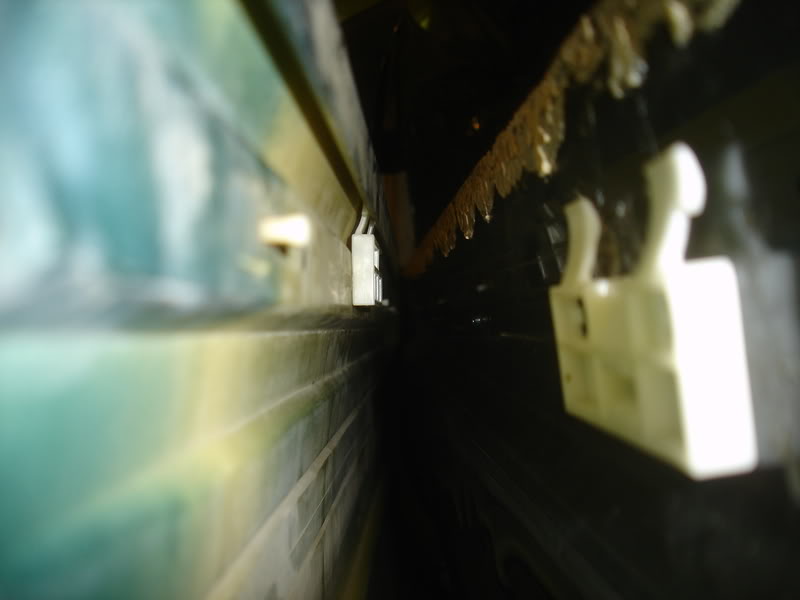

looks to be an inch off
Name:  DSC00427.jpg
Views: 4
Size:  33.3 KB
harofreak00 is offline   Reply With Quote
Old 03-14-2008, 05:11 PM   #2
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

I noticed my parts 93 SE just used the little pins and a screw. I believe the SSE(i) cladding has additional stick on things or something else that attaches to the pins that the SSE cladding grabs on to.
J Wikoff is offline   Reply With Quote
Old 03-14-2008, 05:13 PM   #3
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

ugh. The yard has an entire door for $75...Guess I'll go get it.
harofreak00 is offline   Reply With Quote
Old 03-14-2008, 05:18 PM   #4
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

At least look at it. Maybe you can snag the mounts off it if they stick on or mount to the pins.
J Wikoff is offline   Reply With Quote
Old 03-14-2008, 05:21 PM   #5
Senior Member
True Car Nut

Join Date: Jan 2005
Location: Montevideo, MN MWBF '05, '06, '07 WCBF '06 '07 survivor
Posts: 3,882
Thanks: 0
Thanked 0 Times in 0 Posts
sonoma_zr2 is on a distinguished road
Default

I believe they are different, sorry
sonoma_zr2 is offline   Reply With Quote
Old 03-14-2008, 05:34 PM   #6
Senior Member
True Car Nut

Join Date: Feb 2002
Posts: 3,993
Thanks: 0
Thanked 0 Times in 0 Posts
JimmyFloyd is on a distinguished road
Default

they are different. The SE moldings sit lower on the door (just like the bumpers are lower) and some of the SE doors do not have the lower "pins"

As for just getting the mounts, unfortunately, they are welded to the doors, so it isn't a matter of just getting new mounting plates. This is why, as with his car, the moldings are usually just double sided taped back on if the door is replaced.

Sorry, but it'* an SSE/Ei door, or tape Andrew.
JimmyFloyd is offline   Reply With Quote
Old 03-14-2008, 08:14 PM   #7
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default



oh well, not a big deal I guess. The let me have the door for $50. I always assumed the doors were the same, my bad.

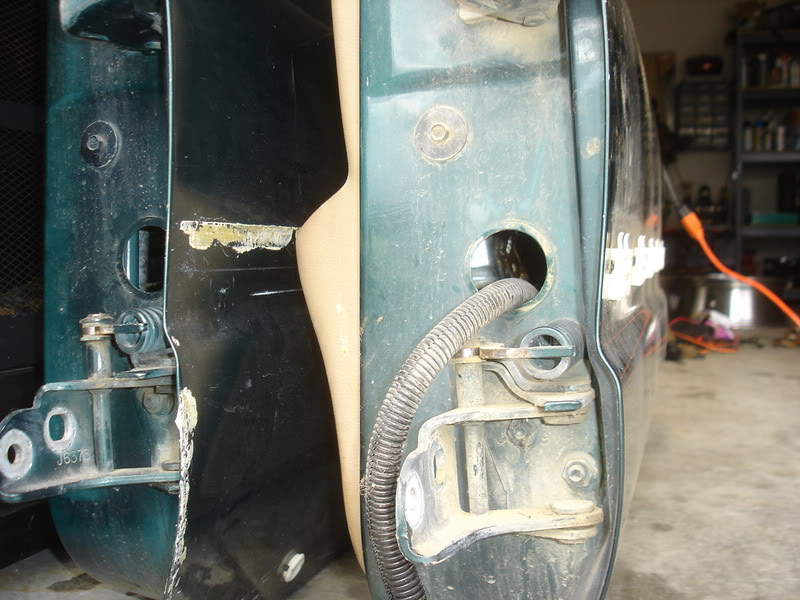

Comparison pics:
Name:  DSC00432.jpg
Views: 3
Size:  88.6 KB

SE door
Name:  DSC00436.jpg
Views: 3
Size:  56.1 KB

SSEi door
Name:  DSC00437.jpg
Views: 5
Size:  40.1 KB
harofreak00 is offline   Reply With Quote
Old 03-14-2008, 10:16 PM   #8
Junior Member
Posts like a Ricer Type-R

Join Date: Mar 2008
Location: NE Iowa
Posts: 23
Thanks: 0
Thanked 0 Times in 0 Posts
Doodah is on a distinguished road
Default

Ha, Yep!, different!, just found this out the hard way myself!, bought a door of a SE model, and when I got all the molding off, found out all the pins needed to be 1/2" lower and didnt need the second row of pins period, but needed a few on the very bottom!, I procceded to take all the plastic clips off of the studs, and ground down all of the studs, and drilled hole and installed new rivots and had to drill a bottom row for the bottom clips also, { BEWARE!!!} just out a curiuosity, I measured all the studs in the very bottom row on the SSEI door, and the first 4 going left to right, are 1"- 1/8th from the bottom,
the next one is 1"-3/16ths from the bottom, and the last one thats closest to fender was 1-5/16ths from the bottom!!!, Glad I measured all of them befor I just drilled them all at 1/18th!!!
Doodah is offline   Reply With Quote
