Default Crank shaft senor help

so my engine light somes come when ever it wants then goes off. and comes one like two weeks later then off. so I scanned it and got the code P0336 which means from what I see in my book "Crankshaft position sensor A circuit- Range or performance problem" so ummm what can I do to get my "girl" to stop bitching and running well. (I really really hate SRS lights) Thanks for your help
Nighthwk12 is offline   Reply With Quote
Old 03-01-2009, 07:28 PM   #2
Senior Member
True Car Nut

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

You can try unplugging the sensor and cleaning the contacts off with a electrical cleaner. Put some dielectric grease on the connection pins, plug it back in and try again. Also check the wires around the sensor and loom for any wear or damage. An intermittent problem like you are experiencing acts more like a corrosion or abraded wire.
Purplehazeir is offline   Reply With Quote
Old 03-01-2009, 08:23 PM   #3
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I would have to agree. If the sensor was bad it would happen more. Clean up the plug real good, use some dielectric grease and see if that corrects the problem. There is always a chance the sensor is going out, but lets try this first.
Danthurs is offline   Reply With Quote
Old 03-01-2009, 10:51 PM   #4
Senior Member
Posts like a Corvette
Thread Starter

Nighthwk12's Avatar

Join Date: Feb 2009
Location: Jersey Shore
Posts: 1,511
Thanks: 0
Thanked 0 Times in 0 Posts
Nighthwk12 is on a distinguished road
Default

Sounds like a good starting point you guys are great. Another concern is that if I do replace it it says I need a centering tool so the sensor doesn't hit it H.B. can it be done by eye ball or is the tool really a necessity
Nighthwk12 is offline   Reply With Quote
Old 03-01-2009, 10:54 PM   #5
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Danthurs is offline   Reply With Quote
Old 03-02-2009, 07:30 AM   #6
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

The earlier models were alignment versions. The Series II motors 95-05 NA and 96-03 SC do not require any alignment.

I've had the intermittant CKP issue in my car'* long past and it'* a pain. Nothing really says "change this sensor" and the car still seems to run pretty well. I took the chance on the $25 for the sensor and life has been great since. I'd suggest the sensor chance, but good diagnositics would put cleaning and general lookover first.

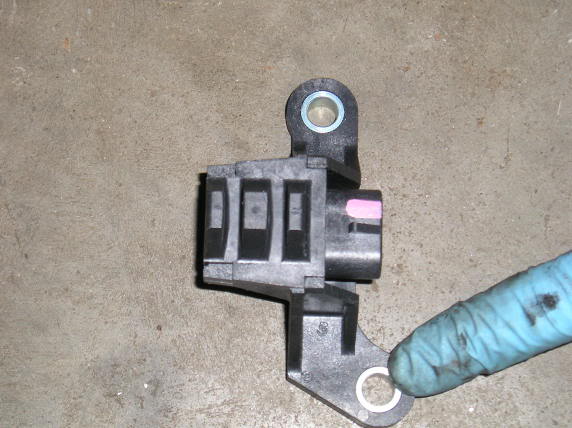

Very tough to see in this picture is the fine metal particles that are stuck in between the fingers that read the holes on the back of the harmonic balancer. I believed this to be the issue.
Name:  P1010702.jpg
Views: 4
Size:  41.8 KB

Due to the shield you can't get a good stream of water or air into the area to clean the sensor w/o removing the HB.
