Default CCR?

Hi all
just wanted to know what CCR is and if my car has it of to find a way to tell and what does it do. I have searched around and really didnt find my answer probly need to word my search better.But anyways does the CCR also effect the performance shift from what i read it effects performance mode im assuming there both the same.
And one more thing i have the air inflator(ELC i think) in my trunk with just the on and off buttons but i dont have this control valve switch that i keep reading about, do only newer years have it?

thanks for any input
keith
irish91983 is offline   Reply With Quote
Old 08-01-2007, 10:14 AM   #2
Senior Member
True Car Nut

Join Date: Jan 2006
Location: NEBF:06,07 | NYBF:06,07 | ONBF:06,07 | CNBF:06 & more............
Posts: 8,029
Thanks: 0
Thanked 0 Times in 0 Posts
bandit is on a distinguished road
Default

CCR = Computer Command Ride

It adjust how stiff the Struts are front and back. Thats all it does.

Performance Shift will Control how soft or Firm the shifts are. if you have it, you will see a "normal shift" & "Performance shift" buttons next to the shifter.
bandit is offline   Reply With Quote
Old 08-01-2007, 10:14 AM   #3
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

CCR is computer command ride.

The easiest way to tell if you have it is to look to the left of the console shifter. The buttons there would be
Performance Shift
Normal Shift
Traction Control
Performance Ride
Touring Ride

The last two buttons denote CCR.

On the output for air.. do you see a hole in the plastic near the on/off buttons?
BillBoost37 is offline   Reply With Quote
Old 08-01-2007, 10:19 AM   #4
Senior Member
Posts like a Northstar

Skippy1827's Avatar

Join Date: Jun 2006
Location: Waukesha, Wisconsin
Posts: 747
Thanks: 0
Thanked 0 Times in 0 Posts
Skippy1827 is on a distinguished road
Default

EDIT...too slow getting the pic..
Credence Clearwater Revival (CCR) Don't think your car has that.

Computer Command Ride (CCR) - Electronically adjusted suspension.

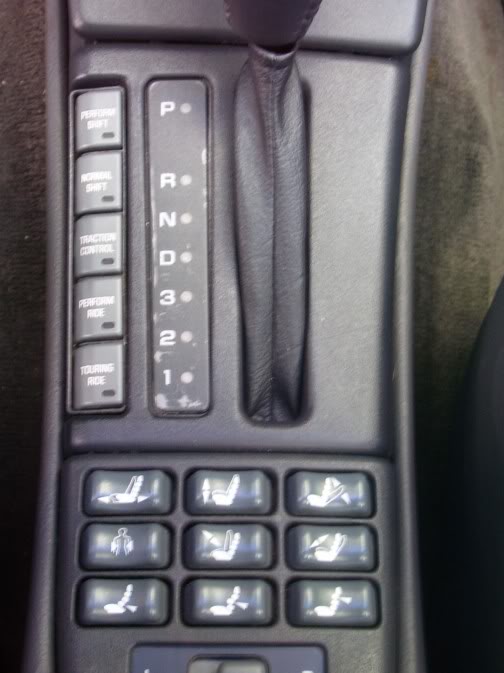

My 98 has it...next to the shifter. a series of buttons.
Name:  gears.jpg
Views: 3
Size:  46.4 KB
Skippy1827 is offline   Reply With Quote
Old 08-01-2007, 10:20 AM   #5
Senior Member
Posts like a 4 Banger
Thread Starter

Join Date: Jul 2007
Location: burlington,mass
Posts: 143
Thanks: 0
Thanked 0 Times in 0 Posts
irish91983 is on a distinguished road
Default

so i dont have the CCR.
there is also no hole next to the button in the trunk i just have a valve stem to inflate things with.
irish91983 is offline   Reply With Quote
Old 08-01-2007, 10:22 AM   #6
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

What control valve switch are you speaking of them? I thought you meant you didn't see the valve output of the system.
BillBoost37 is offline   Reply With Quote
Old 08-01-2007, 10:24 AM   #7
Senior Member
Posts like a 4 Banger
Thread Starter

Join Date: Jul 2007
Location: burlington,mass
Posts: 143
Thanks: 0
Thanked 0 Times in 0 Posts
irish91983 is on a distinguished road
Default

i read some thing here about there being a switch to either inflate the rear or to inflate some thing out side the car.
irish91983 is offline   Reply With Quote
Old 08-01-2007, 10:26 AM   #8
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Technically speaking that is the switch you see.

There is a soleniod in the back passenger side of the trunk that when disconnected and you press the on button you see, it will default the air into the struts only.
BillBoost37 is offline   Reply With Quote
Old 08-01-2007, 10:28 AM   #9
Senior Member
Posts like a 4 Banger
Thread Starter

Join Date: Jul 2007
Location: burlington,mass
Posts: 143
Thanks: 0
Thanked 0 Times in 0 Posts
irish91983 is on a distinguished road
Default

I get it now. Thanks for ur help
irish91983 is offline   Reply With Quote
Old 08-01-2007, 11:57 AM   #10
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

CCR was first offered in 1994. That'* why you don't have it.

Yes, with a hose, you can inflate a tire with the trunk inflator. The ELC (electronic level control) system uses the same pump to automatically level the rear of the car. If you dump a bunch of groceries in there, it will automatically detect it and raise the rear back level.

In order to 'trick' the rear ELC for the dragstrip, you will need to disconnect the 2-wire connector on the solenoid valve in the trunk, behind the rear seat back, just to the left of the right rear strut tower. Press ON on the trunk inflator controls, wait a couple minutes for the rear to raise, then pull fuse #12 above the brake pedal to keep it from venting back down.
willwren is offline   Reply With Quote
