Default buttons.....

Does anyone know where I can find the interior pieces like the power seat buttons in the armrest, and the traction control buttons?

Other than yard surfing, is there a place I can order online?
robmpulse is offline   Reply With Quote
Old 11-07-2004, 11:31 PM   #2
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

there is an auction on ebay for the seat buttons i believe it is a BIN of 27.00
1993 SLE is offline   Reply With Quote
Old 11-07-2004, 11:37 PM   #3
Senior Member
True Car Nut

Join Date: Dec 2002
Location: Sauk Centre, MN
Posts: 5,458
Thanks: 0
Thanked 0 Times in 0 Posts
OLBlueEyesBonne is on a distinguished road
Default

Unless your car came from the factory equipped with these options they will not be plug-and-play. Just a heads up in case you can't find the wiring in your car.
If you've scoured you're local yards then ebay is your best bet.
Also, another head'* up -if your car is a 1992-1993 and is equipped with TC you will need the button strip from a 1992-1993 as they have a pigtail harness with the male connector -the 1994+ don't have the pigtail harness -rather the connection is a female connection and is part of the bottom of the button strip.
OLBlueEyesBonne is offline   Reply With Quote
Old 11-08-2004, 12:01 AM   #4
Member
Posts like a V-Tak
Thread Starter

Join Date: Jul 2004
Location: Orlando, FL
Posts: 67
Thanks: 0
Thanked 0 Times in 0 Posts
robmpulse is on a distinguished road
Default

Thanks for the advice, but I want to use the buttons to control other accesories. I just want an OEM look, rather than putting cheasy looking toggle switches in it.

I plan on repainting the buttons and relabeling them. Will be tedious work, but worht it, I think.
robmpulse is offline   Reply With Quote
Old 11-08-2004, 12:02 AM   #5
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

Quote:
Originally Posted by robmpulse
Thanks for the advice, but I want to use the buttons to control other accesories. I just want an OEM look, rather than putting cheasy looking toggle switches in it.

I plan on repainting the buttons and relabeling them. Will be tedious work, but worht it, I think.
if you find a way to make them light up correctly...holla!
harofreak00 is offline   Reply With Quote
Old 11-08-2004, 12:06 AM   #6
Member
Posts like a V-Tak
Thread Starter

Join Date: Jul 2004
Location: Orlando, FL
Posts: 67
Thanks: 0
Thanked 0 Times in 0 Posts
robmpulse is on a distinguished road
Default

Quote:
Originally Posted by harofreak00
if you find a way to make them light up correctly...holla!
do you mean illuminating the writting itself? that'* simply. I won't know for sure until I get them and take a closer look....

but it would seem to me that as long as you put white lettering on them, and paint the lettering part white, the light will shine through.

I plan on taking step by step instructions and pics when I do this. I have heard a few people comment that they would like to do the same.....
robmpulse is offline   Reply With Quote
Old 11-08-2004, 12:14 AM   #7
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

well its not really as simple as you would think

the buttons have the white plastic molded into them...

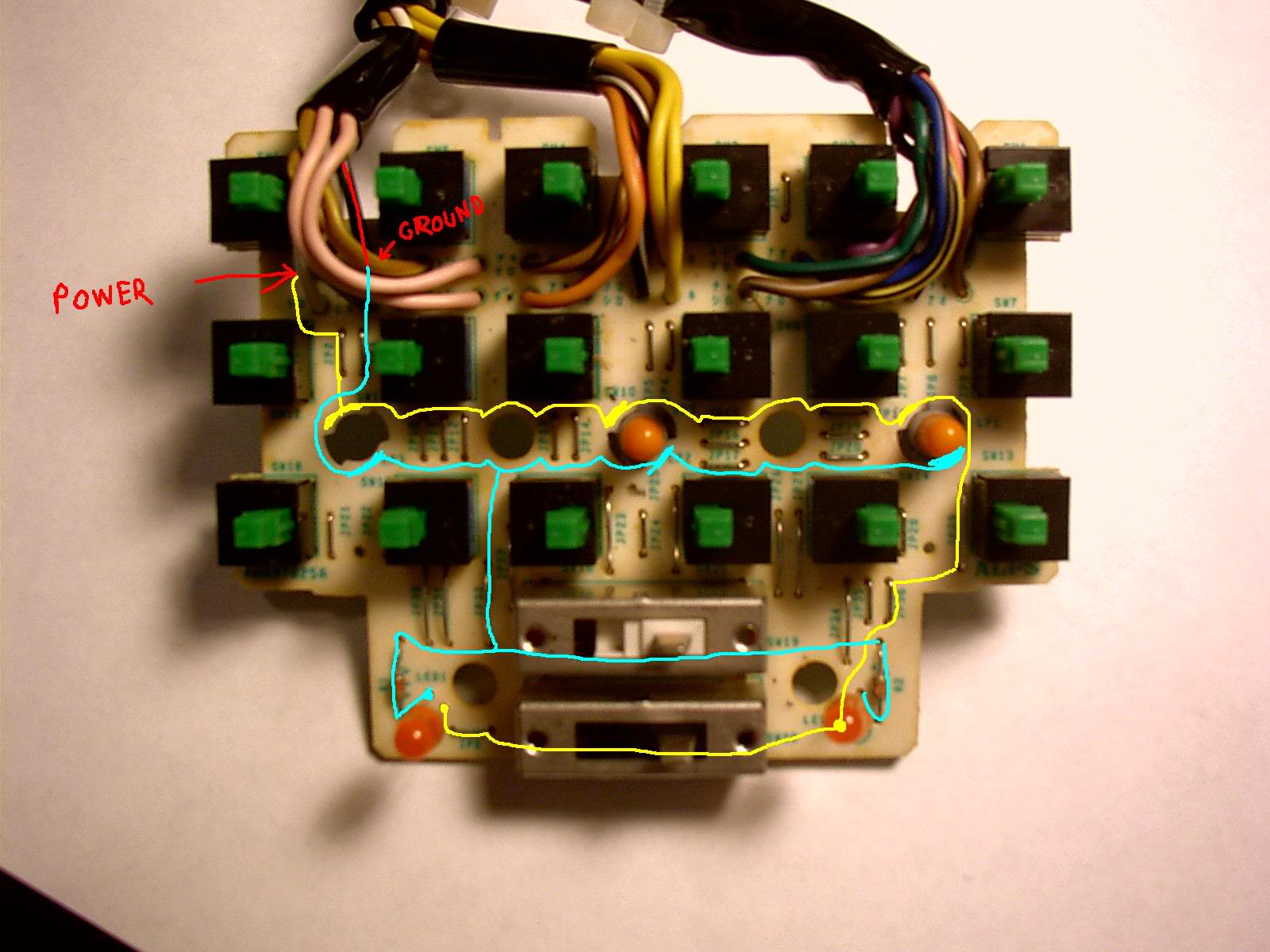

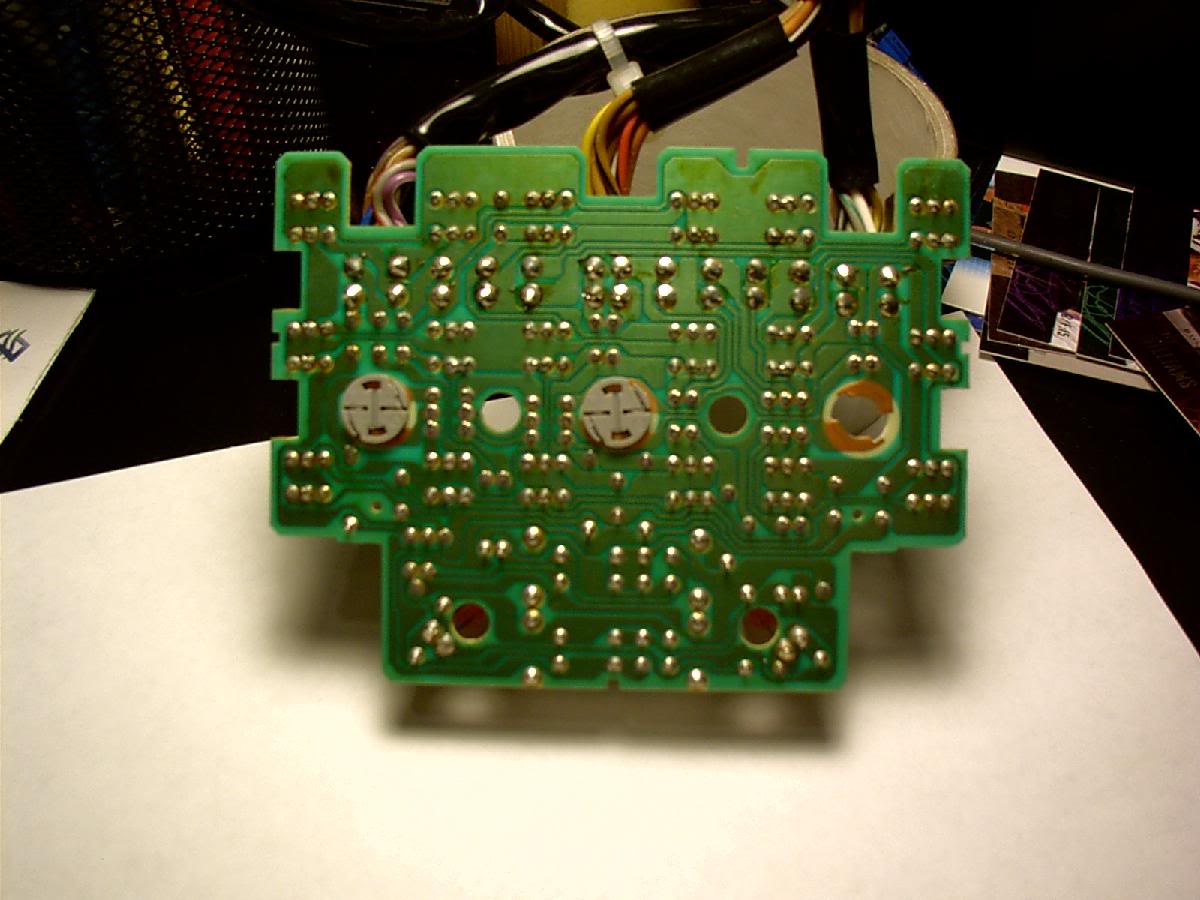

here are some pics of when i had it apart...i didnt take pics of the actual buttons though

Name:  top.jpg
Views: 0
Size:  172.0 KB
Name:  bottom.jpg
Views: 0
Size:  106.5 KB
harofreak00 is offline   Reply With Quote
Old 11-08-2004, 01:19 AM   #8
Member
Posts like a V-Tak
Thread Starter

Join Date: Jul 2004
Location: Orlando, FL
Posts: 67
Thanks: 0
Thanked 0 Times in 0 Posts
robmpulse is on a distinguished road
Default

cool. thanks.

Will post more when completed. It will be a while, though, as I am getting motor kinks worked out.
robmpulse is offline   Reply With Quote
Old 11-08-2004, 08:42 AM   #9
Senior Member
True Car Nut

Join Date: Dec 2003
Location: Corn Fields, IN
Posts: 2,766
Thanks: 0
Thanked 0 Times in 0 Posts
John Deere Boy is on a distinguished road
Default

The traction control buttons will illuminate when plugged into your car.
John Deere Boy is offline   Reply With Quote
