Old 12-22-2006, 09:24 AM   #31
Member
Posts like a V-Tak
Thread Starter

Join Date: Oct 2006
Location: Indiana
Posts: 67
Thanks: 0
Thanked 0 Times in 0 Posts
AFroedge is on a distinguished road
Default

Quote:
Originally Posted by BillBoost37
Mmmm the rubber booty that hides the nut to hook the steering from column to the rack? If that'* the one, just push it up and you should be able to get at it enough.
yep that what I'm talking about. When the subframe dropped I lost all steering.
AFroedge is offline   Reply With Quote
Old 12-22-2006, 09:27 AM   #32
Member
Posts like a V-Tak
Thread Starter

Join Date: Oct 2006
Location: Indiana
Posts: 67
Thanks: 0
Thanked 0 Times in 0 Posts
AFroedge is on a distinguished road
Default

I should also add. I haven't clue how it goes back together and I don't if when the subframe mounts broke if is busted the steering.
AFroedge is offline   Reply With Quote
Old 12-22-2006, 09:31 AM   #33
Senior Member
True Car Nut

Join Date: Jan 2006
Location: NEBF:06,07 | NYBF:06,07 | ONBF:06,07 | CNBF:06 & more............
Posts: 8,029
Thanks: 0
Thanked 0 Times in 0 Posts
bandit is on a distinguished road
Default

Quote:
Originally Posted by AFroedge
I should also add. I haven't clue how it goes back together and I don't if when the subframe mounts broke if is busted the steering.

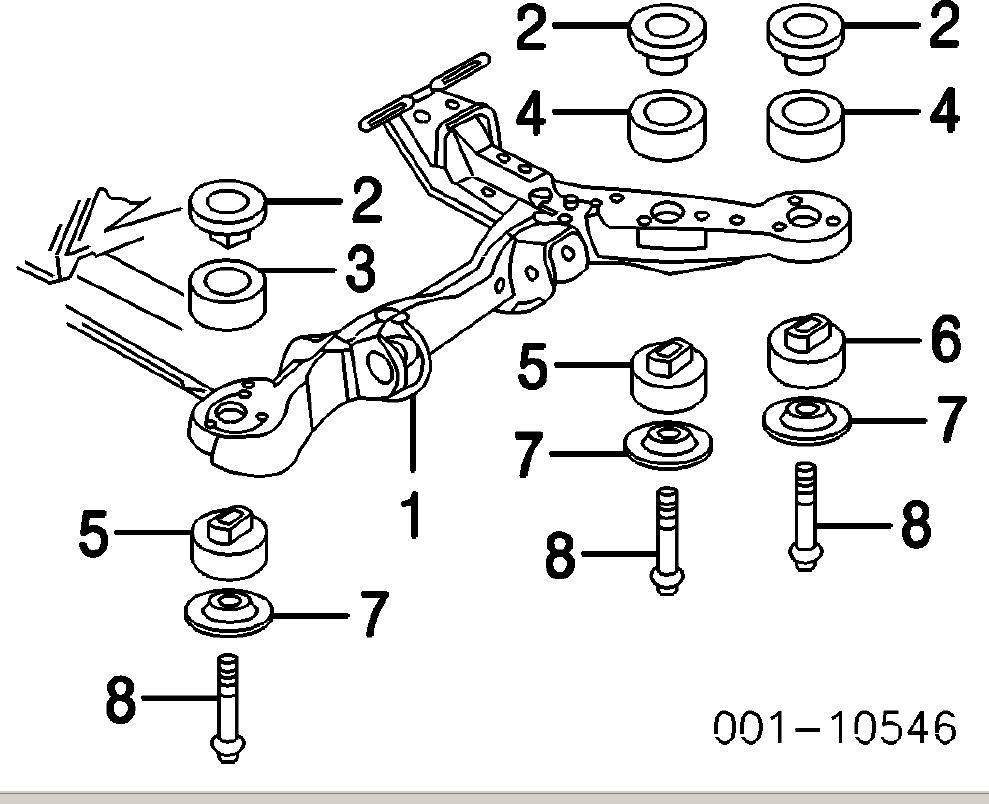

its goes back like this


Name:  GMBodymount.jpg
Views: 0
Size:  99.6 KB
bandit is offline   Reply With Quote
Old 12-22-2006, 09:31 AM   #34
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Okey dokey...

IIRC it'* merely a push on situation.

The steering shaft comes down from the column and then slides onto the rack nipple. The shaft has a bolt through it that catches on a groove below the splines of the nipple from the rack. The shaft and rack nipple may be keyed so that they only go together in one position..but...I'm not 100% on that.
BillBoost37 is offline   Reply With Quote
Old 12-22-2006, 09:35 AM   #35
Member
Posts like a V-Tak
Thread Starter

Join Date: Oct 2006
Location: Indiana
Posts: 67
Thanks: 0
Thanked 0 Times in 0 Posts
AFroedge is on a distinguished road
Default

Quote:
Originally Posted by BillBoost37
Okey dokey...

IIRC it'* merely a push on situation.

The steering shaft comes down from the column and then slides onto the rack nipple. The shaft has a bolt through it that catches on a groove below the splines of the nipple from the rack. The shaft and rack nipple may be keyed so that they only go together in one position..but...I'm not 100% on that.
Thats what I needed! With any luck I'll be able to pop it back in and it not be broken. I don't know if the steering was ment to pop apart like that. As far as the subframe mounts. I have them all on there ready to go I just have to line it up.
AFroedge is offline   Reply With Quote
Old 12-22-2006, 09:37 AM   #36
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Remove the bolt from the column end shaft. Then it "should" slide back together. It probably popped apart from the stress, and with any luck will not be too bad to go back together.
BillBoost37 is offline   Reply With Quote
Old 12-22-2006, 09:44 AM   #37
Member
Posts like a V-Tak
Thread Starter

Join Date: Oct 2006
Location: Indiana
Posts: 67
Thanks: 0
Thanked 0 Times in 0 Posts
AFroedge is on a distinguished road
Default

great, well I'm heading out to give that a shot. I'll post back when/if I get it fixed today.
AFroedge is offline   Reply With Quote
Old 12-22-2006, 09:54 AM   #38
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Sounds like a plan. Keep us in the loop if we can help out further.
BillBoost37 is offline   Reply With Quote
Old 12-22-2006, 10:58 PM   #39
Member
Posts like a V-Tak
Thread Starter

Join Date: Oct 2006
Location: Indiana
Posts: 67
Thanks: 0
Thanked 0 Times in 0 Posts
AFroedge is on a distinguished road
Default

Fixed and fixed. 2 hours and 49 minutes!...woohoo!

and a number of bloody knuckles.

I don't know what happened. Everything just went together This site is F'ing great. You guys always bail my *** of the fire.Thanks!
AFroedge is offline   Reply With Quote
Old 06-29-2007, 02:45 AM   #40
Member
Posts like a V-Tak

Join Date: Mar 2007
Location: NorthWest WI
Posts: 44
Thanks: 0
Thanked 0 Times in 0 Posts
Lee_Mur is on a distinguished road
Default

Old thread but trying to keep down the new posts.

BIG TIP ON FAILING CRADLE BOLTS.

For a week before the bolts broke and dropped the cradle last Thursday I thought my brake rotors were warping...worse and worse. I was getting a light occilation in braking that got worse through the week. Towards the end of the week I was thinking, "Man this sure is getting bad quickly. The rotors must be really thin." Then I got the big bang and no steering.

I'd planned on a new post for this with a title of "Cradle bolts and warping rotors"

So my tip is...if you think your rotors are getting warped...look at the cradle bolts!!!
Lee_Mur is offline   Reply With Quote
