Default Broken belt

HI all,

My serpentine belt broke all of a sudden. I'm looking at the belt it it doesn't have any cracks or missing sections.

Belt is relatively new, about a year old. Back in febuary, the car overheated and blew out the upper. Took me a while to fix it and when I did I discovered the tensioner was bouncing. Since I replaced the tensioner it made this awful screaching sound. I reversed the belt and it sounded a bit better (might have been in my head).

Flushed the coolant, and drove her about a mile when the she made a loud screech and silence. Belt blew.

I've looked at all the accessories and nothing is seized.

Belt doesn't have any parts that are glossy, one if the sides of the belt was sliced, not sure if that was before or during the failure.

ANy ideas? just bad luck?

Thanks!

George
ggenovez is offline   Reply With Quote
Old 07-15-2014, 03:13 PM   #2
Member
Posts like a V-Tak

Join Date: Mar 2012
Location: ontario,canada
Posts: 44
Thanks: 0
Thanked 4 Times in 4 Posts
hounddog is on a distinguished road
Default

look for seized pulley somewhere, alt, air, water pump, idler or tensioner. check them all very carefully. if any belt was ever thrown or shredded, look for pieces of old belt wrapped up behind pulleys that could be interfering, saw this on a grand prix v6
hounddog is offline   Reply With Quote
The Following User Says Thank You to hounddog For This Useful Post:
ggenovez (07-15-2014)
Old 07-15-2014, 04:39 PM   #3
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Take a picture of both ends please. I would like to see this.

Otherwise, me thinks bad luck.
Mike is offline   Reply With Quote
The Following User Says Thank You to Mike For This Useful Post:
ggenovez (07-15-2014)
Old 07-15-2014, 05:45 PM   #4
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: May 2009
Posts: 161
Thanked 4 Times in 4 Posts
ggenovez is on a distinguished road
Default

Hounddog, I don't see anything like that.

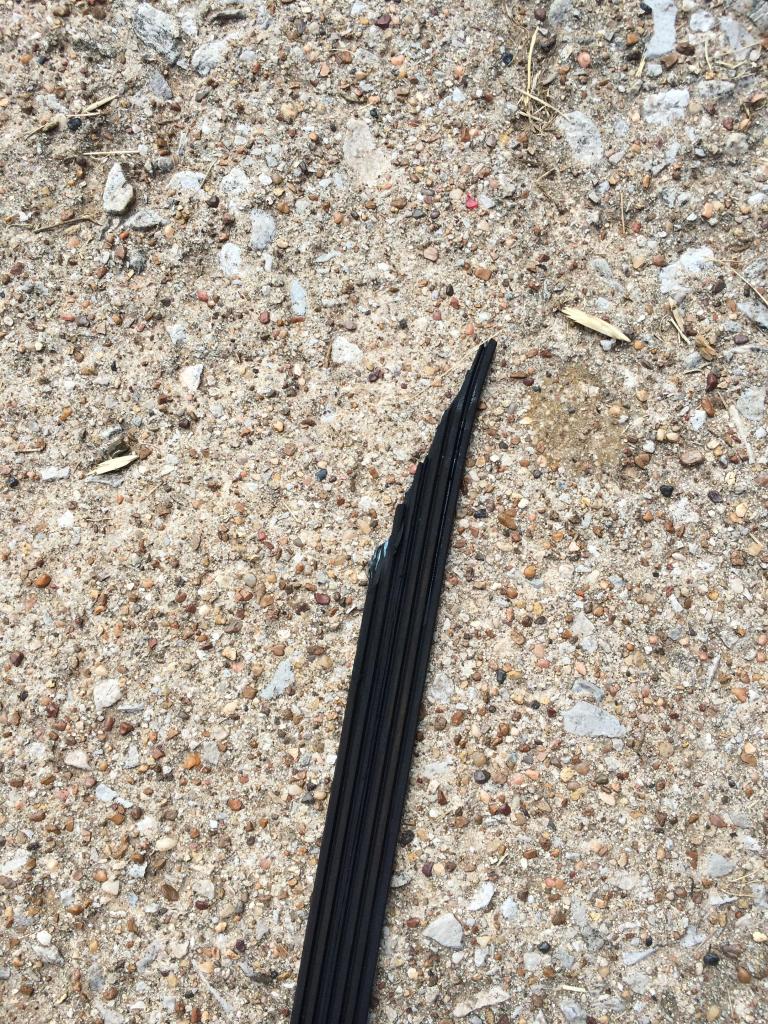

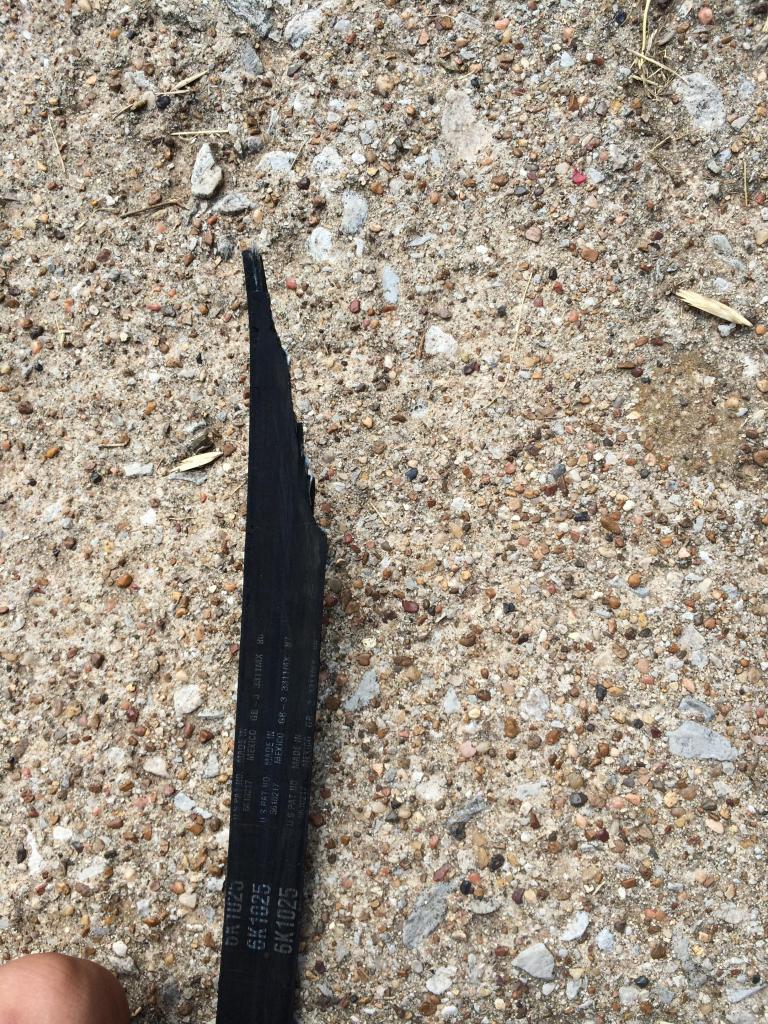

Mike here are the photos. Looking forward to your analysis.




Attached Thumbnails
Broken belt-photo4.jpg   Broken belt-photo6.jpg
ggenovez is offline   Reply With Quote
The Following User Says Thank You to ggenovez For This Useful Post:
Soft Ride (07-15-2014)
Old 07-15-2014, 06:27 PM   #5
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Usually a belt will break straight across if its a tension break.(seized pulley etc) This looks more like premature failure of the belt. Yes, they can fail early on without the tell signs of cracks.
Mike is offline   Reply With Quote
The Following 2 Users Say Thank You to Mike For This Useful Post:
ggenovez (07-15-2014), Soft Ride (07-15-2014)
Old 07-15-2014, 06:30 PM   #6
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: May 2009
Posts: 161
Thanked 4 Times in 4 Posts
ggenovez is on a distinguished road
Default

Mike, Thank you for your experience.
ggenovez is offline   Reply With Quote
Old 07-15-2014, 07:15 PM   #7
Senior Member
True Car Nut

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,588
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

The belt 6K1025 made in Mexico what brand is that belt?
I use the GY gatorback- seem to be good quality.
Soft Ride is offline   Reply With Quote
The Following User Says Thank You to Soft Ride For This Useful Post:
WilliamE (07-15-2014)
Old 07-15-2014, 07:19 PM   #8
Senior Member
Posts like a Supercharger
Thread Starter

Join Date: May 2009
Posts: 161
Thanked 4 Times in 4 Posts
ggenovez is on a distinguished road
Default

6K1025 is ACDelco.
ggenovez is offline   Reply With Quote
Old 07-15-2014, 07:40 PM   #9
Senior Member
True Car Nut

Soft Ride's Avatar

Join Date: Jan 2012
Location: BC Canada
Posts: 3,588
Thanked 340 Times in 302 Posts
Soft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud ofSoft Ride has much to be proud of
Default

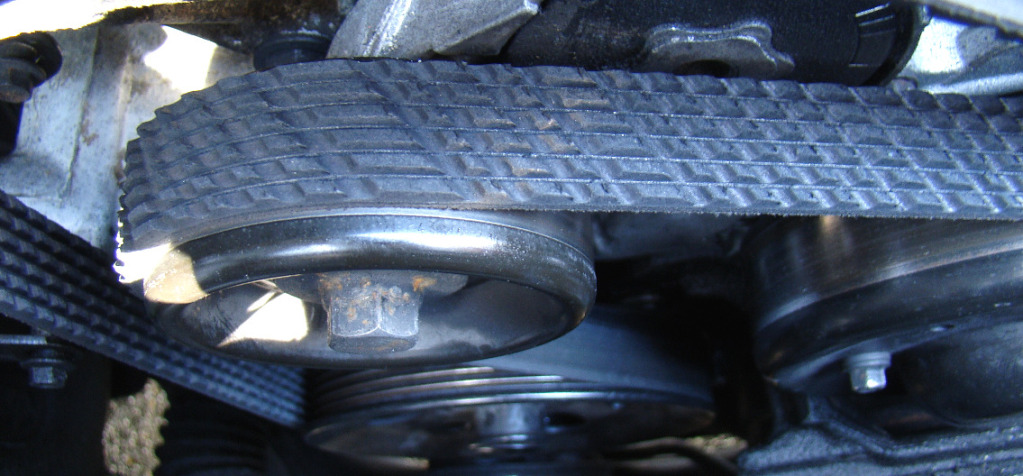

Here is what the Gator Back looks like. Not straight ribbed, so they grip & don't slip easily.

A tough backing as well help in longevity, as long as Pulley'* are a working correctly.
Attached Thumbnails
Broken belt-gygatorbackpkave_zps1b2b5413.jpg
Soft Ride is offline   Reply With Quote
Old 07-15-2014, 07:42 PM   #10
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

K061025 is the Gates part #.
