Default bonnie smoke help needed

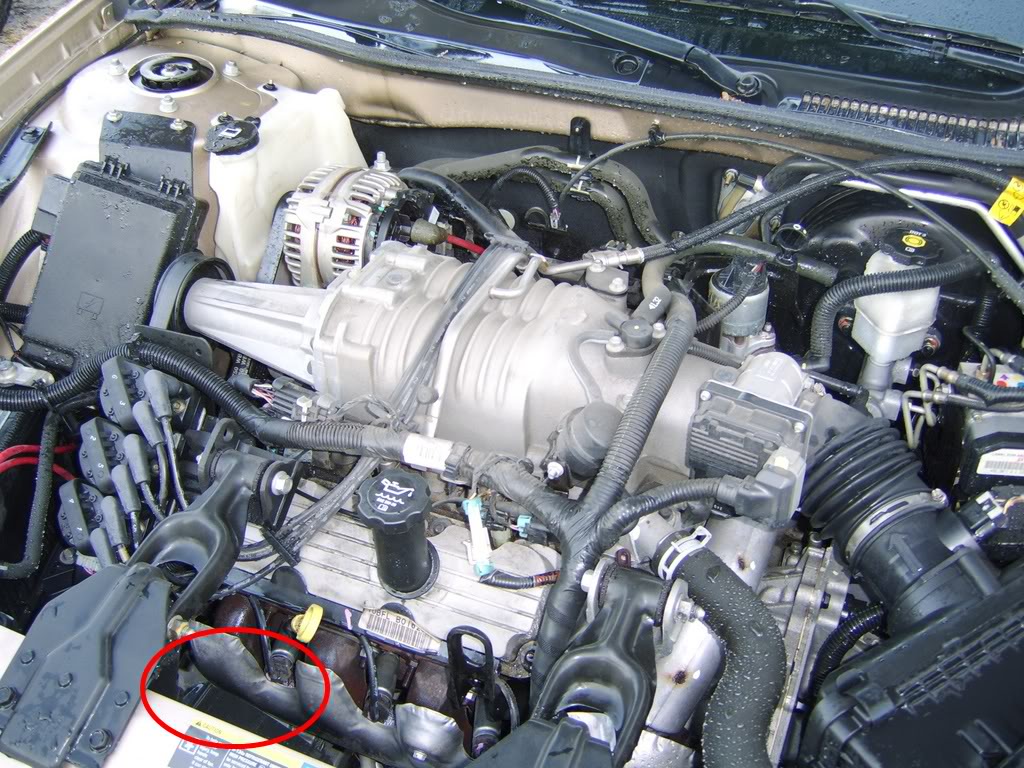

Name:  32822870005_large.jpg
Views: 0
Size:  206.1 KB

first no its not the engine in my car i used this picture to sho where smoke is comming from ...i had the car running today for 2 minutes and i seen smoke ...first i thought maby it was oil on the exhaust ...well i waited and there was more and more smoke ...so i had a look and there is a tray or something where the red circle is and the smoke is either comming off that or hitting off it ...there dosent sound like there is a hole in the manifold or anything ....is this something major or not
1999_pontiac_ssei is offline   Reply With Quote
Old 03-05-2010, 01:03 PM   #2
Senior Member
True Car Nut

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

Looking at your exhaust manifold, it looks like an oil leak from your valve cover.
Purplehazeir is offline   Reply With Quote
Old 03-05-2010, 01:06 PM   #3
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Sounds like you need new valve cover gaskets. Not a big deal changing them.
Danthurs is offline   Reply With Quote
Old 03-05-2010, 01:45 PM   #4
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Most likely the oil has built up on the metal shield you mention. The hotter the exhaust gets the more smoke you will see until there is either fire or the oil burns off.

Fires on your year isn't common, but it is possible if enough oil is present.
BillBoost37 is offline   Reply With Quote
Old 03-05-2010, 01:50 PM   #5
Member
Posts like a V-Tak
Thread Starter

Join Date: Oct 2009
Location: nova scotia
Posts: 91
Thanks: 0
Thanked 0 Times in 0 Posts
1999_pontiac_ssei is on a distinguished road
Default

Quote:
Originally Posted by BillBoost37 View Post
Most likely the oil has built up on the metal shield you mention. The hotter the exhaust gets the more smoke you will see until there is either fire or the oil burns off.

Fires on your year isn't common, but it is possible if enough oil is present.
so do i runn it with a fire extisgher near by or try to was it off?
1999_pontiac_ssei is offline   Reply With Quote
Old 03-05-2010, 02:01 PM   #6
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

You can take that shield off.
Danthurs is offline   Reply With Quote
Old 03-05-2010, 02:08 PM   #7
Member
Posts like a V-Tak
Thread Starter

Join Date: Oct 2009
Location: nova scotia
Posts: 91
Thanks: 0
Thanked 0 Times in 0 Posts
1999_pontiac_ssei is on a distinguished road
Default

what is the shild for and what dose it protech?
1999_pontiac_ssei is offline   Reply With Quote
Old 03-05-2010, 02:13 PM   #8
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Keeps the heat off the fans. I've been running headers for a few years with no shield and no problems.
Danthurs is offline   Reply With Quote
Old 03-10-2010, 11:24 AM   #9
Member
Posts like a V-Tak
Thread Starter

Join Date: Oct 2009
Location: nova scotia
Posts: 91
Thanks: 0
Thanked 0 Times in 0 Posts
1999_pontiac_ssei is on a distinguished road
Default engine vid

well i thought i would post a vid of the smoke i was talking about befor


now you can see what i have been talkin about






https://www.gmforum.com/showthread.php?t=288982

Last edited by 1999_pontiac_ssei; 03-10-2010 at 11:33 AM.
1999_pontiac_ssei is offline   Reply With Quote
Old 03-10-2010, 11:27 AM   #10
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I see smoke, but dunno what you were talking about because you posted in a seperate post. Please link us up. Could be a cracked manifold or a leaky valve cover from the looks.
BillBoost37 is offline   Reply With Quote
