Old 11-17-2005, 07:13 PM   #21
Senior Member
True Car Nut

Join Date: Jan 2005
Location: Montevideo, MN MWBF '05, '06, '07 WCBF '06 '07 survivor
Posts: 3,882
Thanks: 0
Thanked 0 Times in 0 Posts
sonoma_zr2 is on a distinguished road
Default

I did mine without having to remove anything. Just push car forward while it'* in park and block the back wheels so it doesn't roll back. The engine will rock forward enough to get the motor out.
sonoma_zr2 is offline   Reply With Quote
Old 11-17-2005, 10:39 PM   #22
Senior Member
True Car Nut
Thread Starter

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

Quote:
Originally Posted by sonoma_zr2
I did mine without having to remove anything. Just push car forward while it'* in park and block the back wheels so it doesn't roll back. The engine will rock forward enough to get the motor out.
Neat trick. I'll try that next time.
bill buttermore is offline   Reply With Quote
Old 11-17-2005, 11:00 PM   #23
Senior Member
Posts like a Supercharger

Join Date: Apr 2004
Location: Wisconsin
Posts: 185
Thanks: 0
Thanked 0 Times in 0 Posts
int_53185 is on a distinguished road
Default

Just a little trick for us cheapskates.....drill a small hole(1/8") in the end of the blower motor....just enuff to fit a snorkel tube of slick 50 into the hole...give it a few squirts....wipe the hole clean and apply electrical tape...cheap sleave/brass bearing needs a little lube every once inawhile....
int_53185 is offline   Reply With Quote
Old 11-18-2005, 11:39 AM   #24
Senior Member
True Car Nut
Thread Starter

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

Quote:
Originally Posted by int_53185
Just a little trick for us cheapskates.....drill a small hole(1/8") in the end of the blower motor....just enuff to fit a snorkel tube of slick 50 into the hole...give it a few squirts....wipe the hole clean and apply electrical tape...cheap sleave/brass bearing needs a little lube every once inawhile....
Yeah, that is a good quick fix. And I know cheap. i've done the oil trick on a lot of cars; you can usually get another year out of the motors that way. But it'* the wife'* car, and it'* winter and I couldn't hardly believe how quickly the windows became obscured when the blower stops. Didn't want it happening to her.

I once installed remote oilers in both end bushings of the blower on a 240 series Volvo. Drilled the bushings and epoxied needle valve inflators to serve as oil tubes. Connected lengths of vinyl tubing to the inflators and ran them up to a corner of one of the dash vents. Just a couple of drops of oil each year kept it quiet as long as we owned it. The motors for those have a fan on each end and are located behind the center of the dash. Those motors cost over $100 years ago and are incredibly difficult to r&r. At the time, I could not afford a new motor, and I really did not want to have to do the job again!

You know, you may have inspired me to tear apart the old one and do a little failure analysis. I wonder if it was bad bushings or bad brushes? Maybe I can repair it for just a few $....hmmmmm
bill buttermore is offline   Reply With Quote
Old 11-18-2005, 12:17 PM   #25
Senior Member
True Car Nut
Thread Starter

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

Name:  Im000013.jpg
Views: 0
Size:  21.7 KB

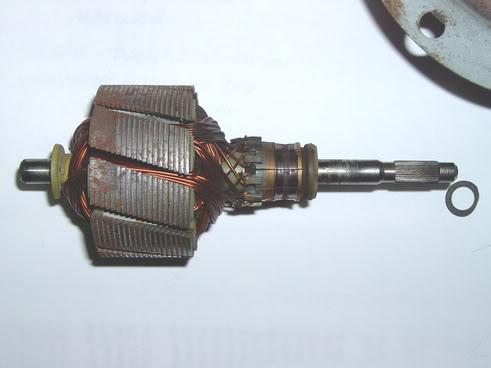

Well, it wasn't making noises like a bad bushing, and from the looks of the commutator, no amount of oil or new set of brushes was gonna save this one. One brush had worn down enough that it had lost contact with the commutator and was making the electrical connection by arcing. Pretty much ruined the commutator. This motor is toast.
bill buttermore is offline   Reply With Quote
Old 11-18-2005, 12:33 PM   #26
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Wow..that'* a worn out, completely shot motor there.
BillBoost37 is offline   Reply With Quote
Old 11-18-2005, 09:19 PM   #27
Senior Member
Posts like a Supercharger

Join Date: Apr 2004
Location: Wisconsin
Posts: 185
Thanks: 0
Thanked 0 Times in 0 Posts
int_53185 is on a distinguished road
Default

Sorry bout your bad luck....I had a '79 Firebird....the blower motor always ran.....no way to shut it off! Anywho....in order to change it..you had to unbolt the right fender splash shield(which was metal back in 79)...and loosen the fender on the bottom just to gain access to the blower motor! I bought a Napa rebuilt unit with the lifetime warranty....I had to change that sucker almost yearly! What a PIA....
int_53185 is offline   Reply With Quote
Old 11-18-2005, 10:18 PM   #28
Senior Member
True Car Nut
Thread Starter

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Thanks: 0
Thanked 1 Time in 1 Post
bill buttermore is on a distinguished road
Default

Quote:
Originally Posted by int_53185
Sorry bout your bad luck....I had a '79 Firebird....the blower motor always ran.....no way to shut it off! Anywho....in order to change it..you had to unbolt the right fender splash shield(which was metal back in 79)...and loosen the fender on the bottom just to gain access to the blower motor! I bought a Napa rebuilt unit with the lifetime warranty....I had to change that sucker almost yearly! What a PIA....
No problems with this job. $45 is pretty cheap these days for any car repair. And ten years isn't bad service for that old motor. I owned a '69 Buick Riviera and to change it'* blower motor you had to cut a hole in the passenger side inner fender to gain access. Unbelievable. You were supposed to use self tapping screws with washers to reattach the piece you cut out, then caulk the damned mess so road splash wouldn't kill the new one. We can thank GM that they DON'T build 'em like they used to!

But wait,,, the absolute worst access I can remember...(this is so off topic I'm gonna take it to the lounge)
bill buttermore is offline   Reply With Quote
Old 11-19-2005, 01:34 PM   #29
Senior Member
Posts like a Supercharger

Join Date: Apr 2004
Location: Wisconsin
Posts: 185
Thanks: 0
Thanked 0 Times in 0 Posts
int_53185 is on a distinguished road
Default

LOL>>>>>just fixed a 92 Cadillac....based on the Bonnies chasis.....a Major PIA! ....off topic....has the CCR suspension.....with that light on.....almost quit on that one!
int_53185 is offline   Reply With Quote
Old 11-19-2005, 02:51 PM   #30
Senior Member
Posts like a Camaro

Join Date: Dec 2003
Location: Massachusetts
Posts: 1,019
Thanks: 0
Thanked 0 Times in 0 Posts
CFoote is on a distinguished road
Default

Is the blower motor the same for Climate Controlled Cars vs. Non Climate Controlled cars?
