My 95 Bonneville blower motor continues to run after the car is turned off. I disconnected my digital Temperature control
Unit on the dash and it still won’t shut off. Could this be my RAP Module, if so how do I test?

thanks
newf31 is offline   Reply With Quote
Old 09-09-2009, 12:26 PM   #2
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I would think it'* more a relay or the blower control module that is located under the maxifuse area. It'* literally in the hvac box and accessible once you pull the maxifuse center off the firewall (2 10mm nuts)
BillBoost37 is offline   Reply With Quote
Old 09-09-2009, 11:18 PM   #3
Senior Member
Posts like a 4 Banger

Join Date: Sep 2008
Location: Tampa Florida
Posts: 106
Thanks: 0
Thanked 0 Times in 0 Posts
QuickLTD is on a distinguished road
Default

The blower control thing.. Yeah mine tanked last week I just unplugged the motor from the harness. The part is over $100 for us CC guys. Less than $20 for the regular turn **** systems. I was going to wire a relay onto the ground wire so it shuts off when power is cut for now untill I can afford the part. I think thats nuts that the blower is wired normally hot.. Who thinks of this stuff lol. I went to replace the "blower motor relay" and found out i dont have one at least not where my alldata says it should be. Maybe you can use this info?
Attached Thumbnails

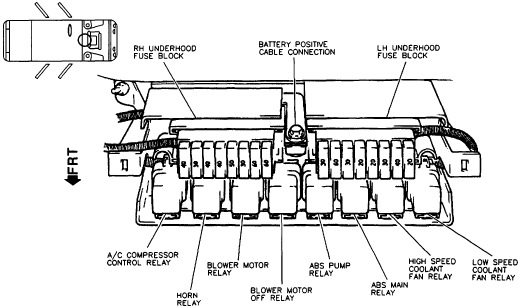

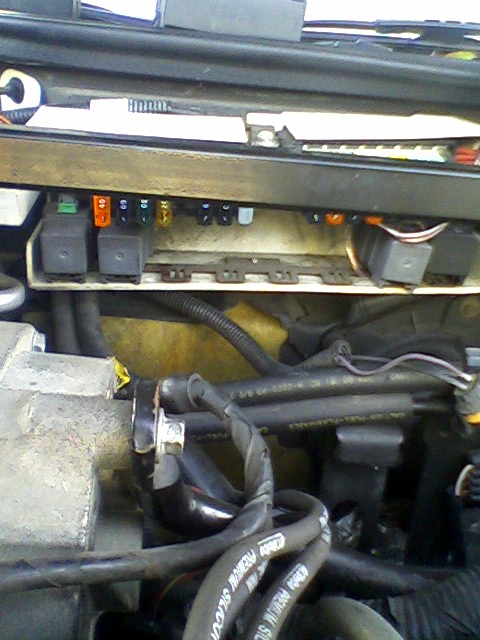

Blower Motor continues to run-0827090930.jpeg   Blower Motor continues to run-relay-center.gif
QuickLTD is offline   Reply With Quote
Old 09-10-2009, 07:32 AM   #4
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

I've picked a couple up a junkyards with great success. Much more cost effective.
BillBoost37 is offline   Reply With Quote
Old 09-10-2009, 02:11 PM   #5
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Sep 2009
Posts: 14
Thanks: 0
Thanked 0 Times in 0 Posts
newf31 is on a distinguished road
Default

What is the part called that will cost a 100 dollars and where is it located?. Do I have to get it from GM or is there after market? It appears that I don't have a blower relay either.
newf31 is offline   Reply With Quote
Old 09-10-2009, 02:13 PM   #6
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Quote:
Originally Posted by BillBoost37 View Post
I would think it'* more a relay or the blower control module that is located under the maxifuse area. It'* literally in the hvac box and accessible once you pull the maxifuse center off the firewall (2 10mm nuts)
Here you go. It'* all the info you need
BillBoost37 is offline   Reply With Quote
Old 09-10-2009, 09:27 PM   #7
Senior Member
Posts like a 4 Banger

Join Date: Sep 2008
Location: Tampa Florida
Posts: 106
Thanks: 0
Thanked 0 Times in 0 Posts
QuickLTD is on a distinguished road
Default

Yep, if you follow the wires on the blower motor they will take you right to it. Just like Bill said
QuickLTD is offline   Reply With Quote
Old 09-11-2009, 01:50 PM   #8
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Sep 2009
Posts: 14
Thanks: 0
Thanked 0 Times in 0 Posts
newf31 is on a distinguished road
Default

thanks I will give it a tray again on the weekend.
newf31 is offline   Reply With Quote
Old 09-15-2009, 09:54 AM   #9
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Sep 2009
Posts: 14
Thanks: 0
Thanked 0 Times in 0 Posts
newf31 is on a distinguished road
Default

You were both correct. I disconected the blower control module and the blower shut of. I'm going to try the wreckers.
