Old 05-13-2007, 09:38 PM   #11
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

Depends on which lock relay you are looking for..

With the Keyless system you have the Door Lock Relay under the seat( drivers side )... For the Drivers Door only, you have a Drivers Door Unlock Relay in the Passenger side relay center above the kick panel to the right...

Keep in mind that the Keyless module monitors the Lock and unlock pulses from the door switches as well..

Do all of the locks lock and unlock with the switches on the doors?

When you depress a button and nothing happens have the lights on the inside of the car turned on?

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 05-13-2007, 10:10 PM   #12
Senior Member
Posts like a Northstar

Join Date: Sep 2006
Location: Dumfries, Virginia Member: #6887
Posts: 577
Thanks: 0
Thanked 0 Times in 0 Posts
whitecrystal1 is on a distinguished road
Default

Quote:
Originally Posted by jr's3800
Do all of the locks lock and unlock with the switches on the doors?
Mine lock fine. So far I only have the problem with them unlocking. Most of the time they work fine, once a day or every other day they don't unlock. When it wouldn't unlock with the remote I tried to use the door button and it didn't work either.

If I play with the buttons on the remote or the door they do seem to start to work again for a little while.

Quote:
Originally Posted by jr's3800
When you depress a button and nothing happens have the lights on the inside of the car turned on?
no, but the car does still start at the third unlock pulse with the remote starter, even though the doors and lights arn't working.
whitecrystal1 is offline   Reply With Quote
Old 05-13-2007, 11:07 PM   #13
Member
Posts like a V-Tak

Join Date: Apr 2007
Location: Connecticut
Posts: 43
Thanks: 0
Thanked 0 Times in 0 Posts
93whiteSSE is on a distinguished road
Default

Ok I dont mean to take over this post or anything but I have a question about my locks as well and seeing this post is fairly fresh I figured I misewell as here and not in my own topic, anyways my powerlocks dont work, I have a 93 SSE and I was told the powerlocks are on the same fuse as my power seats the seats work fine...and I did look at the fuses and they all looked ok, any suggestions at what may be my problem? I figured if the power seats do work and they are on the same fuse as the powerlocks a short would also be out of the question?
93whiteSSE is offline   Reply With Quote
Old 05-13-2007, 11:09 PM   #14
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default Re: Alarm

Quote:
Originally Posted by cpc197c
I just purchased the car with everything the way that it is. Is there anything that I can try at home myself before taking it to a shop?
Then why do you have alarm system listed in your signature? We can only assume it'* aftermarket if you list it that way.
willwren is offline   Reply With Quote
Old 05-14-2007, 02:09 PM   #15
Junior Member
Thread Starter

Join Date: May 2007
Posts: 8
Thanks: 0
Thanked 0 Times in 0 Posts
cpc197c is on a distinguished road
Default

Oh, sorry about that. I'm checking the fuse under the drivers seat as I type this. Not sure though, as my power seats work fine. Yeah, the car is stock but is fully loaded with options. I'll change my sig to just say that the car is factory loaded

-Corey
cpc197c is offline   Reply With Quote
Old 05-14-2007, 03:41 PM   #16
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Corey..it could be a fuse, or one of two relays.. And if I recall properly..it could also be a remote module going south.

Everyone besides Corey with a lock problem. Please post your issues in a new thread with as much detail as possible after trying the same things we have him trying. It'* too confusing trying to determine who is being replied to otherwise. So far..the only person being replied to is Corey.
BillBoost37 is offline   Reply With Quote
Old 05-14-2007, 04:23 PM   #17
Junior Member
Thread Starter

Join Date: May 2007
Posts: 8
Thanks: 0
Thanked 0 Times in 0 Posts
cpc197c is on a distinguished road
Default

I've been looking around both under the driver'* seat and above the passenger'* kickboard, but cannot seem to locate the parts. Does anyone have pics of these parts that would help me. Yes, I do have keyless entry also. If I do find these parts, how do I check if they are faulty?

Sorry, I am not very good with cars, I am more into home electronics

-Corey
cpc197c is offline   Reply With Quote
Old 05-14-2007, 05:23 PM   #18
Senior Member
Certified GM nut

Join Date: Oct 2005
Location: Western New York
Posts: 1,942
Thanks: 0
Thanked 0 Times in 0 Posts
Technical Ted is on a distinguished road
Default

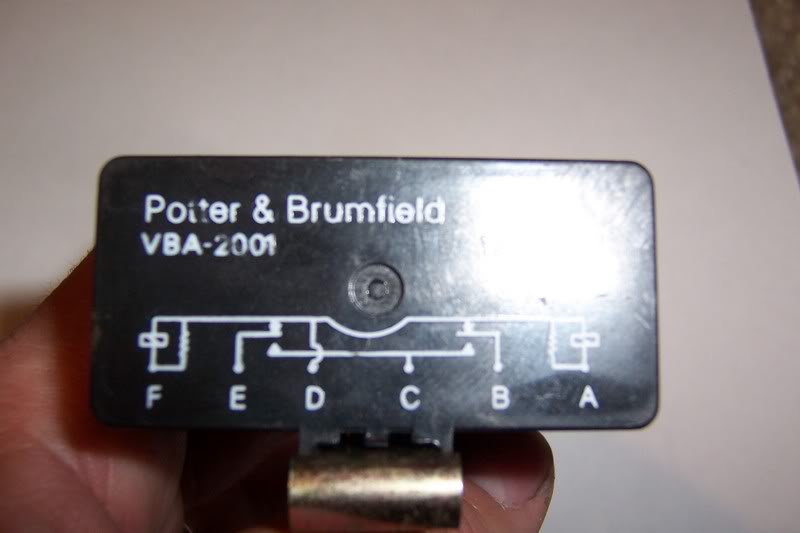

Is there a relay next to the passenger side relay center labeled Potter & Brumfield?

Name:  BonevilleParts003.jpg
Views: 1
Size:  32.6 KB
Technical Ted is offline   Reply With Quote
Old 05-14-2007, 09:07 PM   #19
Junior Member
Thread Starter

Join Date: May 2007
Posts: 8
Thanks: 0
Thanked 0 Times in 0 Posts
cpc197c is on a distinguished road
Default

Quote:
Originally Posted by Technical Ted
Is there a relay next to the passenger side relay center labeled Potter & Brumfield?

yes, I have that. How do I check if it is faulty?
cpc197c is offline   Reply With Quote
Old 05-14-2007, 10:21 PM   #20
Senior Member
Certified GM nut

Join Date: Oct 2005
Location: Western New York
Posts: 1,942
Thanks: 0
Thanked 0 Times in 0 Posts
Technical Ted is on a distinguished road
Default

1st remove the relay & give it a shake. There shouldn’t be any loose parts rattling around in there.
2nd check for continuity between terminals B & D
3rd check for continuity between terminals E & D

There are two relays inside. Next 2 checks have to be done with each relay energized.

Energize the lock relay by connecting the A terminal to the positive battery terminal & the D terminal to the negative battery terminal.
Check for continuity between terminals C & B (I’m expecting your problem to be here or the 2nd check above)

Energize the unlock relay by connecting the F terminal to the positive battery terminal & the D terminal to the negative battery terminal.
Check for continuity between terminals C & E
Technical Ted is offline   Reply With Quote
