Been there had that happen, usually when I try to remove the bolts w/o loosening them fairly evenly.

Sorry James..I should have remembered and warned you about that bracket. Take the bolt out of the tb and pry that bracket forward..it'll move out of the way.

That broken bolt you have a couple choices..one is drill and tap, If you can get a hold on it..it should move forward as if you were screwing it in..which would remove it in your case. Another is to use a air hammer or air chisel and punch it through. Then put a bolt with nut on there to hold the exhaust when you put it back together.

Found what I hope is some humor or at least good info for when you try and replace that bolt.

https://www.gmforum.com/t234353/

I am going to try to grab hold of it and screw it through, it that don't I will drill it and tap.

New Bolts all around.

Thanks Bill,

James

Sears makes a handy tool that fits on a ratchet for that. I still have one from my Sears days. Wish you were a little closer.

What does that tool look like?

Regards,
James

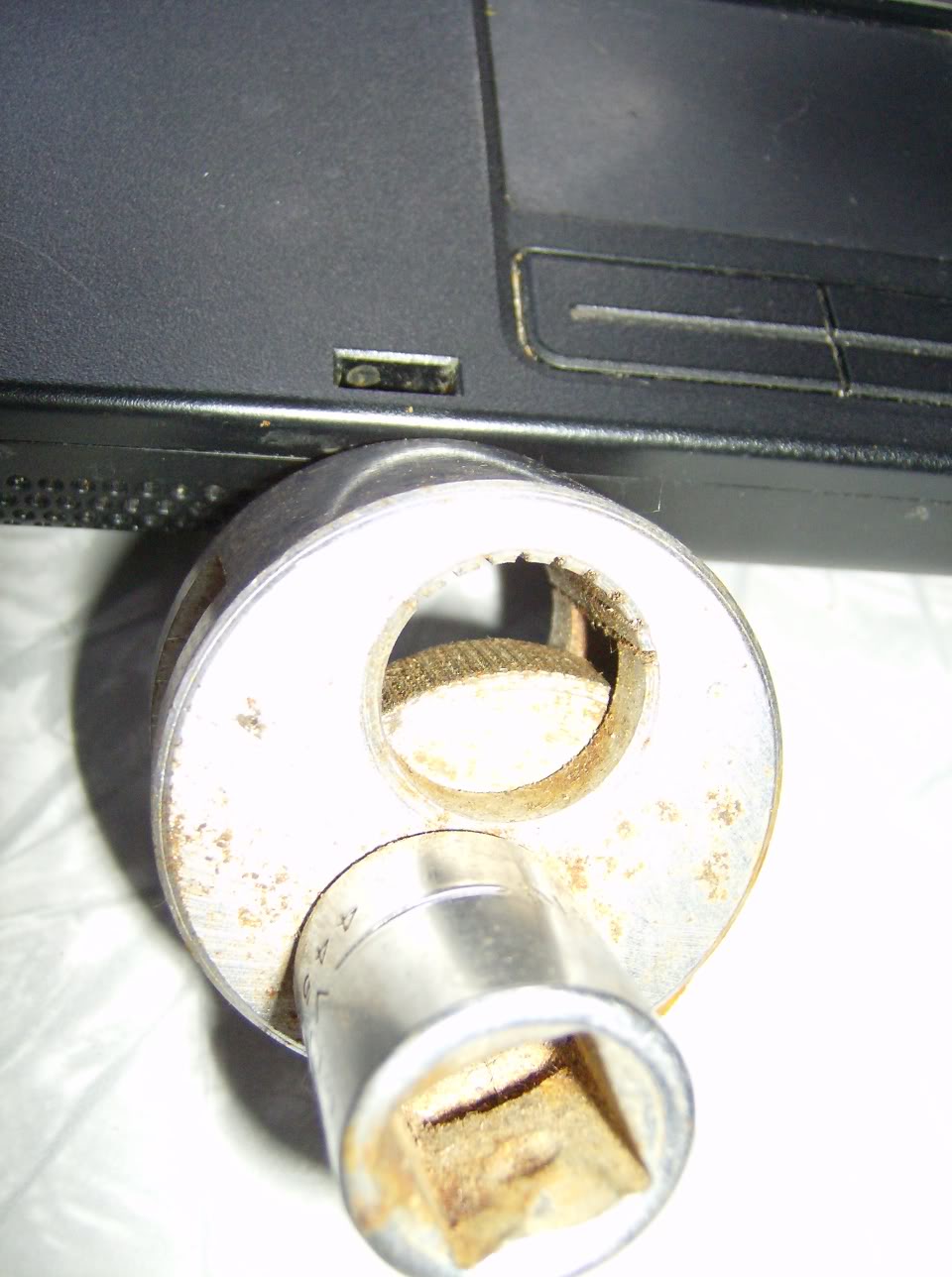

Had to dig for this to take a pic. It'* broken bolt/stud extractor. Craftsmen # 4457 I used it with alot of sucess over the years. You need about a 1/2 to 5/8'* inch of bolt for it to get a good grip. The center of the tool is hooked to the ratchet adapter and cam shaped. It grips the bolt from either direction.

What an ingenious tool!

Thanks man!

That tool is an actual exhaust stud remover.
