Old 06-17-2013, 02:31 PM   #11
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Sep 2006
Location: Long Island, NY
Posts: 601
Thanks: 0
Thanked 0 Times in 0 Posts
ChilinMichael is on a distinguished road
Default

It would have to be cut on that short section of steel, not the longer one, it'* the short one that comes out from under the trans. As you can see, it does a 90 degree and then there'* maybe an inch to the fitting?
ChilinMichael is offline   Reply With Quote
Old 06-17-2013, 02:45 PM   #12
Senior Member

True Car Nut

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

If you cut it right at the fitting, you might be able to slip a piece of hose on to go past that last bend. Put one clamp on near the end where the fitting was, and another around the bend where the rubber line ends at.
2kg4u is offline   Reply With Quote
Old 06-17-2013, 02:53 PM   #13
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Sep 2006
Location: Long Island, NY
Posts: 601
Thanks: 0
Thanked 0 Times in 0 Posts
ChilinMichael is on a distinguished road
Default

I'm wondering if the kit has the fitting to go directly into the transmission... Take a look tell me what you think. Link is on first page.
ChilinMichael is offline   Reply With Quote
Old 06-18-2013, 10:32 AM   #14
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Sep 2006
Location: Long Island, NY
Posts: 601
Thanks: 0
Thanked 0 Times in 0 Posts
ChilinMichael is on a distinguished road
Default

Other thought I had was to cut the rubber hose before it goes back to steel and just join that with an adapter to the new hose.
ChilinMichael is offline   Reply With Quote
Old 06-23-2013, 09:44 PM   #15
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Sep 2006
Location: Long Island, NY
Posts: 601
Thanks: 0
Thanked 0 Times in 0 Posts
ChilinMichael is on a distinguished road
Default

Little update, install is complete. I mounted the cooler infront of the condenser with the included brackets. one hooked to the airbag sensor bolt, then another a few inches away drilled a screw in. Routed the cooler lines through the headlamp area into the engine bay, cut the existing cooler lines on the rubber close to where it went back to metal towards the radiator, used hose barb to mate. Was near 90 today, drove around a while with no issue at all. Problem seems solved!
ChilinMichael is offline   Reply With Quote
Old 06-23-2013, 09:47 PM   #16
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Outstanding. Any pics of the install?
Mike is offline   Reply With Quote
Old 06-23-2013, 09:59 PM   #17
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Sep 2006
Location: Long Island, NY
Posts: 601
Thanks: 0
Thanked 0 Times in 0 Posts
ChilinMichael is on a distinguished road
Default

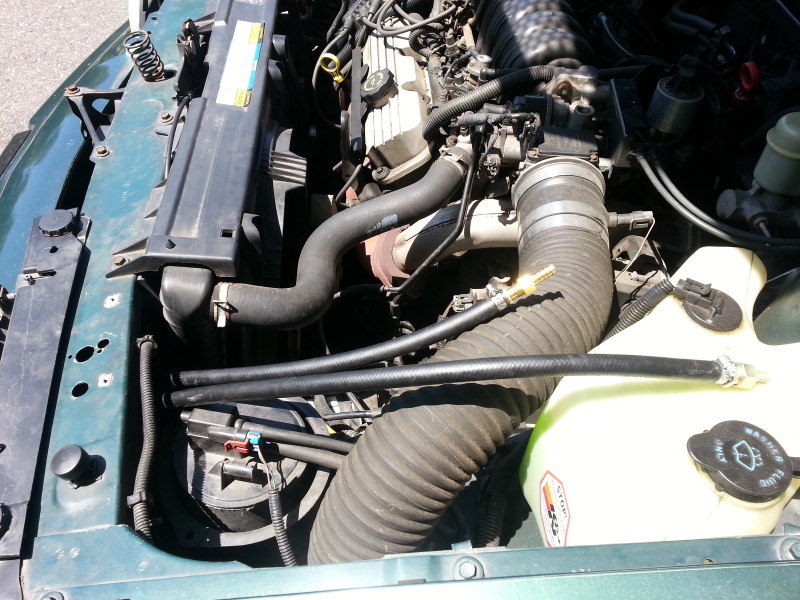

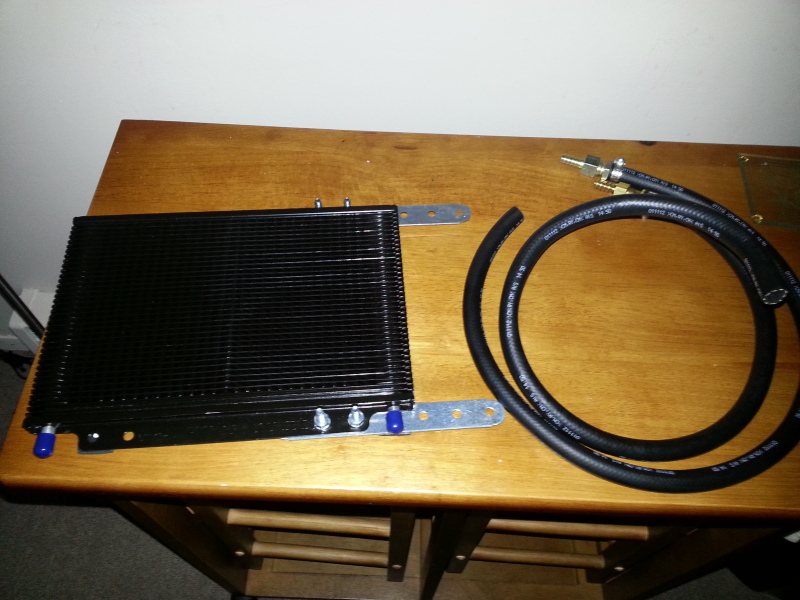

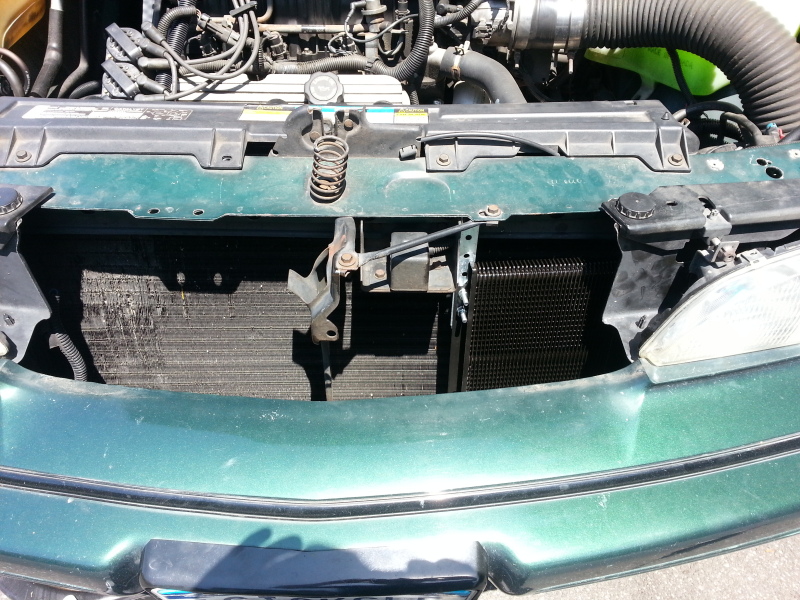

Sure, I will get finished product pictures tomorrow or Tuesday, but here'* some from during:







Attached Thumbnails
4T60-E Trans cooling question-20130623_080226_zpsee76d939.jpg   4T60-E Trans cooling question-20130623_111941_zps03029efb.jpg   4T60-E Trans cooling question-20130623_111951_zps9745e964.jpg
ChilinMichael is offline   Reply With Quote
Old 06-24-2013, 02:12 PM   #18
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Sep 2006
Location: Long Island, NY
Posts: 601
Thanks: 0
Thanked 0 Times in 0 Posts
ChilinMichael is on a distinguished road
Default

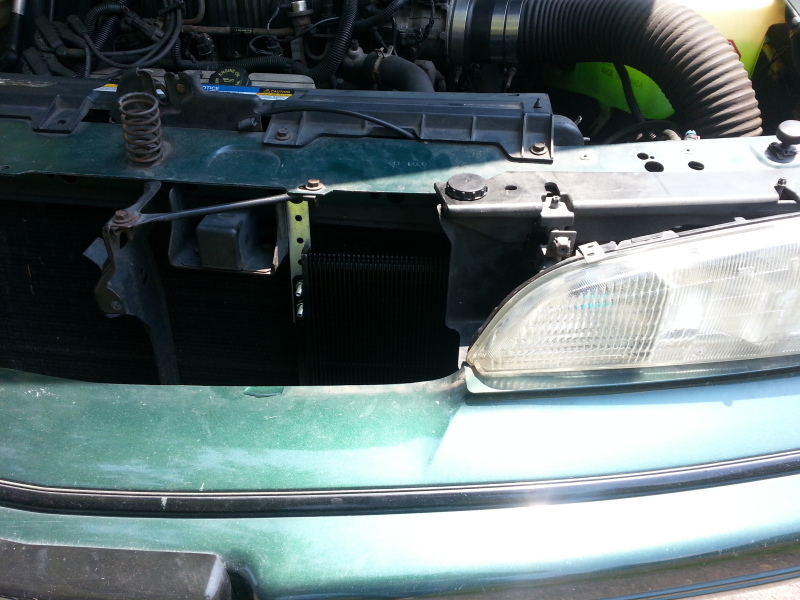

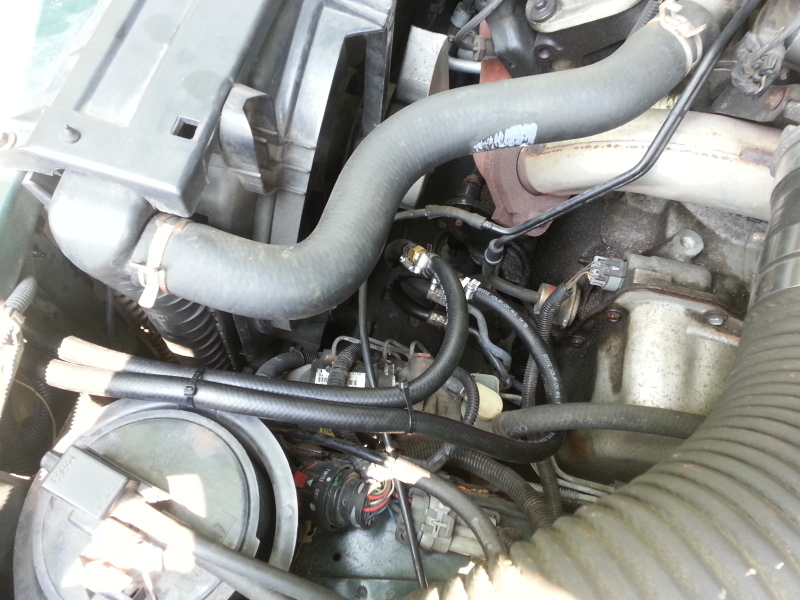

Finished:



Attached Thumbnails
4T60-E Trans cooling question-20130624_130855_zps11fcd707.jpg   4T60-E Trans cooling question-20130624_130907_zps080e7865.jpg
ChilinMichael is offline   Reply With Quote
Old 06-24-2013, 05:12 PM   #19
Senior Member
Posts like a 4 Banger

Smoke's Avatar

Join Date: Feb 2012
Location: Texas
Posts: 103
Thanked 3 Times in 1 Post
Smoke is on a distinguished road
Default

Looks professional. Good job.
Smoke is offline   Reply With Quote
Old 06-25-2013, 12:52 AM   #20
Senior Member
Posts like a Northstar
Thread Starter

Join Date: Sep 2006
Location: Long Island, NY
Posts: 601
Thanks: 0
Thanked 0 Times in 0 Posts
ChilinMichael is on a distinguished road
Default

Thank you.
ChilinMichael is offline   Reply With Quote
