Old 10-30-2014, 05:30 PM   #21
Senior Member

Posts like a Camaro

Join Date: Aug 2013
Location: Northern California
Posts: 1,014
Thanked 164 Times in 130 Posts
75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold
Default

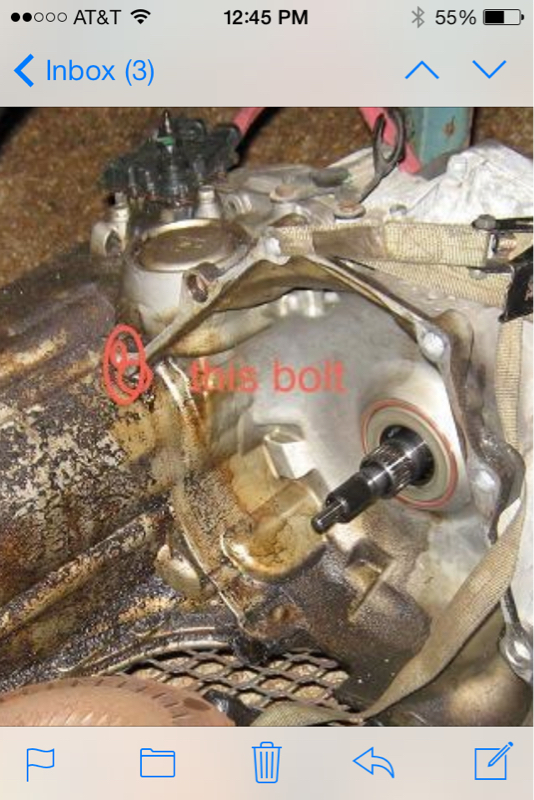

Here is a pic showing the pain reverse bolt.


1998 SSEi oil leak-image-2632953182.jpg
75 racer is offline   Reply With Quote
Old 10-30-2014, 08:08 PM   #22
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Nov 2008
Location: Tipp City , Ohio
Posts: 246
Thanked 18 Times in 13 Posts
ssei98 will become famous soon enoughssei98 will become famous soon enough
Default

I was getting ready to get out the #12 sledge hammer. You definitely found my problem. Thanks!
ssei98 is offline   Reply With Quote
Old 10-30-2014, 08:22 PM   #23
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Another term for that bolt is the "bush" bolt. Once it is out, its tossed into the bush to be forgotten forever.
Mike is offline   Reply With Quote
Old 10-31-2014, 05:15 PM   #24
Senior Member

Posts like a Camaro

Join Date: Aug 2013
Location: Northern California
Posts: 1,014
Thanked 164 Times in 130 Posts
75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold75 racer is a splendid one to behold
Default

Now you have the tranny out was the oil leak the rear main?
75 racer is offline   Reply With Quote
Old 11-01-2014, 12:30 PM   #25
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Nov 2008
Location: Tipp City , Ohio
Posts: 246
Thanked 18 Times in 13 Posts
ssei98 will become famous soon enoughssei98 will become famous soon enough
Default

The reason I could not see the 'bush bolt' was my view was obstructed by the bracket that attaches the tranny to the block on the passenger side. Once I realized I had overlooked that bracket I could see the bolt (by the way that bolt is 18mm not 15 mm, that cost me 15 minutes!). I am about 16 hours into this project and it has become very clear to me why most people would junk a car with 220,000 miles and leaks a quart every 400 miles from the rear main seal.

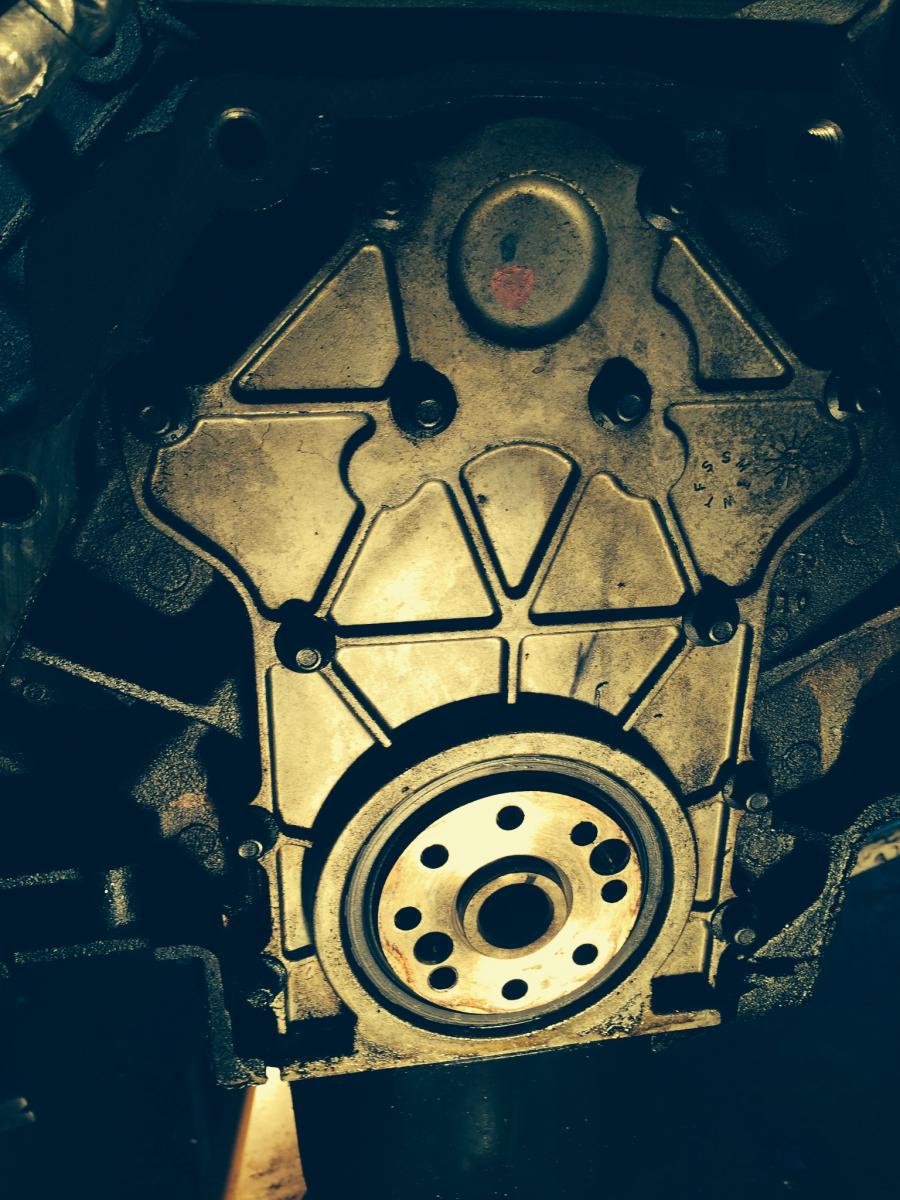

What I found was not as bad as I expected. I thought I would find oil everywhere behind the flywheel. What I did find was that the lower right bolt on the aluminum plate that holds the rear main was not even finger tight. I read the FSM and all it did was confuse me and make the repair seem very complicated. Looking for someone with experience replacing the cover to give me some advice.

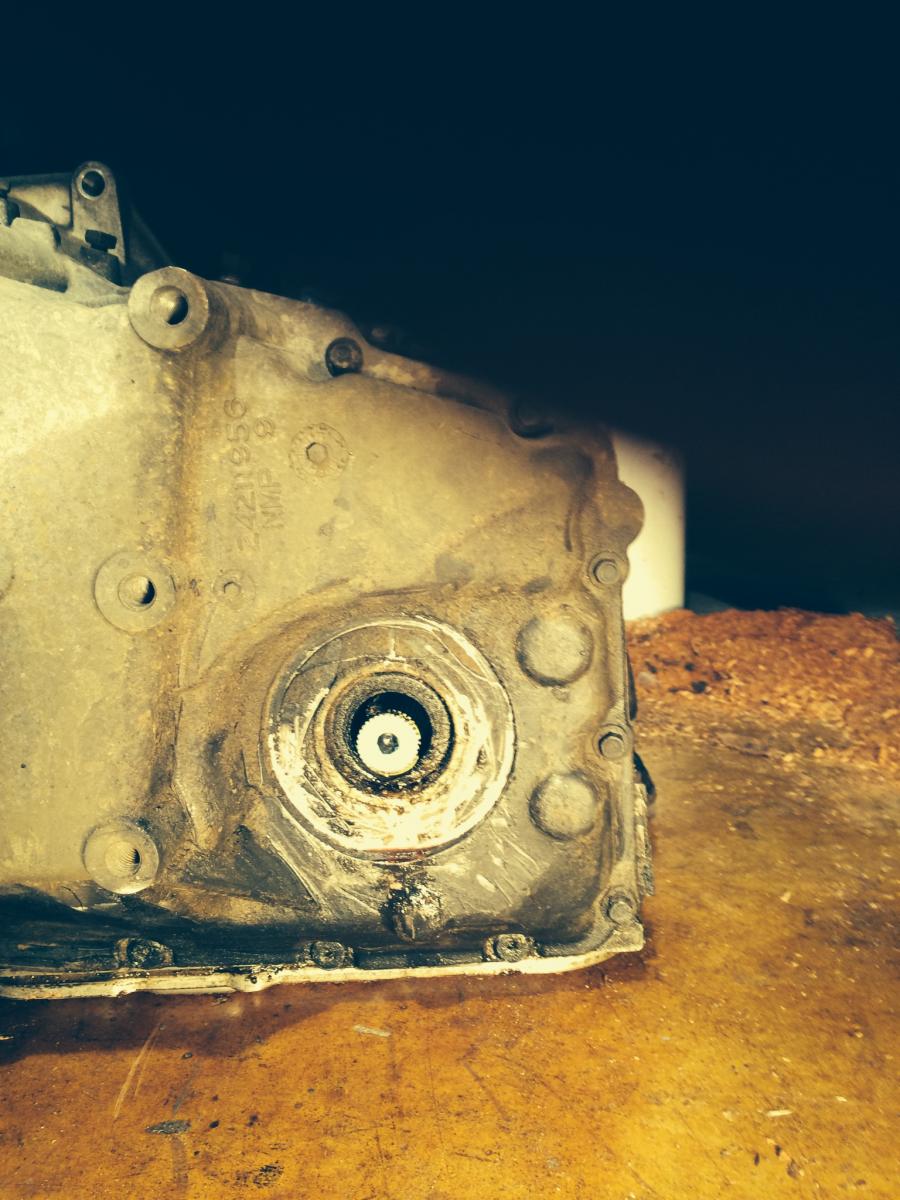

Also the the seal on the drivers side axle has apparently been leaking for some time. Looks like I could just pull the seal out and replace it. Could it be that simple?
Attached Thumbnails
1998 SSEi oil leak-rear-main-seal.jpg   1998 SSEi oil leak-tranny-seal.jpg
ssei98 is offline   Reply With Quote
Old 11-01-2014, 01:20 PM   #26
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Well, this is a first. This also explains why your flexplate was dry.

BUT, while your right there, you might as well REPLACE the rear main seal and be done with it.

I'm not sure about the 4T65-E trans. My 95 manual doesn't cover it. But I also think your a candidate for a bad solenoid valve. Which requires pulling the side cover to replace them. Might as well do that too while its out.
Mike is offline   Reply With Quote
Old 11-01-2014, 02:28 PM   #27
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,150
Thanked 785 Times in 614 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

oops, already answered.....

Last edited by Tech II; 11-01-2014 at 02:30 PM.
Tech II is offline   Reply With Quote
Old 11-01-2014, 02:36 PM   #28
Senior Member

Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 2,150
Thanked 785 Times in 614 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

Forgot to add, since the bolt was loose, I would remove the whole plate, and replace the gasket......also replace the rear main seal.....I know there is a special tool for the seal......not sure of the procedure on the plate...need a manual......
Tech II is offline   Reply With Quote
Old 11-01-2014, 03:18 PM   #29
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

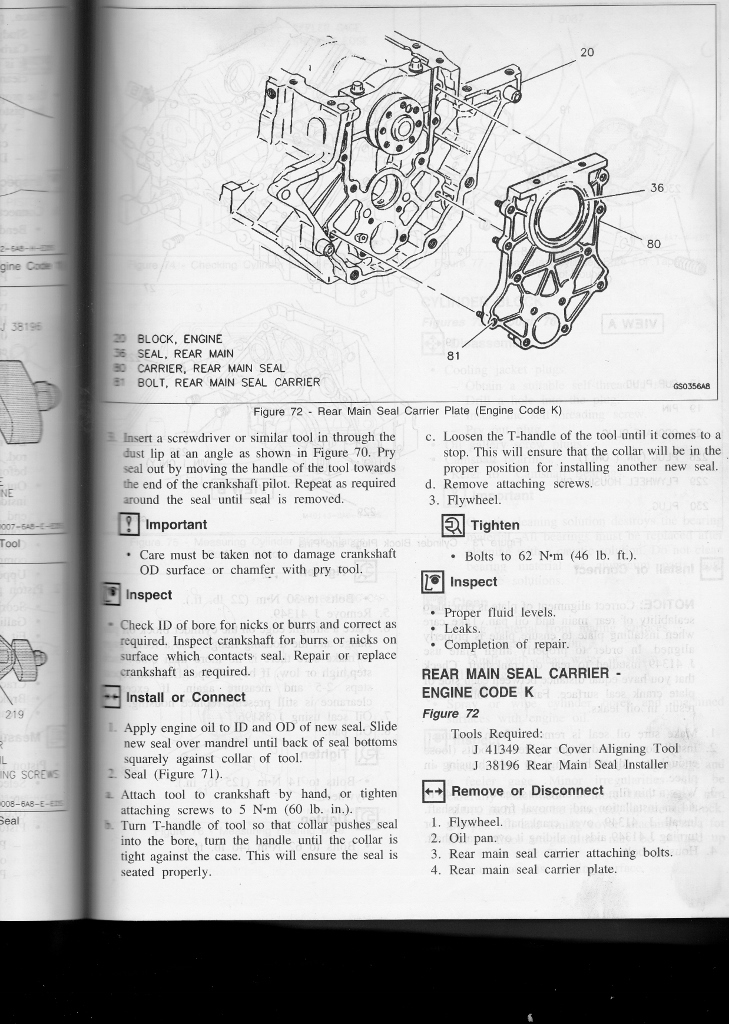

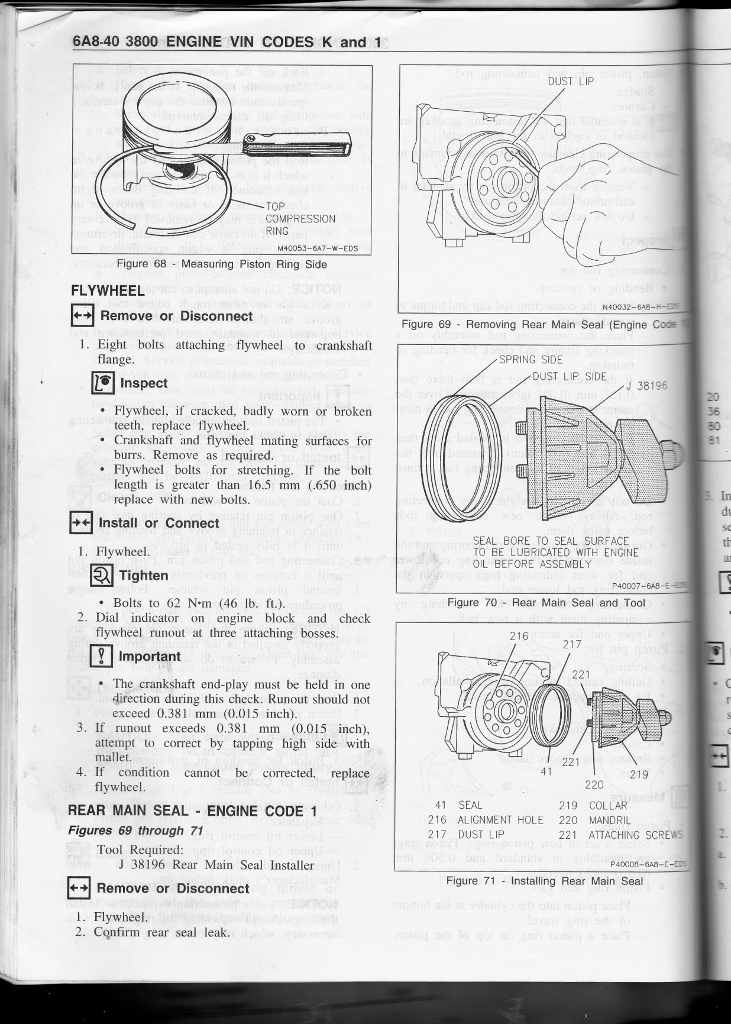

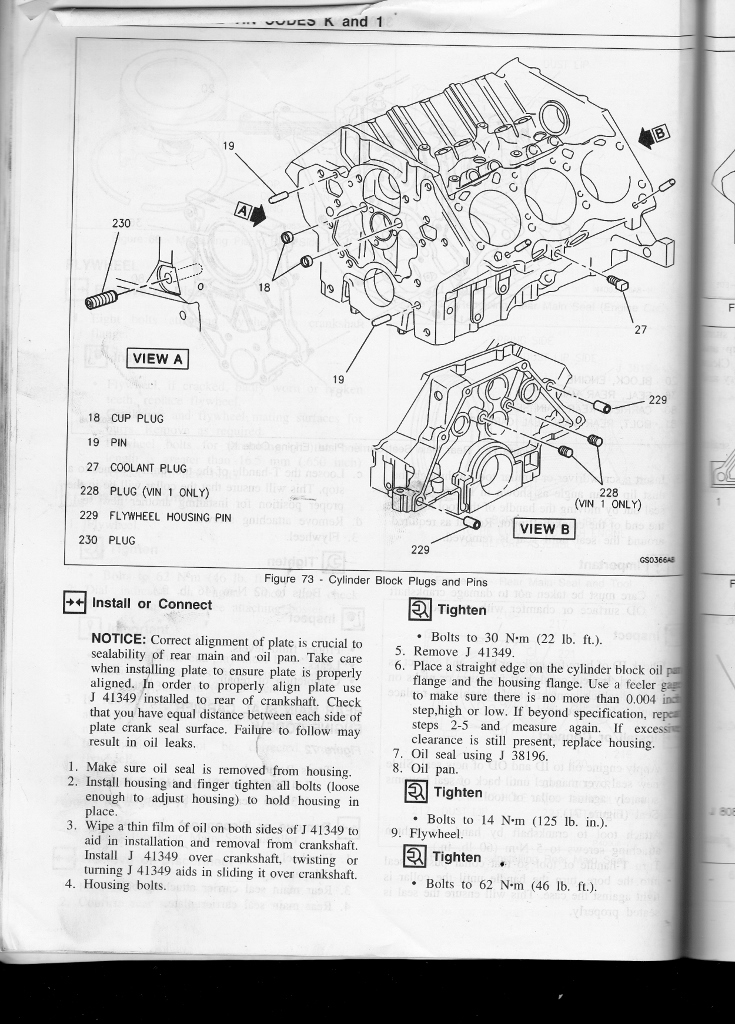

This is out of my 95 service manual. Same engine either way.
Attached Thumbnails
1998 SSEi oil leak-rear_main_1.jpg   1998 SSEi oil leak-rear_main_2.jpg   1998 SSEi oil leak-rear_main_3.jpg
Mike is offline   Reply With Quote
Old 11-02-2014, 08:02 PM   #30
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Nov 2008
Location: Tipp City , Ohio
Posts: 246
Thanked 18 Times in 13 Posts
ssei98 will become famous soon enoughssei98 will become famous soon enough
Default

Mike, I can't seem to zoom in on your FSM pages. Is there a zoom feature that I can't find?
Went to Advance Auto, they had both the right and left axle seals for less than $20 . The FSM says you simply pop them out with a screw driver and install the new one. Seems like cheap insurance while I am here. Can you be more spefic about the solenoid that I should replace? Looking at the manual it seems there are several.
ssei98 is offline   Reply With Quote
