Default 1996-up AC questions

Ok, I have these questions that I hope someone with an FSM can answer:

1) Can anyone get me the nominal operation values for the A/C pressure sensor on anything 1996-up?

2) Location of this sensor.

3) It appears that the coolant fan switch has been deleted in later models...so can anyone confirm that 1997 models do or do not have these?
sandrock is offline   Reply With Quote
Old 02-07-2008, 07:48 PM   #2
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

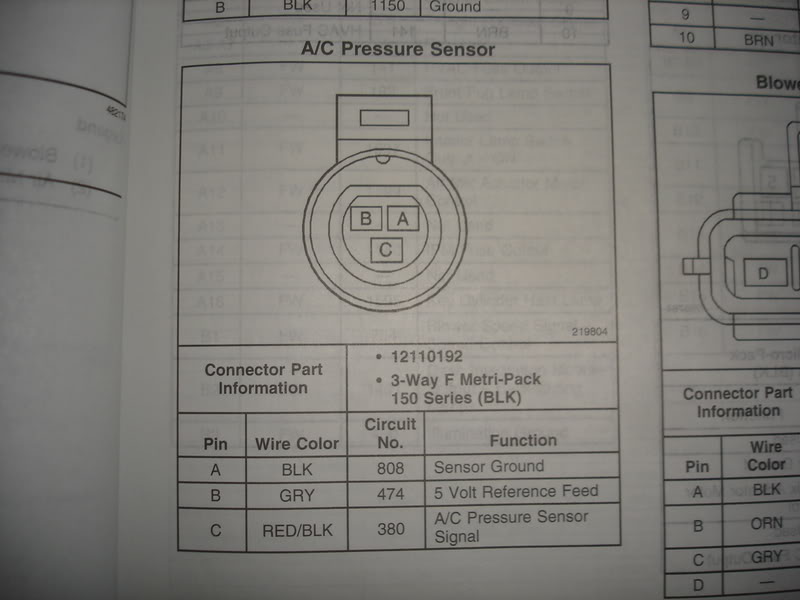

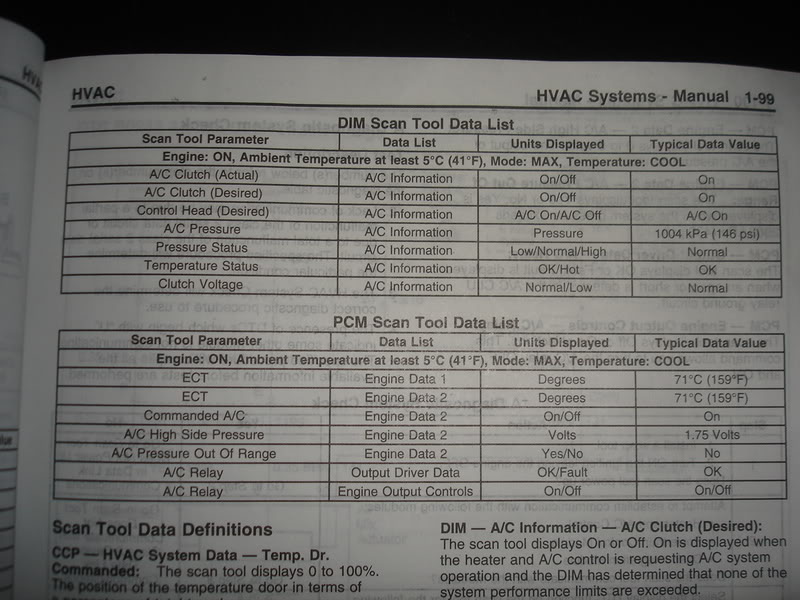

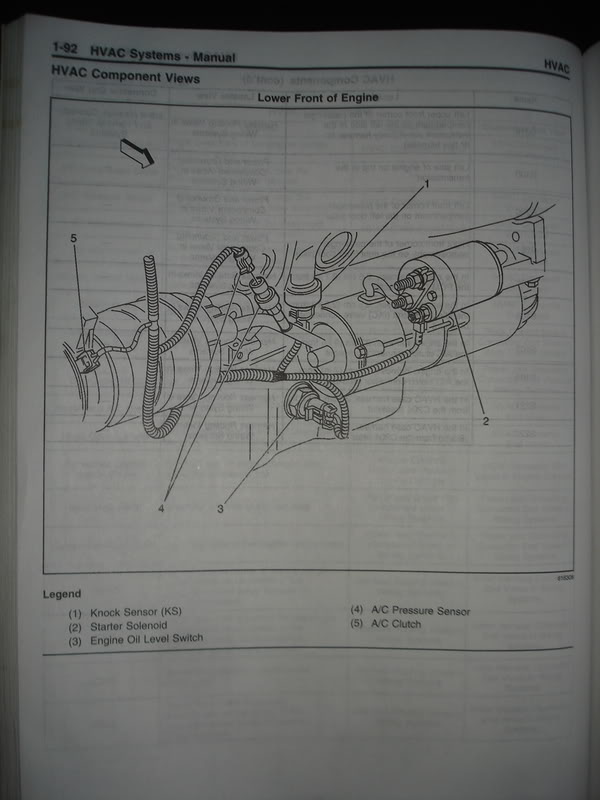

From my 2000 FSM

Here are #1 and 2 for you. I didn't see anything in the index about a switch, but I don't have a way to confirm.
Name:  DSC00047.jpg
Views: 0
Size:  102.9 KB
Name:  DSC00046.jpg
Views: 0
Size:  53.5 KB
Name:  DSC00045.jpg
Views: 0
Size:  59.1 KB
harofreak00 is offline   Reply With Quote
Old 02-07-2008, 08:13 PM   #3
Senior Member
True Car Nut
Thread Starter

Join Date: Aug 2004
Location: In your garage, swipin' da lug nutz
Posts: 3,067
Thanks: 0
Thanked 0 Times in 0 Posts
sandrock is on a distinguished road
Default

Good....I can swipe a sensor at a junkyard with little trouble. That sensor replaces the coolant fan switch as far as location is concerned.

Now then, another question...and I should have asked this on the first post...does the accumulator on newer models have a switch on them?

I am asking these questions because I am trying to adapt the older HR6 AC system, electrically, to the OBD2 PCM. I THINK it'* possible,
sandrock is offline   Reply With Quote
Old 02-07-2008, 08:19 PM   #4
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

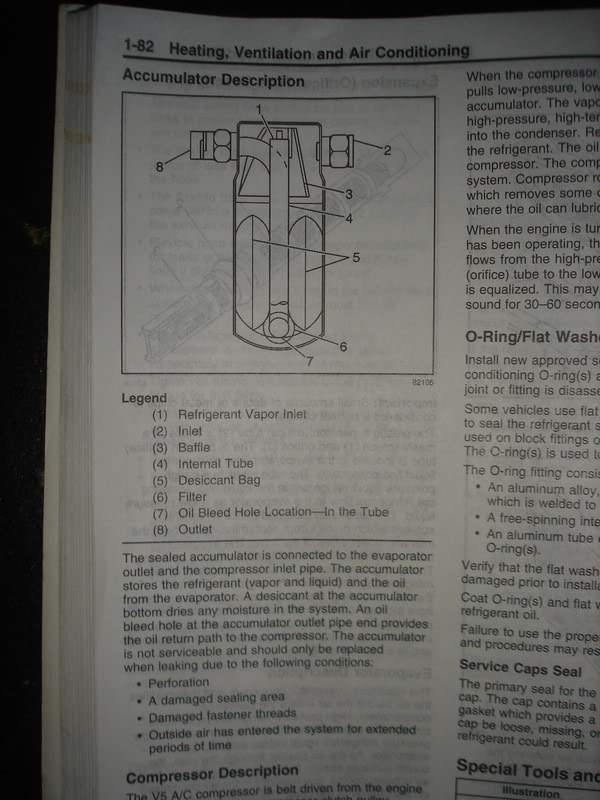

doesnt look like it.

Name:  DSC00048.jpg
Views: 0
Size:  83.7 KB
harofreak00 is offline   Reply With Quote
