Default 1996 SSEi Headers

I am looking for some aftermarket headers for my 96 SSEi. I can find them for 97 and up but nothing for the 96. Any suggestions?
oneball77 is offline   Reply With Quote
Old 06-18-2011, 01:24 PM   #2
Senior Member
True Car Nut

sawgunner's Avatar

Join Date: Jan 2009
Location: Dover, NH
Posts: 7,122
Thanks: 0
Thanked 0 Times in 0 Posts
sawgunner is on a distinguished road
Default

do you have a series 1 or 2 3800 in there?
sawgunner is offline   Reply With Quote
Old 06-18-2011, 01:38 PM   #3
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

The problem with headers on your year is not so much the engine but the transmission. If I remember right, there is a module on the transmission that will be very close to if not touching the header and it will melt. I believe you have the 4t60 transmission.
Danthurs is offline   Reply With Quote
Old 06-18-2011, 03:19 PM   #4
Junior Member
Thread Starter

Join Date: Jun 2011
Location: Maryland
Posts: 8
Thanks: 0
Thanked 0 Times in 0 Posts
oneball77 is on a distinguished road
Default

Its a series 2 3800 sc. And yes it is the 4t60 vacuum controlled trans.
oneball77 is offline   Reply With Quote
Old 06-18-2011, 11:52 PM   #5
Senior Member
Certified GM nut

wakefieldl's Avatar

Join Date: Dec 2005
Location: dekalb illinois
Posts: 1,916
Thanks: 0
Thanked 0 Times in 0 Posts
wakefieldl is on a distinguished road
Default

didnt those always have a problem burning wires? or that plug on the bell housing?

EDIT ; DOH! i really shoulda read dans post *facepalm*
wakefieldl is offline   Reply With Quote
Old 06-19-2011, 02:39 AM   #6
Senior Member
Certified GM nut

SignOfZeta's Avatar

Join Date: Mar 2005
Location: New Milford, CT
Posts: 2,284
Thanked 16 Times in 13 Posts
SignOfZeta has a spectacular aura aboutSignOfZeta has a spectacular aura about
Default

Quote:
Originally Posted by Danthurs View Post
The problem with headers on your year is not so much the engine but the transmission. If I remember right, there is a module on the transmission that will be very close to if not touching the header and it will melt. I believe you have the 4t60 transmission.
Not to hijack the thread, but are the 1997'* with the 4T60-E also affected?
SignOfZeta is offline   Reply With Quote
Old 06-20-2011, 08:23 AM   #7
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

The 4T60 has the electrical connector on the top front of the trans, The headers are designed for a 4T65 with the connector on the side.

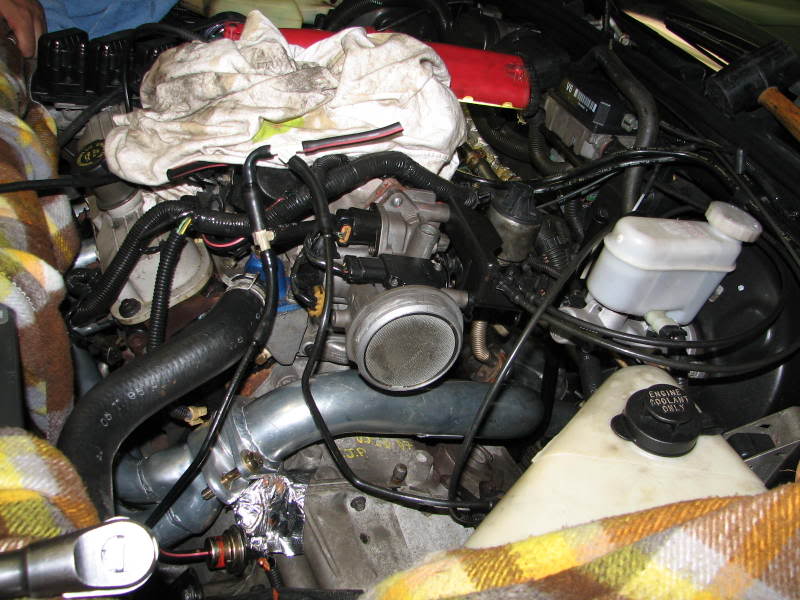

Here'* a picture where we can see the vacuum accumulator on the 4T60 is down low and out of the way, you may be able to see the electrical connector nearly touching these PaceSetter headers. Mostly it was the flange that hit. So SpeedDaddy headers may fit ok, or you may want to put some heat resistant material on it.

Name:  IMG_2340.jpg
Views: 2
Size:  84.5 KB
BillBoost37 is offline   Reply With Quote
Old 06-20-2011, 10:23 AM   #8
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Any car with the 4t60 will have the same problem. Bill nailed it. I couldn't remember if it was the modulator or the wires.
Danthurs is offline   Reply With Quote
Old 06-20-2011, 11:17 AM   #9
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

You know how it goes Dan.. after the second time the car comes back with trouble and you are trying to help the guy. You remember it.

In this case, it was the flange that caused the issue. I'd say if you didn't get pacesetters or TOGS, you'd probably be ok.
BillBoost37 is offline   Reply With Quote
Old 06-28-2011, 10:09 PM   #10
Junior Member
Thread Starter

Join Date: Jun 2011
Location: Maryland
Posts: 8
Thanks: 0
Thanked 0 Times in 0 Posts
oneball77 is on a distinguished road
Default

Dagnabbit... so basically, swap the motor, trans and pcm with a 97 or newer and im good. Otherwise, no upgrades for me.
