Old 03-20-2013, 08:20 PM   #21
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,651
Thanked 1,002 Times in 778 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

OH!!! You have a 95!!!!! Somewhere near the battery, you should find a single wire(don't ask me the color) with a single spade connector on it. It'* similar to this...



Run a single wire from the POSITIVE side of the battery to that connector. This will bypass the entire fuel pump relay system and energize the pump. I use to do this all the time to get a little cup of gas. I'll dig in my FSM for the fuel pump wires...
Attached Thumbnails
1995 Oldmobile 88 Royale possible ECM issue-6mm-female-electrical-spade-connector-red.jpg
Mike is offline   Reply With Quote
Old 03-20-2013, 08:54 PM   #22
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,651
Thanked 1,002 Times in 778 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Attached Thumbnails

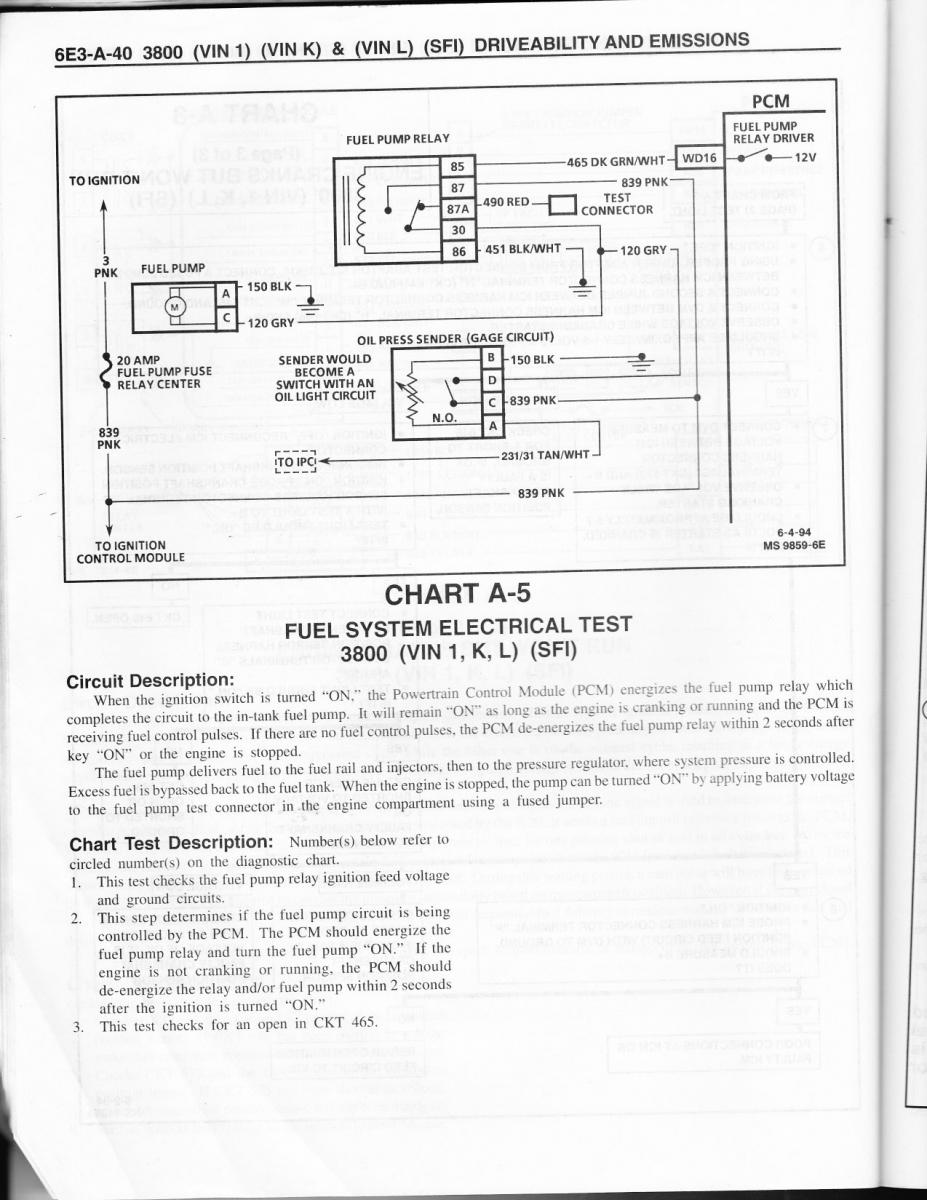

1995 Oldmobile 88 Royale possible ECM issue-fuelschematic.jpg
Mike is offline   Reply With Quote
Old 03-21-2013, 04:06 AM   #23
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Feb 2009
Location: Regina, Saskatchewan
Posts: 251
Thanks: 0
Thanked 0 Times in 0 Posts
WeaD is on a distinguished road
Default

We pulled the tank tonight.
What we did was:
1) unhooked the fill tube from the body
2) unhooked the fill tube from the rubber fitting (be careful as they are connected)
3) Plugged the rubber fitting with a tin lid from some jar, and then we hose clamped it (we had half a tank of fuel
4) Drilled out the bolts for the gas tank straps (we will replace them with better bolts)
5) Got the rubber fill tube fitting past the E-brake cables (it was ugliness)
6) unhooked gas lines at the fuel filter
7) unplugged the electrical to the pump
We rocked it side to side towards the drivers side, and it pretty much slid right out
***We did not have to remove the exhaust or the heat shield (Thank god!)

Tomorrow I will be picking up all the parts I should need, and hopefully reinstalling to massive success.

I had a hell of a time finding basic information on this job, and what is the best way to attack it. Maybe people can chime in with tips to do it better, and the next guy in line will be helped .

Thank you to the people who have chimed in, and I will be sure to post my results, successful or otherwise.
WeaD is offline   Reply With Quote
Old 03-21-2013, 04:09 AM   #24
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Feb 2009
Location: Regina, Saskatchewan
Posts: 251
Thanks: 0
Thanked 0 Times in 0 Posts
WeaD is on a distinguished road
Default

Note for step two.
What I meant to say is the fill tube and vent tube are joined on the pipe, as well as on the rubber fitting. If you twist on it to much, you may risk ripping it open.
WeaD is offline   Reply With Quote
Old 03-21-2013, 07:17 AM   #25
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

you want to make sure everything is absolutely sealed when you put it back, or you will get evap codes
jwfirebird is offline   Reply With Quote
Old 03-21-2013, 04:04 PM   #26
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Feb 2009
Location: Regina, Saskatchewan
Posts: 251
Thanks: 0
Thanked 0 Times in 0 Posts
WeaD is on a distinguished road
Default

Thats the goal, and we will do our best. Thanks man.
WeaD is offline   Reply With Quote
Old 03-22-2013, 02:13 PM   #27
Senior Member
Posts like a Supercharger

Join Date: Apr 2011
Location: Pointe-des-Cascades, QC
Posts: 194
Thanks: 0
Thanked 2 Times in 2 Posts
stegarsla is on a distinguished road
Default

My 2 cents : I changed my fuel pump to a universal one "supposed" to be ok. It doesn't push enough volume and I can't floor the pedal, it just goes lean and cuts.

Make sur the psi and gpm are good, "high pressure, high volume" are not quantifiable.
stegarsla is offline   Reply With Quote
Old 03-22-2013, 03:59 PM   #28
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Feb 2009
Location: Regina, Saskatchewan
Posts: 251
Thanks: 0
Thanked 0 Times in 0 Posts
WeaD is on a distinguished road
Default

It'* fixed. No leaks that I can see, and 45psi at the rail.
What a ugly job though....
After sitting in the garage my passenger side blows cold air only, while drivers blows hot. I fiddled with it all the way to work, but with little success. The passenger controls were disabled, and the heat was maxxed with no AC on. Is it just a stuck flap in the heating system. It feels like its blowing in air from outside, as it is terribly cold here.
WeaD is offline   Reply With Quote
Old 03-22-2013, 06:43 PM   #29
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,651
Thanked 1,002 Times in 778 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

What was fixed?
Mike is offline   Reply With Quote
Old 03-23-2013, 07:48 PM   #30
Senior Member
Posts like a Turbo
Thread Starter

Join Date: Feb 2009
Location: Regina, Saskatchewan
Posts: 251
Thanks: 0
Thanked 0 Times in 0 Posts
WeaD is on a distinguished road
Default

The car. It was a bad fuel pump. Replaced that and the filter, and now its good to go.
Well, except for my climate control problem.... lol
WeaD is offline   Reply With Quote
