Default Changed LIM gasket....car wont start...maybe firing order???

so i changed the LIM gasket on my car,..everything went smoothley, but now the car wont start. I checked, and there is lots of fuel pressure, but i think my firing order is messed up. Can anyone throw me a picture of where my wires are supposed to go to which coil?? thanks
roman is offline   Reply With Quote
Old 08-15-2007, 01:44 PM   #2
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2007
Posts: 16
Thanks: 0
Thanked 0 Times in 0 Posts
roman is on a distinguished road
Default

The firing order that i am using right now is the same as the l67....and i am also assuming that on my coils...the ones closest to the driver are 6,3 then 2,5, then 4,1 with 4,1 being closest to the passenger side.

i hope im wrong with the order....since i have no idea what else could be wrong. Fuel injectors are clipped in and hooked up, and i have no leftover bolts
roman is offline   Reply With Quote
Old 08-15-2007, 01:50 PM   #3
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

The front 3 cylinders are 1, 3, 5, from front to right. Back 3 are 2, 4, 6.
J Wikoff is offline   Reply With Quote
Old 08-15-2007, 01:53 PM   #4
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2007
Posts: 16
Thanks: 0
Thanked 0 Times in 0 Posts
roman is on a distinguished road
Default

so on my coils...where do they go?? the coil packs are not numbered

thanks
roman is offline   Reply With Quote
Old 08-15-2007, 01:56 PM   #5
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

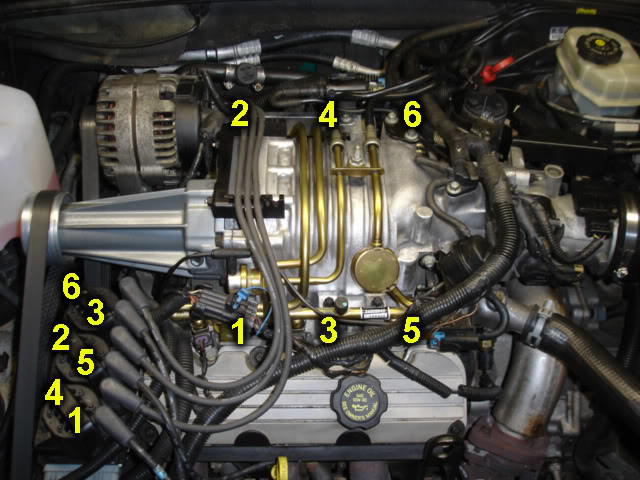

Name:  plugwires.jpg
Views: 1
Size:  73.9 KB
J Wikoff is offline   Reply With Quote
Old 08-15-2007, 01:58 PM   #6
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2007
Posts: 16
Thanks: 0
Thanked 0 Times in 0 Posts
roman is on a distinguished road
Default

i was using that as a reference...but once again...i dont know on my car...which coil is for which cylinder.

im starting to think I maybe fucked something up
roman is offline   Reply With Quote
Old 08-15-2007, 02:03 PM   #7
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

Even if you swapped the coils around, the wires would still go in the same place as shown.
J Wikoff is offline   Reply With Quote
Old 08-15-2007, 02:06 PM   #8
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2007
Posts: 16
Thanks: 0
Thanked 0 Times in 0 Posts
roman is on a distinguished road
Default

ok...i have spark...and i have fuel...this has to be my firing order...if not...im thinking the only other thing was that damn rtv...what if i put a lil too much on??

btw...the rtv was done two days ago.... so its definetly dry
roman is offline   Reply With Quote
Old 08-15-2007, 02:08 PM   #9
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

I can't imagine RTV preventing a start. Unless you gooped up the ends of the spark plugs with it. I'm assuming it'* just on the LIM end seals, and thus nowhere near the plugs. Got all your sensors plugged back in?
J Wikoff is offline   Reply With Quote
Old 08-15-2007, 02:10 PM   #10
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2007
Posts: 16
Thanks: 0
Thanked 0 Times in 0 Posts
roman is on a distinguished road
Default

just...just checked and double checked that all sensors are plugged in

and yes...the rtv in only on the gasket
roman is offline   Reply With Quote
