Default AC Recharging

I learned my car was retrofitted with r-134a in 97 by the previous owner and I wanted to refill it with coolant because it comes out lukecold (if that'* a real term ) but I dont know where the Low end of the ac system is because the repair manuals don't cover AC refill. I wanted to pick up one of those refill cans with the pressure gauge attach, can some of you help. I was wondering if it was where the blue cap is seen in the pic below



BonnevilleLErocks is offline   Reply With Quote
Old 03-11-2007, 01:11 AM   #2
Senior Member
Posts like a 4 Banger

Join Date: Jan 2007
Location: Northern West Virginia
Posts: 136
Thanks: 0
Thanked 0 Times in 0 Posts
rustedmetal86 is on a distinguished road
Default

yep the blue cap is the low end. The 134a charge kits will only attach to the low pressure side, IIRC.

Hope this helps
rustedmetal86 is offline   Reply With Quote
Old 03-11-2007, 05:47 AM   #3
Junior Member

Join Date: Mar 2006
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
myfirstbonnie is on a distinguished road
Default

Just a little added info: The AC system is a closed loop system, if it looses it'* charge there is a leak somewhere. It could be as simple as a bad o ring or as costly as a pin hole in the condenser. You could end up wasting your money by continually recharging it.
myfirstbonnie is offline   Reply With Quote
Old 03-11-2007, 07:07 AM   #4
Senior Member
True Car Nut

Join Date: Jul 2004
Location: Twin Falls, Idaho
Posts: 7,545
Thanks: 0
Thanked 1 Time in 1 Post
Hans is on a distinguished road
Default

In order for you to use that kit your fittings will need to be R134 size.






I dont know the exact locations for your car but I know the diameters of a R134a car vs a R12 car are different.

follow the lines to the canister.
Hans is offline   Reply With Quote
Old 03-11-2007, 12:54 PM   #5
BANNED

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
banned3800 is on a distinguished road
Default

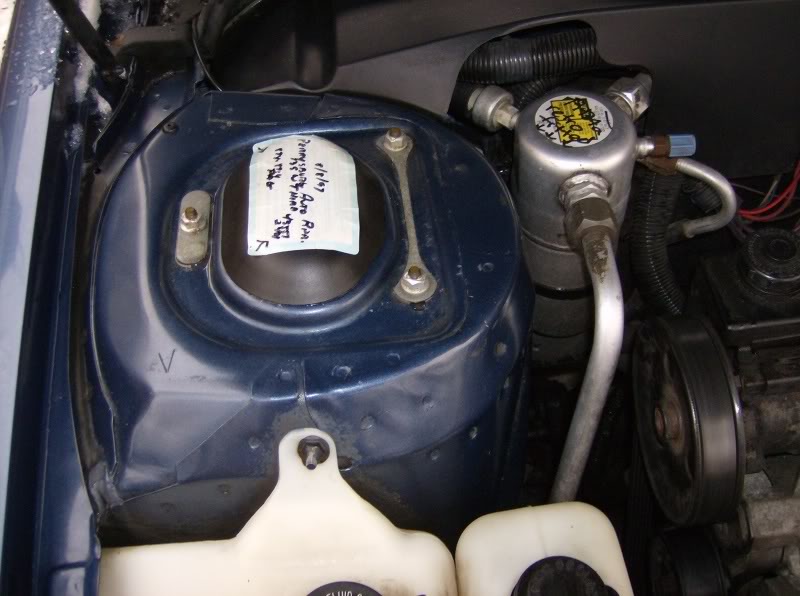

Name:  clean002.jpg
Views: 15
Size:  66.9 KB

The Blue cap is the low pressure/Suction port... You have the 134a fitting and will be able to use that kit..

I would wait for the weather to warm up a little bit tho..

We will be able to give you a good range to charge to on the low side via the Humidity and Ambient temperatures...

I retrofitted my 91 LE a long time ago... Found the leak to be the valve on the high pressure side... Fixed that issue and got a kit...

Its been almost 7 years on 134a... Still have the original compressor... It rattles a bit but still gets the job done.. Sooner or later I will replace my compressor.. But for the longest time even in 90F heat it would blow cold...

__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
banned3800 is offline   Reply With Quote
Old 03-11-2007, 01:29 PM   #6
Senior Member
Posts like a Camaro
Thread Starter

Join Date: Jan 2007
Location: Detroit MI,
Posts: 926
Thanks: 0
Thanked 0 Times in 0 Posts
BonnevilleLErocks is on a distinguished road
Default

Thanks for the help guys
