Default work getting started on the 99 gs

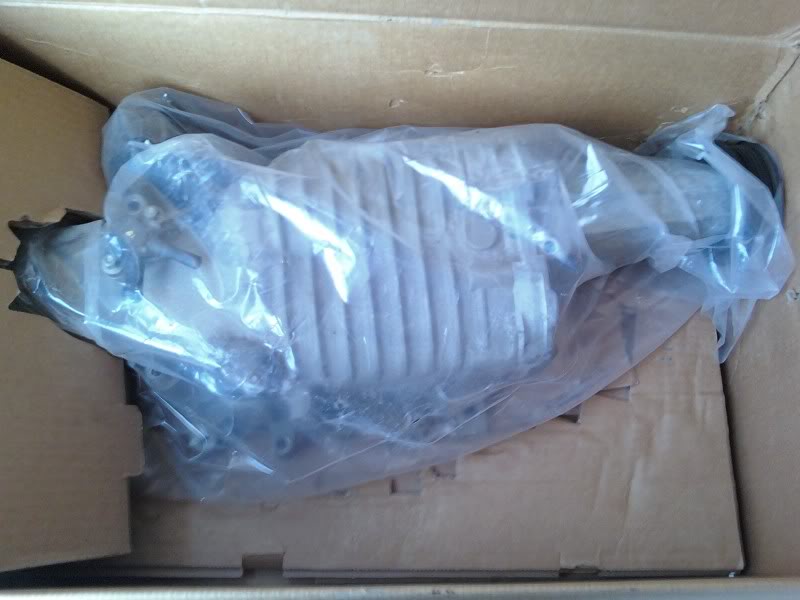

we start off with (stock gen v)
Name:  bfdbc351.jpg
Views: 1
Size:  50.0 KB

some time and work with the die grinder and old dremel bits that fit the micro die grinder
Name:  fe65910f.jpg
Views: 0
Size:  56.1 KB

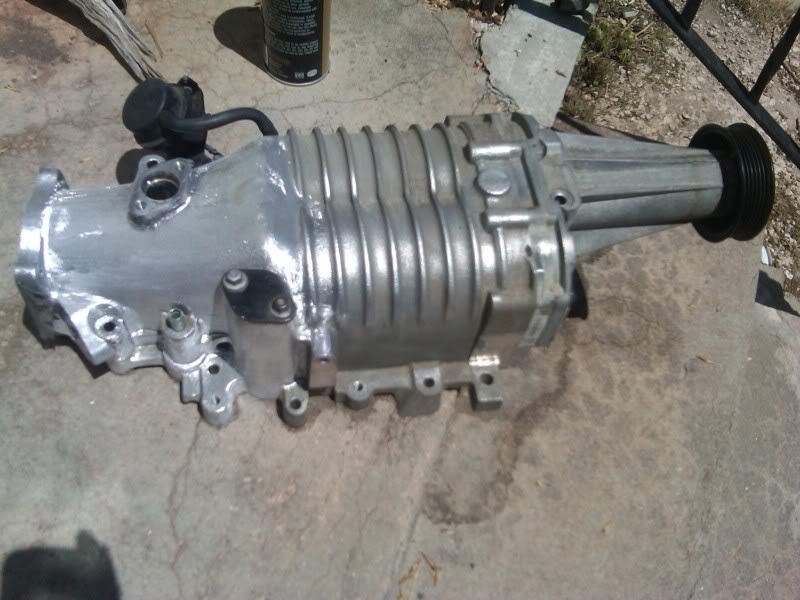

hit it with a wire wheel and some carb cleaner to get the residual oil and such off and you can see the process of the shine coming out and this is still in the rough stage
Name:  3d9a508c.jpg
Views: 0
Size:  72.9 KB

this is where she sits today after doing the smoothing and blending. for those that cant tell i shaved down all the 3 casting areas and smoothed them to give it a more blended look.
Name:  fe581e34.jpg
Views: 0
Size:  48.4 KB

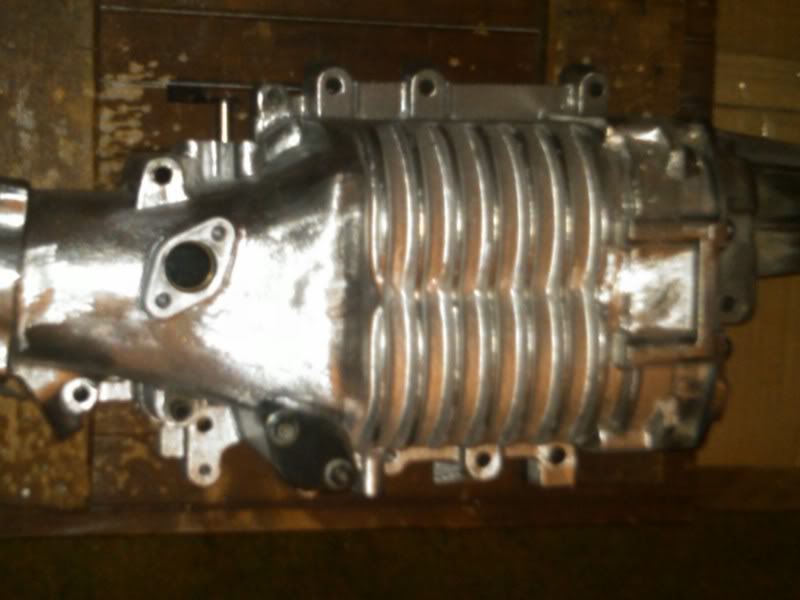

I will be doing the exterior for today and tomorrow and then on thursday I will take the case to the machine shop to open the intake up and get rid of the lip then get rid of the h bar on the outlet. I know there is mixed reviews on doing this but I did it on the other one so y not. next section will detail the lim and the work getting done on it

Name:  706dd89e.jpg
Views: 0
Size:  43.1 KB

I have prolly a good 15+ hrs into it at this point and this is just the rough stuff the hand sanding and shining isnt even started I will finish the little bit I have to knock out the sand cast layer tomorrow then I will take it to the machine shop thursday and hopefully get it back in a week then really start the finish work and the shiny stuff. I will work on the lim while the case is getting worked then blend the lip on the n* and the adapter to mate up to the new inlet

Name:  62939242_photobucket_409_.jpg
Views: 0
Size:  50.5 KB
the to do list lol

Name:  62939242_photobucket_407_.jpg
Views: 0
Size:  56.7 KB
in daylight with flash fill

Name:  62939242_photobucket_408_.jpg
Views: 1
Size:  59.6 KB

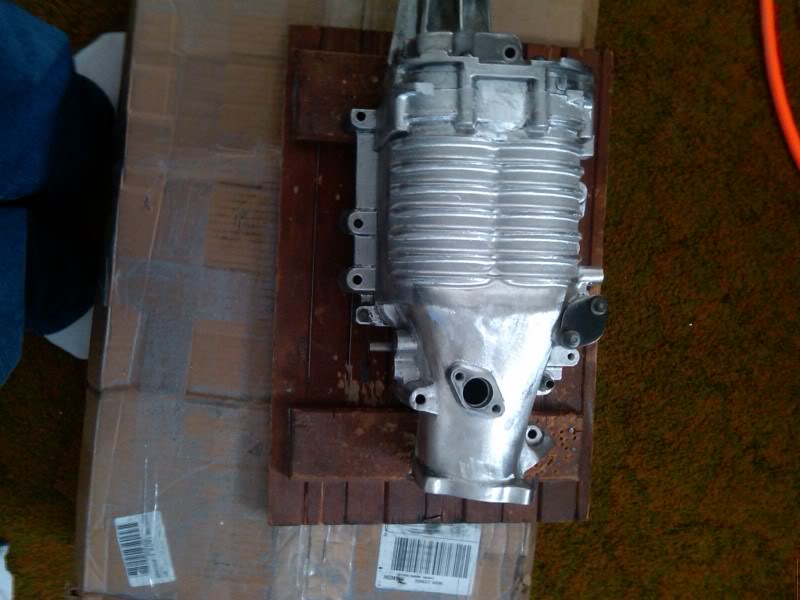

daylight without flash fill

on to the lim

Name:  62939242_photobucket_405_.jpg
Views: 0
Size:  78.3 KB
coolant crossover ported and smoothed

Name:  62939242_photobucket_508_.jpg
Views: 0
Size:  51.4 KB
smoothed and shiny bottom of the lim less sandcast to have oil hang on

Name:  62939242_photobucket_509_.jpg
Views: 0
Size:  49.4 KB
port matched and smoothed lim runners needs to be finished and polished but that will get there

Name:  62939242_photobucket_511_.jpg
Views: 0
Size:  51.2 KB
set screws drilled and tapped into the coolant ports

the to do list on the lim is slowly getting smaller but I need to open and match the opening for the cooler and smooth all edges and imperfections. This car will be shiny and look as good as possible when done
Name:  101834858_photobucket_691_.jpg
Views: 0
Size:  75.8 KB

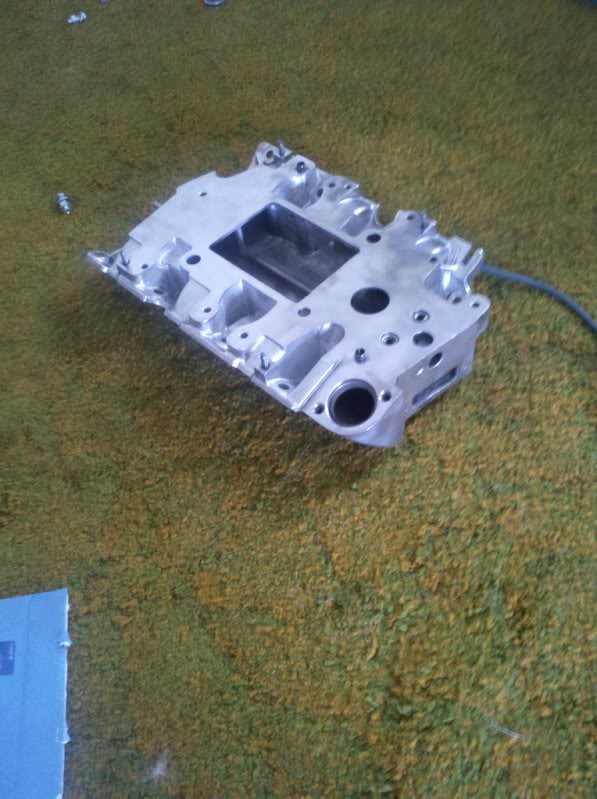

the sc housing is at the machine shop so here is the progress on the lim it is looking good if you ask me. I also started on the dogbone mount today but didnt get any pics
gojo83 is offline   Reply With Quote
Old 06-18-2011, 10:06 AM   #2
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Looking great. Polishing is a lot of work. Bet you can't wait to get it on the car.
Danthurs is offline   Reply With Quote
Old 06-18-2011, 01:14 PM   #3
Senior Member
Posts like a Supercharger

Badazzgta89's Avatar

Join Date: Dec 2010
Posts: 177
Thanked 2 Times in 2 Posts
Badazzgta89 is on a distinguished road
Default

Awsome now paint the bottom of your LIM with white paint! old racer trick!
Badazzgta89 is offline   Reply With Quote
Old 06-18-2011, 03:52 PM   #4
Senior Member
Posts like a Turbo

Bville_GXP's Avatar

Join Date: May 2009
Location: South Carolina
Posts: 248
Thanks: 0
Thanked 0 Times in 0 Posts
Bville_GXP is on a distinguished road
Default

So that'* how they get those things so shiny!!! looking really good there!!! Nice job
Bville_GXP is offline   Reply With Quote
Old 06-18-2011, 11:41 PM   #5
Senior Member

True Car Nut

sseidriver97's Avatar

Join Date: Mar 2010
Location: Portage mi
Posts: 7,124
Thanked 3 Times in 3 Posts
sseidriver97 is on a distinguished road
Default

Looks real good!
sseidriver97 is offline   Reply With Quote
Old 06-19-2011, 12:14 AM   #6
Senior Member
Posts like a Corvette
Thread Starter

Join Date: Jul 2006
Location: Cheyenne, Wy.
Posts: 1,251
Thanked 0 Times in 0 Posts
gojo83 is on a distinguished road
Default

Quote:
Originally Posted by Badazzgta89 View Post
Awsome now paint the bottom of your LIM with white paint! old racer trick!
looking to get some of the ceramic coating that you can do at home and coat the bottom with that
gojo83 is offline   Reply With Quote
Old 06-22-2011, 12:50 AM   #7
Senior Member
Certified GM nut

SpinEm_90's Avatar

Join Date: Mar 2010
Location: Wentzville, Missouri
Posts: 1,754
Thanks: 0
Thanked 0 Times in 0 Posts
SpinEm_90 is on a distinguished road
Default

Very ncie!
SpinEm_90 is offline   Reply With Quote
Old 06-30-2011, 05:44 AM   #8
Senior Member
Posts like a Corvette
Thread Starter

Join Date: Jul 2006
Location: Cheyenne, Wy.
Posts: 1,251
Thanked 0 Times in 0 Posts
gojo83 is on a distinguished road
Default

well kinda an update there is a 95% chance all this will not end up in the 99 but in a older car that I found for 300 bucks. I think a 300+ hp mid engine sports car would make a hell of a fun ride
gojo83 is offline   Reply With Quote
Old 06-30-2011, 09:28 AM   #9
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

fiero?
jwfirebird is offline   Reply With Quote
Old 06-30-2011, 12:41 PM   #10
Senior Member

True Car Nut

sseidriver97's Avatar

Join Date: Mar 2010
Location: Portage mi
Posts: 7,124
Thanked 3 Times in 3 Posts
sseidriver97 is on a distinguished road
Default

Must be if its mid engine or something whacky LOL
sseidriver97 is offline   Reply With Quote
