SSExi lives - GM Forum - Buick, Cadillac, Chev, Olds, GMC & Pontiac chat


Your Ride: GM Pictures & Videos Post pictures, sounds, and VIDEOS of Your GM Vehicle. We want to see 'em! (Any picture or video files must be posted on a server somewhere to be linked here). Also post pics of Regional or National meets.

Reply



Thread Tools Search this Thread
Old 07-07-2011, 03:23 PM   #1
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default SSExi lives

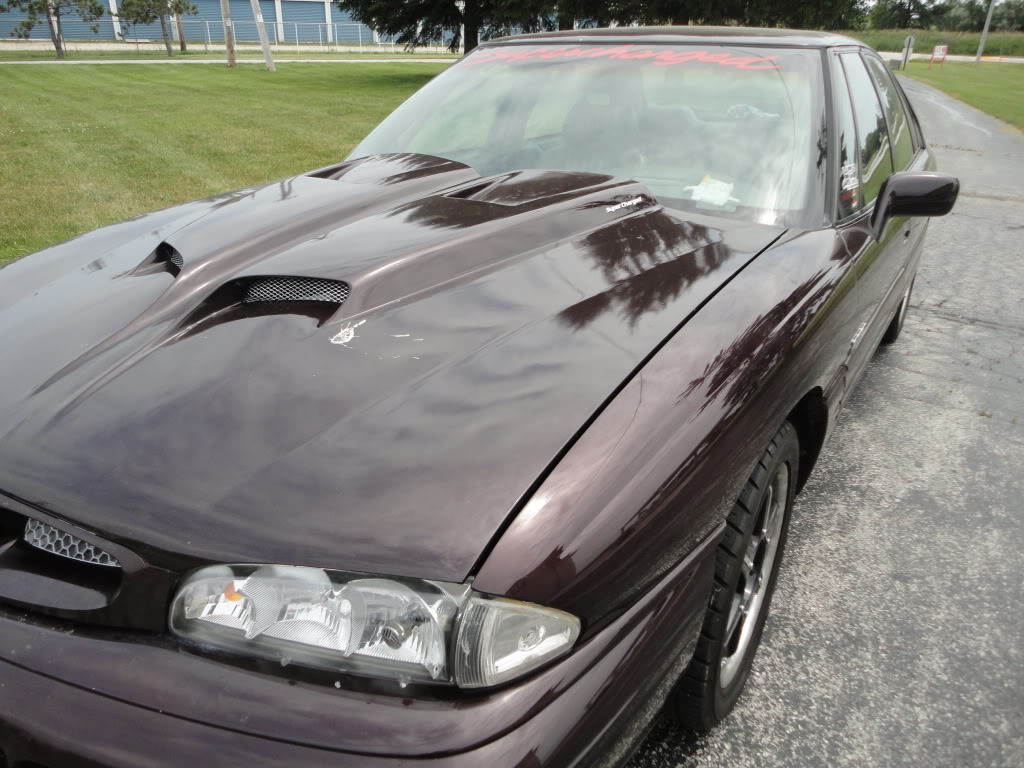

Well, look at this. SSExi is out of the shop under her own power.
Name:  DSC04351.jpg
Views: 4
Size:  142.5 KB

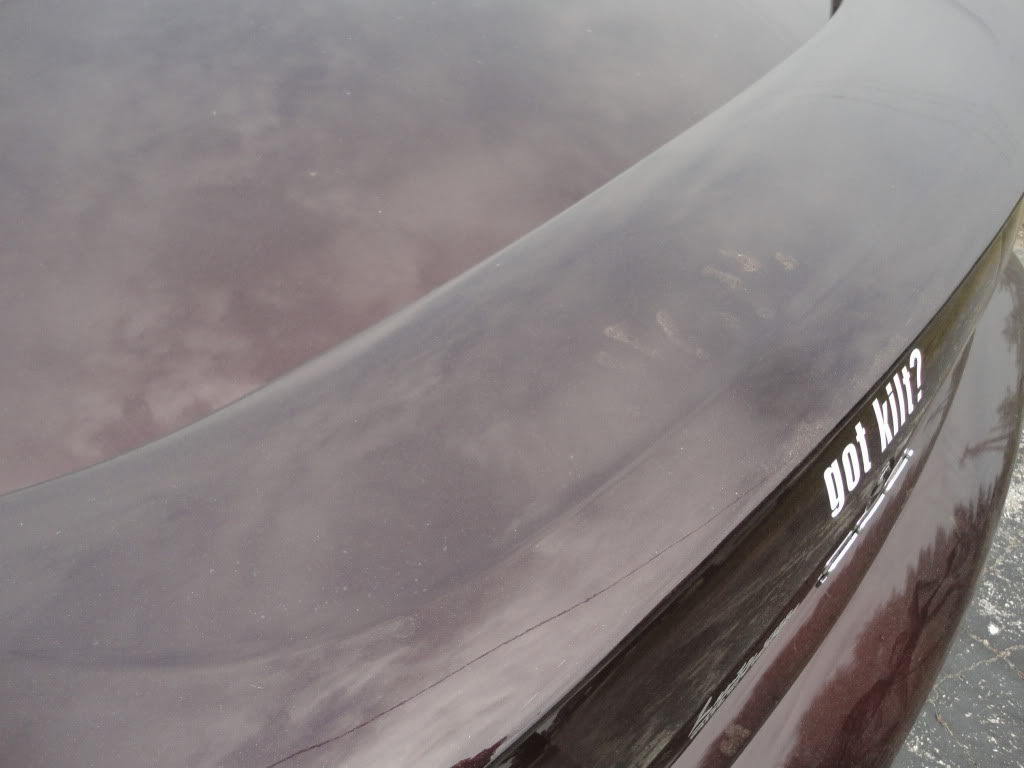

Ya, she needs a bath, real bad.
Name:  DSC04352.jpg
Views: 7
Size:  58.4 KB

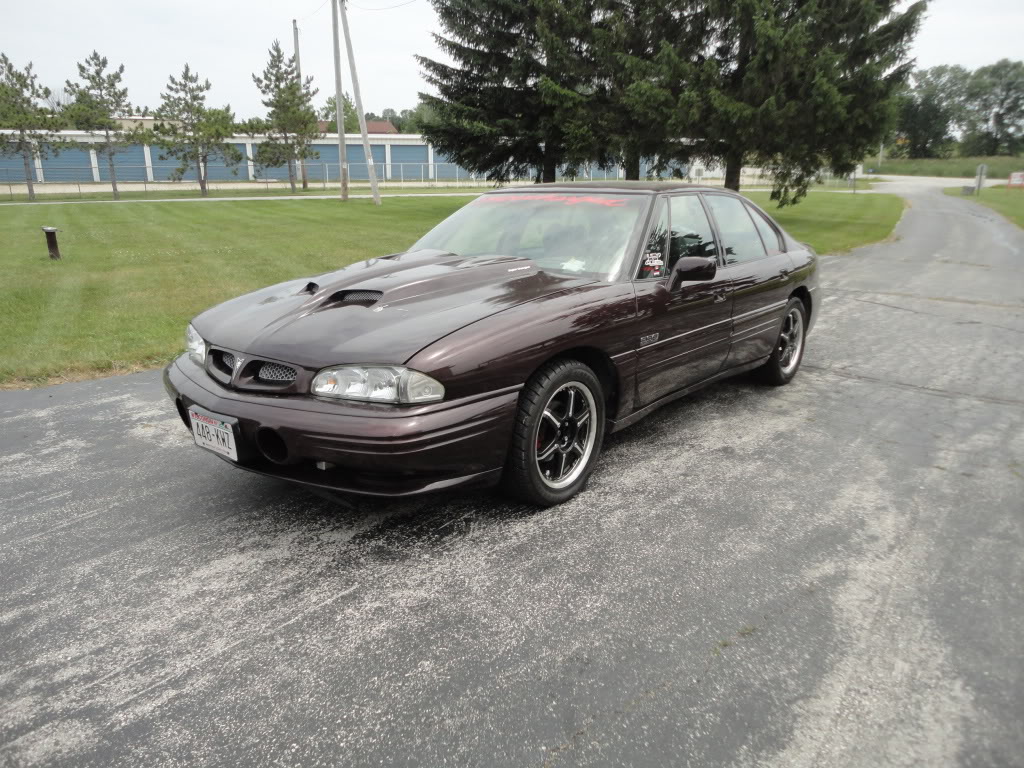

I plan to do that as soon as I get back from picking up my son.
Name:  DSC04353.jpg
Views: 3
Size:  203.6 KB

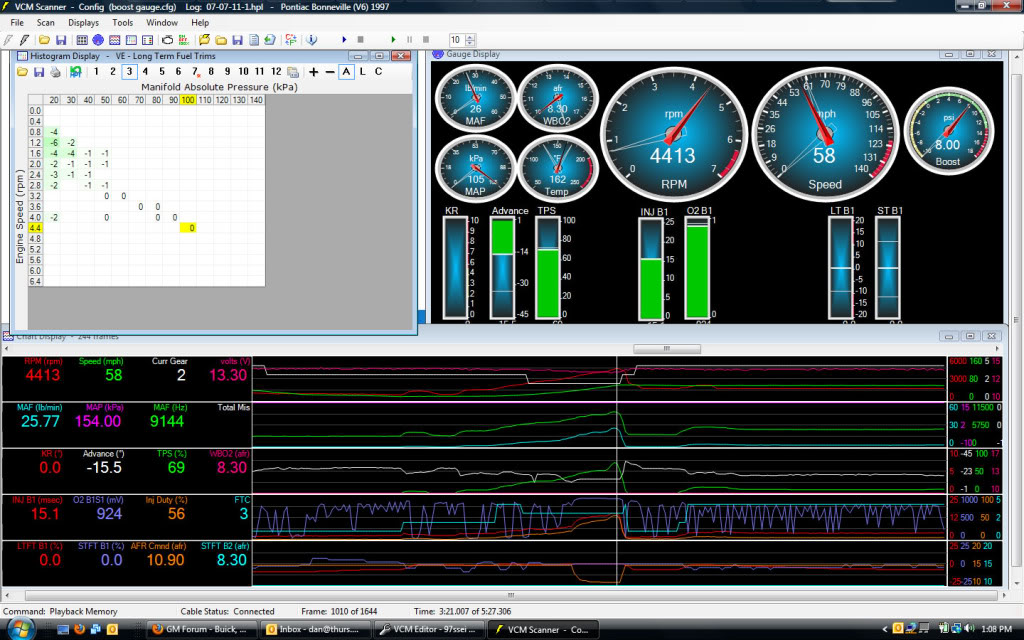

Took her for a little ride. Dang, I'm happy.
Name:  scan.jpg
Views: 2
Size:  173.6 KB

Right now the timing is a bit low, around 25* when driving, and about 16* under a heavier load. I've got a bit more testing to do, and need to replace the oil pressure sender I broke. Once that is done I can start the tuning. My LTFTs seem to be real good, but I want to get them closer to zero. As I said, timing is low, I hope to add a few degrees to that. But all in all, she pulls real good. Only got on it up to 70% throttle, and she whined a bit.

Now, I'm sure your asking, what did I do to fix the problem. Well, let me say that right now I hope I fixed the problem. I had no KR on this drive. Before I couldn't even get out of the driveway and I was seeing up to 15* After all the changes I was convinced it was not real KR, so I went in to the tune and opened the Knock Retard Attack Rate vs RPM table and turned down the settings in the 0 to 2400 RPM range. I didn't turn it off, just turned it way down.
Danthurs is offline   Reply With Quote
Old 07-07-2011, 05:54 PM   #2
Senior Member
Posts like a Supercharger

Badazzgta89's Avatar

Join Date: Dec 2010
Posts: 177
Thanked 2 Times in 2 Posts
Badazzgta89 is on a distinguished road
Default

Good job just in time for a meet were gonna have in milwaukee the 16th of this month!
Badazzgta89 is offline   Reply With Quote
Old 07-07-2011, 05:55 PM   #3
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Wish I could go, but I'm working at the Renascence faire in Bristol on the weekends.
Danthurs is offline   Reply With Quote
Old 07-07-2011, 06:15 PM   #4
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

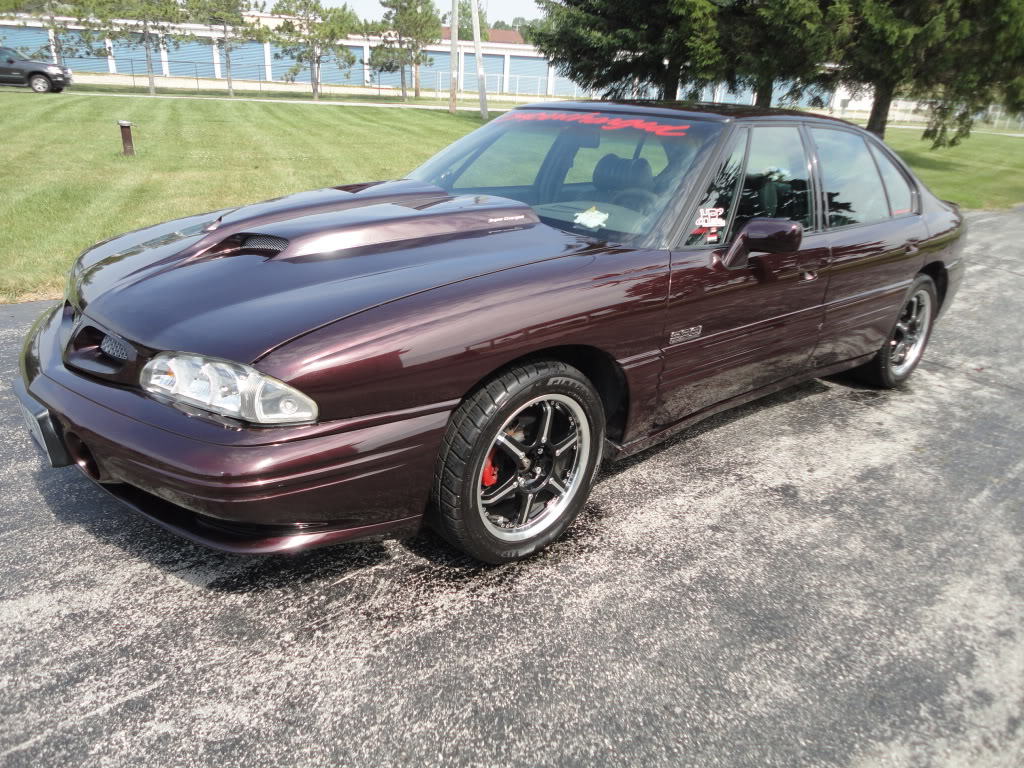

Cleaned her all up.

Name:  DSC04357.jpg
Views: 3
Size:  236.5 KB
Danthurs is offline   Reply With Quote
Old 07-07-2011, 06:21 PM   #5
Senior Member
True Car Nut

sawgunner's Avatar

Join Date: Jan 2009
Location: Dover, NH
Posts: 7,122
Thanks: 0
Thanked 0 Times in 0 Posts
sawgunner is on a distinguished road
Default

she can stay clean but can she stay running? glad to have her back!!
sawgunner is offline   Reply With Quote
Old 07-07-2011, 06:28 PM   #6
Senior Member

True Car Nut

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

A lot of guys with LT1 engines substitute an LT4 knock module, particularly if they don't run stock exhaust system or valve train. It seems to do a better job of filtering out the false knock signals. This is not the sensor, it is a module that installs in the PCM. I have read a couple of articles about doing this on a Bonneville. I don't know if it would suit your application, but if you get a chance google "LT4 knock module" and read some of the write ups.
2kg4u is offline   Reply With Quote
Old 07-07-2011, 06:28 PM   #7
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Sure hope so. She seems to be running good. haven't opened her up yet. Want to get a lot of other things done first. But I did give her 8 pounds of boost and no knock. Not bad with 9.5:1 compression.

Was looking over my old scans. I had cruise timing in the mid 30s to low 40s, right now I'm mid 20s. I don't think I'll get that high with this compression, but would like to see mid 30s. Now all I need is some free time to get this done.
Danthurs is offline   Reply With Quote
Old 07-07-2011, 06:32 PM   #8
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Quote:
Originally Posted by 2kg4u View Post
A lot of guys with LT1 engines substitute an LT4 knock module, particularly if they don't run stock exhaust system or valve train. It seems to do a better job of filtering out the false knock signals. This is not the sensor, it is a module that installs in the PCM. I have read a couple of articles about doing this on a Bonneville. I don't know if it would suit your application, but if you get a chance google "LT4 knock module" and read some of the write ups.

That module is something that Bill and I have talked about several times. It'* also what we ended up looking at. He sent me a 99 PCM and wiring harness to try. But after I got started installing it I found many issues that I would need to deal with. The alternator has a different plug, the MAP sensors are different, his harness didn't have a TPS plug, the EVAP plugs are different, and the IAT plug was different. I finally decided it'* not worth all the effort and put my harness back. Then hard tuned that area out. For the most part, I did exactly what your talking about, I just did it with software.
Danthurs is offline   Reply With Quote
Old 07-07-2011, 07:15 PM   #9
Senior Member
True Car Nut

Buick96's Avatar

Join Date: Jan 2011
Location: Michigan
Posts: 3,344
Thanks: 0
Thanked 0 Times in 0 Posts
Buick96 is on a distinguished road
Default

next you need to send me those rims :P good work dan hope it stays running
Buick96 is offline   Reply With Quote
Old 07-07-2011, 07:50 PM   #10
Retired Senior Admin

Expert Gearhead
Thread Starter

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Sears, $99.99 each
Danthurs is offline   Reply With Quote
