Default Some new pics

***Warning****
my car is dirty from winter

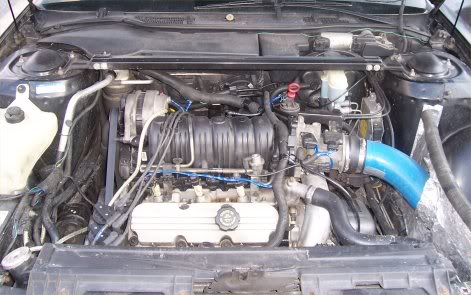

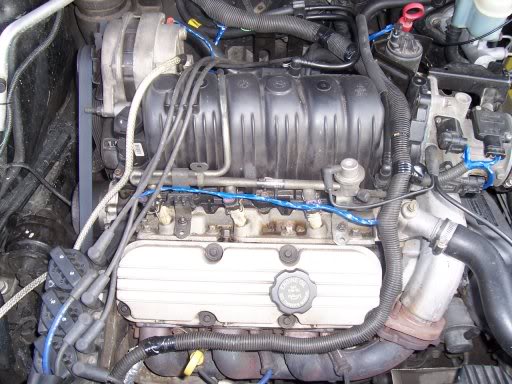

I did some re-wiring in the engine bay to make things a little more simple and cleaner.
In case you notice, i know i have low coolant and no winsheild wiperfluid.
Here'* the pics:
Name:  engn1small.jpg
Views: 0
Size:  38.2 KB
Name:  engn2small.jpg
Views: 0
Size:  51.8 KB

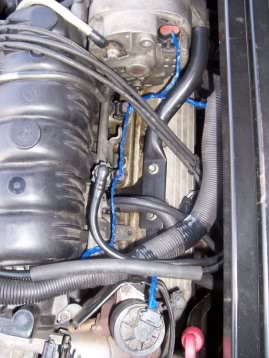

Name:  backenginesmall.jpg
Views: 0
Size:  24.8 KB
If it seems the front wire loom is too close to the manifolds, it'* not, and i wrapped the wires in aluminum tape to deflect heat.

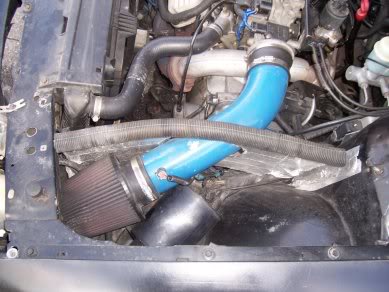

Heres my cai:
Name:  caismall.jpg
Views: 0
Size:  27.3 KB

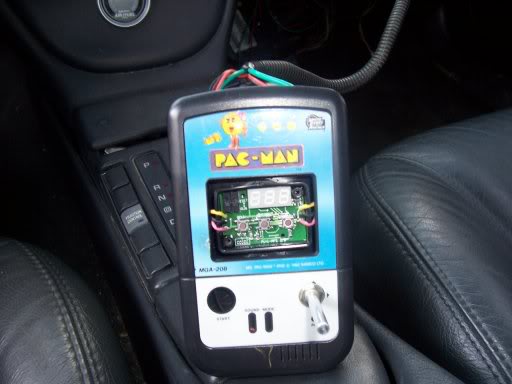

This is my mini afc 2.0 that i wired directly to my computer (under passenger side dash). I ran wires into my glovebox and long enough to reach my lap in the drives seat. and i just put some wire loom on there. So, when i'm not using it, i just put it in the golve box.
When i was looking for something to put it in i came across this old pacman game that was perfect. People are just plain confused when i show them that.
Name:  pacmansmall.jpg
Views: 0
Size:  25.8 KB

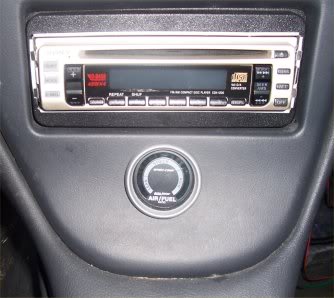

And here is how i mounted my a/f gauge:
Name:  airfuelsmall.jpg
Views: 0
Size:  18.8 KB
That head unit is beat, but i got it for 20 bucks.

So, what do you guys think?
95naSTA is offline   Reply With Quote
Old 03-12-2005, 08:27 PM   #2
Senior Member
Posts like a Turbo

Join Date: Aug 2004
Location: Long Island, NY
Posts: 285
Thanks: 0
Thanked 0 Times in 0 Posts
c0rsa180 is on a distinguished road
Default

i like pac man...lookin good tho
c0rsa180 is offline   Reply With Quote
Old 03-12-2005, 08:44 PM   #3
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

looks good
