I finally got my new solding iron in the mail after waiting 4 weeks from a horrible ebay seller. I had to put it to work. I changed almost all the yellow LED'* in the dash to blue. This includes:

Fog light button
Rear view Mirror
Heated seat switches
Traction Control switch
Rear Defrost button
Outside air button
Recirc air button

I am very happy with the look. I ordered the surface mount LED'* from digikey with some help from ddalder, (thanks Darcy!) and they cost about $1 each. They are pretty hard to work with considering they are only 1.6mm across, but with gently hands you can do it. I didn't take any progress pictures except for the rear view mirror. This one did NOT use a surface mount.

Here is the inside of the 00+ mirror.
Name:  DSC00156.jpg
Views: 10
Size:  42.8 KB

Here is the circuit board flipped over
Name:  DSC00157.jpg
Views: 9
Size:  122.9 KB

Here is what we are changing. The square green LED is a very dim light that lets you know when the mirror is in auto dim mode. I wanted this blue.
Name:  DSC00158.jpg
Views: 11
Size:  73.2 KB

First I tried just the blue LED alone in there, and it was WAY to bright. So I took part of a big gulp cup out of the garbage and cut this small rectangle out of it and placed it in the hole
Name:  DSC00159.jpg
Views: 10
Size:  76.2 KB

Finally I sanded the end of the blue LED so the light beam wouldn't be so directed. The final product is the perfect brightness, just enough to know its there, but not distracting.
Name:  DSC00160.jpg
Views: 12
Size:  46.7 KB

Here is the final product
Name:  IMG_3628.jpg
Views: 11
Size:  27.9 KB

and a close up
Name:  IMG_3629.jpg
Views: 11
Size:  22.0 KB\

I might be looking into changing the HUD display and the PRND321 lights in the instrument cluster also... Any other places?
harofreak00 is offline   Reply With Quote
Old 03-05-2008, 01:46 AM   #2
Senior Member
Posts like a Camaro

Join Date: Nov 2007
Location: MN
Posts: 1,172
Thanks: 0
Thanked 0 Times in 0 Posts
Bonnevillan is on a distinguished road
Default

looks good.
i wish the 92-99 used LEDs, i would have to screw with resistors and stuff to do that.
Bonnevillan is offline   Reply With Quote
Old 03-05-2008, 01:55 AM   #3
Junior Member
Thread Starter

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

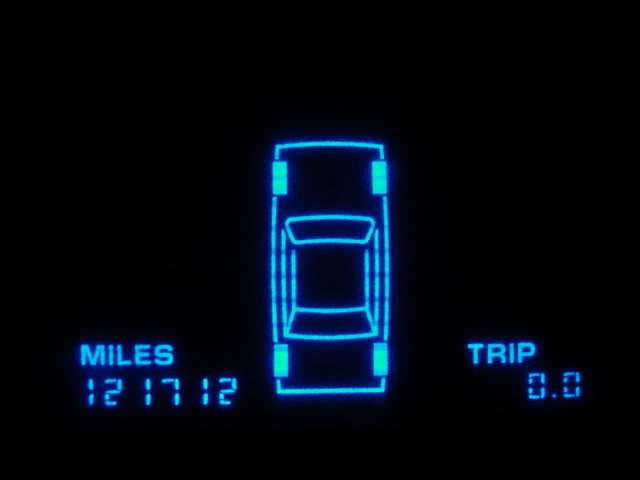

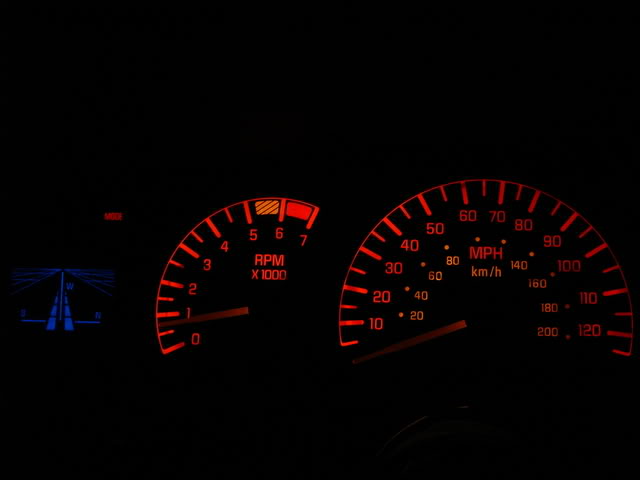

They do, the center console, door lights, rear view mirror.... all the rest of these pics are just from using blue tint film
