Default Projector Retrofit Done update cutoff pics

ok so i FINALLY have this done, i worked all day getting them fit and modded to the headlight housings, I have previously prototyped one right hand side light, but not did another right and left.

Details, GM/Blazer projectors from a 98ish Cadillac STS

the pics should explain it all

Caddy lights
Name:  HPIM3410.jpg
Views: 33
Size:  59.6 KB

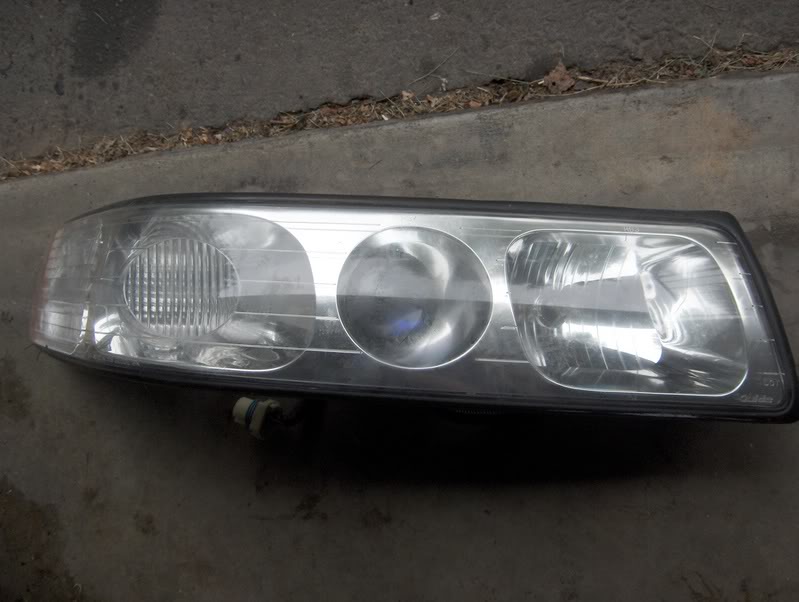

Name:  HPIM3412.jpg
Views: 32
Size:  59.5 KB

Name:  HPIM3420.jpg
Views: 29
Size:  87.1 KB

Bonneville headlights that i used.
Name:  projectors001.jpg
Views: 33
Size:  62.0 KB

taking them apart

lense off
Name:  projectors003.jpg
Views: 31
Size:  72.0 KB

lense off, filler off
Name:  projectors004.jpg
Views: 47
Size:  93.9 KB

reflector off
Name:  projectors005.jpg
Views: 31
Size:  122.1 KB

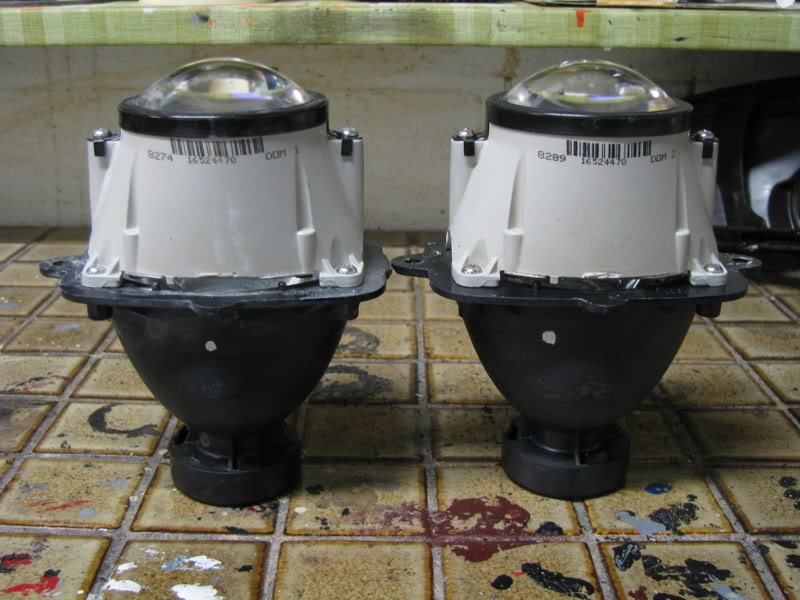

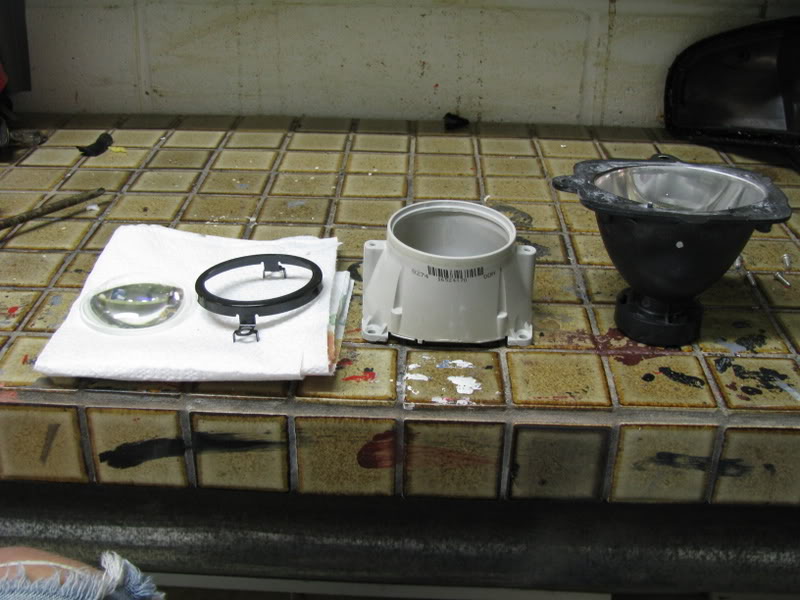

The projectors that are being used
Name:  projectors006.jpg
Views: 29
Size:  80.2 KB

Name:  projectors007.jpg
Views: 34
Size:  41.6 KB

Name:  projectors008.jpg
Views: 27
Size:  83.3 KB

Name:  projectors009.jpg
Views: 26
Size:  80.5 KB

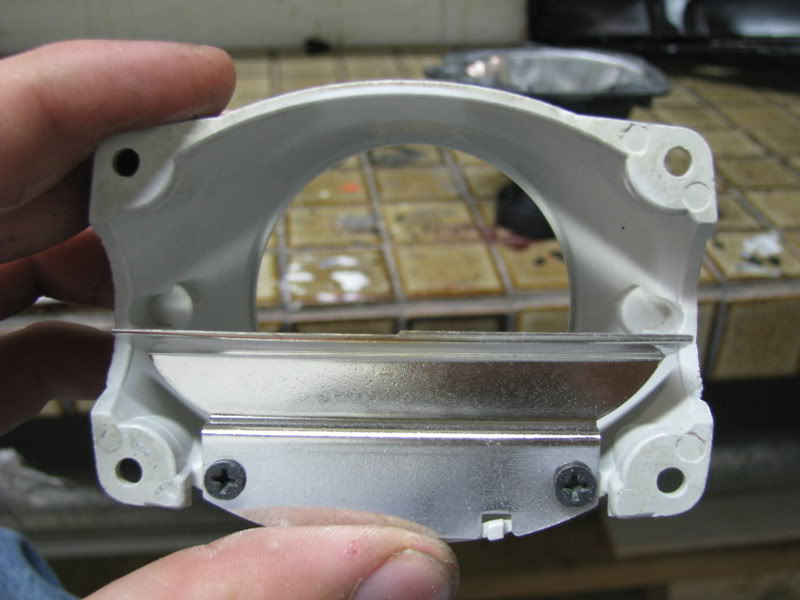

Name:  projectors010.jpg
Views: 26
Size:  54.7 KB

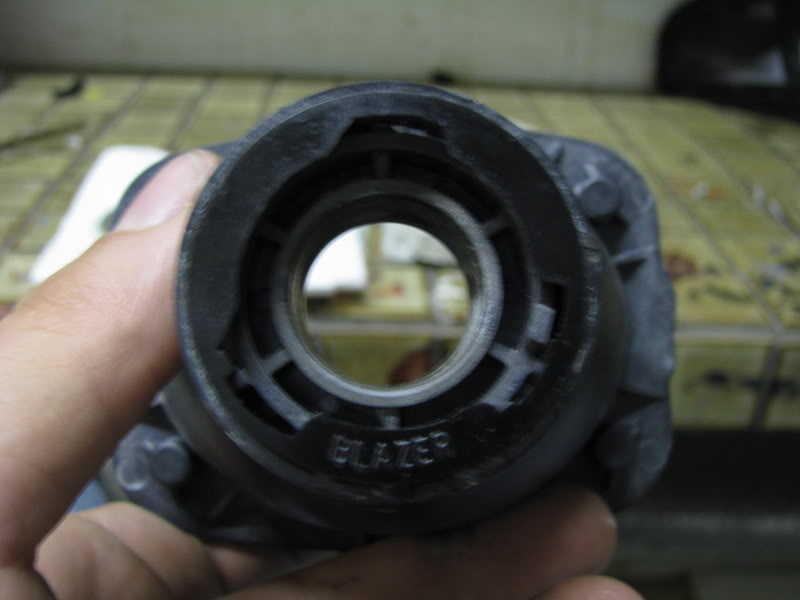

Name:  projectors012.jpg
Views: 26
Size:  40.9 KB

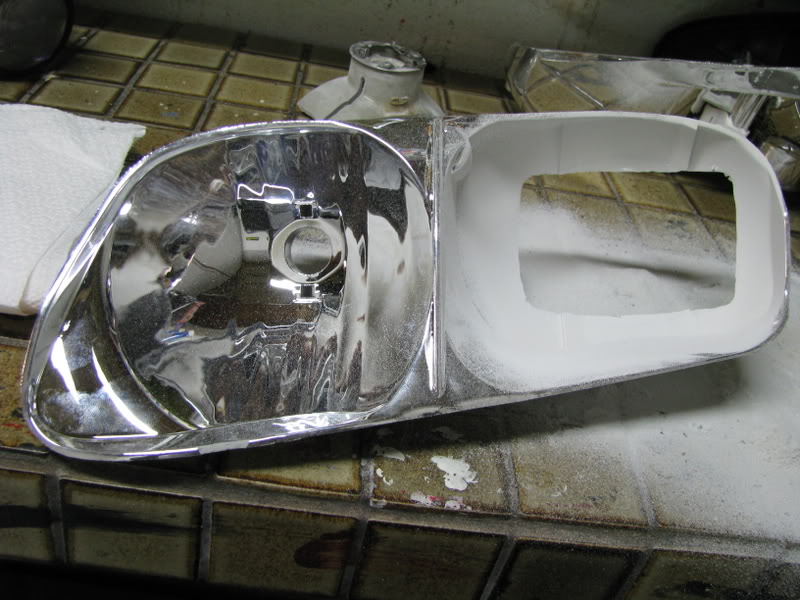

Let the modding begin
Name:  projectors013.jpg
Views: 27
Size:  90.4 KB

Name:  projectors014.jpg
Views: 28
Size:  118.9 KB

Name:  projectors015.jpg
Views: 27
Size:  125.3 KB

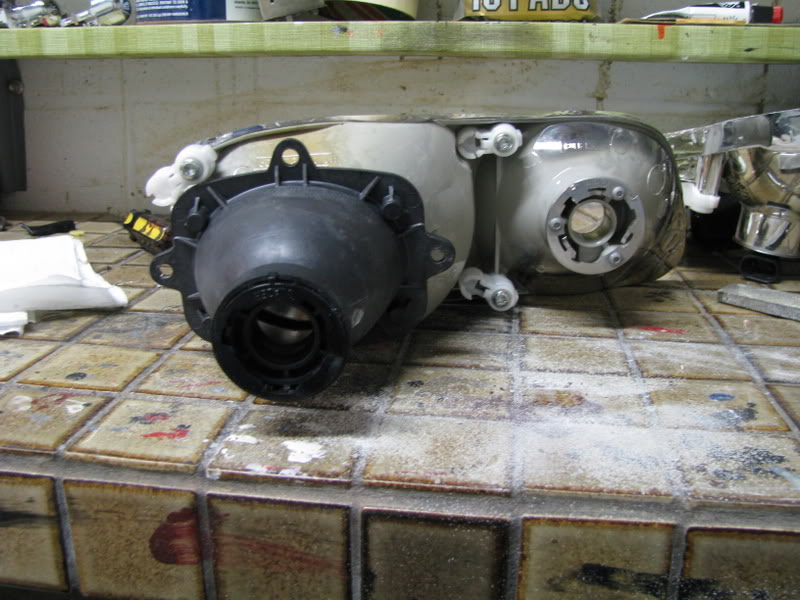

Name:  projectors016.jpg
Views: 30
Size:  92.1 KB

Name:  projectors017.jpg
Views: 31
Size:  81.3 KB

I still have to build a shield that will hide the projector housing, but this will give you an ideaName:  projectors018.jpg
Views: 30
Size:  84.2 KB

Name:  projectors019.jpg
Views: 26
Size:  87.8 KB

Name:  projectors020.jpg
Views: 28
Size:  87.2 KB

Both of them

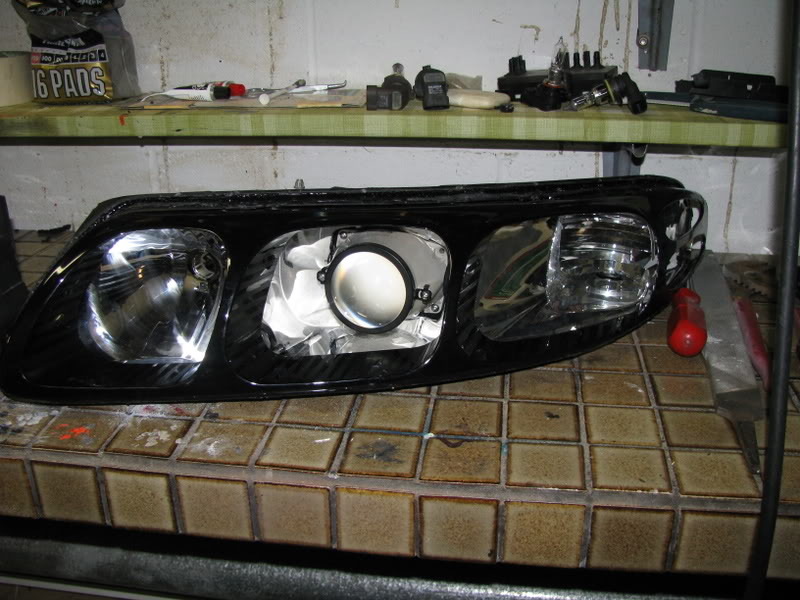

Name:  projectors023.jpg
Views: 27
Size:  100.4 KB

Name:  projectors025.jpg
Views: 28
Size:  95.5 KB



I will have some on the car shots prolly tomarrow and i have to aim them and then get the shield built. But its in the home stretch
1993 SLE is offline   Reply With Quote
Old 02-12-2009, 08:38 PM   #2
Senior Member
Posts like a Turbo

lordvader's Avatar

Join Date: Sep 2008
Location: Philadelphia, PA
Posts: 332
Thanks: 0
Thanked 0 Times in 0 Posts
lordvader is on a distinguished road
Default

damn thats hot i definatly need to see those when they are complete, i might have to copy your project keep the forum updated.
lordvader is offline   Reply With Quote
Old 02-12-2009, 09:34 PM   #3
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Wow, looking good. Can't wait to see those on the car.
Danthurs is offline   Reply With Quote
Old 02-12-2009, 10:23 PM   #4
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

Pat, you never cease to amaze me with your intents and resolve to carry them out. Once again, an awesome mod and looks G*R*R*R*E*A*T* (Tony the Tiger style) Some of these Really need to go into the HowTo Section Bud.
GXP Venom is offline   Reply With Quote
Old 02-13-2009, 07:48 AM   #5
Senior Member
Posts like a Corvette

crunkfrunk's Avatar

Join Date: Jun 2008
Location: Cleveland, OH
Posts: 1,389
Thanks: 0
Thanked 0 Times in 0 Posts
crunkfrunk is on a distinguished road
Default

damn lookin nice Pat, I have always wanted to do a projector retrofit with some spare housings I have, I don't know if you have any ideas for a shroud but what one of my buddys did for a Regal was take some plexiglass and cut a circle in the center then slowly get it to the shape of the reflector to make it flat, came out really nice
crunkfrunk is offline   Reply With Quote
Old 02-13-2009, 08:40 AM   #6
Junior Member

Toddster's Avatar

Join Date: Aug 2005
Posts: 0
Thanks: 0
Thanked 1 Time in 1 Post
Toddster is on a distinguished road
Default

You Sir are truly a Mod Master!

Awesome Job
Toddster is offline   Reply With Quote
Old 02-13-2009, 10:47 AM   #7
Senior Member
Certified Car Nut
Thread Starter

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

Quote:
Originally Posted by crunkfrunk View Post
damn lookin nice Pat, I have always wanted to do a projector retrofit with some spare housings I have, I don't know if you have any ideas for a shroud but what one of my buddys did for a Regal was take some plexiglass and cut a circle in the center then slowly get it to the shape of the reflector to make it flat, came out really nice
ya that is a good idea, a popular shield is to take the drip trays from a stoves burners and mod them
1993 SLE is offline   Reply With Quote
Old 02-13-2009, 12:42 PM   #8
Senior Member
Certified Car Nut
Thread Starter

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

ok more pics

on the car pics

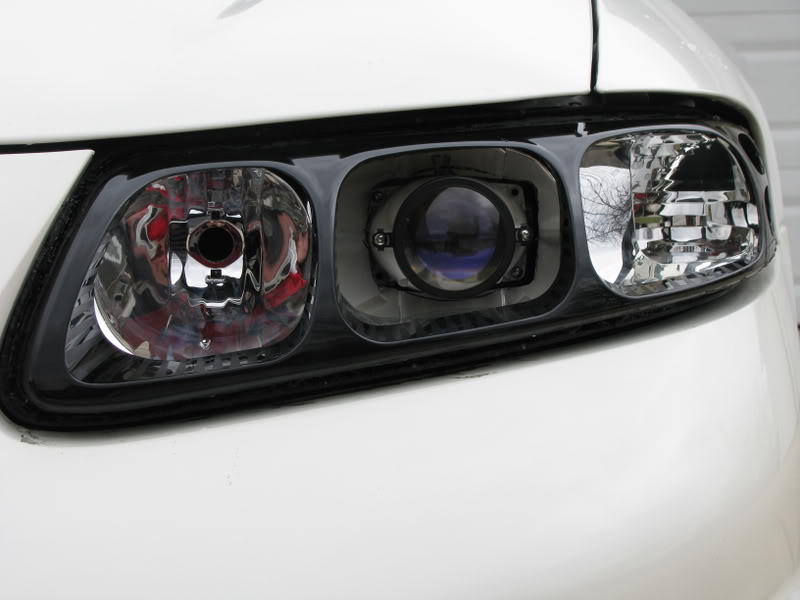

Name:  projectors029.jpg
Views: 35
Size:  50.9 KB

Name:  projectors030.jpg
Views: 29
Size:  52.4 KB

Name:  projectors031.jpg
Views: 32
Size:  43.9 KB

Name:  projectors032.jpg
Views: 30
Size:  35.3 KB

and for the disbelievers of clearance issues
Name:  projectors027.jpg
Views: 27
Size:  69.6 KB

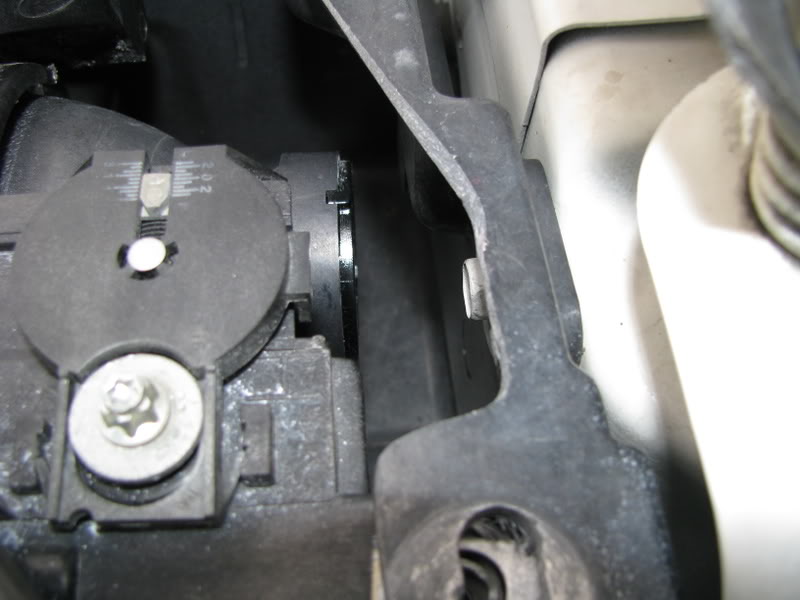

Name:  projectors028.jpg
