Default New Intake.

new intake had it welded up at Cottons Performance 4" stainless tubing and a 9" K&N filter

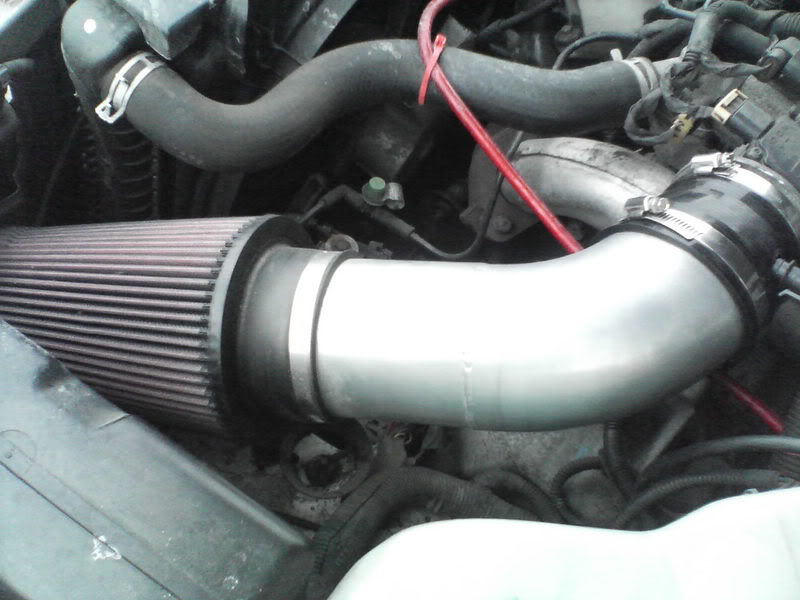

Name:  0122081350a.jpg
Views: 4
Size:  61.4 KB

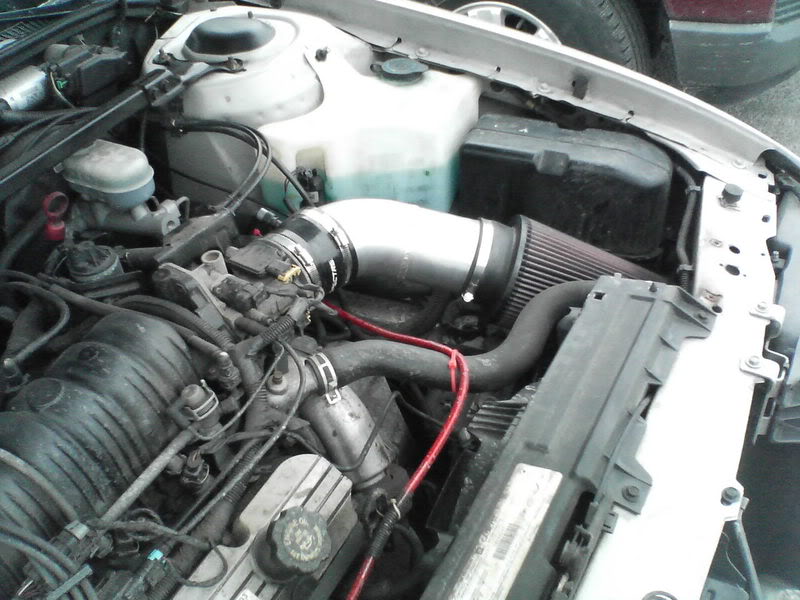

Name:  01220813502.jpg
Views: 1
Size:  84.6 KB

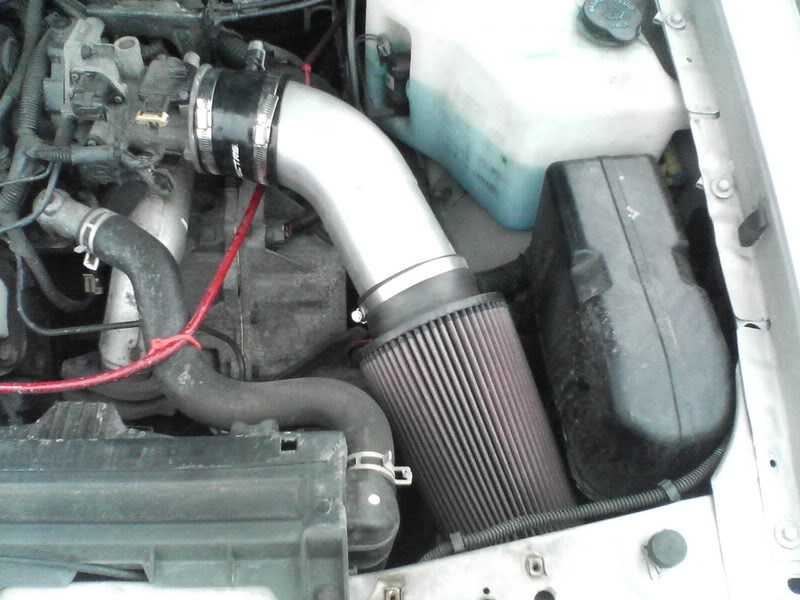

Name:  0122081350.jpg
Views: 3
Size:  70.9 KB[/img]
1999L36 is offline   Reply With Quote
Old 01-22-2008, 06:04 PM   #2
Senior Member
Posts like a Camaro

Join Date: Nov 2007
Location: MN
Posts: 1,172
Thanks: 0
Thanked 0 Times in 0 Posts
Bonnevillan is on a distinguished road
Default

seems like most prefer the fenderwell intake now, but looks good!
Bonnevillan is offline   Reply With Quote
Old 01-22-2008, 06:13 PM   #3
Senior Member
Posts like a 4 Banger

Join Date: Dec 2007
Location: Fort Wayne, IN
Posts: 141
Thanks: 0
Thanked 0 Times in 0 Posts
99bonne is on a distinguished road
Default

Quote:
Originally Posted by Bonnevillan
seems like most prefer the fenderwell intake now, but looks good!
i dont think he can have one. It looks the same as my car and i took out my computer box and strapped the computer down with zip ties. There really isn't a whole in the fenderwell like there is on regals or grand prix'*.

Do you have one???
If so, what year is your car?

I know there is nowhere to put one on mine so i did the same thing only i have a rubber elbow that turns 90* smoothly instead of metal or whatever that is.
99bonne is offline   Reply With Quote
Old 01-22-2008, 06:41 PM   #4
Senior Member
Certified Car Nut

Join Date: Apr 2004
Location: Quincy, Ma
Posts: 15,341
Thanks: 0
Thanked 0 Times in 0 Posts
Gumball is on a distinguished road
Default

fits in there snugly
Gumball is offline   Reply With Quote
Old 01-22-2008, 06:53 PM   #5
Senior Member
Posts like a 4 Banger

Join Date: Dec 2007
Location: Fort Wayne, IN
Posts: 141
Thanks: 0
Thanked 0 Times in 0 Posts
99bonne is on a distinguished road
Default

now you just need to start building a box for it. I started to build mine with Lexan but it takes forever. I want it to look pretty to
99bonne is offline   Reply With Quote
Old 01-22-2008, 06:57 PM   #6
Senior Member
Posts like a Turbo

slickbonny's Avatar

Join Date: Jun 2007
Location: Brunswick, OH
Posts: 202
Thanks: 0
Thanked 0 Times in 0 Posts
slickbonny is on a distinguished road
Default

same thing i did to mine with an exhaust J-bend from summit. then did a fenderwell. that exhaust tubing gets pretty hot and stays hot. way better then stock tho. nice
slickbonny is offline   Reply With Quote
Old 01-22-2008, 08:13 PM   #7
Senior Member
True Car Nut

Join Date: Mar 2005
Posts: 2,688
Thanks: 0
Thanked 0 Times in 0 Posts
dillcc is on a distinguished road
Default

Quote:
Originally Posted by 99bonne
I know there is nowhere to put one on mine so i did the same thing only i have a rubber elbow that turns 90* smoothly instead of metal or whatever that is.
All you do is move the EVAP canister up right behind your driver'* side headlight and run the FWI tube down through that hole. Take your PCM out of the box and secure it to the side of the inner fender in the engine bay. I've got one on my '99 and it works great.

Either way, you need to build a heat shield box to prevent sucking in super hot engine bay air.
dillcc is offline   Reply With Quote
Old 01-22-2008, 08:17 PM   #8
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

intake diameter is a little overkill, but it should work OK once you get a heatshield on there.

I would seriously reconsider the routing of your power cable.
harofreak00 is offline   Reply With Quote
Old 01-23-2008, 11:38 AM   #9
Senior Member
Certified GM nut

wakefieldl's Avatar

Join Date: Dec 2005
Location: dekalb illinois
Posts: 1,916
Thanks: 0
Thanked 0 Times in 0 Posts
wakefieldl is on a distinguished road
Default

Quote:
Originally Posted by harofreak00

I would seriously reconsider the routing of your power cable.

took the words right out of my mouth there should be a factory whole in the firewall on the passanger side or just run it under the car alot easier and then come up either in the tailights or some where else
less hassle
wakefieldl is offline   Reply With Quote
Old 01-23-2008, 02:09 PM   #10
Senior Member
True Car Nut

Join Date: Apr 2004
Posts: 4,816
Thanks: 0
Thanked 0 Times in 0 Posts
GonneVille is on a distinguished road
Default

Quote:
Originally Posted by harofreak00
I would seriously reconsider the routing of your power cable.
x2. Where you have it right now, it'* exposed to a ton of radiant heat from the crossover pipe. If it gets hot enough, it'* going to melt the insulation and then you're SOL...


BTW, I like the intake, the welds look very even, good quality. But these guys are right, you're still sucking in hot air, and these motors are very sensitive to intake heat.
Use card board to mock up a box that shields it from the engine bay as completely as possible, then use that as a template to cut your shield from plexi, or some sort of insulating material. I would also consider wrapping the pipe in insulating material to keep the radiant heat from the crossover out.
