Default my first custom FWI

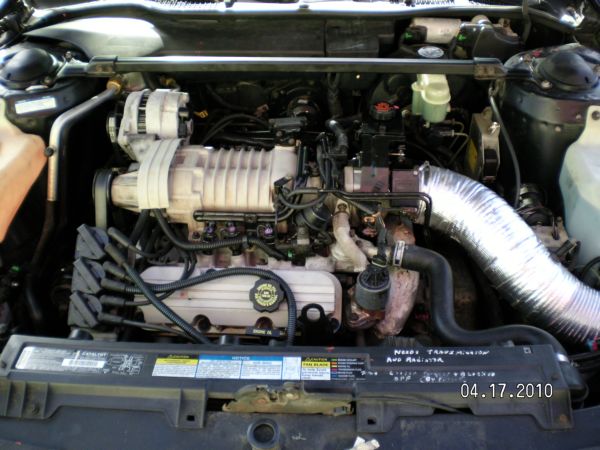

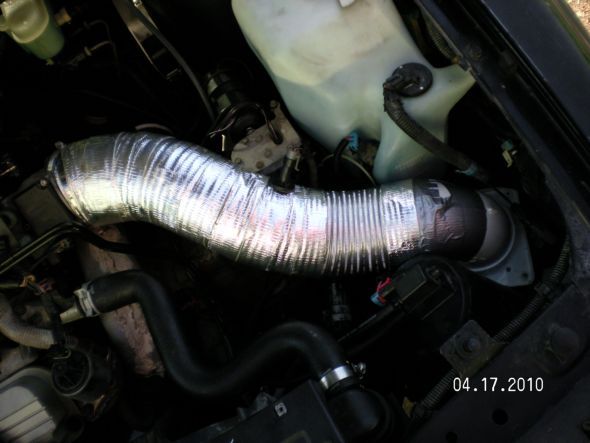

well i had a brain storm to use dryer vent to customize an FWI for the 1994 beast needs a little more heat wrap and a bigger filter i think im open for some constructive critisim its got a 6inch long 6 inch diameter k and n filter with a 3 inch outer diameter up top.... fits nicely where my canister used to
Attached Thumbnails
my first custom FWI-custom-intake-my-first-one.jpg   my first custom FWI-smaller-intake-pic.jpg

Last edited by jason5983; 05-06-2010 at 10:57 AM. Reason: forgot to add something
jason5983 is offline   Reply With Quote
Old 05-06-2010, 10:55 AM   #2
Artist
True Car Nut

yutzybrian's Avatar

Join Date: Jul 2009
Location: USA
Posts: 5,283
Thanked 48 Times in 35 Posts
yutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to beholdyutzybrian is a splendid one to behold
Default

Creative idea. It looks good
yutzybrian is offline   Reply With Quote
Old 05-06-2010, 11:20 AM   #3
Senior Member
Posts like a Northstar

Rockstar04's Avatar

Join Date: Feb 2009
Location: Northern Illinois
Posts: 789
Thanks: 0
Thanked 0 Times in 0 Posts
Rockstar04 is on a distinguished road
Default

Its SHINEY!!!, I assume pretty cheap and will be just as effective as much more expensive kits, so its about all you could want in a mod. Good Job
Rockstar04 is offline   Reply With Quote
Old 05-06-2010, 11:43 AM   #4
Member
Posts like a V-Tak

IronWolfe11's Avatar

Join Date: Mar 2010
Location: Alpena, MI
Posts: 53
Thanks: 0
Thanked 0 Times in 0 Posts
IronWolfe11 is on a distinguished road
Default

Never would have thought of Dryer vent tubing...good thinkin'
IronWolfe11 is offline   Reply With Quote
Old 05-06-2010, 07:41 PM   #5
Senior Member
Posts like a Northstar

Jeep2Bonny's Avatar

Join Date: Mar 2003
Location: Fairhaven,Mass
Posts: 632
Thanks: 0
Thanked 0 Times in 0 Posts
Jeep2Bonny is on a distinguished road
Default

someone did that back in 05 i believe it was a SE with the vent peeking out the bottom grille near the fog light
Jeep2Bonny is offline   Reply With Quote
Old 05-06-2010, 07:45 PM   #6
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I did that, sent outside air up to my cold box. Worked well.
Danthurs is offline   Reply With Quote
Old 05-06-2010, 09:05 PM   #7
Senior Member
Posts like a Northstar

Skippy1827's Avatar

Join Date: Jun 2006
Location: Waukesha, Wisconsin
Posts: 747
Thanks: 0
Thanked 0 Times in 0 Posts
Skippy1827 is on a distinguished road
Default

Shouldn't you insulate it to keep the air flow colder, or doesn't that matter?
Skippy1827 is offline   Reply With Quote
Old 05-06-2010, 09:06 PM   #8
-- SITE DONATOR --
True Car Nut

ymmot04's Avatar

Join Date: May 2009
Posts: 4,638
Thanked 5 Times in 4 Posts
ymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of lightymmot04 is a glorious beacon of light
Default

With as much air moves that moves through it, it probably doesn't matter.
ymmot04 is offline   Reply With Quote
Old 05-06-2010, 10:22 PM   #9
Senior Member
True Car Nut

Black Pearl's Avatar

Join Date: Apr 2009
Location: STC, MN
Posts: 3,301
Thanks: 0
Thanked 1 Time in 1 Post
Black Pearl is on a distinguished road
Default

It worked for on my 90. Just be careful that it doesn't get a hole in it as it'* relatively fragile
Black Pearl is offline   Reply With Quote
Old 05-06-2010, 10:31 PM   #10
Senior Member
Posts like a Northstar

Join Date: Dec 2006
Location: Niagara Region, ON, Canada
Posts: 635
Thanks: 0
Thanked 0 Times in 0 Posts
labonnevillastrangiato is on a distinguished road
Default

Hmm,
The dryer venting is a pretty interesting idea, however I'd like to see the engineering that went on at the bottom. Looks like you built a flange or something there?
I've heard that if the material is not perfectly smooth on the inside it negatively affects airflow, but that stuff you used isn't that ribbed inside, is it? The ribbing tends to be on the outside instead.

Very nice!
