Default How to put GXP brakes on an 2000 SSEi

FRONT
You will need the GXP Calipers and Brackets. Got mine from car-part.com

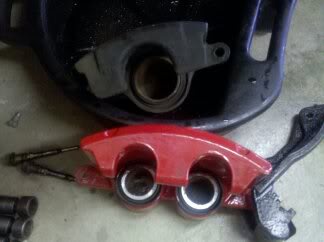

GXP Calipers are dual piston and aluminum (much lighter)

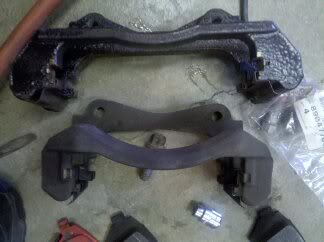

GXP Brackets are much larger
Name:  1268930348301.jpg
Views: 5
Size:  12.1 KB
Name:  1268930494163.jpg
Views: 4
Size:  13.7 KB

GXP Rotors and pads. I went aftermarket - Slotted and Dimpled Rotors from performancebrake.com and EBC ceramic pads
SSEI rotors 11.7" GXP 12.7"

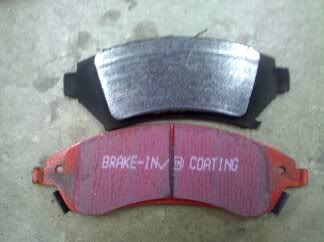

Pads almost twice as big
Name:  1268930560347.jpg
Views: 4
Size:  11.4 KB
Name:  1268930397914.jpg
Views: 3
Size:  12.8 KB

Longer GXP hoses and 4 smaller GXP bolt from bracket to spindle # 89047763
Name:  1268931491828.jpg
Views: 3
Size:  8.9 KB
Name:  1268930464205.jpg
Views: 4
Size:  7.4 KB

First jacked up all 4 wheels
Name:  1268929622002.jpg
Views: 3
Size:  10.6 KB
Took of all 4 wheels
Name:  1268929813844.jpg
Views: 6
Size:  8.2 KB
Take off caliper, bracket, and rotor
Name:  1268930206082.jpg
Views: 3
Size:  9.2 KB
Install Rotor and bracket -- bolts can be a little tricky (must line up shank)
Name:  1268930753503.jpg
Views: 4
Size:  7.8 KB
Install Caliper (hose to short)
Name:  1268930924686.jpg
Views: 4
Size:  7.0 KB
Install longer GXP hose
Had to modify hose bracket - they are keyed - ground out/off key (they weren't in the right position and kinked the hose for me.
passanger side
Name:  1268944332731.jpg
Views: 4
Size:  6.1 KB
Name:  1268944348700.jpg
Views: 4
Size:  8.8 KB
driver side
Name:  1268945183088.jpg
Views: 3
Size:  9.8 KB
Your Done!!
Name:  1268933123965.jpg
Views: 4
Size:  10.1 KB
Name:  1268933111555.jpg
Views: 4
Size:  9.2 KB

REAR

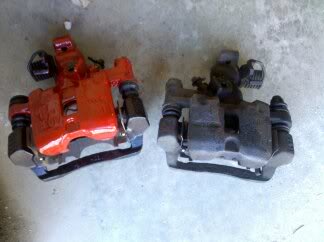

Need GXP Rear Calipers (same # as SSEi, think its the same caliper)
Name:  1268941039397.jpg
Views: 5
Size:  13.5 KB
GXP rear Bracket (very close to same, sits half an inch higher for larger rotor)
SSEi 10.7" GXP 11.7"
GXP rear rotors and pads - performance brake.com gave me ceramic pads for $20 with purchase of rotors
Name:  1268941061139.jpg
Views: 4
Size:  10.4 KB

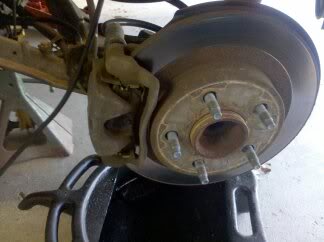

Take of caliper, bracket, and rotor
Name:  1268941628018.jpg
Views: 4
Size:  13.7 KB
Name:  1268935948713.jpg
Views: 4
Size:  8.7 KB
Install rotor, bracket, caliper - with SSEi hardware, used same e-brake bracket (hardest part was switching the e-brake cable)
DONE
Name:  1268945849394.jpg
Views: 4
Size:  10.0 KB

Now bleed them out
Name:  1268946338832.jpg
Views: 2
Size:  11.4 KB
Name:  1268946345445.jpg
Views: 4
Size:  9.5 KB

Went for a ride to seat the pads, was slamming the brakes @ 40 4-5 times. She stops like 50% shorter then last week when doing it with the new SSEi pads. MUCH BETTER !!!
Bonneville'n is offline   Reply With Quote
Old 03-19-2010, 02:09 AM   #2
Senior Member
Posts like a Northstar

Rockstar04's Avatar

Join Date: Feb 2009
Location: Northern Illinois
Posts: 789
Thanks: 0
Thanked 0 Times in 0 Posts
Rockstar04 is on a distinguished road
Default

Sweet write up, Looks like I will have to do that soon. . . . .
Rockstar04 is offline   Reply With Quote
Old 03-19-2010, 01:56 PM   #3
Senior Member
True Car Nut

SAMzGXP's Avatar

Join Date: Mar 2009
Location: Fort crack homie
Posts: 2,894
Thanks: 0
Thanked 0 Times in 0 Posts
SAMzGXP is on a distinguished road
Default

awesome writeup!

i just replaced my GXP brakes with crossed drilled rotors and hawk ceramic brake pads.. amazing stopping power
SAMzGXP is offline   Reply With Quote
Old 03-24-2010, 07:24 PM   #4
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

Nice, looks like a photo writeup for Tech Info, if you don't mind!
GXP Venom is offline   Reply With Quote
Old 03-24-2010, 09:18 PM   #5
Senior Member
Posts like a Supercharger
Thread Starter

Bonneville'n's Avatar

Join Date: Nov 2008
Location: Newtown CT.
Posts: 192
Thanks: 0
Thanked 0 Times in 0 Posts
Bonneville'n is on a distinguished road
Default

For sure-that would be great
Bonneville'n is offline   Reply With Quote
Old 03-25-2010, 12:54 AM   #6
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

I'll get that taken care of.
Danthurs is offline   Reply With Quote
Old 04-04-2010, 11:17 PM   #7
Senior Member
Posts like a Supercharger
Thread Starter

Bonneville'n's Avatar

Join Date: Nov 2008
Location: Newtown CT.
Posts: 192
Thanks: 0
Thanked 0 Times in 0 Posts
Bonneville'n is on a distinguished road
Default

Quote:
Originally Posted by Danthurs View Post
I'll get that taken care of.
Can't seem to find in the "tech info" section -- am I just blind??
Bonneville'n is offline   Reply With Quote
Old 04-05-2010, 12:49 AM   #8
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

Na, your not blind. Been a busy week/weekend for us. And we always polish things on the copy, remove comments, and move the photos onto our server before they go into Tech Info.
