Default HID installed

This is what I've been working on for several hours today..

I started installing the HID on my Aurora at around 7 PM tonight, and finished at 10 PM. It wasn't too bad of an installation, just tedious! I did lose one bolt however that holds the headlight mount to the frame of the car, sot he driver'* side headlamp "bounces" slightly over bumps, I'll have to find that bolt somehow I guess.

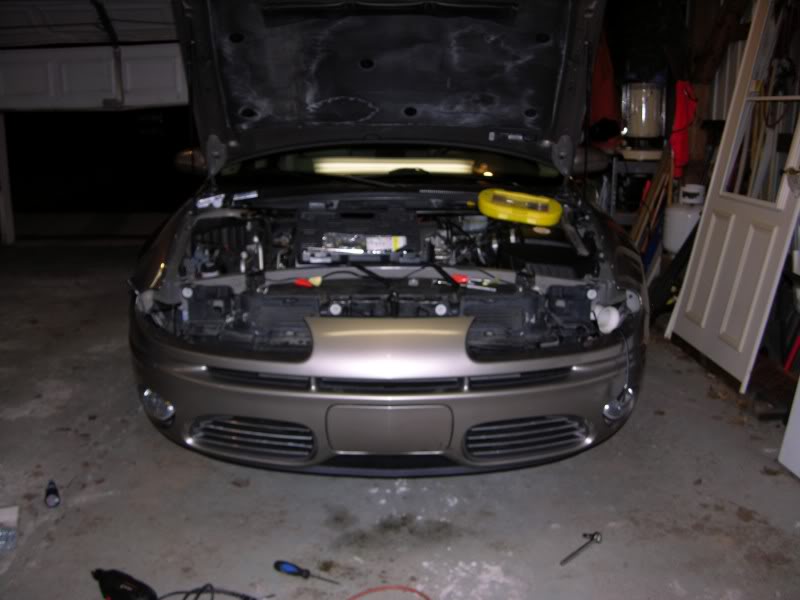

First things first, Cfoote really wasn't exaggerating when he said it took a LONG time to remove the headlamp mount. That is what took me the longest by far. It took me an hour JUST to remove that mount. Here'* both headlights removed, with the mount still attached.
Name:  DSCN0786.jpg
Views: 0
Size:  46.0 KB

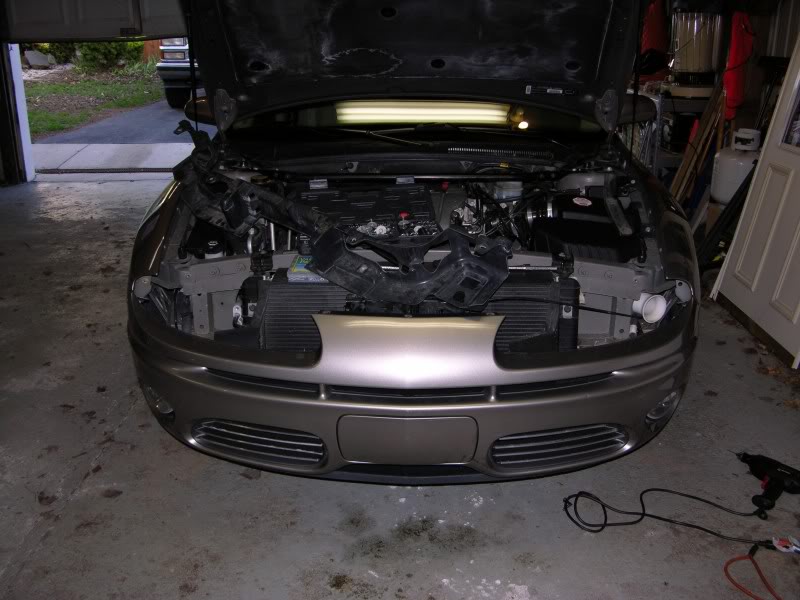

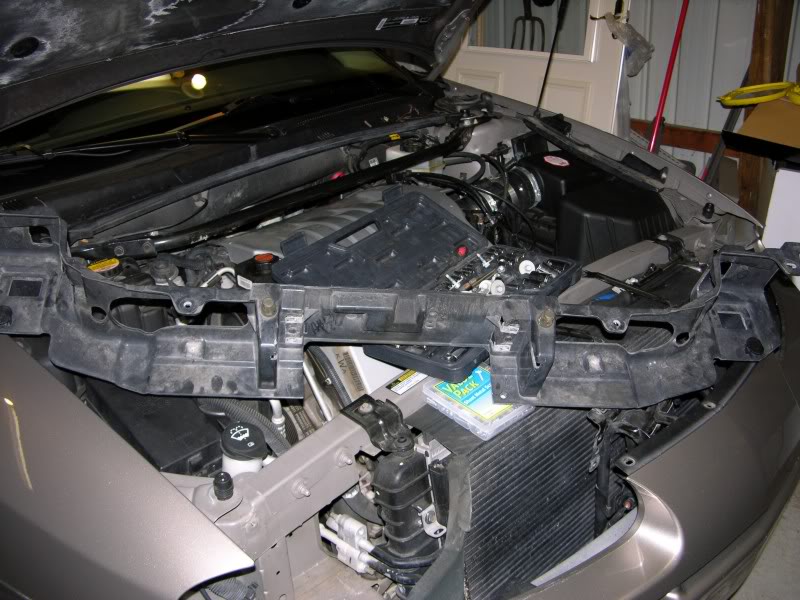

This is the headlamp mount removed. The cable for the hood release runs through it, so you cannot remove it totally.
Name:  DSCN0781.jpg
Views: 0
Size:  91.9 KB

Name:  DSCN0780.jpg
Views: 0
Size:  72.6 KB

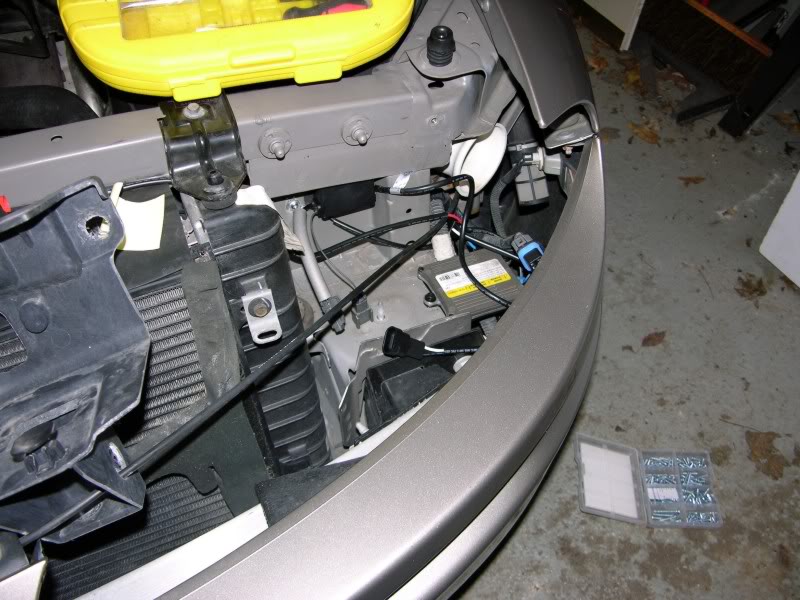

Here'* the location I mounted the driver'* side ballast/igniter.

Before:

and now after:
Name:  DSCN0784.jpg
Views: 0
Size:  91.9 KB

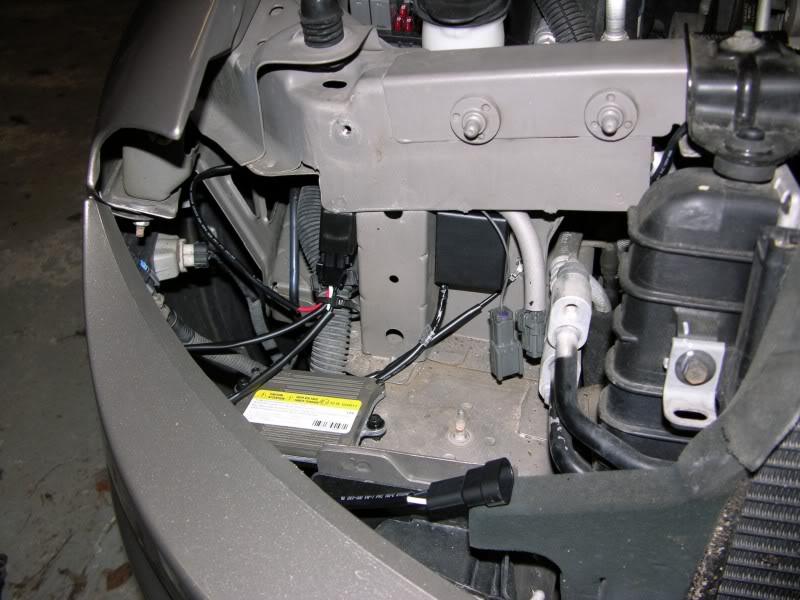

Passenger side ballast/igniter:
Name:  DSCN0785.jpg
Views: 0
Size:  76.7 KB

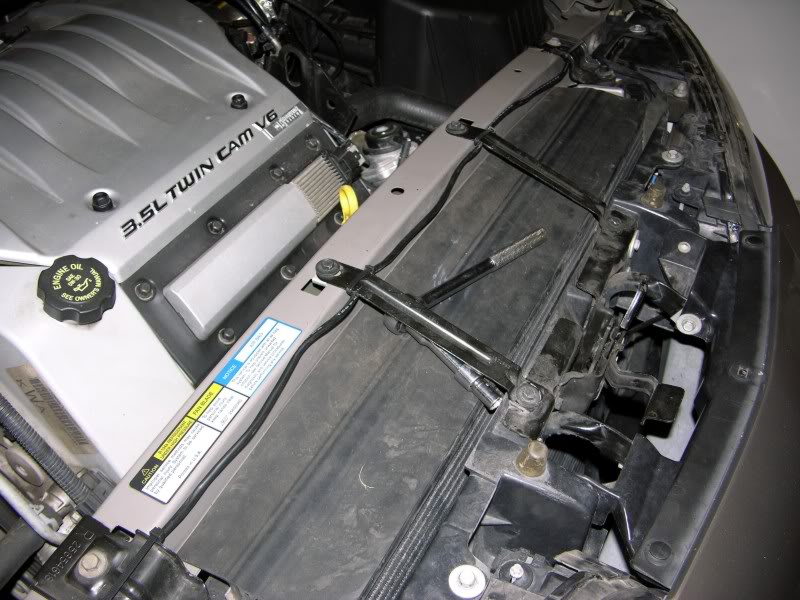

I ran the power wire for the driver'* side along the radiator support and zip tied the wire there. It was the most convenient route that I could find.
Name:  DSCN0790.jpg
Views: 0
Size:  90.3 KB

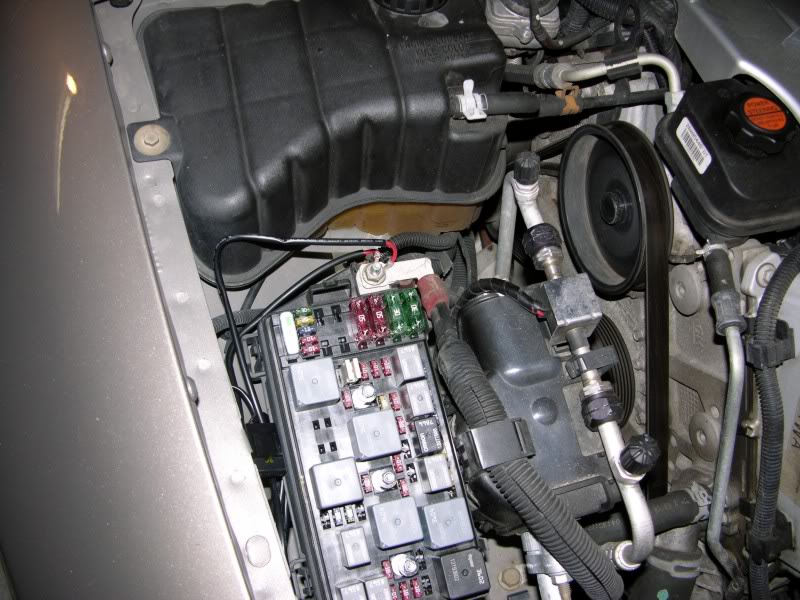

The connection to the main fuse panel under the hood:
Name:  DSCN0789.jpg
Views: 0
Size:  97.6 KB

and now for the lights in action...

Notice the cut-off beam. There is a slight glare above the cut-off because these projectors are made for Halogen bulbs, not HID, although the glare is NOT bad at all.
Name:  DSCN0800.jpg
Views: 0
Size:  13.5 KB

side cut-off pattern.
Name:  DSCN0799.jpg
Views: 0
Size:  24.5 KB

These are ALL pictures of the low-beams only.
Name:  DSCN0793.jpg
Views: 0
Size:  73.8 KB

Name:  DSCN0792.jpg
Views: 0
Size:  34.1 KB

Name:  DSCN0802.jpg
Views: 0
Size:  22.8 KB

HIGH beams (high + lows)
Name:  DSCN0803.jpg
Views: 0
Size:  27.1 KB

All in all, I am HIGHLY impressed with the 4,300k kit from www.xenondepot.com With the Aurora projectors, the light is even across the road and there is minimal glare for a "kit." I drove around for around half an hour and did not get flashed at all, so I don't think they're blinding anyone, yet the road is lit up so much better, it'* unbelievable! It'* like having your high-beams on all the time, but they don't shine quite as high, or as far. It'* just amazing.

and now a video. It starts off with only the fog lights on, then the low beams are switched on, then I flick the high-beams on for a few seconds, then back off again.


For some reason on the video, the camera interpreted the BLUE of the lights when they're turned on with GREEN.lol. I assure you, they're not green when they're turned on, but a light blue, then they turn to an intense white a few seconds later.
Custom88 is offline   Reply With Quote
Old 04-22-2007, 08:52 AM   #2
Senior Member
True Car Nut

Join Date: Mar 2006
Location: Virginia
Posts: 2,904
Thanks: 0
Thanked 0 Times in 0 Posts
93-SSE is on a distinguished road
Default

That Looks Awesome
93-SSE is offline   Reply With Quote
Old 04-22-2007, 09:12 PM   #3
Senior Member
Posts like a Turbo

Join Date: Sep 2005
Location: Puerto Rico
Posts: 409
Thanks: 0
Thanked 0 Times in 0 Posts
alexcoqui is on a distinguished road
Default

Awesome!
alexcoqui is offline   Reply With Quote
Old 04-22-2007, 09:26 PM   #4
Senior Member
Posts like a Camaro

Join Date: Oct 2006
Location: montreal canada NEBF07 ONBF07
Posts: 987
Thanks: 0
Thanked 0 Times in 0 Posts
firebuick is on a distinguished road
Default

bright lolllllllllllllllllllllllll
firebuick is offline   Reply With Quote
Old 04-23-2007, 12:01 AM   #5
Member
Posts like a V-Tak

Join Date: Apr 2006
Location: McVeytown, PA
Posts: 82
Thanks: 0
Thanked 0 Times in 0 Posts
2000boostedbonnie is on a distinguished road
Default

They look awesome.
2000boostedbonnie is offline   Reply With Quote
Old 04-23-2007, 09:27 PM   #6
Senior Member
Posts like a Camaro

looong4's Avatar

Join Date: Dec 2002
Location: Holly, Michigan
Posts: 1,181
Thanks: 0
Thanked 0 Times in 0 Posts
looong4 is on a distinguished road
Default

looks really good man.
looong4 is offline   Reply With Quote
Old 04-23-2007, 09:50 PM   #7
Senior Member
True Car Nut

Join Date: Sep 2006
Location: Somewhere south of Ottawa with your girlfriend driving faster then you.
Posts: 3,277
Thanks: 0
Thanked 0 Times in 0 Posts
ReallyAGXP is on a distinguished road
Default

yeah looks good....

GM has something against HID'*.. I was having a little problem with both sides working at the same time. One side would work one side wouldn't vice versa... So we pulled them out and ordered Ballast + Igniter separate.. It'* not only the Bonneville that has done this they also had that problem with a 04 Suburban.

Should have the new ones in tomorrow... Now just to get a Fm modulator installed I'm not happy with the sound from the FM transmitter anymore for my XM and newly added Ipod.
ReallyAGXP is offline   Reply With Quote
Old 04-23-2007, 09:56 PM   #8
Senior Member
True Car Nut

Join Date: Jun 2004
Location: Rochester, NY (college)
Posts: 6,182
Thanks: 0
Thanked 0 Times in 0 Posts
corvettecrazy is on a distinguished road
Default

Custom88, looks alright. I'm not digging that glare only because its so concentrated. Still much better than a halogen reflector.

Quote:
Originally Posted by ReallyAGXP
GM has something against HID'*..
In the sense that they are not on new vehicles, that is because of cost.

In the sense that they dont work on older vehicles, I don't see why you are supprised that installing something that the vehicle is not designed for provides crappy results.
