Default GXP Suspension 56K

on the car

Specs for the GXP Suspension

FE5
30mm SOLID front sway, weighs about double the FE2 Bar
FE5 front Struts
16mm Front Springs FE5 spring rate, 14mm are the FE2

22mm SOLID rear sway, again weighs about double the FE2
deCarbon Rear shock absorbers with ELC
16mm Rear Springs FE5 spring rate

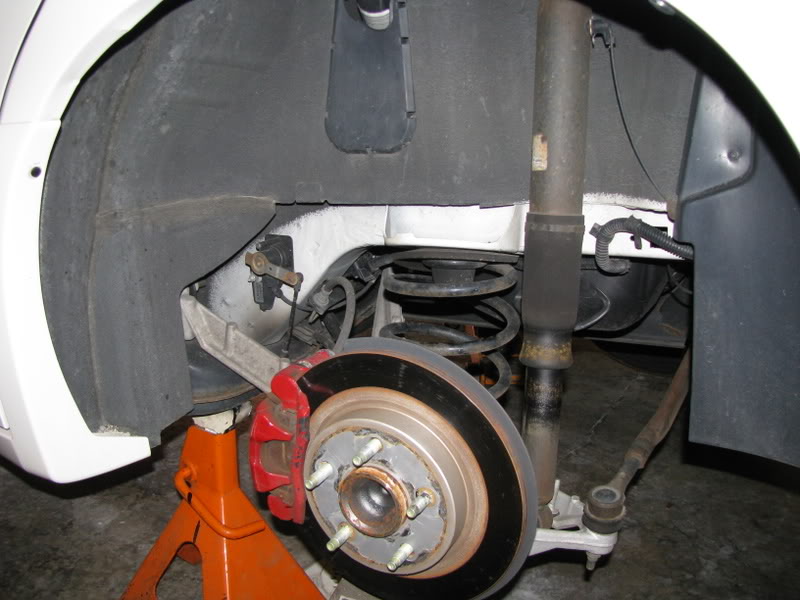

Rear FE2
Name:  GXPBrakesandSuspension002.jpg
Views: 3
Size:  74.3 KB

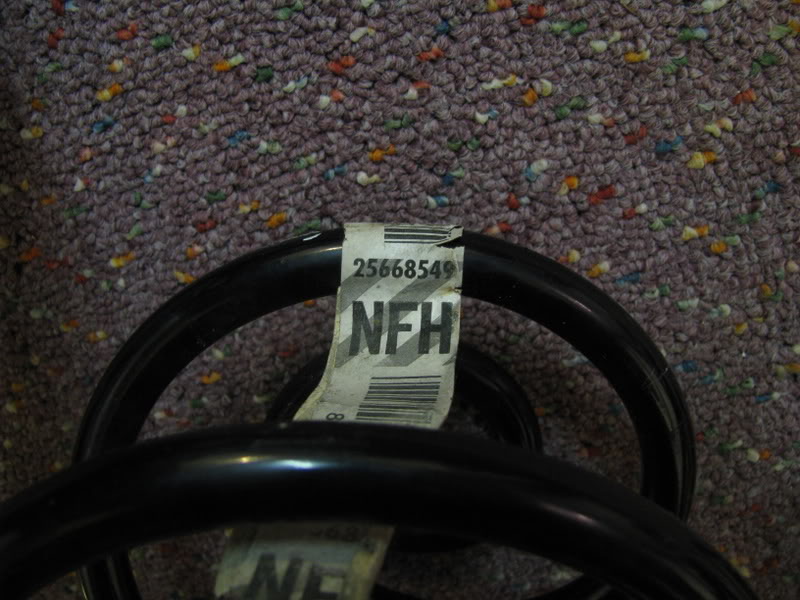

New FE5 spring
Name:  GXPBrakesandSuspension008.jpg
Views: 3
Size:  88.2 KB

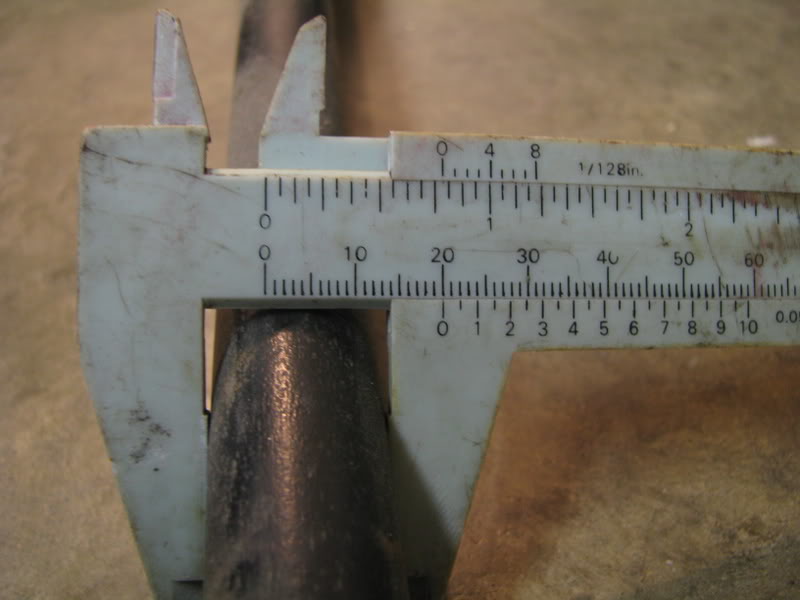

FE2 Sway, its hollow
Name:  GXPBrakesandSuspension012.jpg
Views: 3
Size:  46.9 KB

Name:  GXPBrakesandSuspension040.jpg
Views: 3
Size:  50.2 KB

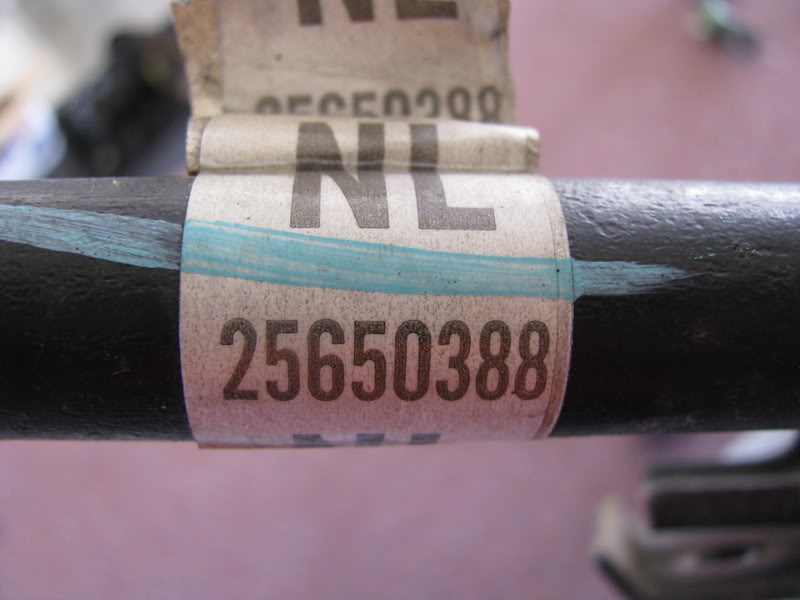

FE5 Sway, again this one is solid
Name:  GXPBrakesandSuspension011.jpg
Views: 3
Size:  47.4 KB

Name:  GXPBrakesandSuspension042.jpg
Views: 3
Size:  48.1 KB

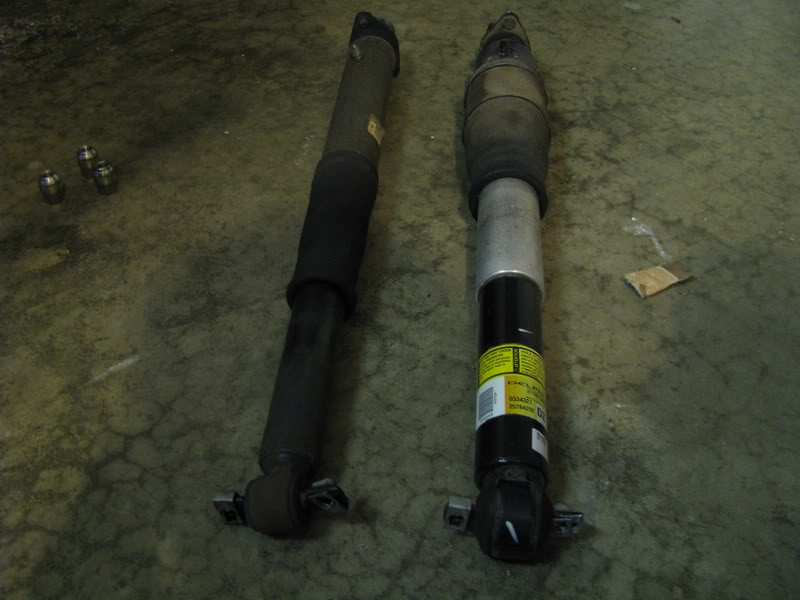

Rear Shock Differences
Name:  GXPBrakesandSuspension017.jpg
Views: 3
Size:  78.2 KB

Name:  GXPBrakesandSuspension018.jpg
Views: 3
Size:  55.3 KB

Shocks installed on car
Name:  GXPBrakesandSuspension022.jpg
Views: 5
Size:  73.0 KB

Name:  GXPBrakesandSuspension023.jpg
Views: 3
Size:  50.5 KB


FRONT
Stock FE2 30mm and hollow
Name:  GXPBrakesandSuspension052.jpg
Views: 3
Size:  56.5 KB

FE5 30mm and solid
Name:  GXPBrakesandSuspension054.jpg
Views: 3
Size:  37.7 KB

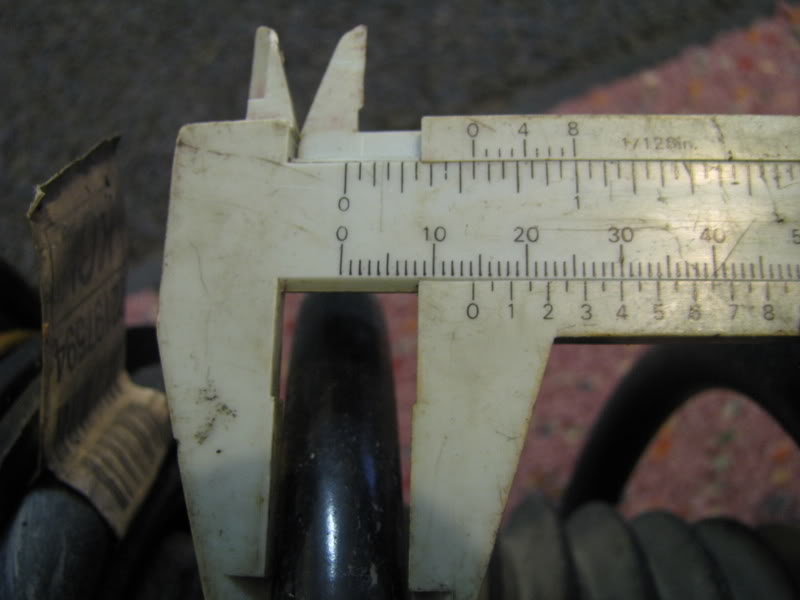

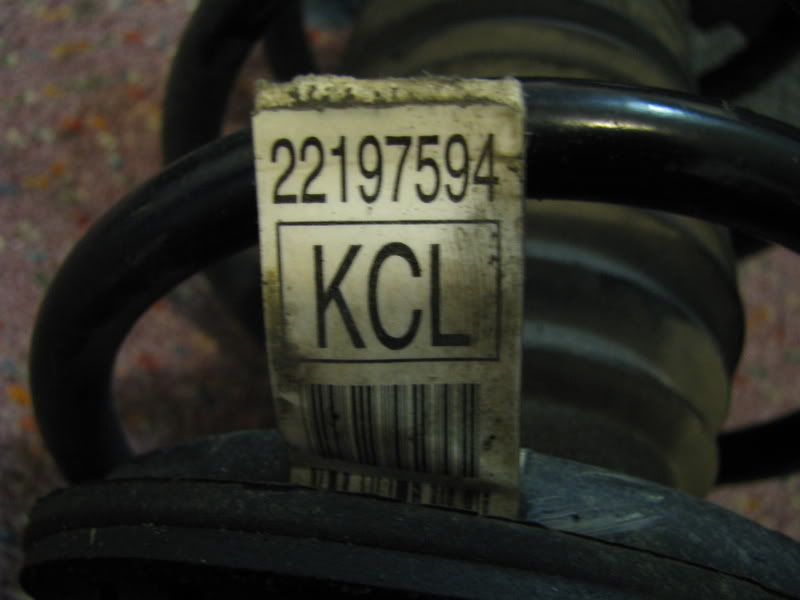

Front FE2 Spring
Name:  GXPBrakesandSuspension058.jpg
Views: 3
Size:  45.6 KB

Name:  GXPBrakesandSuspension062.jpg
Views: 3
Size:  42.1 KB

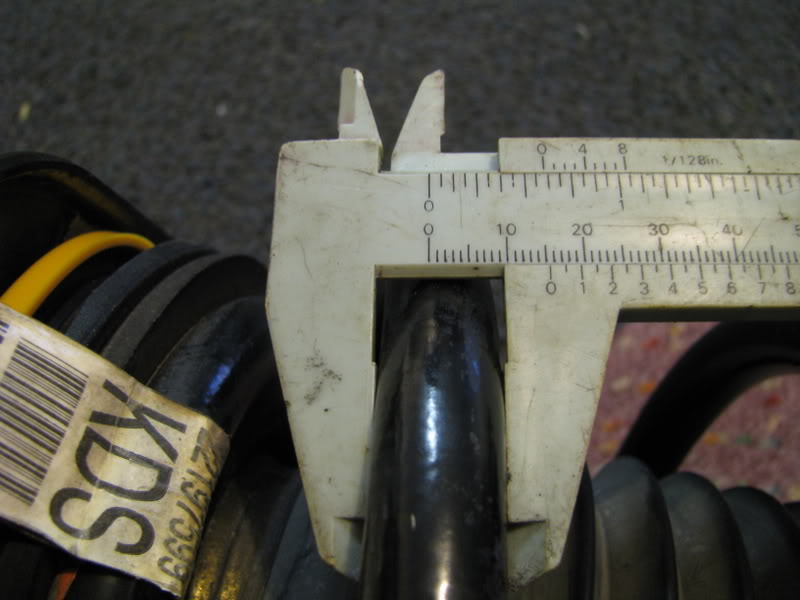

FE5
Name:  GXPBrakesandSuspension057.jpg
Views: 3
Size:  56.3 KB

Name:  GXPBrakesandSuspension061.jpg
Views: 3
Size:  40.2 KB


Impressions: It raised the rideheight by about 1" the entire way around. BUT the car is on RAILS....DAMN when you turn the wheel the car turns, there is much less body roll. There is no dipping down on stops/starts. Its even more impressive because the car is a little lighter than a GXP
1993 SLE is offline   Reply With Quote
Old 11-10-2008, 11:22 PM   #2
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

I don't Know how I miss this. WOW! Lookin good Pat. How did the rear springs go. I just got mine wrestled back in place for the winter. Hope to have new set of air struts fabricated and solenoids rebuilt by spring. Till then I'm at normal ride height again.
GXP Venom is offline   Reply With Quote
Old 10-13-2010, 02:19 PM   #3
Senior Member
Posts like a Turbo

vendo's Avatar

Join Date: Sep 2010
Location: MASS
Posts: 480
Thanks: 0
Thanked 1 Time in 1 Post
vendo is on a distinguished road
Default

whats that number on the 30 mm bar?
vendo is offline   Reply With Quote
Old 10-13-2010, 02:55 PM   #4
Senior Member
True Car Nut

SAMzGXP's Avatar

Join Date: Mar 2009
Location: Fort crack homie
Posts: 2,894
Thanks: 0
Thanked 0 Times in 0 Posts
SAMzGXP is on a distinguished road
Default

assuming a part number

but you just woke up a 2 year old thread
SAMzGXP is offline   Reply With Quote
Old 10-13-2010, 03:01 PM   #5
Senior Member
Posts like a Turbo

SilverSleeper8704's Avatar

Join Date: Jan 2010
Location: "Upstate" NY. Where cows outnumber people
Posts: 441
Thanked 1 Time in 1 Post
SilverSleeper8704 is on a distinguished road
Default

Blame me (everyone does anyway).
I'm the one who was trying to help him out in his other thread to get the right parts. I originally used this thread to help me build my FE5 swap and get the things I needed. I just wanted to show him the differences.
Tad pushy.
I'm trying to help you out and you drag up a 2 year old thread demanding part numbers.
Look it up yourself. I already gave you the info from one source.

Geez. dh2
SilverSleeper8704 is offline   Reply With Quote
Old 10-13-2010, 03:06 PM   #6
Senior Member
Posts like a Turbo

vendo's Avatar

Join Date: Sep 2010
Location: MASS
Posts: 480
Thanks: 0
Thanked 1 Time in 1 Post
vendo is on a distinguished road
Default

well sorry..lol im working hehe,..i was looking for it too
vendo is offline   Reply With Quote
Old 10-13-2010, 03:40 PM   #7
Senior Member
True Car Nut

SAMzGXP's Avatar

Join Date: Mar 2009
Location: Fort crack homie
Posts: 2,894
Thanks: 0
Thanked 0 Times in 0 Posts
SAMzGXP is on a distinguished road
Default

i would call GM and ask
or check http://www.gmpartsdirect.com/
SAMzGXP is offline   Reply With Quote
Old 10-13-2010, 03:48 PM   #8
Senior Member
Posts like a Turbo

SilverSleeper8704's Avatar

Join Date: Jan 2010
Location: "Upstate" NY. Where cows outnumber people
Posts: 441
Thanked 1 Time in 1 Post
SilverSleeper8704 is on a distinguished road
Default

Quote:
Originally Posted by SAMzGXP View Post
i would call GM and ask
or check http://www.gmpartsdirect.com/
If he would read his other thread, he would have noticed I already put up a price for the front bar right from GMPD. Somewhere along the line he was looking at the ride & handling bar, which isn't the one he wants. Performance & Handling is the FE5 bar. GMPD has no part numbers on them though, they say to just reference the part as described in their catalog.
SilverSleeper8704 is offline   Reply With Quote
Old 10-13-2010, 04:08 PM   #9
Senior Member
Posts like a Turbo

vendo's Avatar

Join Date: Sep 2010
Location: MASS
Posts: 480
Thanks: 0
Thanked 1 Time in 1 Post
vendo is on a distinguished road
Default

i have been looking at that website,I have another one at home on that pc.
vendo is offline   Reply With Quote
Old 10-13-2010, 06:45 PM   #10
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

www.compnine.com is the best place to find part numbers for any make/model.

but IF you actually took the time to look at the picture of the bar IN this thread. You would see it has the part number on it.
