Default Got my Autometer fuel pressure gauge installed

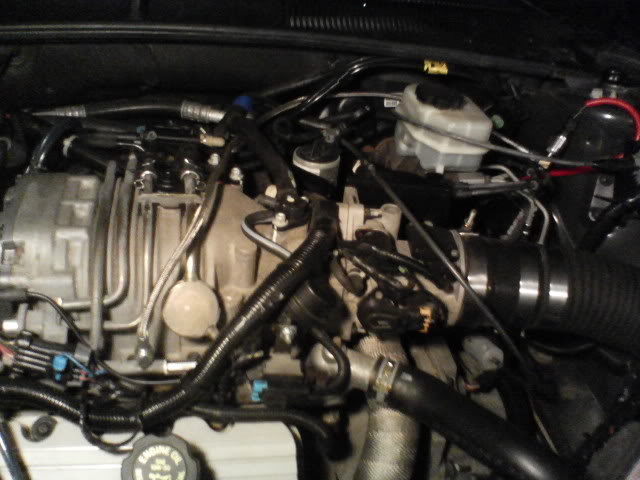

Back in July before i even put a pulley on this car I feared of leaning out and blowing up the engine. To put these fears to rest i bought an Ultralite 2 full sweep electric fuel pressure gauge from Summit and to make a long story short it sat in a box in my garage for 3 months. I finally got a day away from the girlfriend and had an itch to get some stuff done so as of 1 in the morning i have it all wired up and the stainless fuel line hooked up to the sender. The gauge looks awesome IMO, i just need to get my A-pillar pod project painted and then i'll get better pictures up.

Name:  1019070006.jpg
Views: 0
Size:  50.1 KB

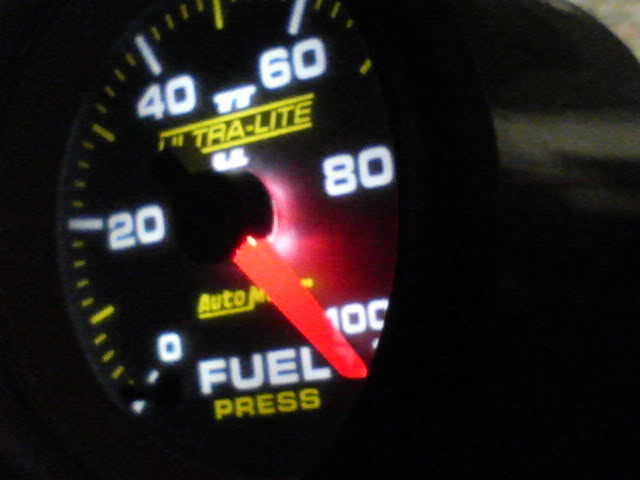

Name:  1018072026.jpg
Views: 0
Size:  25.1 KB

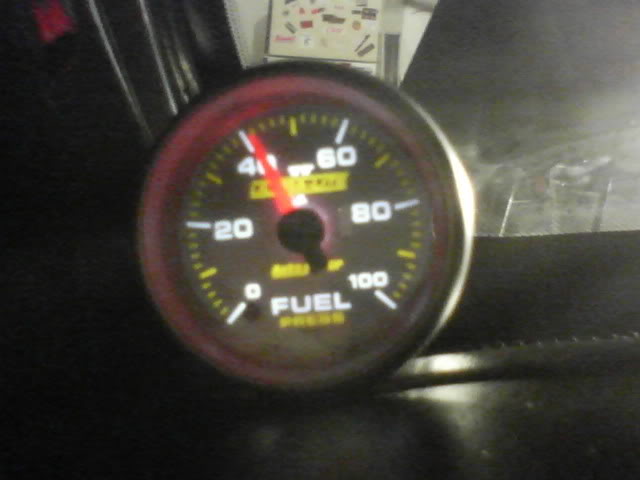

Name:  1019070000.jpg
Views: 0
Size:  27.6 KB

I know pressure is supposed to be 48-52 not running so i'm going to actually drive it tomorrow and see if my numbers increase, if not i'll try to bleed that line to make sure no air is in there.
1994se is offline   Reply With Quote
Old 10-19-2007, 06:58 AM   #2
Senior Member
Certified GM nut

Join Date: Jun 2004
Posts: 1,933
Thanks: 0
Thanked 0 Times in 0 Posts
95seand78z28 is on a distinguished road
Default

Good job. Will the gauge fit in one of the vent holes? It seems cleaner and more stock looking than the pillar pod. FYI there'* a group buy going on for a pillar pod buy....

http://www.bonnevilleclub.com/forum/...ic.php?t=84985
95seand78z28 is offline   Reply With Quote
Old 10-19-2007, 09:35 AM   #3
Senior Member
True Car Nut

Join Date: Mar 2006
Location: Virginia
Posts: 2,904
Thanks: 0
Thanked 0 Times in 0 Posts
93-SSE is on a distinguished road
Default

cool cool!
Got any pics of the gauge inside, compared to the others?

its nice to get away from the real girlfriend to be with the mechanical girlfriend every now and then!
93-SSE is offline   Reply With Quote
Old 10-19-2007, 09:41 AM   #4
Senior Member
Posts like a Camaro
Thread Starter

Join Date: Jan 2004
Location: Aurora, Illinois
Posts: 922
Thanks: 0
Thanked 0 Times in 0 Posts
1994se is on a distinguished road
Default

Quote:
Originally Posted by 95seand78z28
Good job. Will the gauge fit in one of the vent holes? It seems cleaner and more stock looking than the pillar pod. FYI there'* a group buy going on for a pillar pod buy....

http://www.bonnevilleclub.com/forum/...ic.php?t=84985
I'm already losing one to my aeroforce gauge so im not really trying to take out another one. I'm going to look at that thread but i made my own gy molding a universal pod to a spare A pillar with a heat gun. I just have to paint it with SEM texture coating and some color coat.
1994se is offline   Reply With Quote
Old 10-19-2007, 01:30 PM   #5
Senior Member
True Car Nut

Join Date: Oct 2002
Location: Genoa, Illinois
Posts: 4,013
Thanks: 0
Thanked 0 Times in 0 Posts
Allmachtige is on a distinguished road
Default

Ultra-Lite II'* now? I never kept up on their stuff once I left. I still have some Autometer gauges and equipment though.

Looks good.
Allmachtige is offline   Reply With Quote
Old 10-24-2007, 12:28 AM   #6
Senior Member
Posts like a Camaro
Thread Starter

Join Date: Jan 2004
Location: Aurora, Illinois
Posts: 922
Thanks: 0
Thanked 0 Times in 0 Posts
1994se is on a distinguished road
Default

So i temporarily got the pillar pod installed. I have had a hell of a time trying to get SEM texture coating. I bought a can from an online vendor and they sent me a can and it didn't have a nozzle, then they sent me the wrong nozzle blah blah blah. So it'* sanded and color coated and in until i get the texture coat then it comes back out and I am probably getting a shade darker in the color coat paint as well. Granite is a bit to light in direct sunlight.

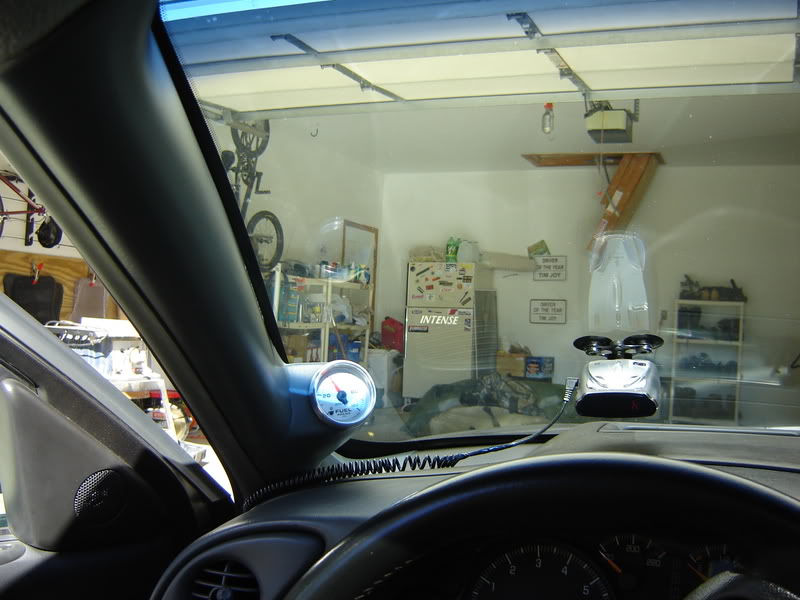

Name:  DSC02246.jpg
Views: 0
Size:  71.6 KB

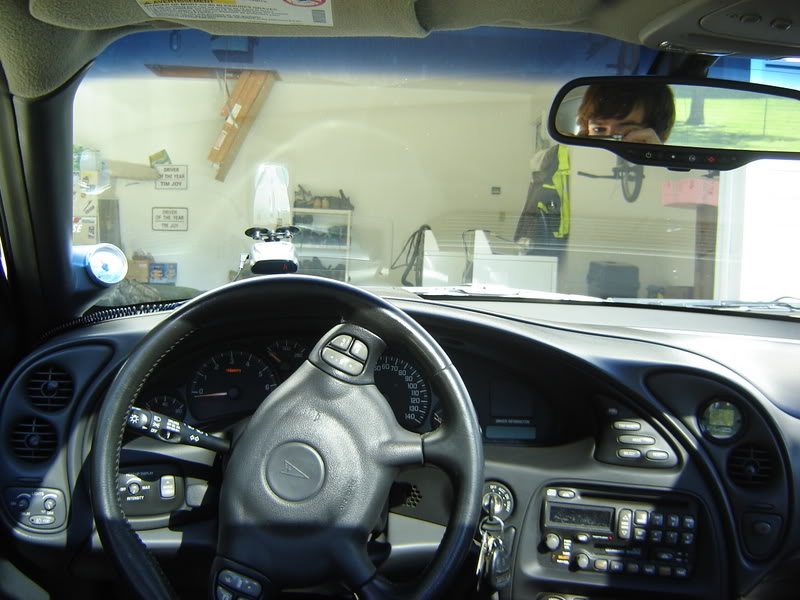

Name:  DSC02247.jpg
Views: 0
Size:  83.5 KB

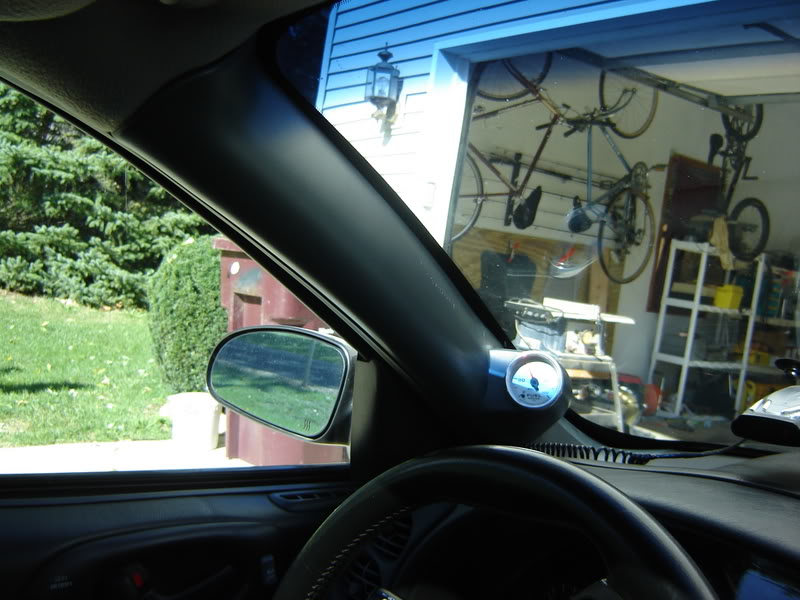

Name:  DSC02249.jpg
Views: 0
Size:  83.4 KB

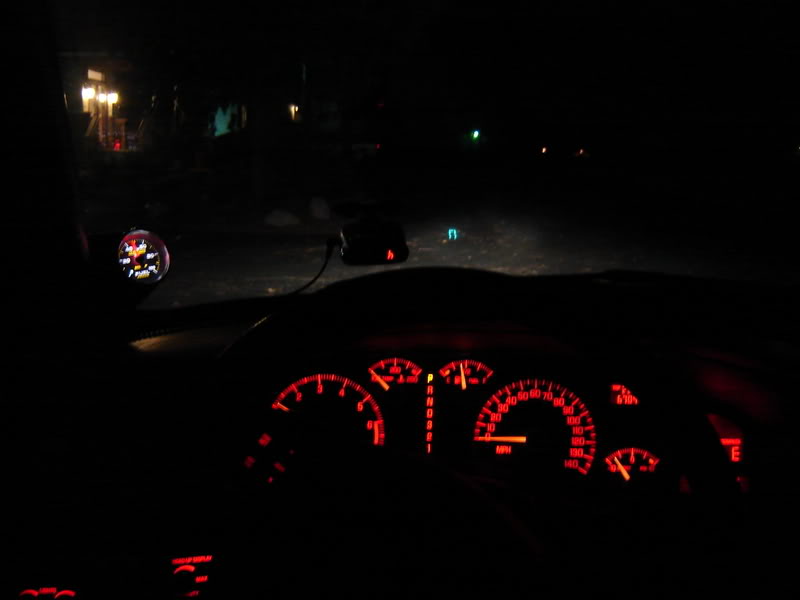

Name:  DSC02252.jpg
Views: 0
Size:  26.0 KB

And since i can't leave anything alone, i pulled the bezel off my gauge and polished it. It really looks good at night but i am still unsure if i like the way it looks in daylight.

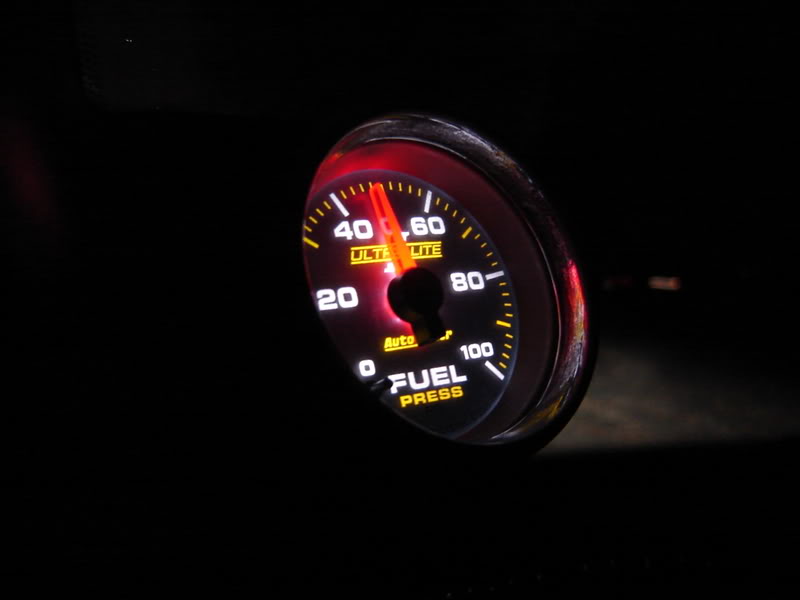

Name:  DSC02250.jpg
Views: 0
Size:  26.6 KB

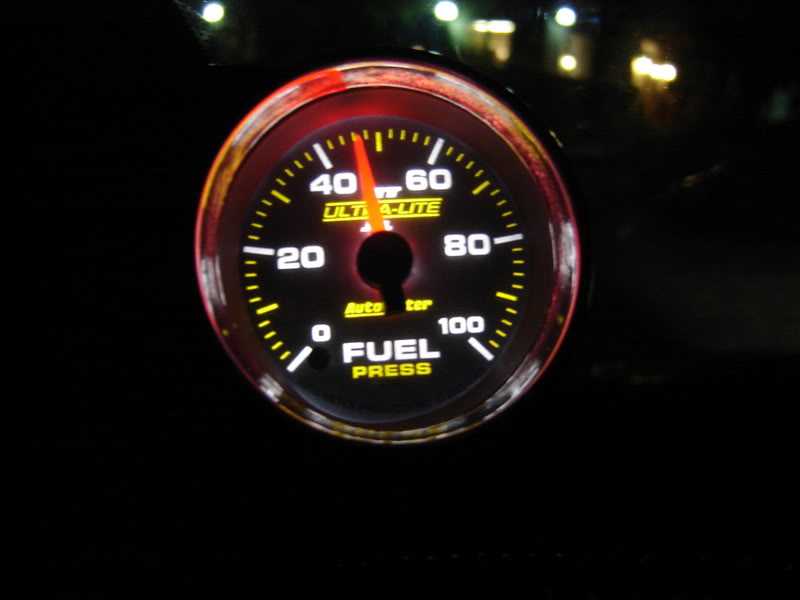

Name:  DSC02251.jpg
Views: 0
Size:  38.2 KB

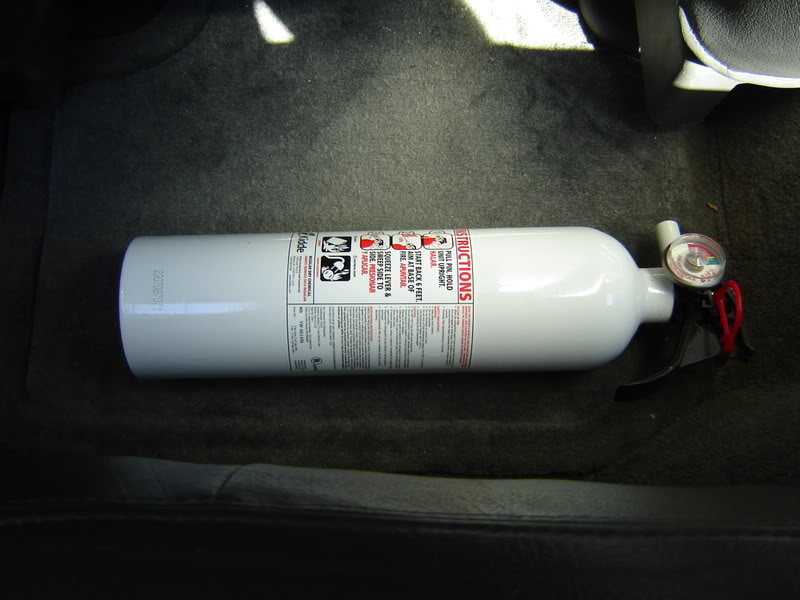

My new backseat passenger

Name:  DSC02248.jpg
Views: 0
Size:  58.6 KB
1994se is offline   Reply With Quote
Old 10-24-2007, 12:43 AM   #7
Senior Member
True Car Nut

Join Date: Mar 2005
Posts: 2,688
Thanks: 0
Thanked 0 Times in 0 Posts
dillcc is on a distinguished road
Default

Looks cool!
What are your WOT numbers?
Where is the sender located and do you have to run fuel lines into the cabin?
dillcc is offline   Reply With Quote
Old 10-24-2007, 12:54 AM   #8
Senior Member
Posts like a Camaro
Thread Starter

Join Date: Jan 2004
Location: Aurora, Illinois
Posts: 922
Thanks: 0
Thanked 0 Times in 0 Posts
1994se is on a distinguished road
Default

Honestly i haven't hit WOT since putting this in, I know it'* above 60 as i got about 3/4 throttle in the passing lane and looked at it and it was a hair above 60. My numbers are a little low i think at about 46psi at idle. The sender is connected to a 3ft length of braided stainless hose which screws onto the test port on the fuel rail. You have to get a schrader valve core removal tool so the sender gets pressure. The braided line follows the path the factory fuel lines take and the sender is mounted to the fenderwell next to the cruise control module using a 1" conduit strap and some self drilling screws like the intense PCM tray comes with. The wiring for the sender goes through the firewall behind the brake pedal and comes out at the big grommet under the brake booster so no fuel lines in the cabin.

Drove 4 hours to St. Louis Saturday and another 4 hours back Sunday morning and i am still leak free so the thread sealing compound is doing it'* job. (Fire extinguisher is just in case, you never know when you might see a burning car on the side of the road. My dad put one out about 5 years ago with his)
1994se is offline   Reply With Quote
Old 10-24-2007, 03:05 PM   #9
Senior Member
True Car Nut

Join Date: Oct 2002
Location: Genoa, Illinois
Posts: 4,013
Thanks: 0
Thanked 0 Times in 0 Posts
Allmachtige is on a distinguished road
Default

Does Autometer still make electronic senders for these? I believe they did, but the gauge costs about 2x more.

If you're interested I can talk to Mike over there.
Allmachtige is offline   Reply With Quote
Old 10-24-2007, 03:53 PM   #10
Senior Member
Certified Car Nut

Join Date: Oct 2002
Posts: 11,307
Thanks: 0
Thanked 0 Times in 0 Posts
bonnie94ssei is on a distinguished road
Default

I'm deathly afraid of blowing my engine too. I think I'm going to get this gauge as well so I can really keep an eye on my fuel 24/7. And I'll put it in my vent hole! that sounds bad.

And I like your backseat passenger. I've been meaning to get one too!
