Default A freaking ton of parts - 21 pictures

I went out a couple times to go pick up some engine parts. An L67 is much heavier when picked up off the floor and loaded into the trunk than when you unload it onto the floor. Odd... Must have been the horrible pain at first.

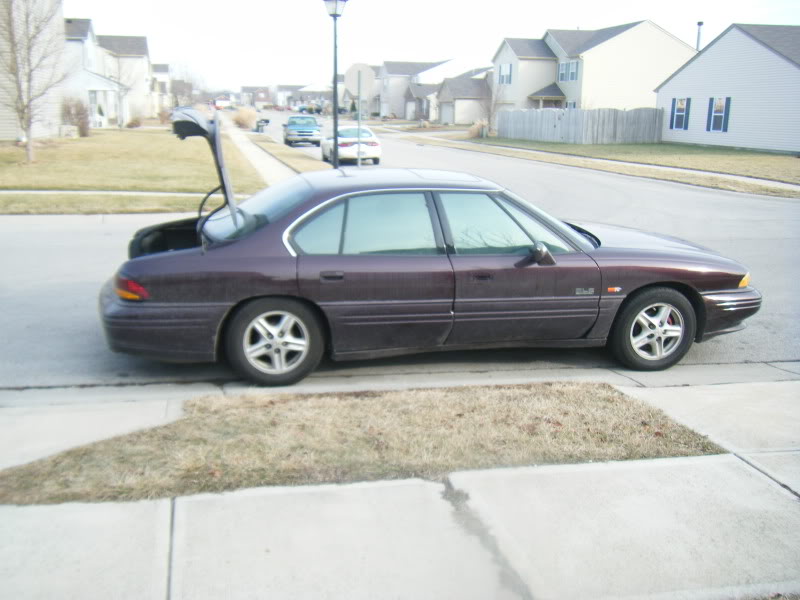

Here'* a bunch of stuff squishing the rear suspension:
Name:  DSCF4096.jpg
Views: 0
Size:  67.2 KB

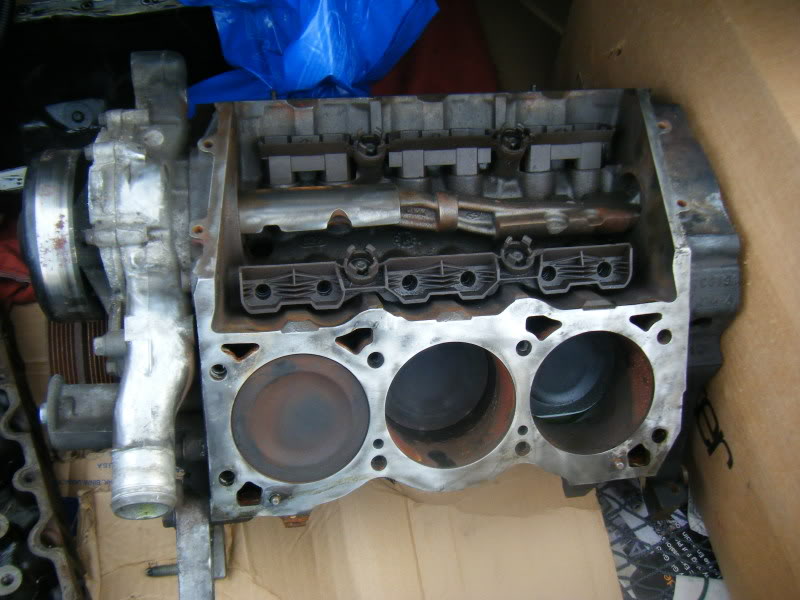

L67 shortblock:
Name:  DSCF4097.jpg
Views: 0
Size:  75.4 KB

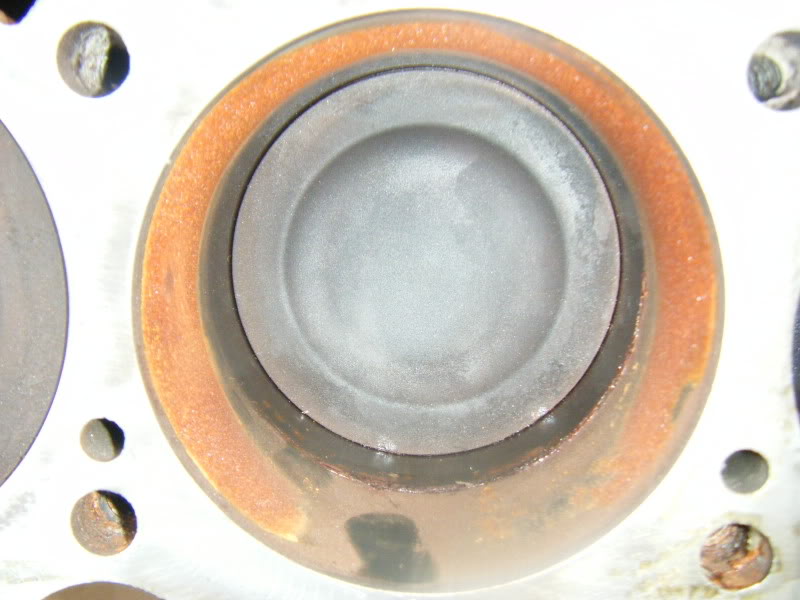

That engine'* cylinder #3:
Name:  DSCF4101.jpg
Views: 0
Size:  66.6 KB

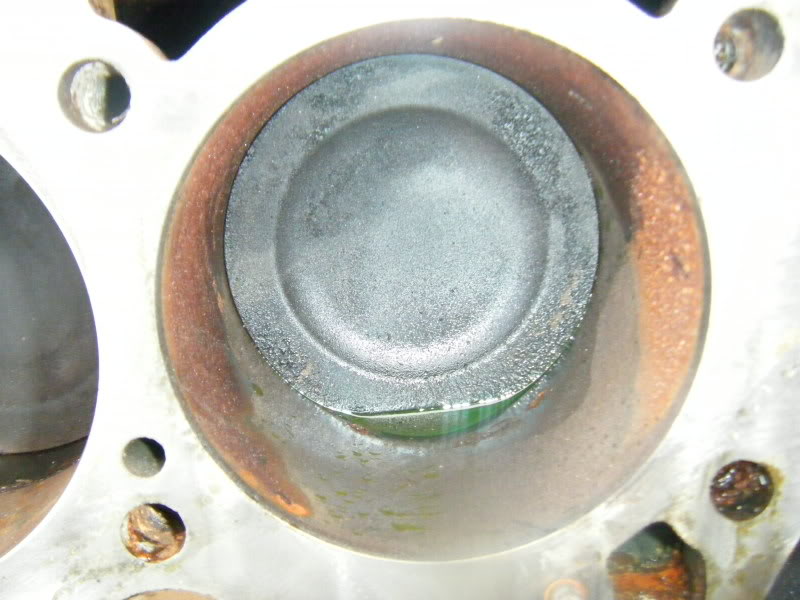

And now, cylinder #5:
Name:  DSCF4102.jpg
Views: 0
Size:  73.1 KB

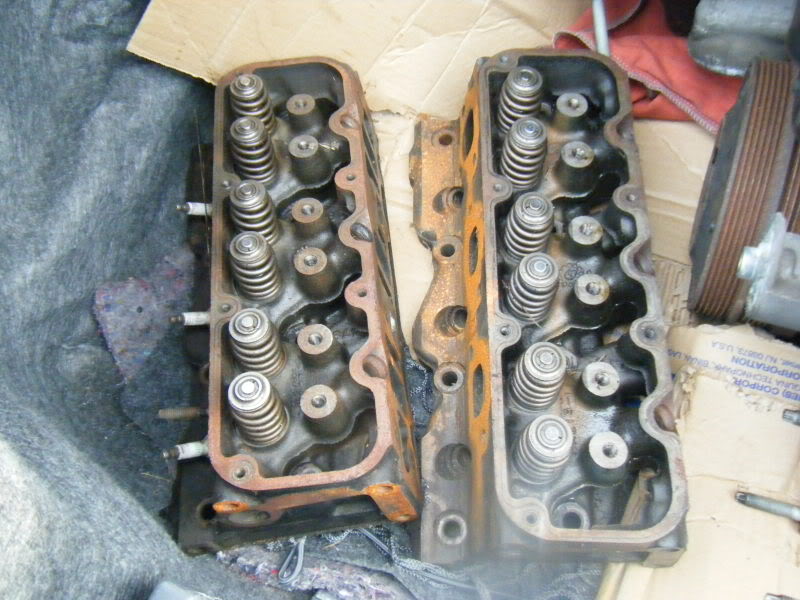

One of two sets of L67 heads:
Name:  DSCF4098.jpg
Views: 0
Size:  95.0 KB

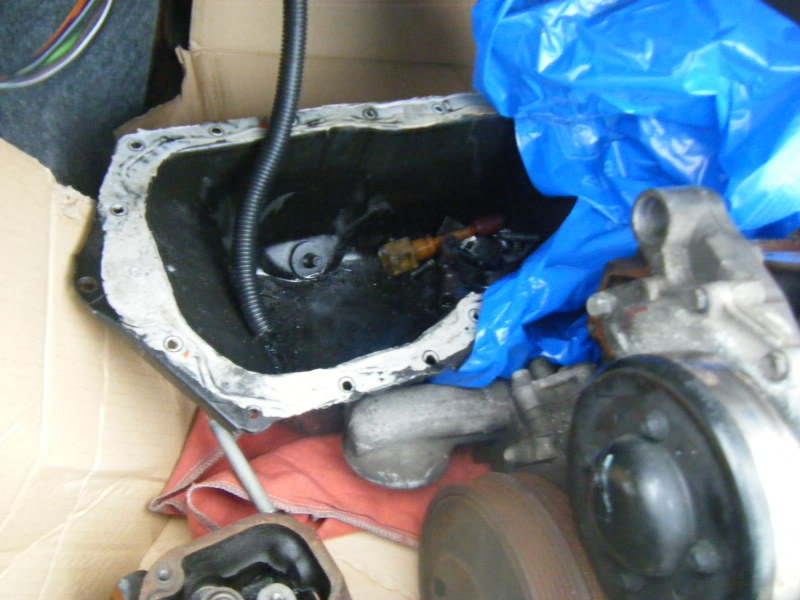

One of two L67 oil pans:
Name:  DSCF4099.jpg
Views: 0
Size:  64.7 KB

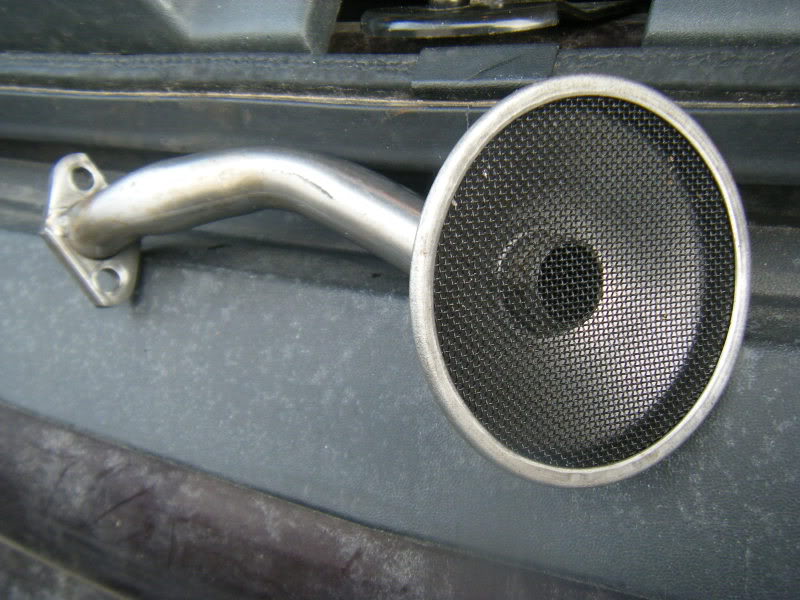

Brand new oil pickup:
Name:  DSCF4105.jpg
Views: 0
Size:  87.4 KB

I forgot what I put in here, so it'* a surprise for now:
Name:  DSCF4106.jpg
Views: 0
Size:  65.9 KB

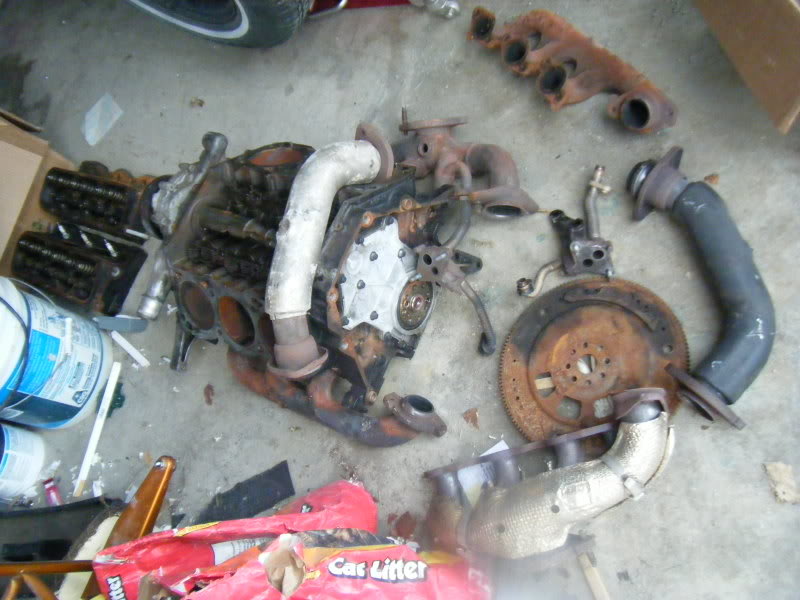

This is my L67 shortblock, flexplate, and a bunch of exhaust manifolds:
Name:  DSCF4108.jpg
Views: 0
Size:  79.5 KB

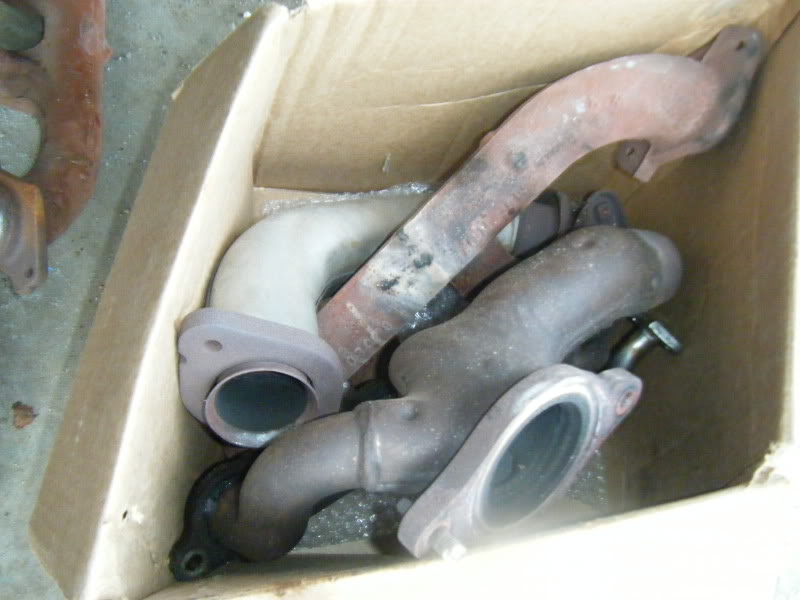

This is another box full of exhaust manifolds:
Name:  DSCF4110.jpg
Views: 0
Size:  58.9 KB

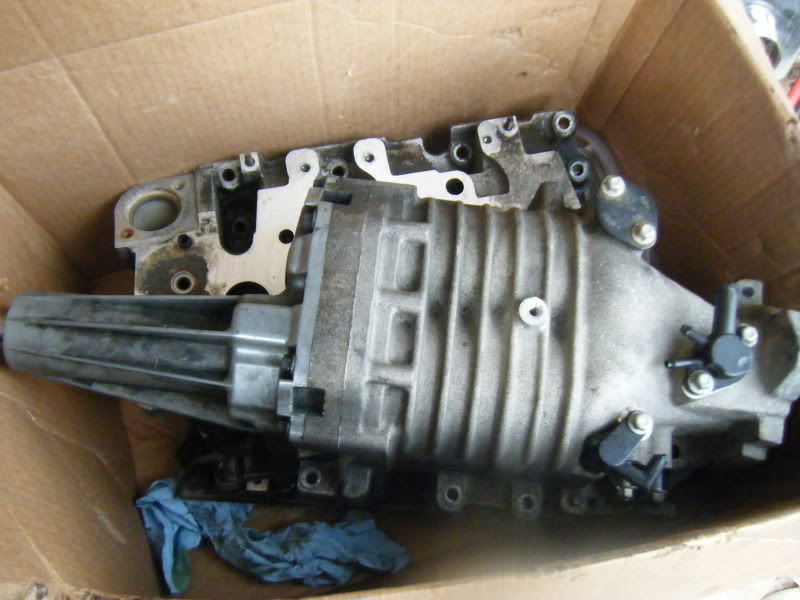

And here'* my box with a complete M90 with a new coupler and a set of LIMs. One is from an L67 and the other from an L36.
Name:  DSCF4115.jpg
Views: 0
Size:  68.4 KB

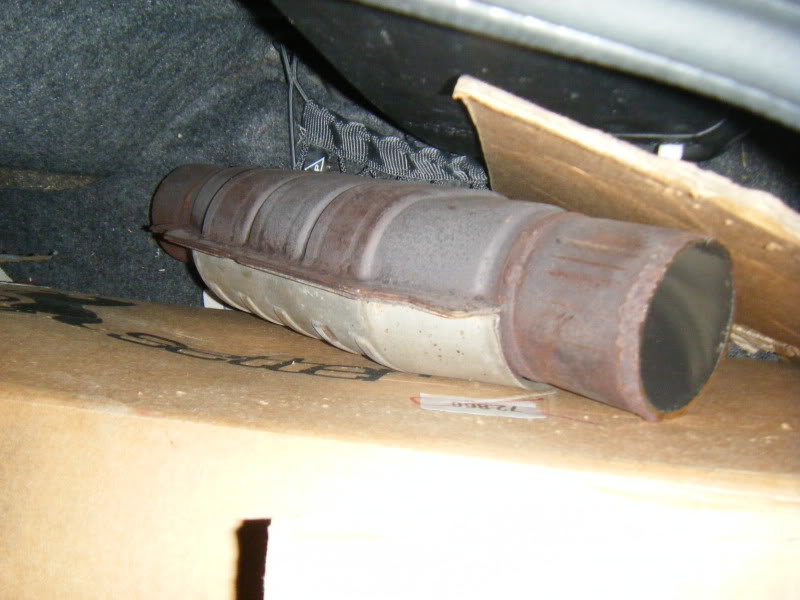

One of two Magnaflow high flow catalytic converters:
Name:  DSCF4092.jpg
Views: 0
Size:  65.2 KB

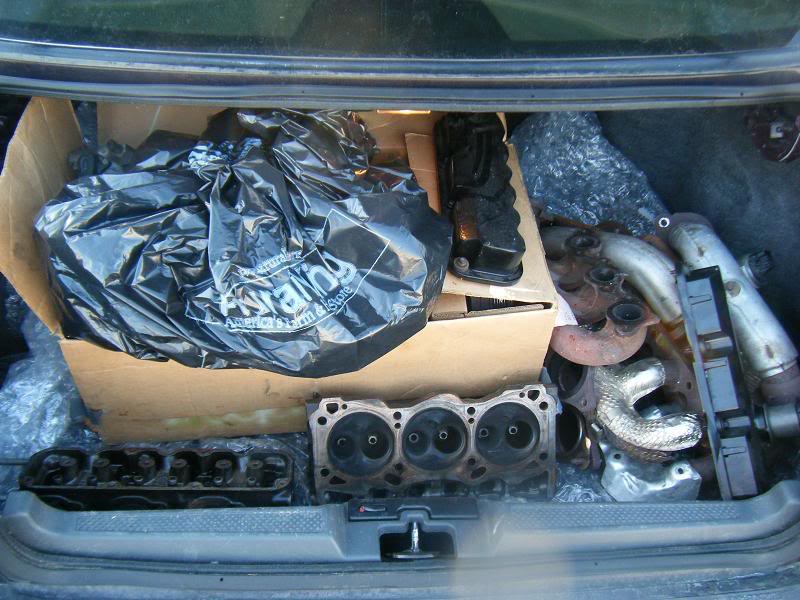

Here'* my second trunkload from another trip.
Name:  DSCF4133.jpg
Views: 0
Size:  90.1 KB

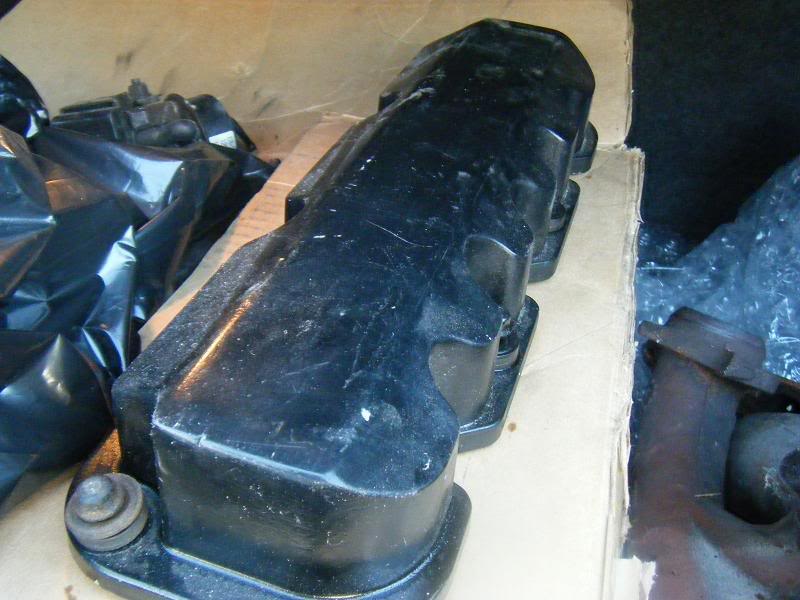

One of my sets of valve covers was filled in and painted black by the previous owner. I am going to repaint these because they have some scratches. Yes, they may get scratched when I use them, but I am going to try to rice out the SLE by painting them dark cherry metallic to match the exterior paint.
Name:  DSCF4134.jpg
Views: 0
Size:  68.2 KB

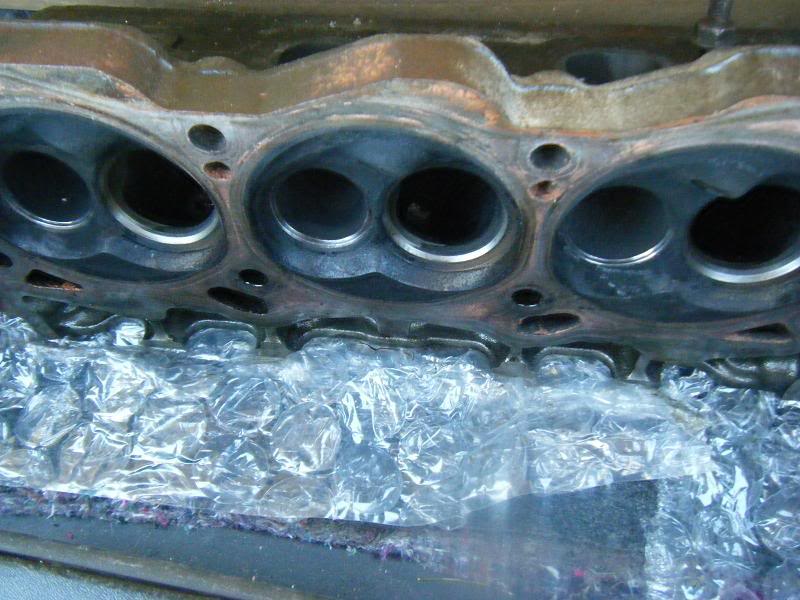

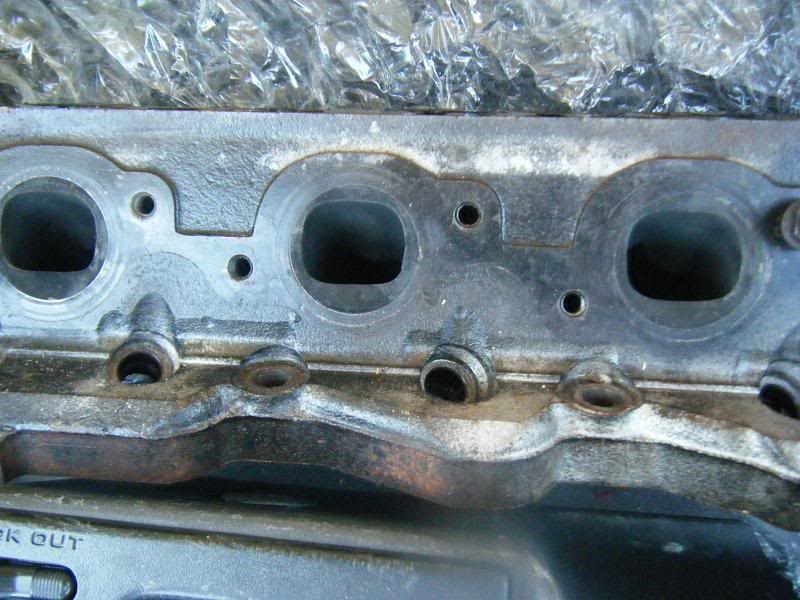

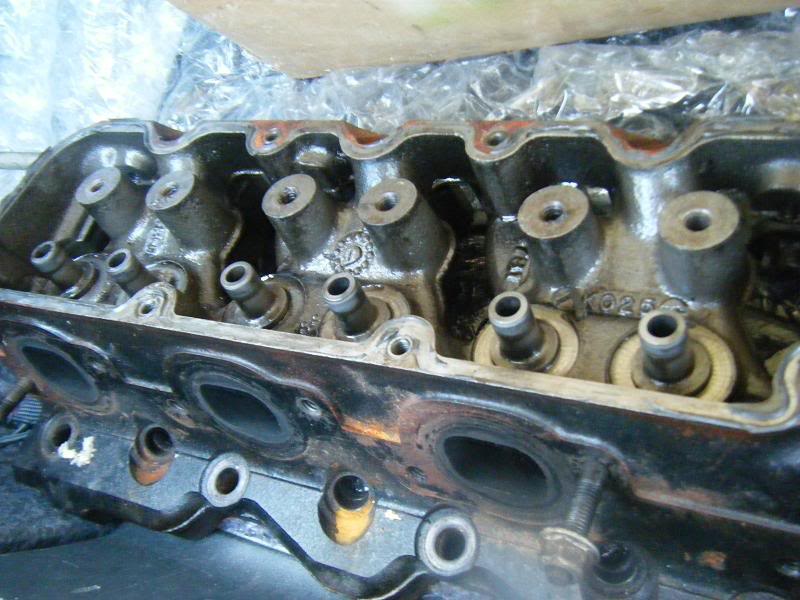

These are some pictures of extremely low-mileage heads.
Name:  DSCF4135.jpg
Views: 0
Size:  89.0 KB
Name:  DSCF4136.jpg
Views: 0
Size:  81.6 KB
Name:  DSCF4137.jpg
Views: 0
Size:  79.6 KB

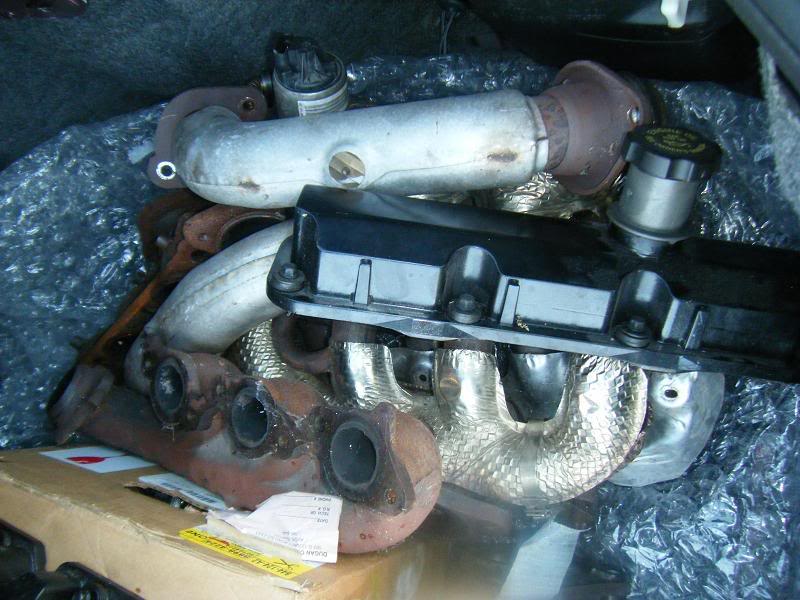

More exhaust manifolds!
Name:  DSCF4139.jpg
Views: 0
Size:  84.3 KB

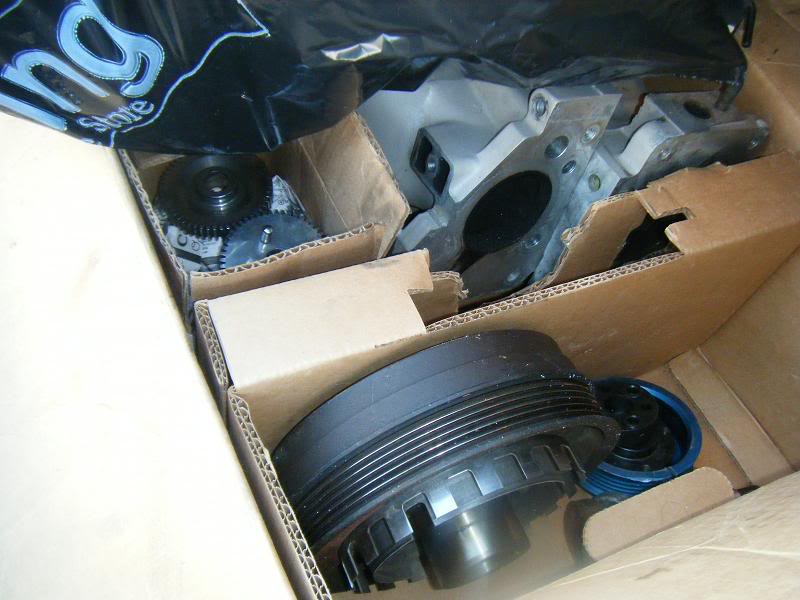

Two M62 superchargers, the other oil pan, L67 fuel rail (not pictured), L67 throttle body (not pictured), and an L36 harmonic balancer.
Name:  DSCF4140.jpg
Views: 0
Size:  64.9 KB

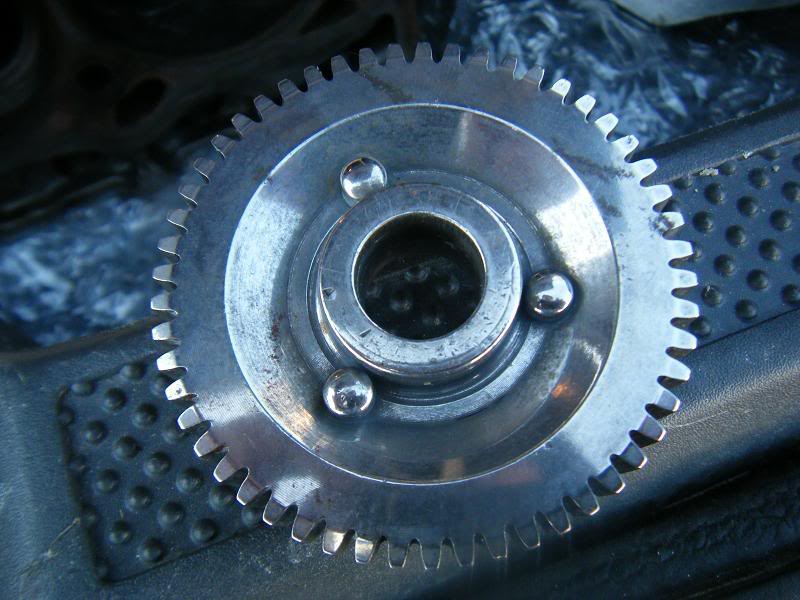

I am told I have a set of anodized M90 gears. They're very shiny. This picture doesn't do them any justice. I can see myself in them, past the very minor scratches.
Name:  DSCF4141.jpg
Views: 0
Size:  73.4 KB

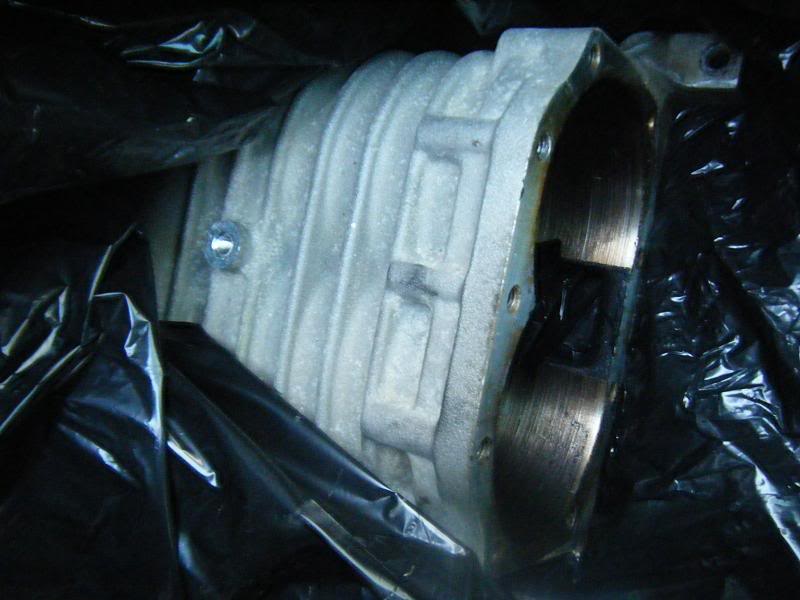

This is my other M90'* casing.
Name:  DSCF4142.jpg
Views: 0
Size:  55.2 KB

Pretty cool, I think. I have a lot more parts coming in. I may go pick up one or two more L67 shortblocks. There are some things that aren't pictured that I forgot I have. Overall, this is going to be a lot of fun to sort through and send to machine shops.
radomirthegreat is offline   Reply With Quote
Old 02-07-2009, 08:10 AM   #2
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Wow, lots of cool things.
Danthurs is offline   Reply With Quote
Old 02-07-2009, 08:41 PM   #3
Junior Member

Toddster's Avatar

Join Date: Aug 2005
Posts: 0
Thanks: 0
Thanked 1 Time in 1 Post
Toddster is on a distinguished road
Default

so.....what are you going to do with all this fun stuff? we must know what rad is up to now.

Want to part with any of the M90'*?
Toddster is offline   Reply With Quote
Old 02-07-2009, 09:34 PM   #4
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Heck, I want the whole engine.
Danthurs is offline   Reply With Quote
Old 02-08-2009, 06:12 AM   #5
Senior Member
True Car Nut
Thread Starter

radomirthegreat's Avatar

Join Date: Sep 2006
Location: Indianapolis, IN
Posts: 4,606
Thanks: 0
Thanked 0 Times in 0 Posts
radomirthegreat is on a distinguished road
Default

Dan, I know of 3 other 3800s that you can have to play with. Shipping is pretty odd, but I'm sure you can have one for less than $100.

As for all these parts... The SLE will get machined L67 heads, an L67 LIM, and a ported M90. The other M90 is actually for sale. I can get a third one, fully assembled and ready to go. The L67 shortblock will have L67 heads added to it plus the SLE'* ported LIM and L26 UIM. Then, I will put a huge turbocharger on it. The other parts are there simply to aid in these builds or to be used for core charges. It should be tons of fun.
