Default A few more teasers of Zilla progress

And refer to the 92-99 thread #$R%@#$^% for more pics (5 more showing how I torqued the exhaust manifolds).

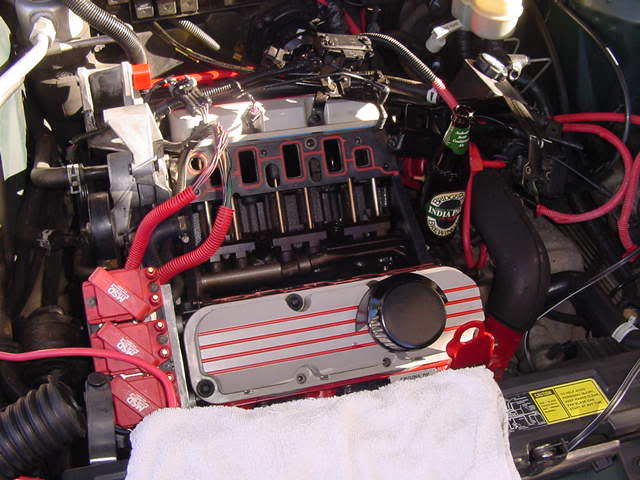

Name:  tease1.jpg
Views: 0
Size:  55.1 KB

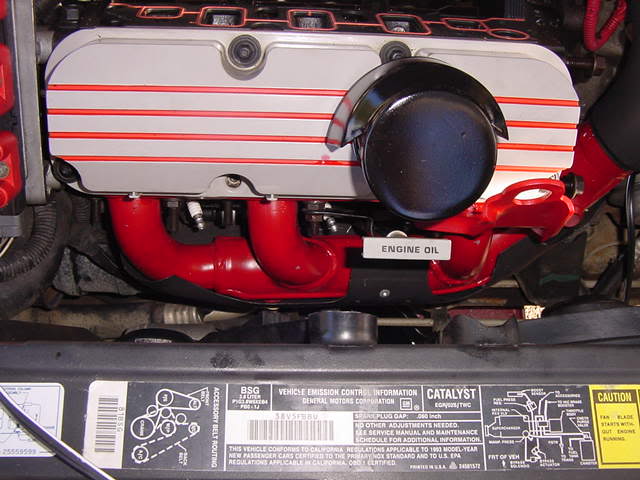

Name:  tease2.jpg
Views: 0
Size:  52.9 KB

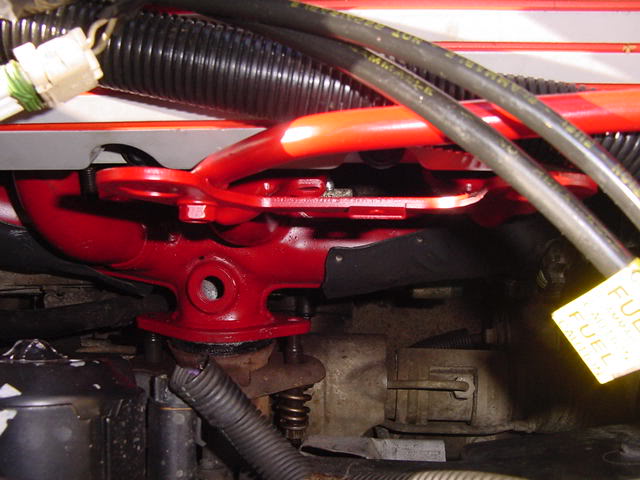

Name:  tease3.jpg
Views: 0
Size:  50.4 KB

Name:  tease4.jpg
Views: 0
Size:  53.8 KB

Name:  tease5.jpg
Views: 0
Size:  55.1 KB

Name:  tease6.jpg
Views: 0
Size:  53.3 KB

Name:  tease7.jpg
Views: 0
Size:  55.8 KB

Name:  tease8.jpg
Views: 0
Size:  55.1 KB

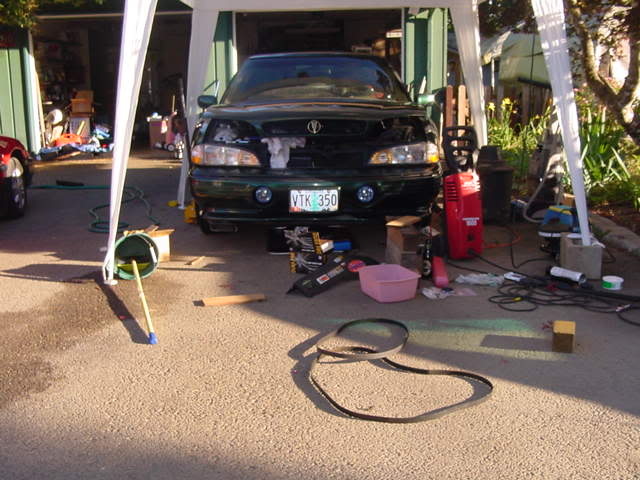

Name:  tease10.jpg
Views: 0
Size:  55.9 KB
willwren is offline   Reply With Quote
Old 07-11-2005, 11:59 PM   #2
Senior Member
True Car Nut

Join Date: Jan 2004
Location: Chicago,IL MWBF '04 SURVIVOR MWBF '05 SURVIVOR Napa Manager
Posts: 3,955
Thanks: 0
Thanked 0 Times in 0 Posts
Kennginn is on a distinguished road
Default

man bill that is the cleanest engine i have ever seen on a series 1 r u almost done?
Kennginn is offline   Reply With Quote
Old 07-12-2005, 12:02 AM   #3
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

What you see on the LIM in the last couple pics of the engine is what'* left on the top end other than the SC and TB.

Thermostat and EGR, other than torquing the LIM. A couple more short nights after work for the top end.
willwren is offline   Reply With Quote
Old 07-12-2005, 12:03 AM   #4
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

gettin closer
1993 SLE is offline   Reply With Quote
Old 07-12-2005, 12:36 AM   #5
Senior Member
True Car Nut

Join Date: Jun 2003
Location: Climax Springs, Missouri
Posts: 2,493
Thanks: 0
Thanked 0 Times in 0 Posts
LittleHoov is on a distinguished road
Default

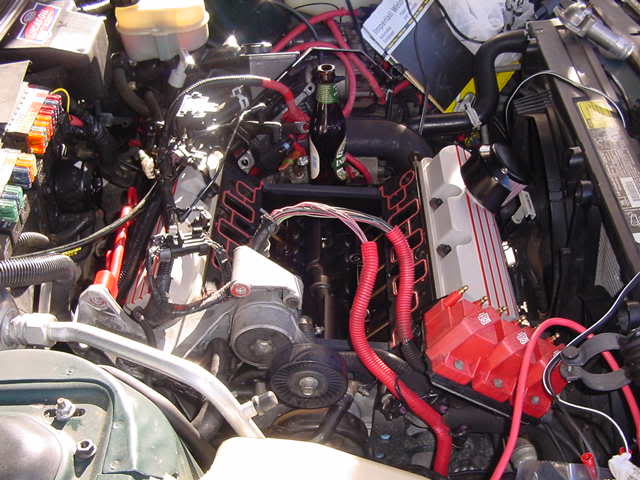

Name:  tease4.jpg
Views: 0
Size:  53.8 KB

you know you sat that there on purpose! although it could be a primitive form of alcohol injection...
LittleHoov is offline   Reply With Quote
Old 07-12-2005, 12:47 AM   #6
Senior Member
True Car Nut

Join Date: Apr 2004
Location: Three Oaks, Michigan
Posts: 4,879
Thanks: 0
Thanked 0 Times in 0 Posts
opensourceguy is on a distinguished road
Default

Yeah, I too believe the beer is beginning to be purposly placed. I will admit, you do have a very clean engine.

Your lifter guides look different.. maybe shoot a closer shot for me? Looks like your lifters stick up really high


-justin
opensourceguy is offline   Reply With Quote
Old 07-12-2005, 12:50 AM   #7
Senior Member
True Car Nut

Join Date: Sep 2004
Location: Farmington, Minnesota =MWBF '05 SURVIVOR= =CEBF '06 SURVIVOR= =August '06 COTM=
Posts: 9,130
Thanks: 0
Thanked 0 Times in 0 Posts
LakevilleSSEi is on a distinguished road
Default

I can't even see the lifters in this?

Let alone the guides. And I do believe yours are different.
LakevilleSSEi is offline   Reply With Quote
Old 07-12-2005, 12:52 AM   #8
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Those are only oil guides, not lifter guides. That'* a big difference between your motor and a Series 1.
willwren is offline   Reply With Quote
Old 07-12-2005, 12:55 AM   #9
Senior Member
True Car Nut

Join Date: Dec 2003
Location: Corn Fields, IN
Posts: 2,766
Thanks: 0
Thanked 0 Times in 0 Posts
John Deere Boy is on a distinguished road
Default

My intake gasket were blue
John Deere Boy is offline   Reply With Quote
Old 07-12-2005, 01:01 AM   #10
Senior Member
True Car Nut

Join Date: Apr 2004
Location: Three Oaks, Michigan
Posts: 4,879
Thanks: 0
Thanked 0 Times in 0 Posts
opensourceguy is on a distinguished road
Default



That'* an oil guide? Umm.. what keeps your lifters from turning? Is your block machined to accept hydraulic lifters?

Umm.. how is my engine not series 1?


-justin
opensourceguy is offline   Reply With Quote
