Default EK98/willwren mini-meet pics

LIM and UIM gaskets, Dillon intake install, valve cover gaskets, and misc other little things:

Name:  ek1.jpg
Views: 0
Size:  125.7 KB

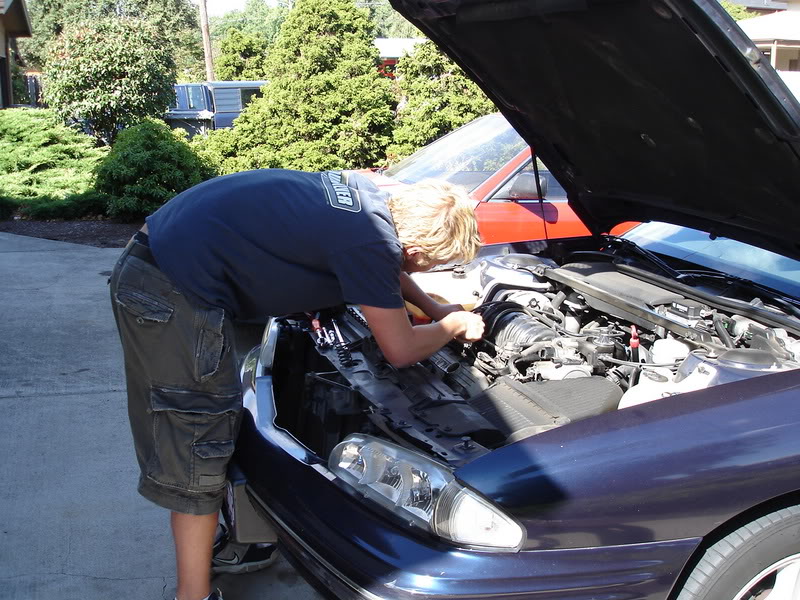

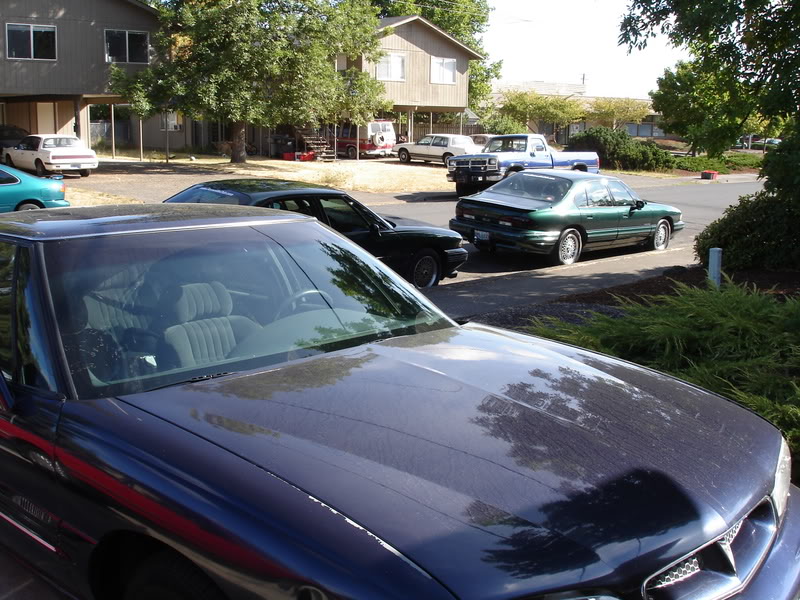

Eric arrives. His car looks purple at some angles/lighting. Blue most of the time.


Name:  ek2.jpg
Views: 0
Size:  136.4 KB


Name:  ek3.jpg
Views: 0
Size:  126.9 KB


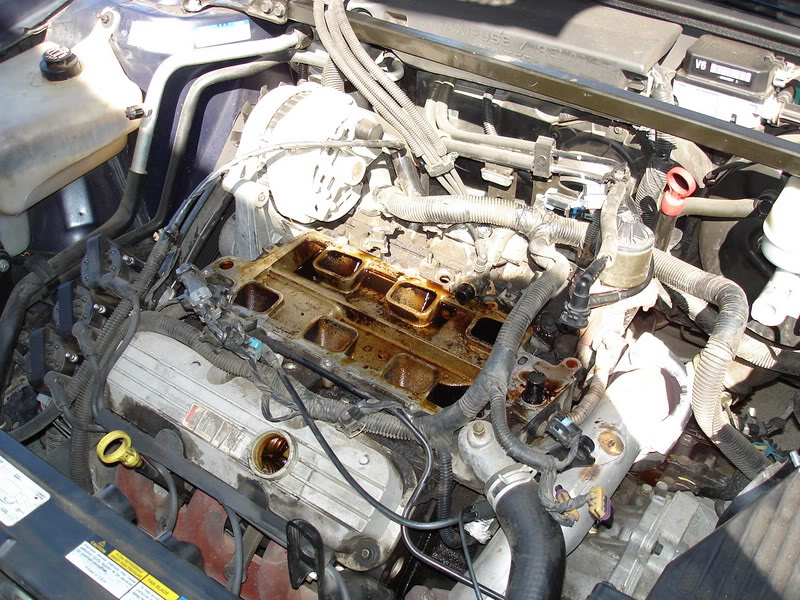

Name:  ek4.jpg
Views: 0
Size:  164.0 KB


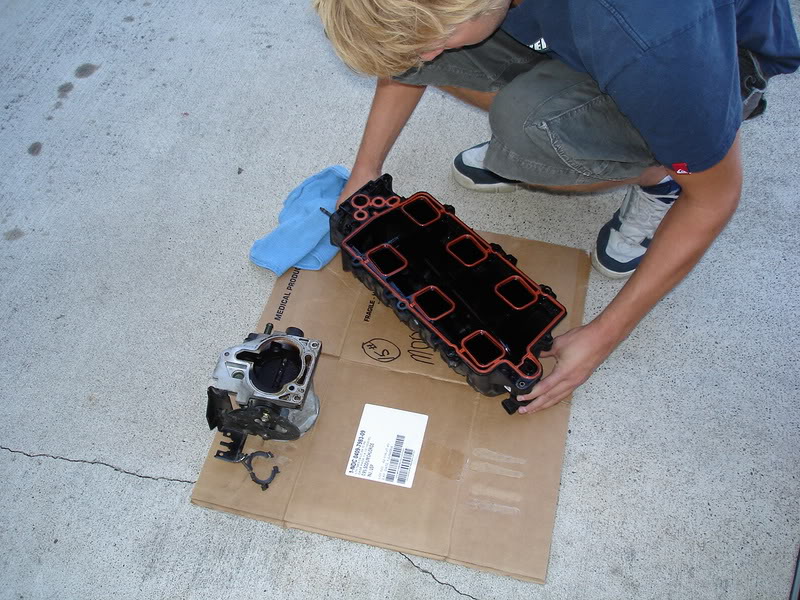

Name:  ek5.jpg
Views: 0
Size:  135.3 KB


Name:  ek6.jpg
Views: 0
Size:  123.6 KB

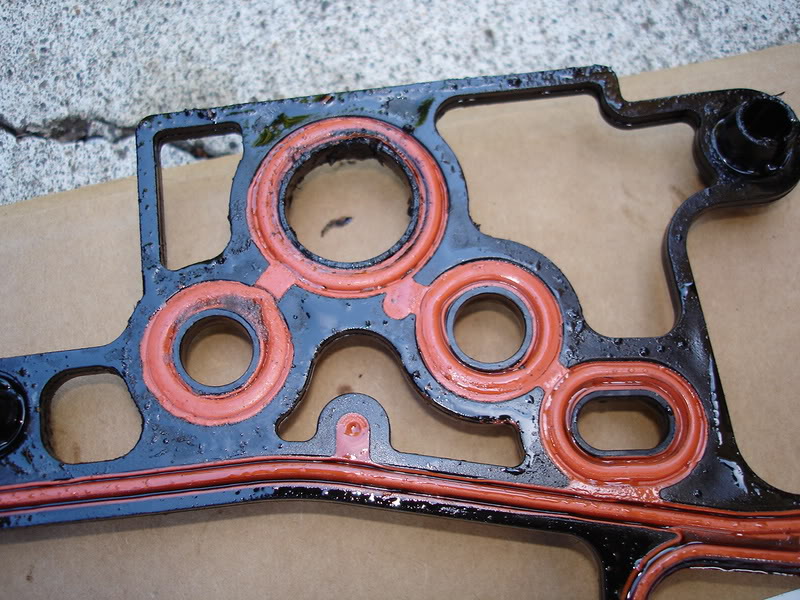

This UIM gasket was installed with the UIM sometime after 2002.


Name:  ek7.jpg
Views: 0
Size:  63.6 KB

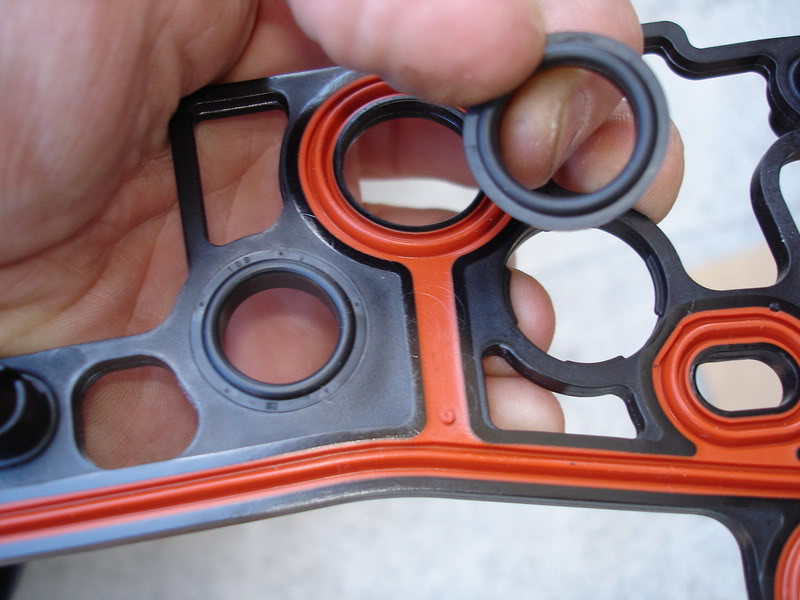

New style AC Delco UIM gasket.


Name:  ek8.jpg
Views: 0
Size:  97.6 KB

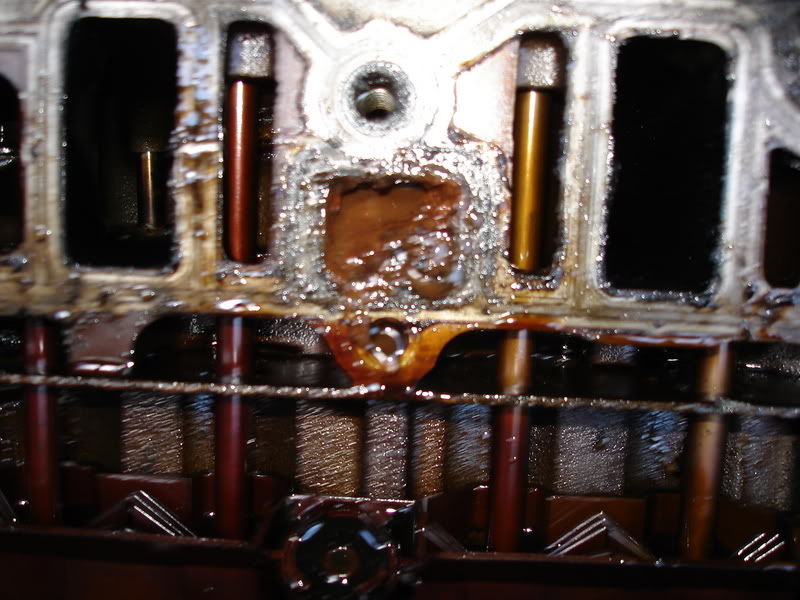

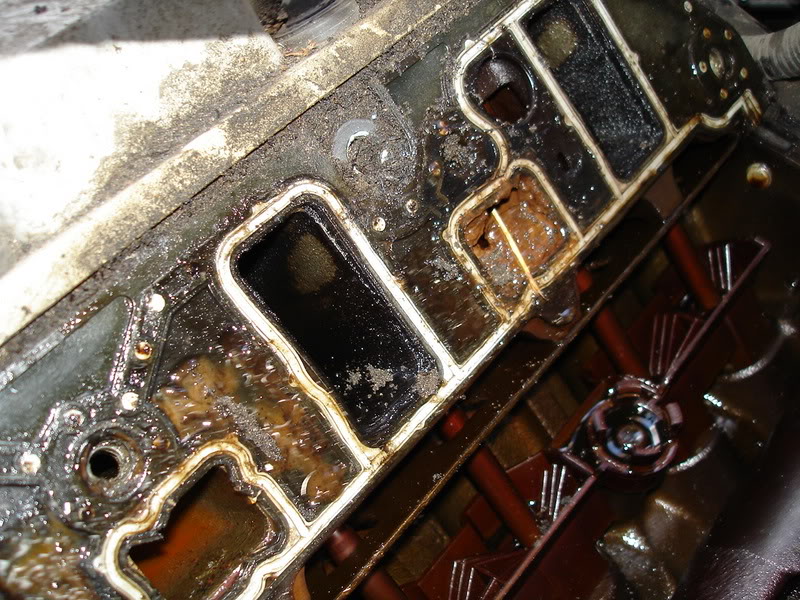

The infamous 'sludge pocket' on an L36. This ends at a blind port on the LIM.


Name:  ek9.jpg
Views: 0
Size:  151.8 KB


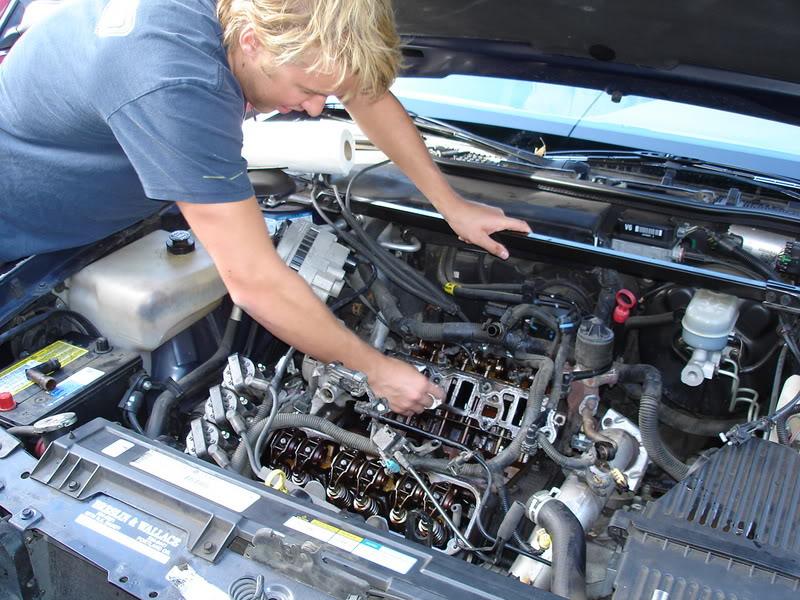

Name:  ek10.jpg
Views: 0
Size:  132.1 KB


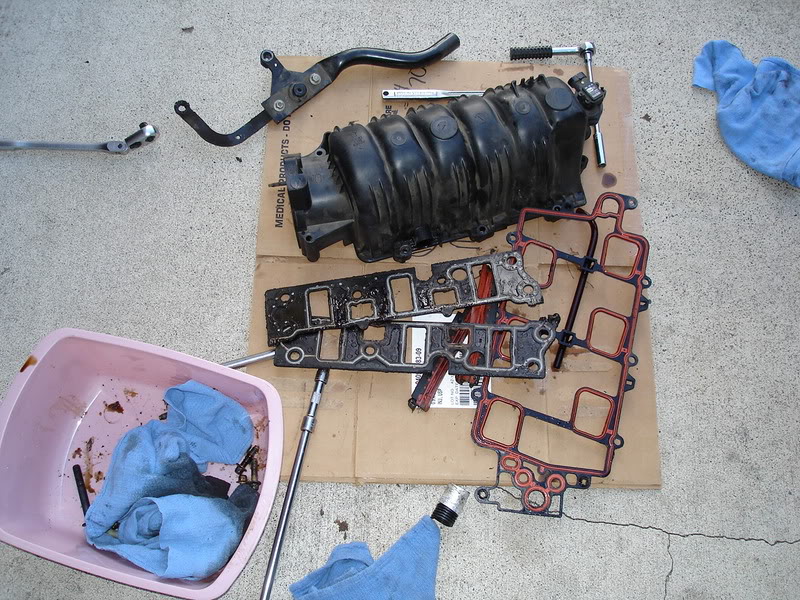

Name:  ek11.jpg
Views: 0
Size:  164.7 KB

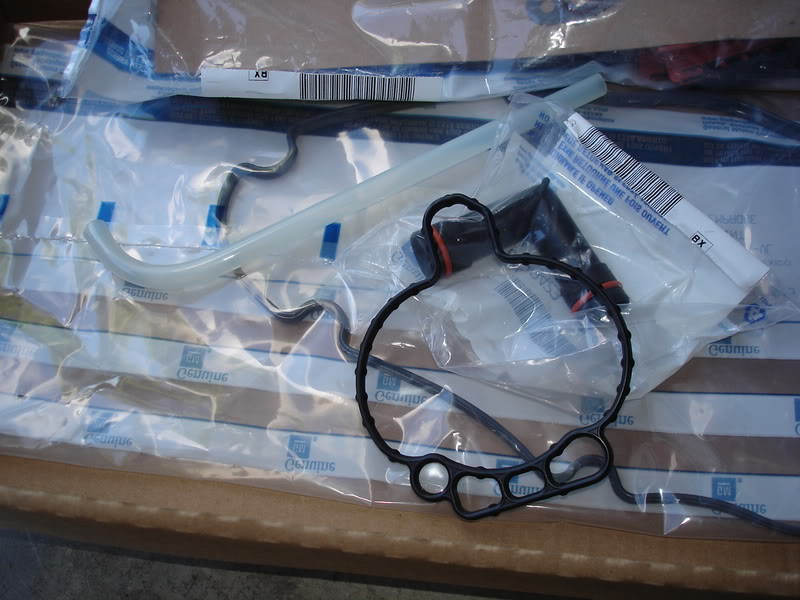

New Delco Aluminum framed LIM gaskets.


Name:  ek13.jpg
Views: 0
Size:  77.3 KB


Name:  ek14.jpg
Views: 0
Size:  79.6 KB

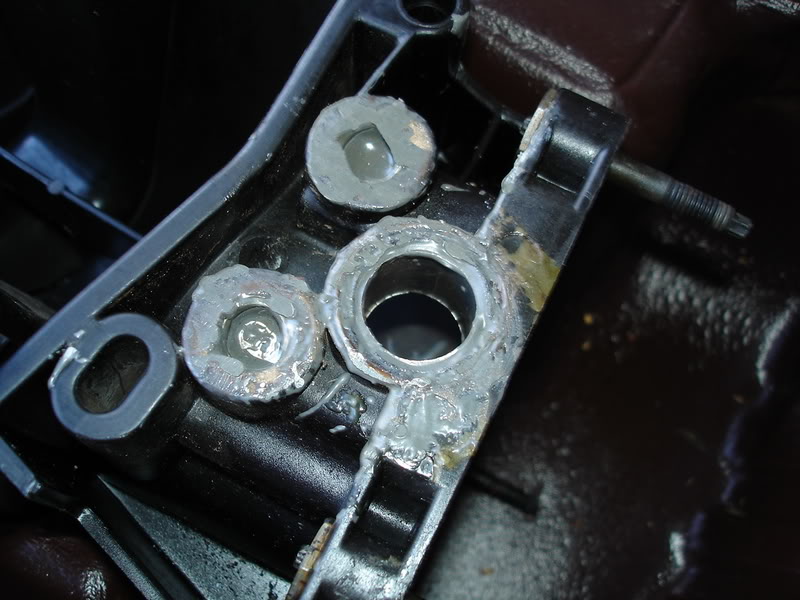

Dillon intake with blocked coolant passages and sleeved EGR port.


Name:  ek15.jpg
Views: 0
Size:  182.9 KB

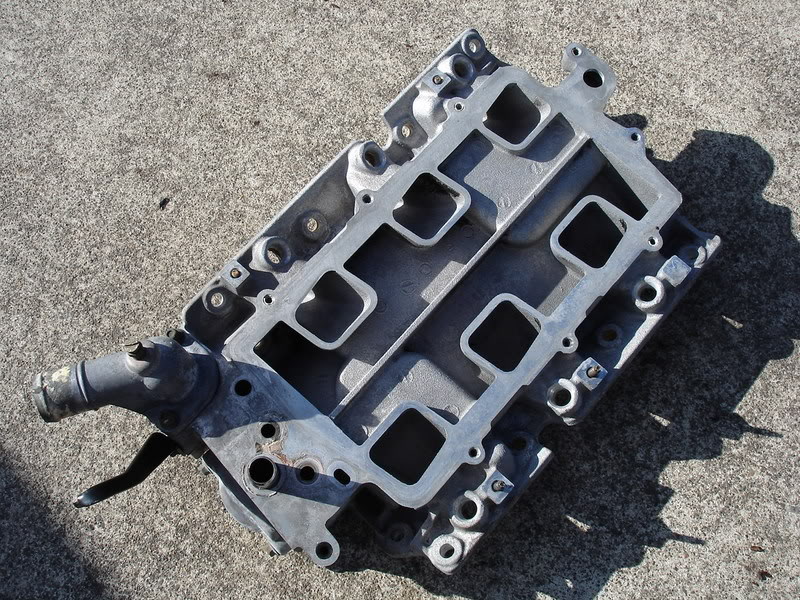

LIM ready for re-install


Name:  ek16.jpg
Views: 0
Size:  168.9 KB

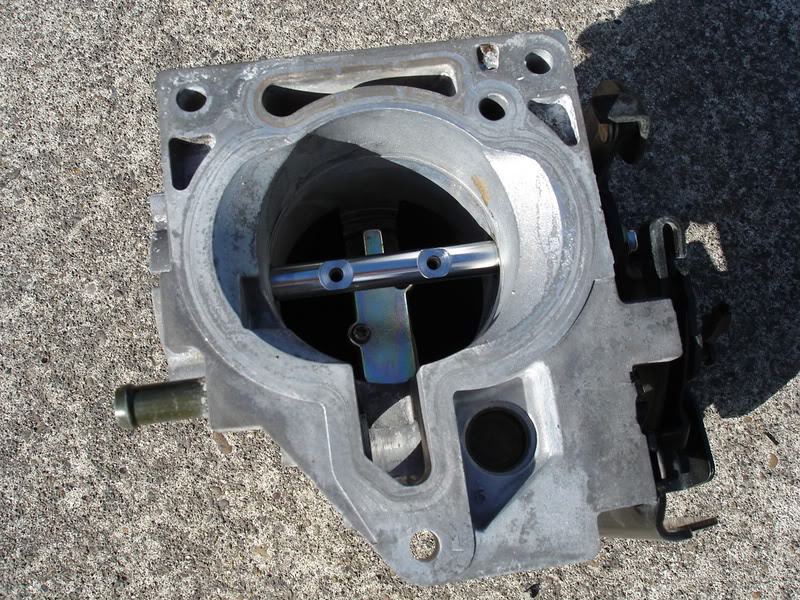

TB (minus throttle plate and sensors) after cleaning.


Name:  ek17.jpg
Views: 0
Size:  47.1 KB

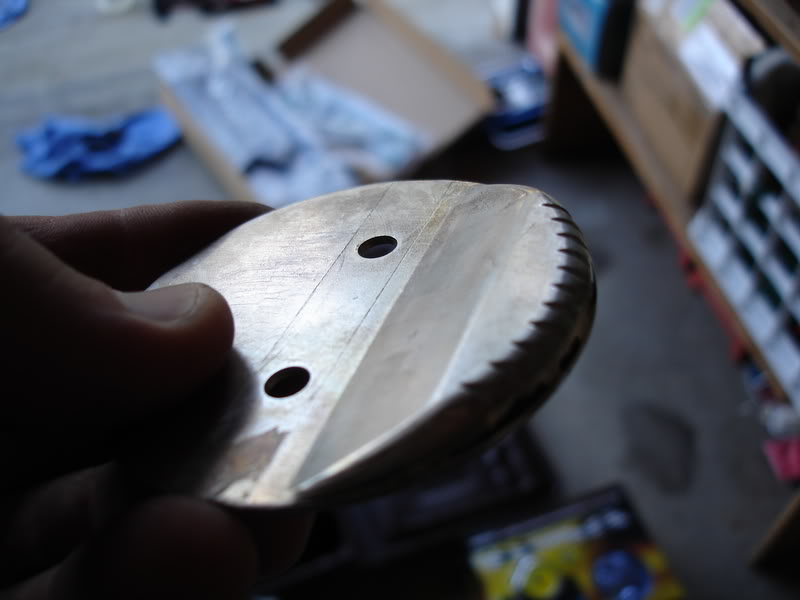

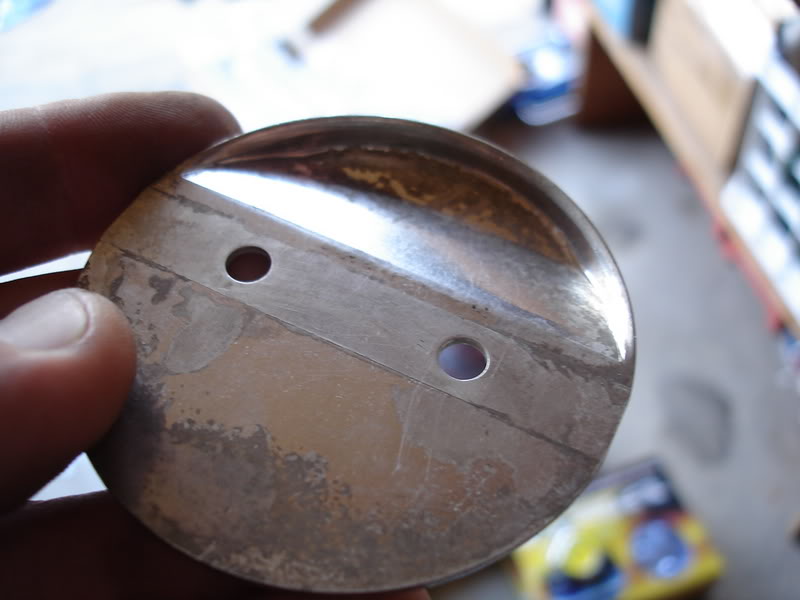

Note the odd butterfly (throttle plate). I know this wasn't used in 97, so 98 may
have been the first year. It'* probably not desired for WOT performance.


Name:  ek18.jpg
Views: 0
Size:  41.6 KB





Name:  ek20.jpg
Views: 0
Size:  84.7 KB

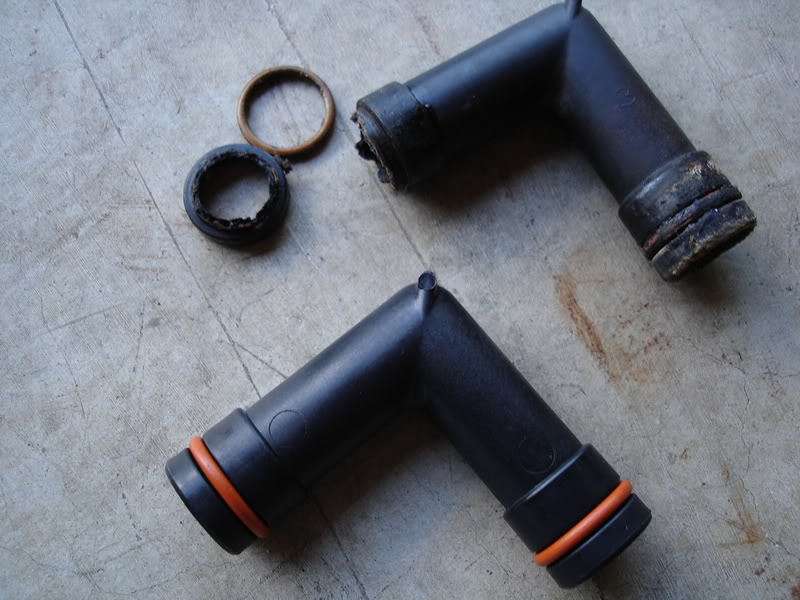

Elbow was already eroded in half (did not break when removed, and was
probably leaking a little).


Name:  ek21.jpg
Views: 0
Size:  104.8 KB

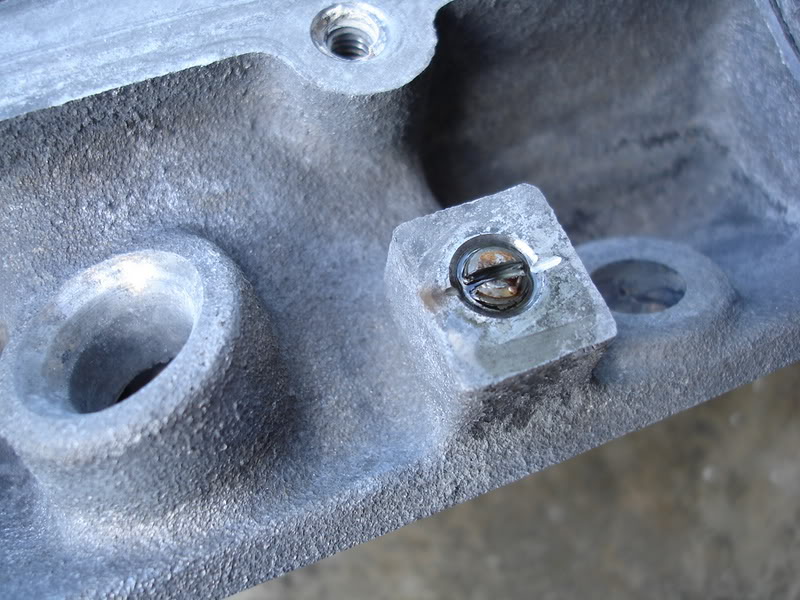

Two front studs for the fuel rail weren't 'lefty-loosied' by the car owner,
so I dremel'd slots and removed them with a screwdriver. Replaced them
from my spare parts collection.



Freshly kissed with a file, ready for reassembly.


Name:  ek23.jpg
Views: 0
Size:  31.9 KB

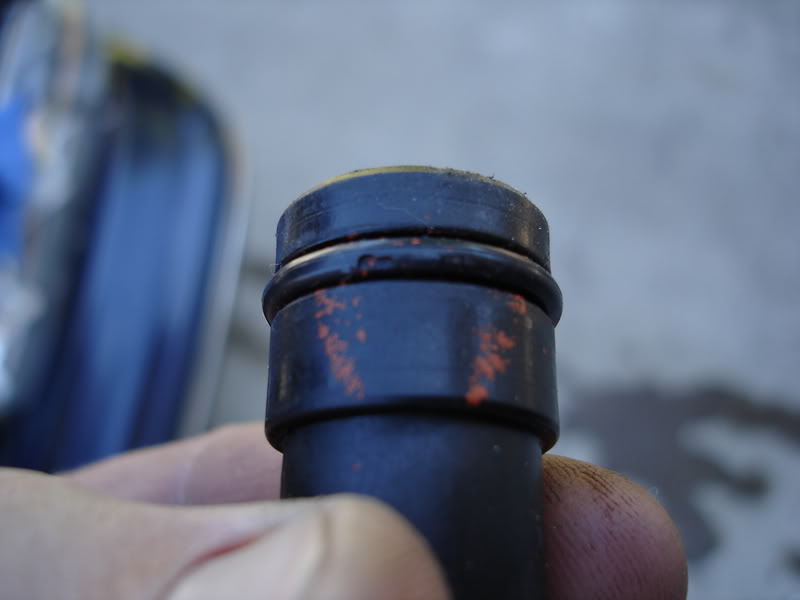

Note the orange o-rings on the new coolant elbow posted 3 pics above. It'* a
coating designed to ease installation. It hid this factory (AC Delco) flaw in
the o-ring, and caused another top end teardown the following day.


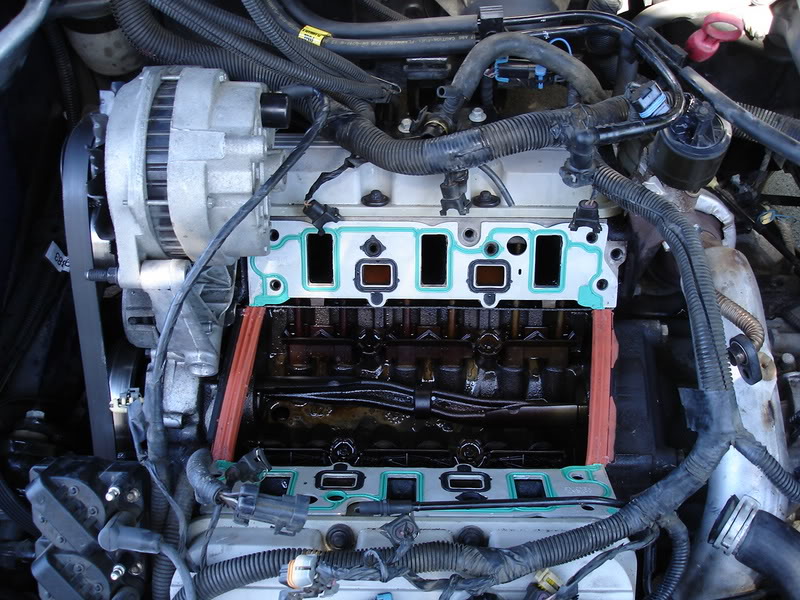

Name:  ek24.jpg
Views: 0
Size:  133.2 KB


Name:  ek25.jpg
Views: 0
Size:  94.0 KB

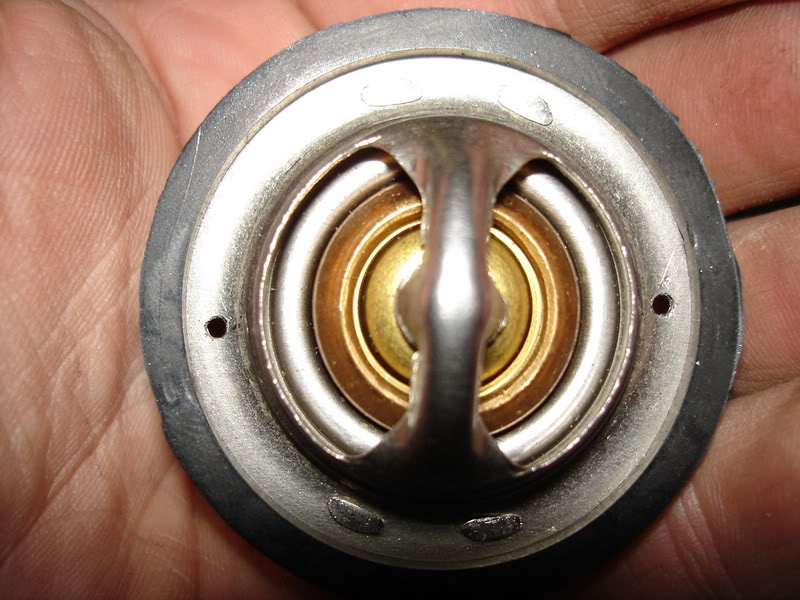

Mildly drilled (for air burpage) new 180 thermostat ready for install.


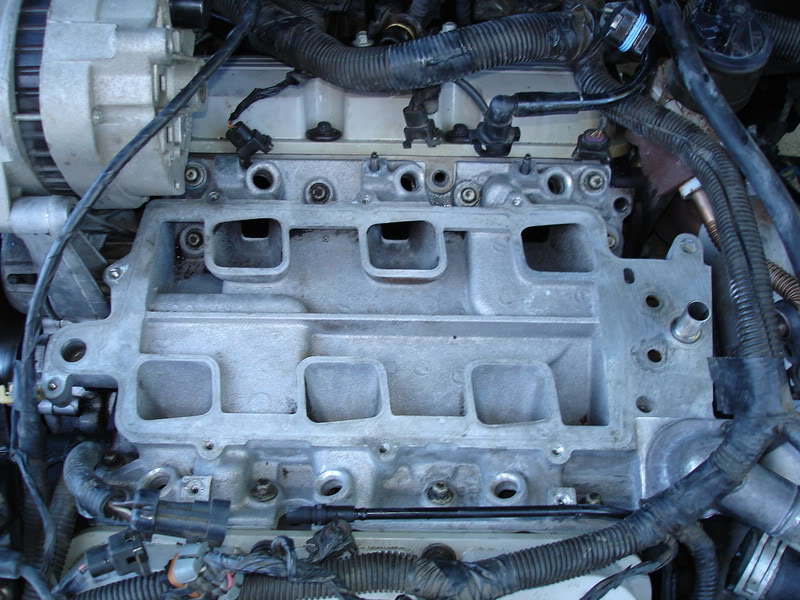

Name:  ek26.jpg
Views: 0
Size:  105.7 KB


Name:  ek27.jpg
Views: 0
Size:  50.9 KB

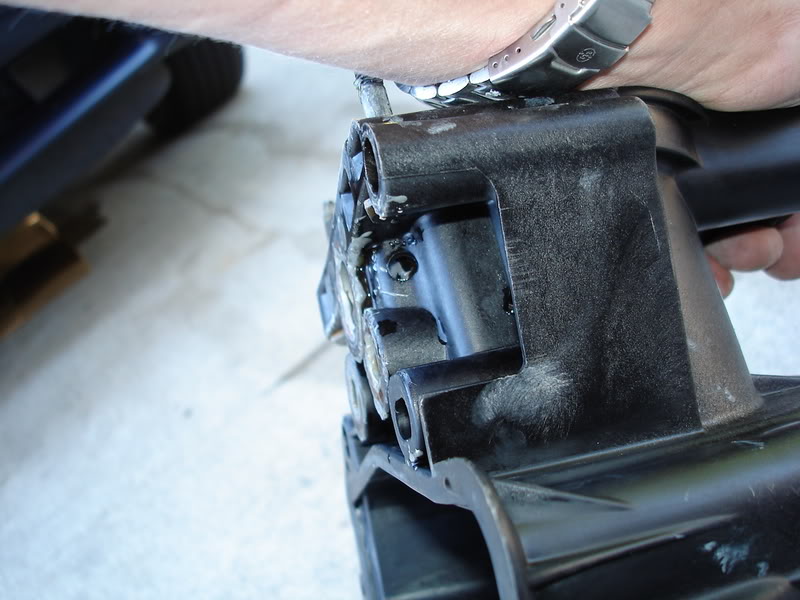

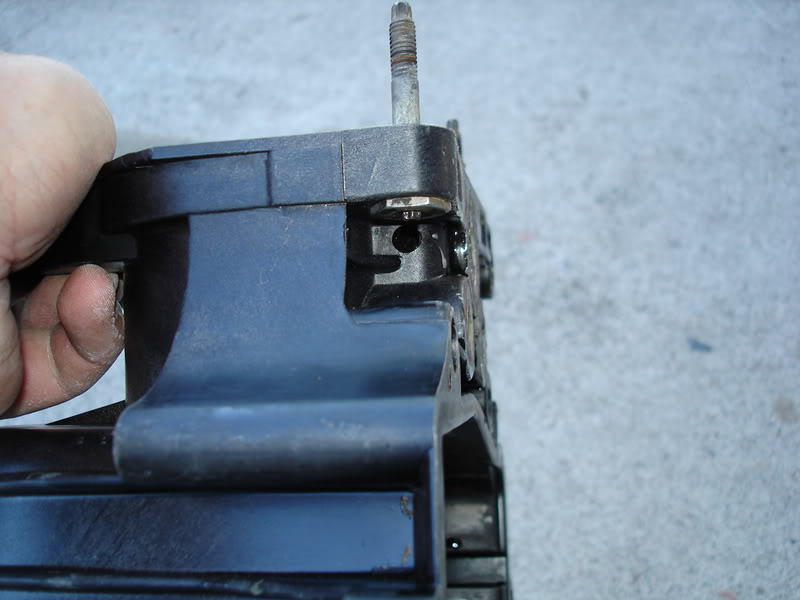

Air cooling (breathing) ports drilled into the now blocked coolant passages.
Do NOT do this on an unblocked UIM!
Name:  ek28.jpg
Views: 0
Size:  72.8 KB


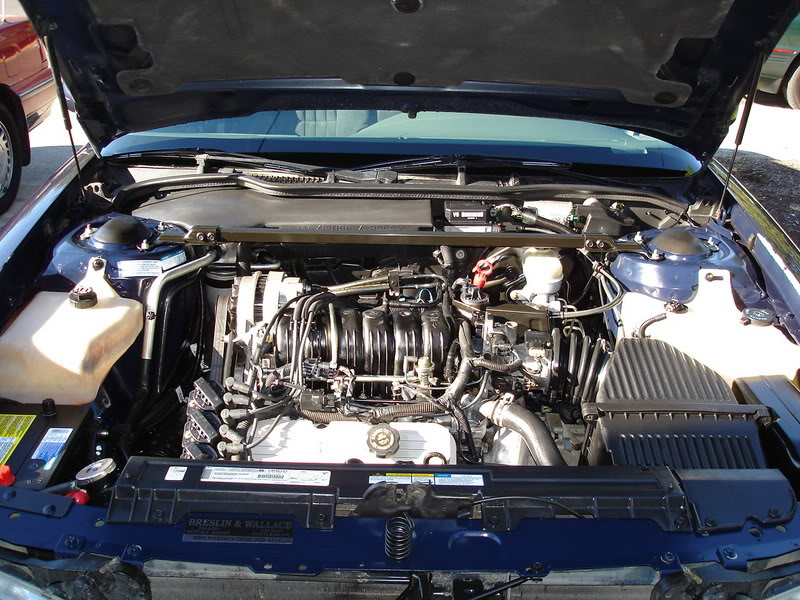

Name:  ek29.jpg
Views: 0
Size:  135.9 KB


Name:  ek30.jpg
Views: 0
Size:  112.4 KB


Name:  ek31.jpg
Views: 0
Size:  149.8 KB
willwren is offline   Reply With Quote
Old 09-12-2006, 01:07 PM   #2
Senior Member
Certified Car Nut

dbeast420's Avatar

Join Date: Aug 2004
Location: My reclining computer chair
Posts: 11,269
Thanks: 0
Thanked 0 Times in 0 Posts
dbeast420 is on a distinguished road
Default

Looks like a job well done. He'* no longer a fix-it virgin

BTW....The 98-01 MNB does have the tendancy to look purplish at certain angles I also noticed he has the dreaded chippage along the top of the fender too
dbeast420 is offline   Reply With Quote
Old 09-12-2006, 01:08 PM   #3
Junior Member

Join Date: Mar 2003
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
vital49 is on a distinguished road
Default

Great documentation!

I always remove the alternator when I do the job. I'll have to keep in mind that it doesn't have to come off when I go at the job again.
vital49 is offline   Reply With Quote
Old 09-12-2006, 01:18 PM   #4
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

We rotated the alternator up a bit the first time.

Second day, when I went after the bad (new) coolant elbow, I left the alternator in place and only removed the rear brace.
willwren is offline   Reply With Quote
Old 09-12-2006, 01:21 PM   #5
Senior Member
Certified GM nut

wakefieldl's Avatar

Join Date: Dec 2005
Location: dekalb illinois
Posts: 1,916
Thanks: 0
Thanked 0 Times in 0 Posts
wakefieldl is on a distinguished road
Default

a little of topic but if i was eric i would leave the cover off and put on a new intake system
but thats just me
good job guys keep up the good work will
wakefieldl is offline   Reply With Quote
Old 09-12-2006, 01:35 PM   #6
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Wake, Oregon winters can get quite cold. He doesn't plan to remove the engine cover until next spring.
willwren is offline   Reply With Quote
Old 09-12-2006, 01:55 PM   #7
Senior Member
True Car Nut

Join Date: Oct 2005
Location: Central Florida
Posts: 7,030
Thanks: 0
Thanked 0 Times in 0 Posts
lash is on a distinguished road
Default

Thanks for all the good pics! Just more good info to know.
lash is offline   Reply With Quote
Old 09-12-2006, 01:56 PM   #8
Junior Member

Join Date: Apr 2006
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
Bonneville92V688 is on a distinguished road
Default

Quote:
Originally Posted by willwren
Wake, Oregon winters can get quite cold. He doesn't plan to remove the engine cover until next spring.
Not to go off topic, but does the Valley get really cold? As in like 15* temps we get here?
Bonneville92V688 is offline   Reply With Quote
Old 09-12-2006, 02:12 PM   #9
Senior Member
True Car Nut

Join Date: Feb 2006
Location: Melrose
Posts: 4,596
Thanks: 0
Thanked 0 Times in 0 Posts
BLACK94SSEi is on a distinguished road
Default

Nice job!! And kudos for finding the O-ring Flaw. As boost posted in another thread, I will be doing my lower intake this weekend at his place.
BLACK94SSEi is offline   Reply With Quote
Old 09-12-2006, 02:25 PM   #10
Senior Member
Posts like a Turbo

Join Date: Jul 2006
Location: McMinnville, Oregon
Posts: 486
Thanks: 0
Thanked 0 Times in 0 Posts
EK98 is on a distinguished road
Default

I can't believe that little flaw in the o-ring caused such a huge problem that night! You can see the dirt on everything better in these pictures than you could in real life! haha.


It rarely gets down to 15* but its not unheard of by any means. Gets below freezing quite often however.
EK98 is offline   Reply With Quote
