Old 11-20-2004, 04:02 PM   #21
Senior Member
Certified GM nut
Thread Starter

Join Date: Feb 2004
Location: MI
Posts: 2,246
Thanks: 0
Thanked 0 Times in 0 Posts
Logan is on a distinguished road
Default

Someone had to have noticed that I haven't shown any pics of the switches to turn on and off the lights. Well, thats because I just finished doing that right now.

This morning I went to the junk yard, and lucky for me, there are a ton of bonnevilles in my junk yard So I got a new plastic piece that goes right behind the shifter. Went to radio shack and got a pair of switches and a pair of green bulbs. Drilled 4 holes, and TADA \/\/

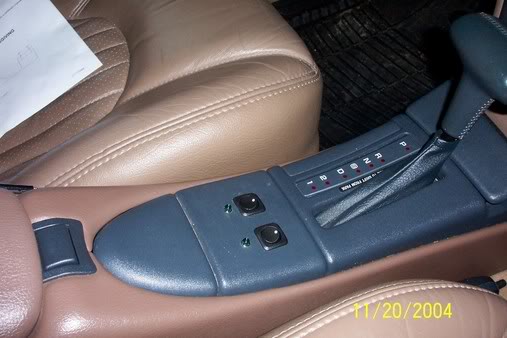

Installed w/o the lights on:

Name:  100_1383.jpg
Views: 2
Size:  32.9 KB

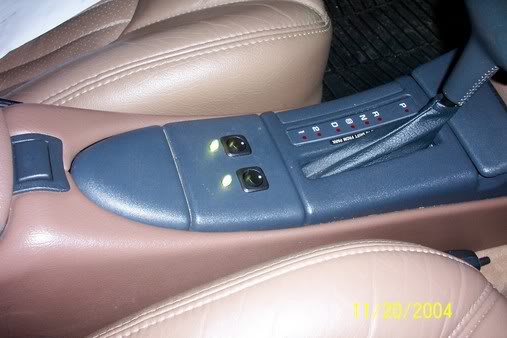

And then with the lights on:

Name:  100_1384.jpg
Views: 1
Size:  31.1 KB

So, now the project is complete, until I get some for the back seat ....

Just FYI though, the second switch in the pannel is going to be for some other lights that are going to be visable outside the car.
Logan is offline   Reply With Quote
Old 11-20-2004, 04:22 PM   #22
Senior Member
True Car Nut

Join Date: Jan 2004
Location: Michigan
Posts: 3,978
Thanks: 0
Thanked 0 Times in 0 Posts
Princess Jeanie is on a distinguished road
Default

Let me be the first to say, nice job Logan! Looks good in the pics, I should really go check them out in the garage. Keep up the good work!
Princess Jeanie is offline   Reply With Quote
Old 11-20-2004, 05:43 PM   #23
Senior Member
Certified GM nut

Join Date: Jun 2004
Location: Grand Haven, Michigan
Posts: 1,719
Thanks: 0
Thanked 0 Times in 0 Posts
beckstyle is on a distinguished road
Default

Wow, that looks good. How long did the wiring of the switches take you? I would like to do some switches like that for when i get my angel eyes.
beckstyle is offline   Reply With Quote
Old 11-21-2004, 04:28 PM   #24
Senior Member
Certified GM nut
Thread Starter

Join Date: Feb 2004
Location: MI
Posts: 2,246
Thanks: 0
Thanked 0 Times in 0 Posts
Logan is on a distinguished road
Default

Just the wiring of the switches took way longer than it should have . I have...self diagnosed ADD, so I don't stay on task very long j/k But I do a lot of different stuff while doing projects like this, so it took like 2 hours or just a bit more.

I don't think it would have taken quite as long if I had a soldering iron. Right now all of my connections are just twisted and taped up real good.

If you want a wiring diagram including the "indicator lights" I will do one up real quick for you. Its quite simple really.
Logan is offline   Reply With Quote
Old 11-21-2004, 06:19 PM   #25
Senior Member
Certified GM nut

Join Date: Jun 2003
Location: Saginaw, MI
Posts: 1,632
Thanks: 0
Thanked 0 Times in 0 Posts
FiReDeViL is on a distinguished road
Default

lookin good man, wanna talk bout ADD of switches... mine was crazy when i made mine lol
FiReDeViL is offline   Reply With Quote
