Default Clear Corners + LED'*

I got a little bored with the look of the front end on my Aurora and decided to do a little experimentation for the sake of science and see what my car would look like with LED'* for the turn signals. I've secretely been admiring the new vehicles on the road that do use LED'* for the turn signals because of how crisp the on/off of the bulb is. LED'* are instant on/off, with no dim period when the bulb flashes. I thought that was really neat looking, especially at night. So I found myself browsing on Ebay and other sites in a search for decent looking LED bulbs. From my experience, LED'* are often dimmer than a comparable halogen bulb. This is why I chose the bulb I did ultimately. It has 39 LED'* built into the single bulb, and they're all firing in different directions to give the housing a fuller look. I installed the LED'* and decided, ' why not clear the corners since I don't have amber bulbs in there anymore anyways?' I did end up clearing the corners but ran into some aggravating problems. It was quite difficult to get the lens off of the headlamp assembly. When the lens finally broke free, the horrible 'goop' that seals the headlamp strung, and finally, snapped back and planted itself on the chrome bezel of my headlight. >:( By this point I was getting pretty aggervated because the lens was so hard to get off, AND the nasty goop that GM used is now on the chrome part of the headlight with absolutely no hope of ever coming off (I tried using goo gone, bug/tar remover, and even WD-40, and nothing touched the stuff.) I'm neutral about the end results. I like some things about it, and there'* other things I DON'T like about it. (the nastiness on my chrome for example.) I also noticed while the headlamps were apart that I'm starting to get discoloration/fading of the chrome on one headlamp. I'm tempted to just paint the chrome black now because the goop on the chrome is driving me nuts.

Name:  DSCN0839.jpg
Views: 0
Size:  58.1 KB

Name:  DSCN0838.jpg
Views: 0
Size:  43.9 KB

Name:  DSCN0832.jpg
Views: 0
Size:  54.3 KB

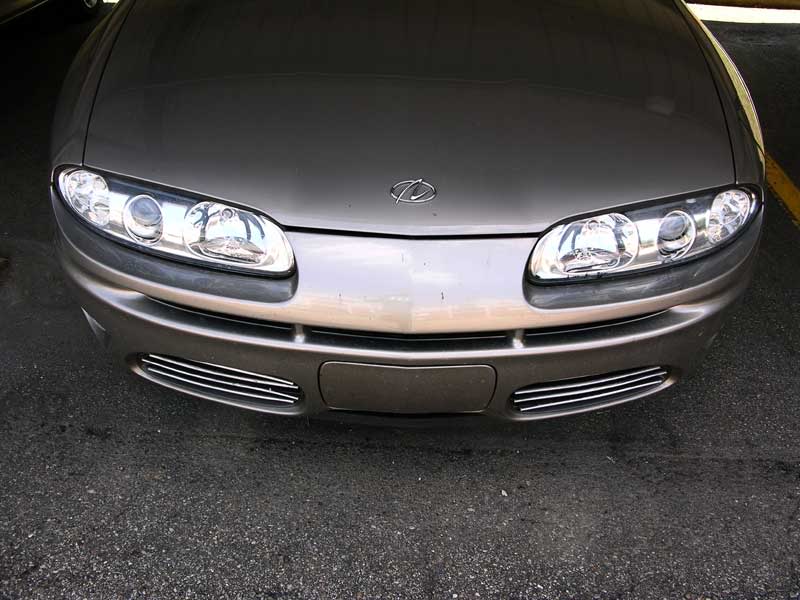

Name:  DSCN0829.jpg
Views: 0
Size:  59.4 KB

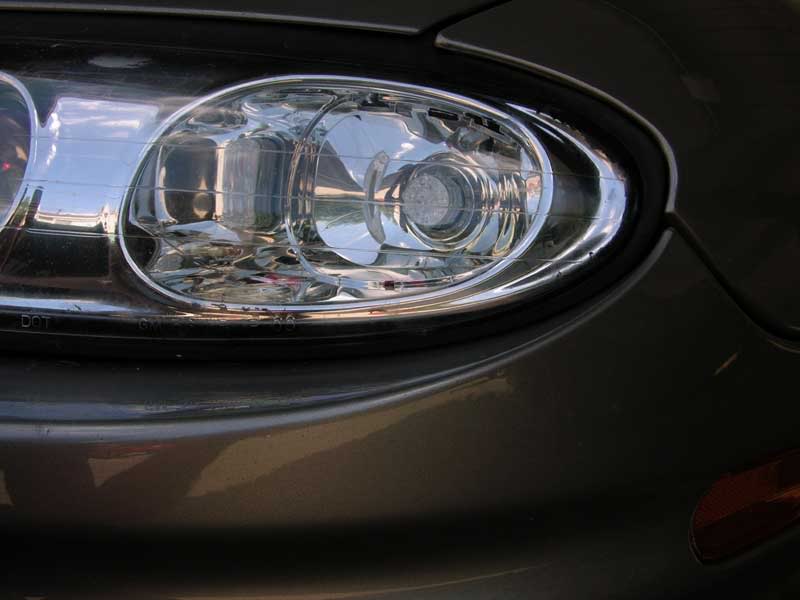

Name:  DSCN0837.jpg
Views: 0
Size:  35.5 KB

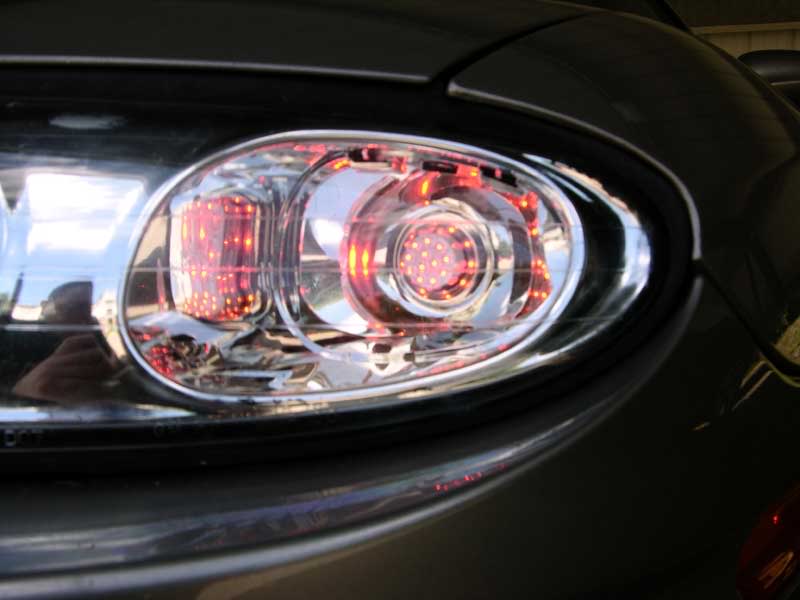

Name:  DSCN0830.jpg
Views: 0
Size:  35.3 KB

The next picture is of the fading effect of the chrome. I'm not sure how bad it'* going to get?

Name:  DSCN0833.jpg
Views: 0
Size:  45.6 KB

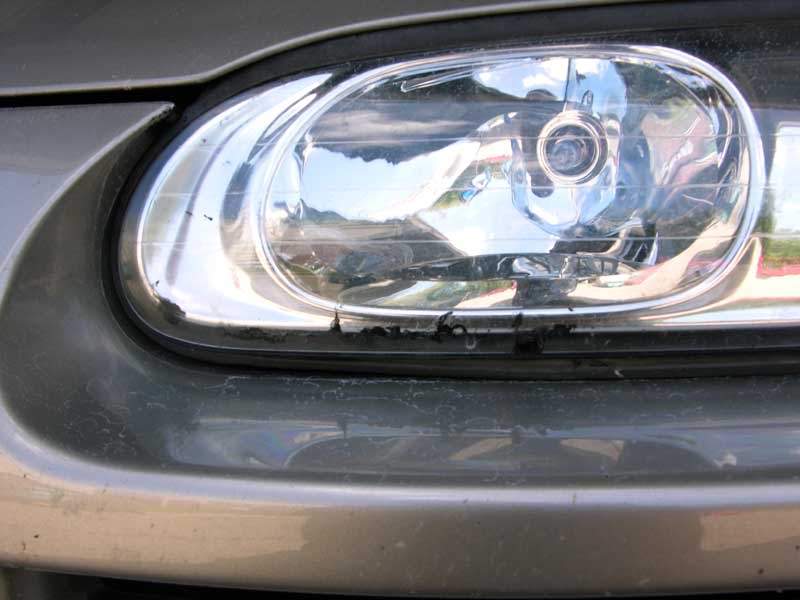

And now the mess I made of the driver'* side headlamp. :-[ :-[

Name:  DSCN0834.jpg
Views: 0
Size:  41.8 KB

When it gets darker out tonight, I'm going to upload a video of what the turn signals look like when they're flashing. I'll get some night pictures as well.


The only problem I have right now is that when the headlamps are on, the turn signal speed is WAY too fast. The flash speed is double what it should be, like if a turn signal is burned out. that can be expected however because of the low draw an LED bulb produces in comparison to a halogen one. I'm just now sure why they only flash fast when the vehicle voltage is lower. Hopefully GM has an electronic flasher for the Aurora VS the original thermal flasher.

EDIT: here'* a video of the lights flashing during the day
Custom88 is offline   Reply With Quote
Old 07-29-2007, 06:26 PM   #2
Senior Member
Posts like a Supercharger

Join Date: Jun 2005
Location: KALAMAZOO, MI
Posts: 178
Thanks: 0
Thanked 0 Times in 0 Posts
DONKY4444 is on a distinguished road
Default

I like the look a lot. The led look is very nice and so is the cleared corners. Hopefully somebody here will be able to tell you how to get the black goop off.
DONKY4444 is offline   Reply With Quote
Old 07-29-2007, 06:33 PM   #3
Senior Member
Posts like a Camaro

Join Date: Nov 2004
Location: Portage, Michigan
Posts: 1,134
Thanks: 0
Thanked 0 Times in 0 Posts
leftd90 is on a distinguished road
Default

I think it looks awesome, just clean them up a bit...
leftd90 is offline   Reply With Quote
Old 07-29-2007, 07:24 PM   #4
Senior Member
Posts like a Northstar

Join Date: Jul 2007
Location: Memphis,TN Originally from MA
Posts: 571
Thanks: 0
Thanked 0 Times in 0 Posts
roadtech195 is on a distinguished road
Default

Looks sharp man, 110% better. as far as your leds flashing too fast, there is some sort of device they sell at autozone in the LED section. it is about 2 inches long and 1/4 inch in diameter,its white and I think made of ceramic. the function of this device I am told is a voltage regulator for LEDS. hope that helps you out.
roadtech195 is offline   Reply With Quote
Old 07-29-2007, 07:50 PM   #5
Senior Member
True Car Nut

tallbump's Avatar

Join Date: Jun 2005
Location: Erie Pennsylvania
Posts: 3,808
Thanks: 0
Thanked 0 Times in 0 Posts
tallbump is on a distinguished road
Default

The LEDs are a big improvement. Nice job!
tallbump is offline   Reply With Quote
Old 07-29-2007, 11:51 PM   #6
Junior Member
Thread Starter

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
Custom88 is on a distinguished road
Default

Here'* the night pictures

In the video at around 8 seconds, you can REALLY tell the difference between the halogen side marker, and the LED'* flash. The side marker slowly lights up, whereas the LED is instant on/off. It'* not noticeable to a lot of people, until you can see them side by side like that.


Name:  DSCN0844.jpg
Views: 0
Size:  33.8 KB

Name:  DSCN0847-1.jpg
Views: 0
Size:  29.3 KB
Custom88 is offline   Reply With Quote
Old 07-29-2007, 11:55 PM   #7
Senior Member
Expert Gearhead

Join Date: Dec 2002
Location: Mississauga, Ontario
Posts: 20,892
Thanks: 0
Thanked 1 Time in 1 Post
Jim W is on a distinguished road
Default

Couldnt you just add an LED light to the turn signals-corner indicator lamps to even things out?

Good little project though, despite the aggravation with the headlamp.
Jim W is offline   Reply With Quote
Old 07-30-2007, 03:04 AM   #8
Junior Member
Thread Starter

Join Date: Aug 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
Custom88 is on a distinguished road
Default

I know what I"m going to do now. I'm going to do an LED strip in the side markers instead of a 194 LED. a 6 or 8 LED strip would look really sharp in there. I'll make a new thread once I get this done later in the week. I've also ordered LED'* for the rear turn signals, along with the load resistors for all the turn signal bulbs. I'm also going to clear the rear turn signals. I'm thinking of picking up some VHT nightshades so that the amber of the side markers isn't distracting. It sticks out with the clear corners, but with it painted 'black' it shouldn't be a problem. Thanks for the tips everyone. Somebody suggested using rubbing alcohol on the chrome bezel to remove the nasty goo that I got on it. I'll try doing that once I'm feeling ambitious enough to take apart the headlight again.
Custom88 is offline   Reply With Quote
Old 07-30-2007, 08:38 AM   #9
Senior Member
Posts like a Camaro

Join Date: Dec 2003
Location: Massachusetts
Posts: 1,019
Thanks: 0
Thanked 0 Times in 0 Posts
CFoote is on a distinguished road
Default

Looks nice Dan! You can always pick up a replacement headlamp on EBay or somewhere else, so don't sweat the black gunk.

How is the brightness of the LEDs compared to the halogen bulbs? I too like how quick the LEDs turn on and off, but if they are not as bright that is not good.

I am surprised these LED bulb manufacturers haven't become smart enough yet to incorporate a circuit that would draw the same voltage as a normal bulb....either as a plug-in harness or build the circuit right into the bulb. Strange.

Chris
CFoote is offline   Reply With Quote
Old 07-30-2007, 09:11 AM   #10
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Dan...if you open the light..give the Goo Gone another try. Pete and I got some of that black stuff inside on his and it was able to take it off.
BillBoost37 is offline   Reply With Quote
