Old 07-30-2007, 02:17 AM   #11
Senior Member
Posts like a Corvette
Thread Starter

Join Date: Jan 2003
Posts: 1,250
Thanks: 0
Thanked 0 Times in 0 Posts
bmsgaffer86 is on a distinguished road
Default

Quote:
Originally Posted by 94SLEeper
Are you gonna have a WiFi hotspot scanner in your car or something? I can't wait to see what your final pics look like of the set up!
Well I need to figure out how to make my onboard wifi card lock onto available hot spots faster. If i take a little time in it (more than i want to) i can jump onto any of them. I would like to eventually get EVDO or whatever the cell based high-speed internet is. I cant afford it at the moment.


OK here goes: Notes on the continuation of this project. The console will be painted or covered to match the dash, with a gray bezel finishing off the front of it. The radio is already flush-mounted. I am going to get rubber to fill in the gap between the ash-tray hole and my console. Its not too noticeable but it bugs me. The wood trim dash bezel was stock and has been modified to work temporarily, it will be replaced with a finished gray bezel.

Day time Pictures:

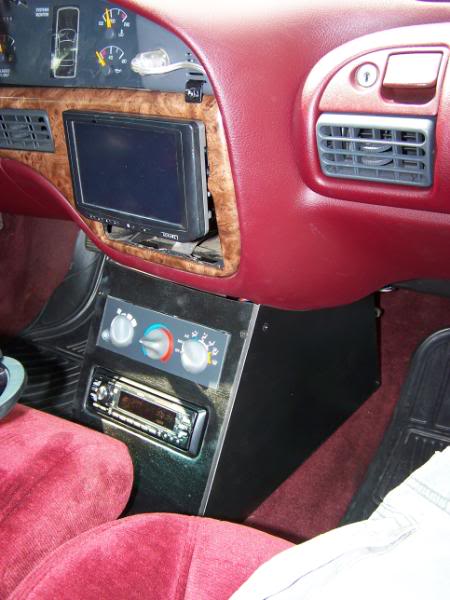

Installed from passenger side:
Name:  100_3277.jpg
Views: 0
Size:  42.1 KB

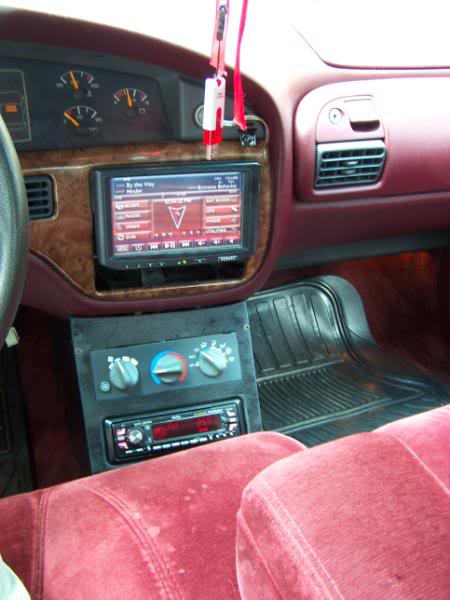

Screen running from driver side:
Name:  100_3279.jpg
Views: 0
Size:  38.7 KB

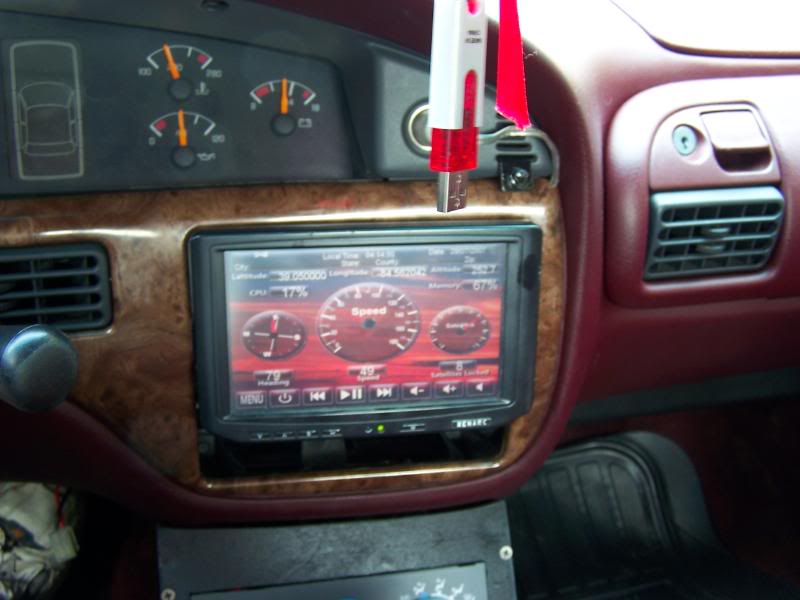

GPS Information Screen:
Name:  100_3280.jpg
Views: 0
Size:  46.6 KB

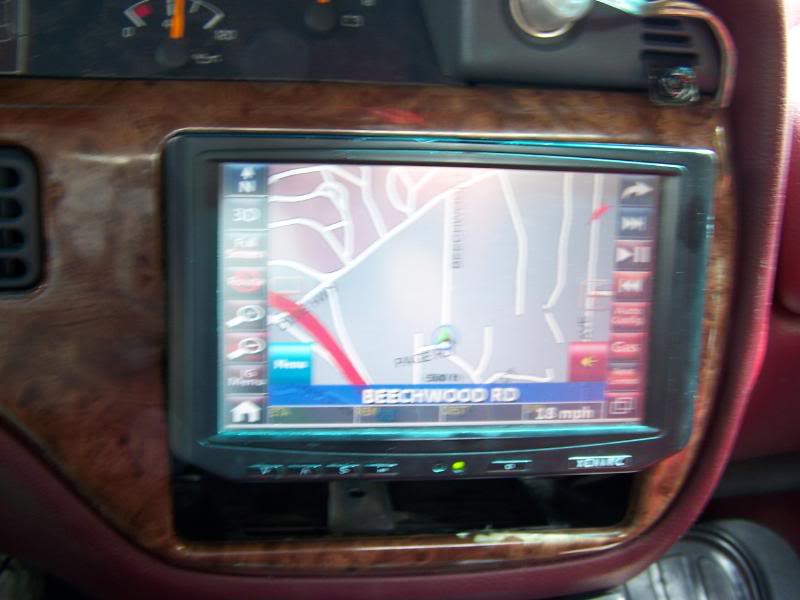

Guidance and routing software:
Name:  100_3281.jpg
Views: 0
Size:  45.9 KB

NIGHT SHOTS (warning all were taken with multi-second exposures so the numbers and sliders bars might look funky)

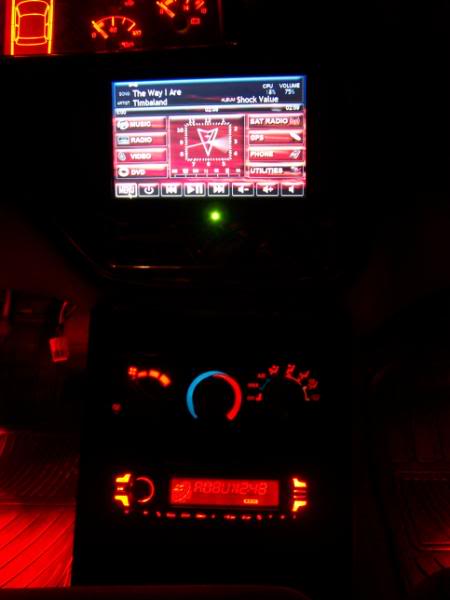

Vertical shot of screen and console:
Name:  100_3283.jpg
Views: 0
Size:  20.5 KB

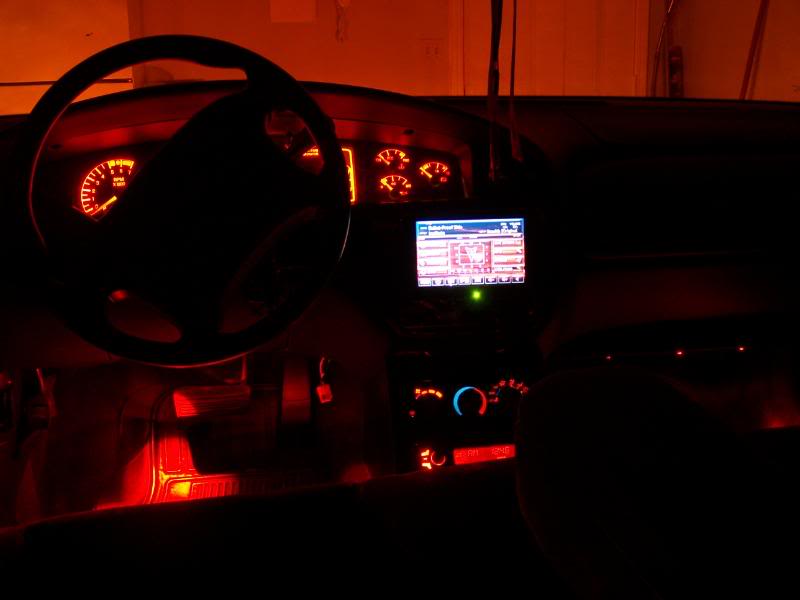

Wide shot of whole dash from back seat. This was 13 seconds so the screen got kinda blown out light wise:
Name:  100_3284.jpg
Views: 0
Size:  26.9 KB

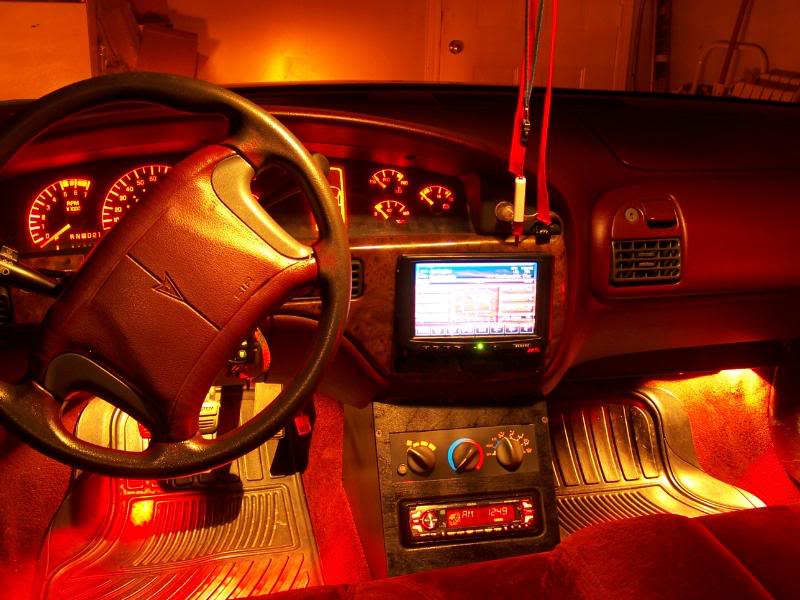

Interior lights on:
Name:  100_3286.jpg
Views: 0
Size:  73.0 KB

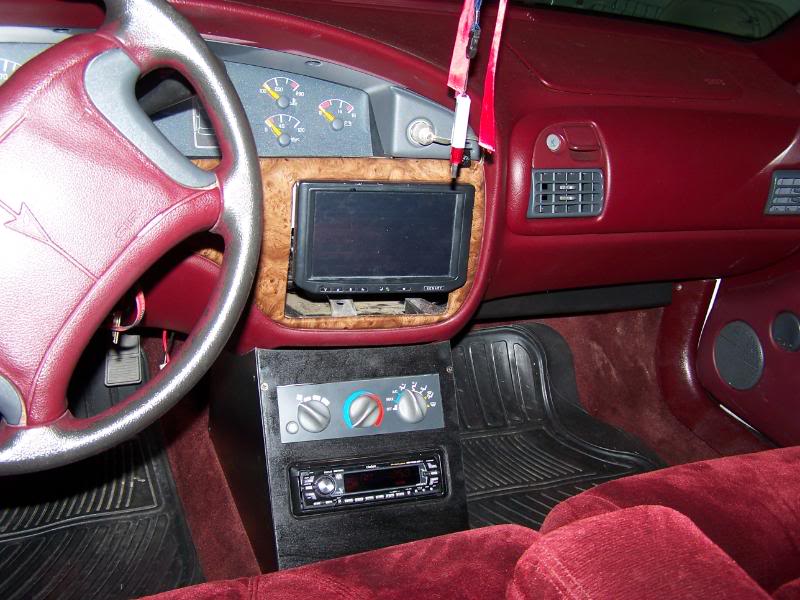

Flash!:
Name:  100_3290.jpg
Views: 0
Size:  81.0 KB
bmsgaffer86 is offline   Reply With Quote
Old 07-30-2007, 02:58 PM   #12
Senior Member
Certified GM nut

Join Date: Jul 2004
Location: New York City
Posts: 1,912
Thanks: 0
Thanked 0 Times in 0 Posts
OLDsman105 is on a distinguished road
Default

Excellent work

I enjoy following your progress on this project, I hopefully will be able to mimic this on to my car one day.
OLDsman105 is offline   Reply With Quote
Old 08-01-2007, 03:30 AM   #13
Junior Member

Join Date: Aug 2005
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
wjcollier07 is on a distinguished road
Default

hmm, i wonder how well that can be blended together. Probably quite well with some time and some fiberglass. Then texture and match with interior color and that thing will look AMAZING.
wjcollier07 is offline   Reply With Quote
Old 08-01-2007, 03:38 AM   #14
Senior Member
Posts like a Corvette
Thread Starter

Join Date: Jan 2003
Posts: 1,250
Thanks: 0
Thanked 0 Times in 0 Posts
bmsgaffer86 is on a distinguished road
Default

Quote:
Originally Posted by wjcollier07
hmm, i wonder how well that can be blended together. Probably quite well with some time and some fiberglass. Then texture and match with interior color and that thing will look AMAZING.
Yep thats the plan. I was hoping to find some vinyl to match the dash then i shape the box with foam like the dash to 'flow' into it. And fiberglass a front panel to match the grey bezel.

I am also planning on sinking the screen all the way into the dash, flush like. I had to pull it out because the opening in the wood grain stuff wasn't wide enough to hold it properly and i didn't want to hack it any further.


At the moment i have 1.5 of the three F'* needed in all designs.
I have the FUNCTION.
Half of the FIT.
Next is FORM.

As its my daily driver and i only had one weekend i had to settle on Fit and Function first.
bmsgaffer86 is offline   Reply With Quote
