So i have spending the past 6 days totally gutting my previous install and redoing the thing.........pics are pleantyfull

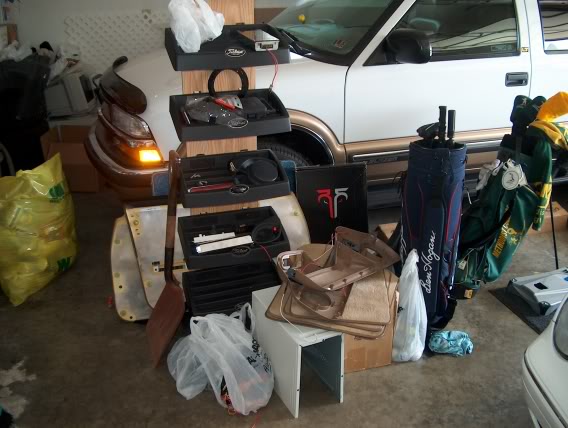

the parts that i have taken out of the car...
Name:  8-10RFnewinstall007.jpg
Views: 2
Size:  64.8 KB

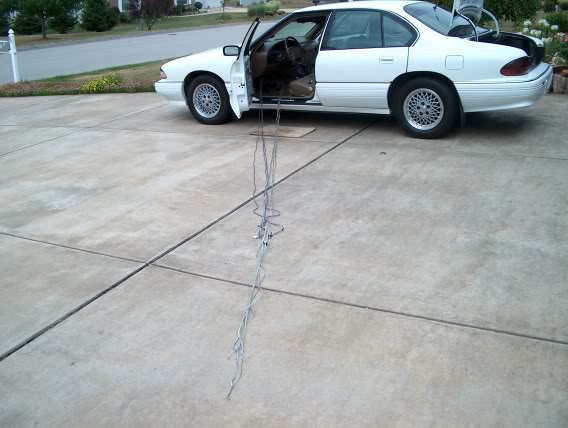

took the RCAs out and the speaker wire out of the car
Name:  8-10RFnewinstall008.jpg
Views: 3
Size:  55.1 KB

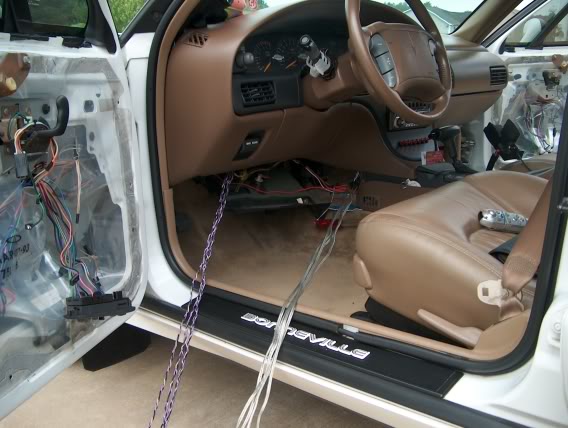

the spagetti under the dash
Name:  8-10RFnewinstall009.jpg
Views: 1
Size:  65.6 KB

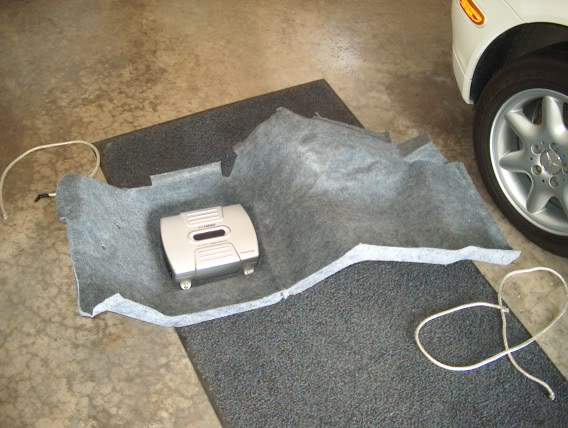

moved my capacitor to the drivers side corner of the trunk....the cutout was a perfect side
Name:  8-10RFnewinstall001.jpg
Views: 1
Size:  66.2 KB

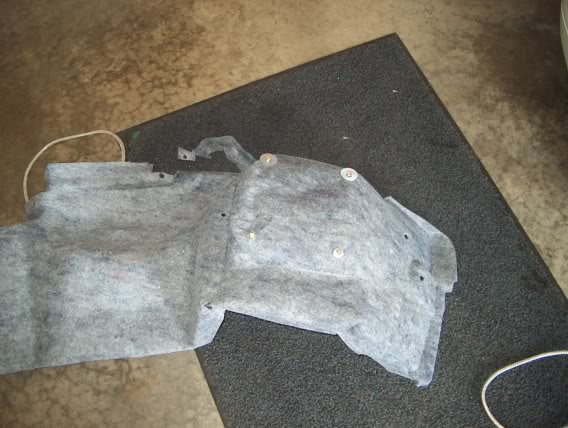

and its attached through the carpet with bolts and washers
Name:  8-10RFnewinstall002.jpg
Views: 1
Size:  66.3 KB

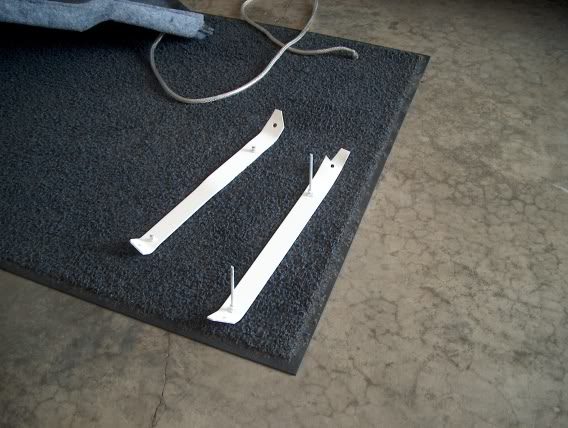

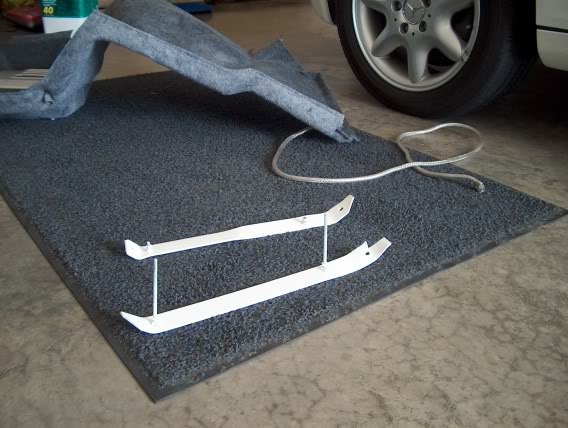

here are the brackets that my dad and i made to attach the amps tho the trunk lid
Name:  8-10RFnewinstall003.jpg
Views: 1
Size:  65.3 KB

Name:  8-10RFnewinstall004.jpg
Views: 2
Size:  66.1 KB

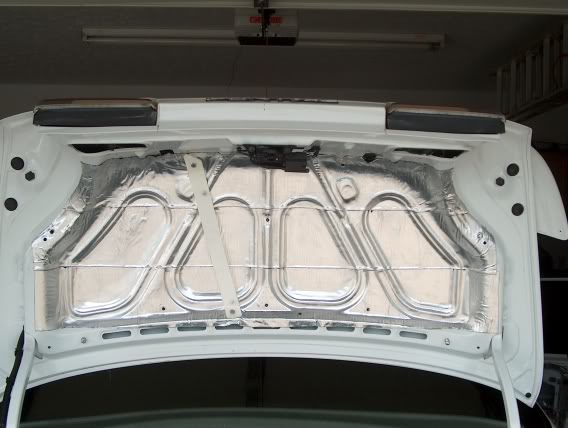

put one layer of peel and seal on the trunk before the brackets went on


one bracket attached
Name:  8-10RFnewinstall011.jpg
Views: 1
Size:  52.4 KB

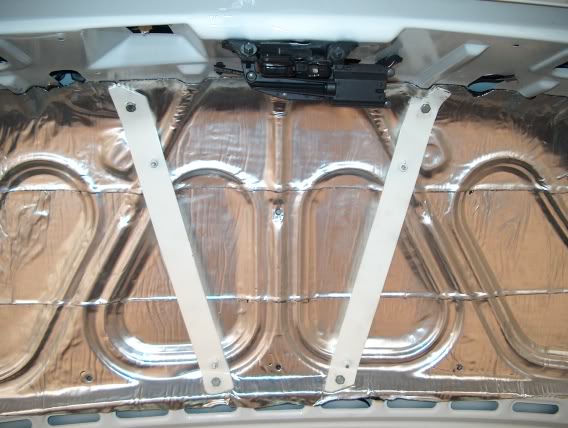

both brackets
Name:  8-10RFnewinstall013.jpg
Views: 1
Size:  63.1 KB

and we used the frame of the trunk to make the other mounting points
right side


left side
Name:  8-10RFnewinstall015.jpg
Views: 1
Size:  48.5 KB

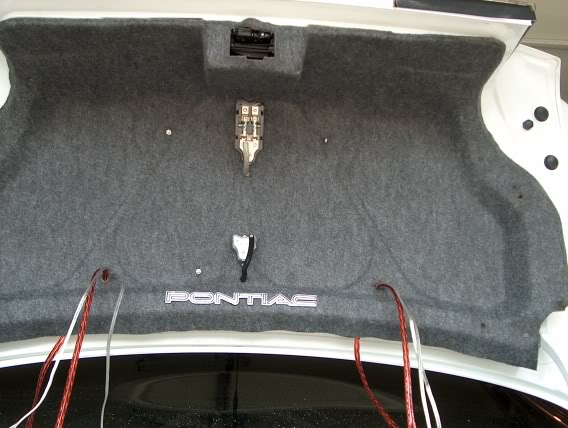

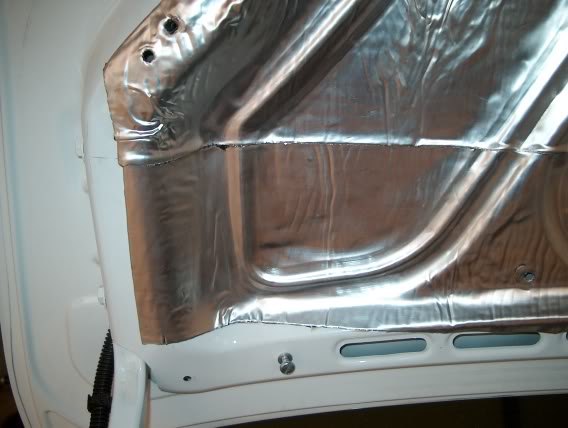

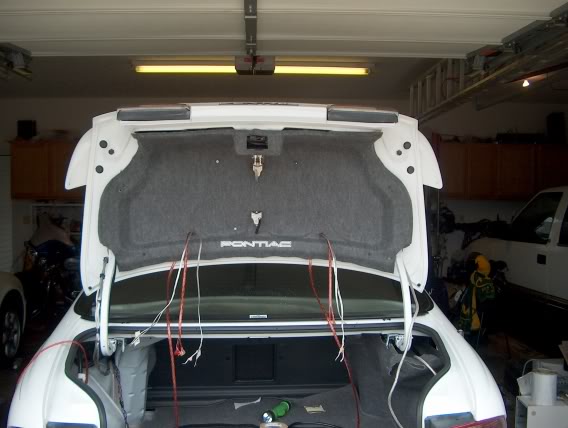

the trunklid insulator is now in with all the cutouts for the mounting points for the amps
i ran the wires through existing holes in the insulator
Name:  8-10RFnewinstall016.jpg
Views: 1
Size:  52.5 KB

I have the both distro blocks mounted and the wires all hidden for them
Name:  8-10RFnewinstall017.jpg
Views: 1
Size:  62.8 KB

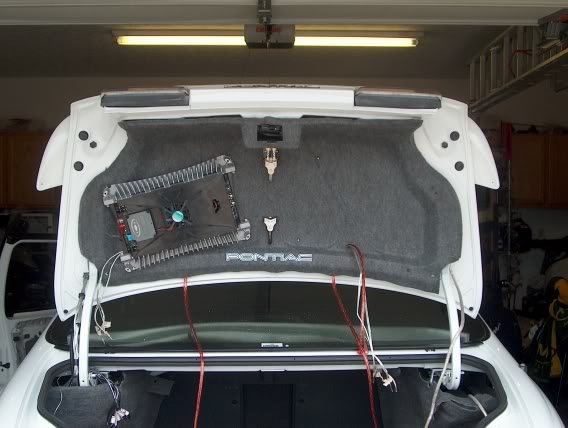

one amp molunted with out cover on it, not wired up yet
Name:  8-10RFnewinstall018.jpg
Views: 1
Size:  42.8 KB

both amps up there, unwired

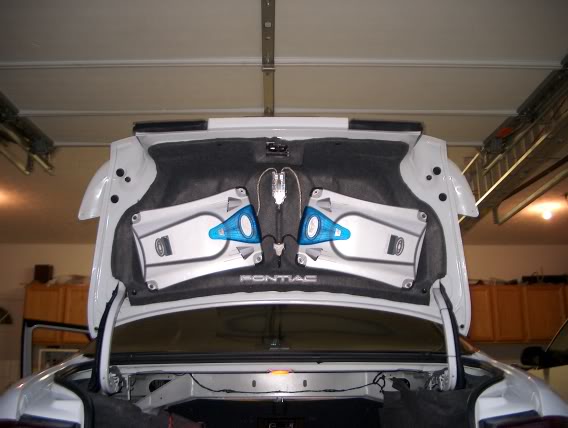

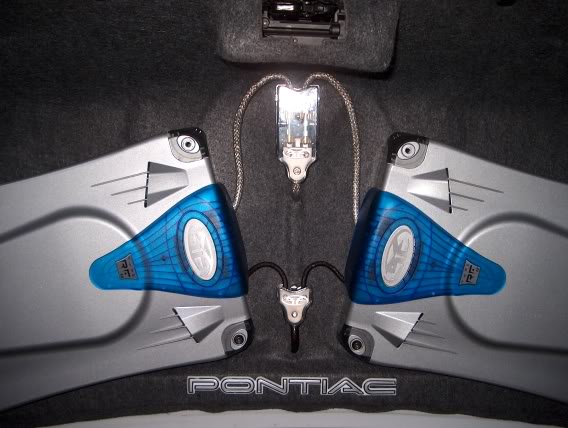

Both amps mounted wired and finished product

Name:  8-10RFnewinstall025.jpg
Views: 1
Size:  51.7 KB

Name:  8-10RFnewinstall026.jpg
Views: 1
Size:  57.9 KB

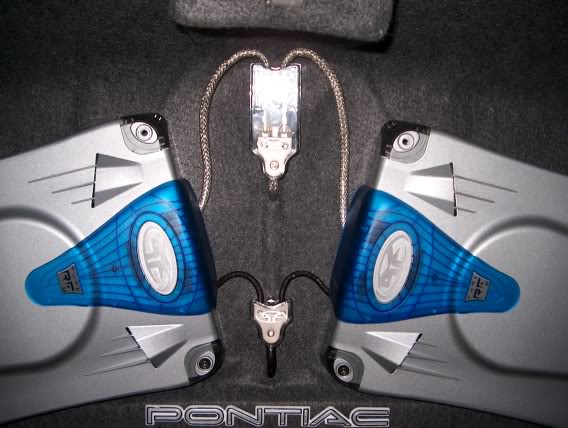

Name:  8-10RFnewinstall028.jpg
Views: 1
Size:  65.9 KB


BUT you would think that i was done......wrong....

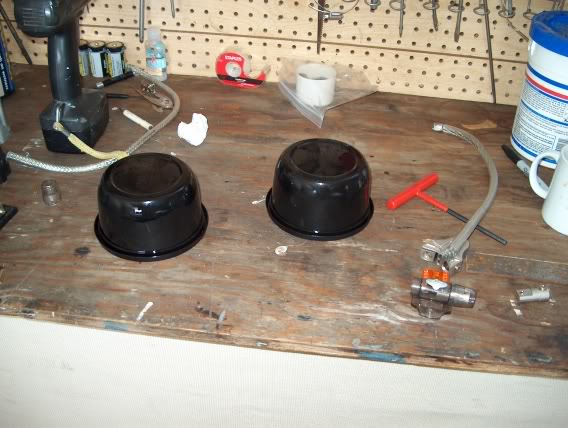

making speaker baffles for the front doors
Name:  8-10RFnewinstall005.jpg
Views: 1
Size:  67.4 KB

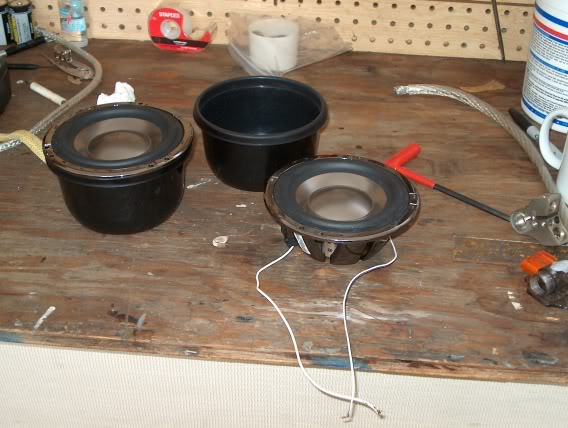

with the speakers
Name:  8-10RFnewinstall006.jpg
Views: 1
Size:  64.4 KB

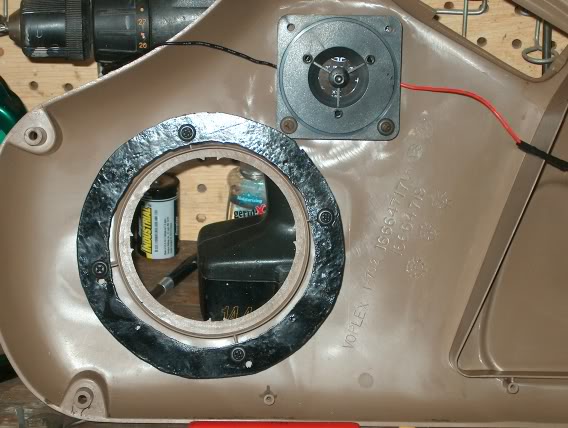

i made an adapter ring for the speaker since the mounting holes didnt match the door panel
Name:  8-10RFnewinstall024.jpg
Views: 1
Size:  66.4 KB

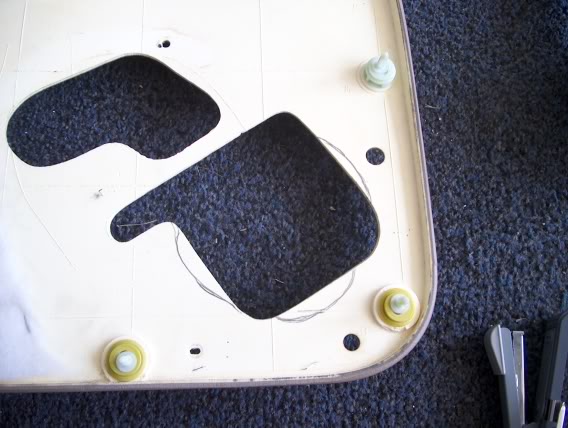

I had to cut the door so the speaker and the Baffel would fit
Name:  8-10RFnewinstall022.jpg
Views: 2
Size:  60.3 KB

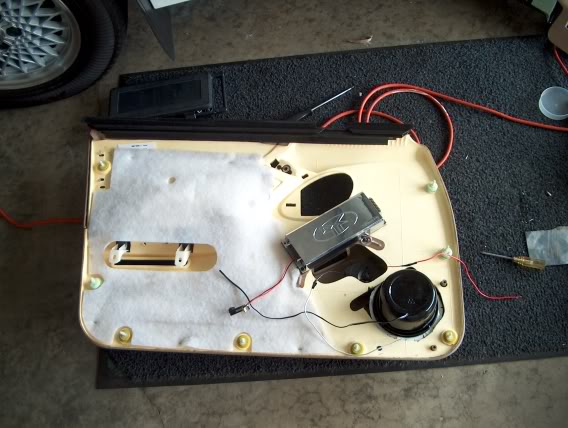

speaker, tweeter and crossover installed
Name:  8-10RFnewinstall023.jpg
Views: 1
Size:  63.6 KB


Still not done....

Peel and Seal time...

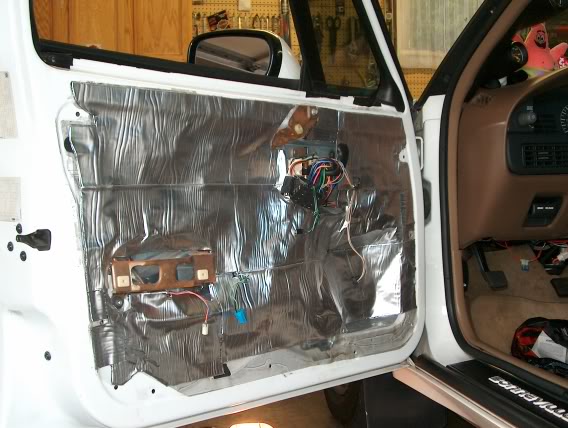

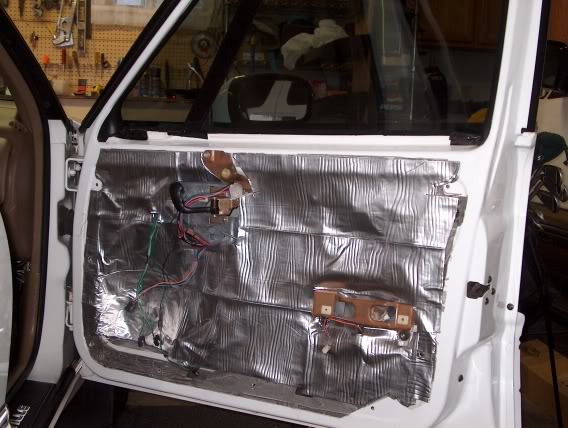

2 layers, yes 2 layers on each door
Name:  8-10RFnewinstall030.jpg
Views: 2
Size:  70.8 KB

Name:  8-10RFnewinstall031.jpg
Views: 1
Size:  70.3 KB

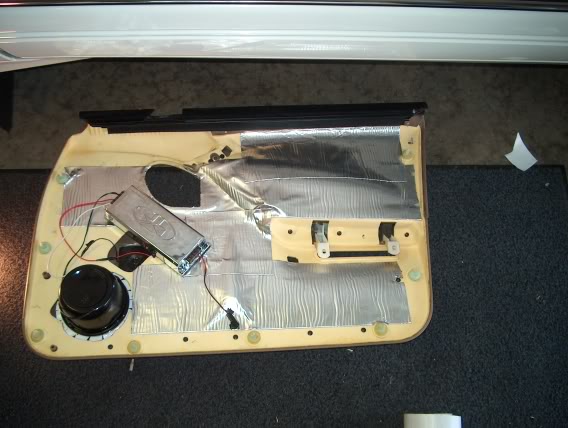

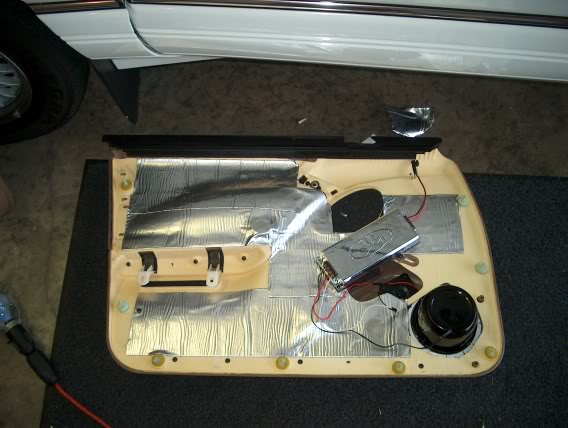

and some on the door panels too

Name:  8-10RFnewinstall032.jpg
Views: 0
Size:  43.6 KB

Name:  8-10RFnewinstall029.jpg
Views: 1
Size:  58.5 KB



there all done.....whadda ya think??
