Default My other baby...

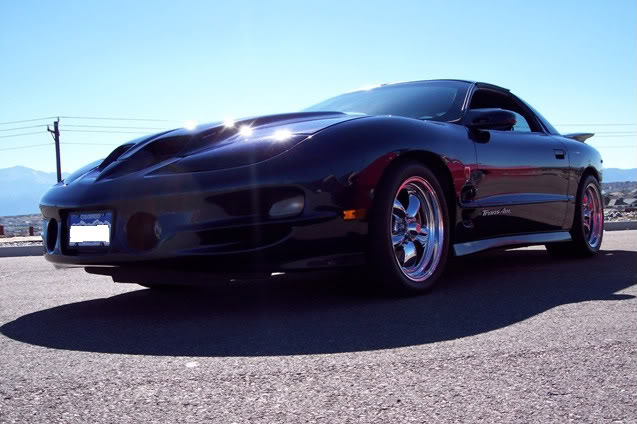

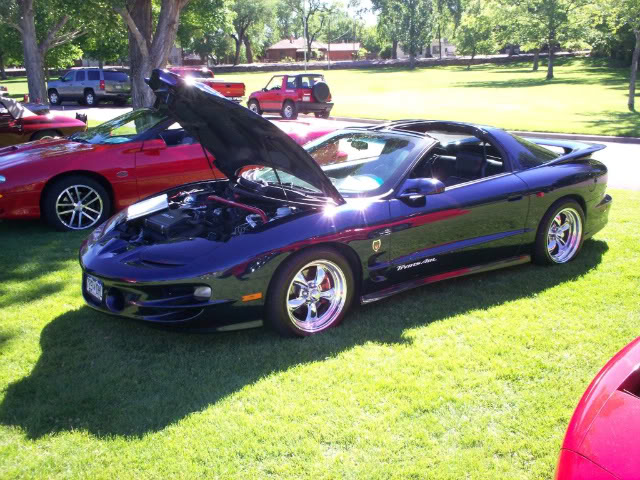

This is my 2002 Pontiac Trans Am. It'* heavily modded and only comes out in the summer when it'* nice out.

Name:  Picture027-1.jpg
Views: 0
Size:  58.6 KB

Name:  Pictures080.jpg
Views: 0
Size:  102.8 KB
Name:  scan0001.jpg
Views: 0
Size:  48.4 KB
WS-13 is offline   Reply With Quote
Old 09-11-2009, 01:12 PM   #2
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Looks mean
Danthurs is offline   Reply With Quote
Old 09-11-2009, 06:53 PM   #3
Senior Member
Posts like a Turbo

judgemikdredd's Avatar

Join Date: Mar 2009
Location: Clawson, Michigan
Posts: 478
Thanks: 0
Thanked 0 Times in 0 Posts
judgemikdredd is on a distinguished road
Default

THAT IS SICK!!! id bet you could lay tread all day
judgemikdredd is offline   Reply With Quote
Old 10-11-2009, 06:49 AM   #4
Member
Posts like a V-Tak

Mister3800's Avatar

Join Date: Aug 2009
Location: Tennessee next to THE DRAGON
Posts: 32
Thanks: 0
Thanked 0 Times in 0 Posts
Mister3800 is on a distinguished road
Thumbs up

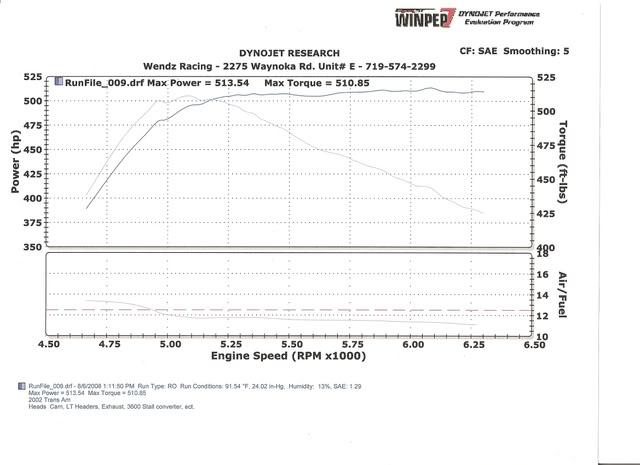

Over 500 to the wheels! I see "heads, cam, & headers" on the dyno sheet, but what are your exact mods to that killer?
Mister3800 is offline   Reply With Quote
Old 10-11-2009, 06:38 PM   #5
Senior Member
True Car Nut

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

That sure is a purdy ride!
Purplehazeir is offline   Reply With Quote
Old 10-12-2009, 03:35 AM   #6
Junior Member
Posts like a Ricer Type-R

Join Date: Oct 2009
Posts: 17
Thanks: 0
Thanked 0 Times in 0 Posts
Workingman is on a distinguished road
Default

Sweet ride man, to bad you only drive during the summer.
Workingman is offline   Reply With Quote
Old 10-12-2009, 07:53 PM   #7
Administratus Emeritus
Certified Car Nut

GXP Venom's Avatar

Join Date: Jan 2006
Location: Purgatory, Pennsylvania
Posts: 16,538
Thanked 7 Times in 4 Posts
GXP Venom is on a distinguished road
Default

Awesome whip, nice numbers.
GXP Venom is offline   Reply With Quote
Old 10-12-2009, 09:05 PM   #8
Member
Posts like a V-Tak
Thread Starter

WS-13's Avatar

Join Date: Aug 2009
Posts: 42
Thanks: 0
Thanked 0 Times in 0 Posts
WS-13 is on a distinguished road
Default

Quote:
Originally Posted by Mister3800 View Post
Over 500 to the wheels! I see "heads, cam, & headers" on the dyno sheet, but what are your exact mods to that killer?
I have done the following mods:

-Thunder Racing 227 XTR Cam
-ET Performance 215cc CNC heads
-Comp chromoly pushrods
-ARP Head studs
-42# SVO injectors
-Racetronix fuel system w/hot wire kit
-Custom tune by RMCR
-Yank SS 3600 stall converter
-Trans Go valave body kit
-Pacesetter Ceramic long tube headers w/ORY
-Magna Flow cat-back exhaust.
-Nitrous Outlet Plate System (150 shot)
-Two stage FJO nitrous contoller
-SLP Lid
-Holly Pro Shot filter
-BMR chromoly Torque arm, lower control arms, panhard rod and relocation control arm brackets.
-UMI boxed sub frame connectors
-Eibach springs (Pro-kit)
-TA girdle with ARP carrier studs
-American Racing Torque Thrust 2'* 17x9 (front) 17x11 (rear)
-Nitto DR'* 315/35-17'* rear.
-Summito 275/40-17'* (front)

That'* most of the mods off the top of my head. I'm sure there are some that I have left out, but that'* pretty much the meat of it. I do have an LS3 block sitting in my garage for a 416ci stroker build I have planned for the future.


Quote:
Originally Posted by Purplehazeir View Post
That sure is a purdy ride!
Thanks! She'* my baby... but she sure doesn't ride as smooth as the Bonnie! I must be getting old!

Last edited by WS-13; 10-12-2009 at 10:28 PM. Reason: Bunch of typos...sorry!
WS-13 is offline   Reply With Quote
Old 10-12-2009, 09:59 PM   #9
Senior Member

True Car Nut

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

I love it. I have a 99 WS6 M6, but I am thinking of going the turbo route. Very few mods to date, just an SLP air box, SLP loud mouth and gutted cats with sims. Rebuilt the T56 tranny last year. Its the same tranny as in the Viper so it is easy to get upgrade components like steel forks, bronze wear pads, billet keys, etc. Pretty much know what I want to do, except am struggling with how to best set up the exhaust. Would it be possible for you to describe it from the exhaust manifold back? Do you have an X, H or dual set up? Pics would be great.

Tell me more. Please.
2kg4u is offline   Reply With Quote
Old 10-12-2009, 10:36 PM   #10
Member
Posts like a V-Tak
Thread Starter

WS-13's Avatar

Join Date: Aug 2009
Posts: 42
Thanks: 0
Thanked 0 Times in 0 Posts
WS-13 is on a distinguished road
Default

Quote:
Originally Posted by 2kg4u View Post
I love it. I have a 99 WS6 M6, but I am thinking of going the turbo route. Very few mods to date, just an SLP air box, SLP loud mouth and gutted cats with sims. Rebuilt the T56 tranny last year. Its the same tranny as in the Viper so it is easy to get upgrade components like steel forks, bronze wear pads, billet keys, etc. Pretty much know what I want to do, except am struggling with how to best set up the exhaust. Would it be possible for you to describe it from the exhaust manifold back? Do you have an X, H or dual set up? Pics would be great.

Tell me more. Please.
Basically, I have the long tube headers that run into the pacesetter off road y-pipe. Then, the y-pipe runs into a 3 1/2 inch intermediate pipe back into a single Magnaflow muffler. Then, the muffler splits into two tailpipe sections turning into (2) 3 inch stainless tips.

The whole exhaust from the Y-pipe back is a Magnaflow stainless cat-back system. I can try to get pics if you want.

Last edited by WS-13; 10-12-2009 at 10:37 PM.
WS-13 is offline   Reply With Quote
