Trouble shooting + Test Procedures Need to trouble shoot whats wrong and need to know the best way to test for it? Here it is.

Engine trouble shooting guide


Thread Tools

Search this Thread

Old Feb 9, 2009 | 11:13 AM
Share
  #1
Danthurs's Avatar
Danthurs
Thread Starter
Retired Senior Admin

Expert Gearhead

Joined: May 2006
Posts: 29,661
Likes: 43
From: Sheboygan Wisconsin
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default Engine trouble shooting guide

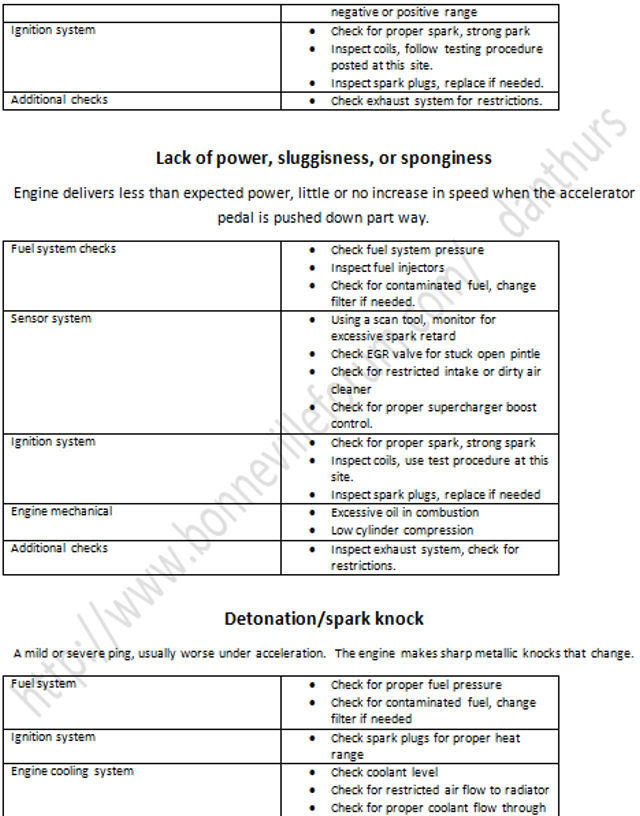

Name: enginepage2.jpg Views: 696 Size: 88.3 KB

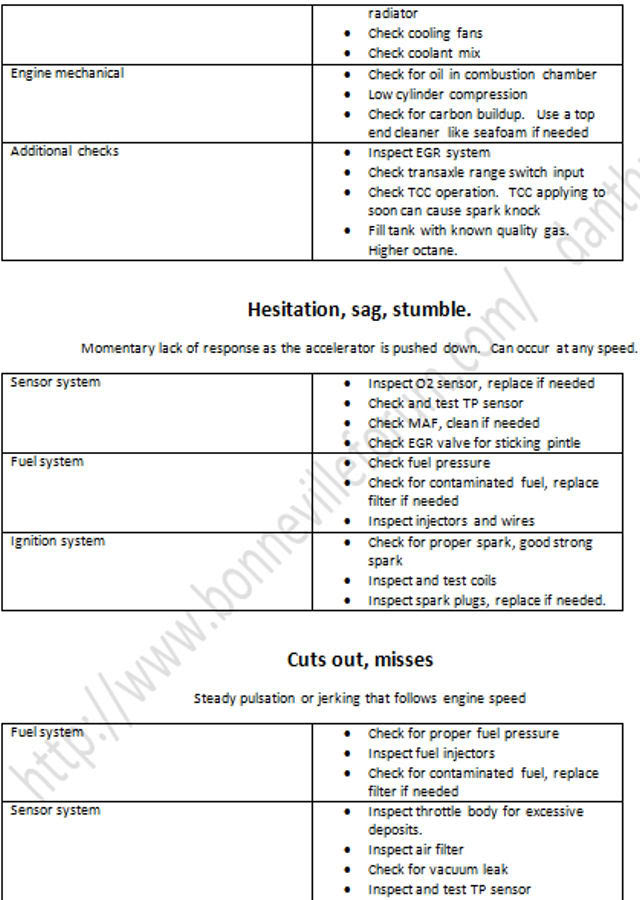

Name: enginepage3.jpg Views: 654 Size: 86.8 KB

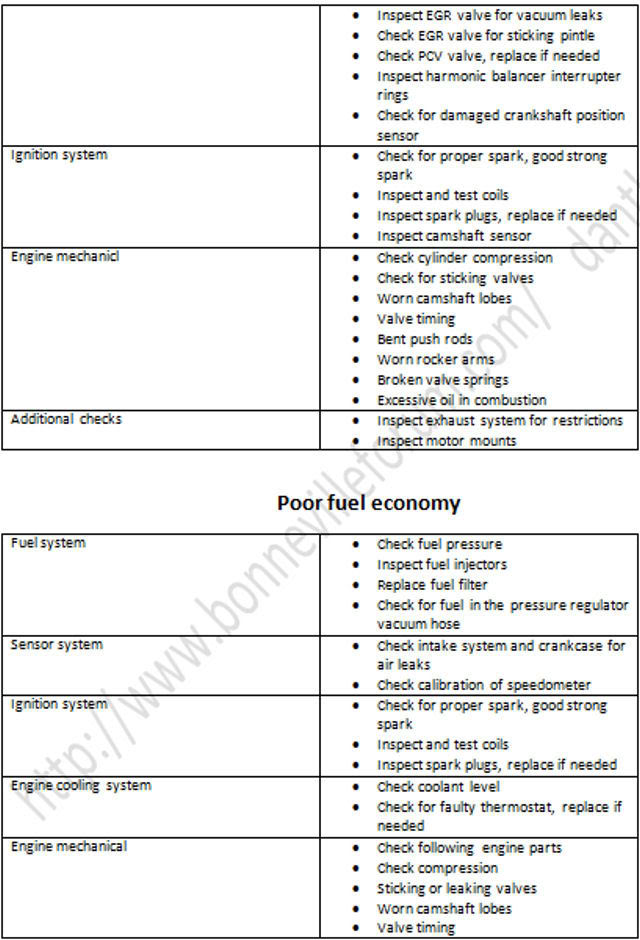

Name: enginepage4.jpg Views: 606 Size: 90.7 KB

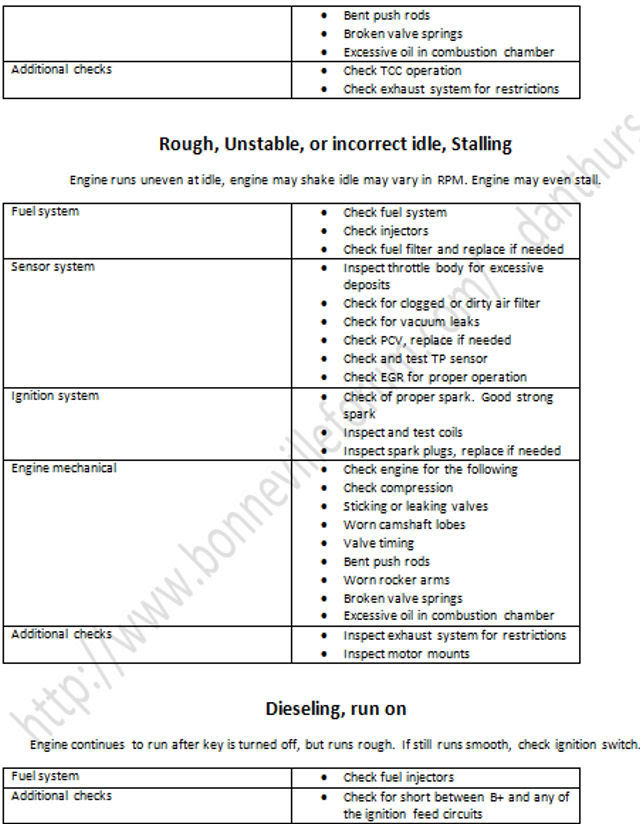

Name: enginepage5.jpg Views: 645 Size: 82.1 KB

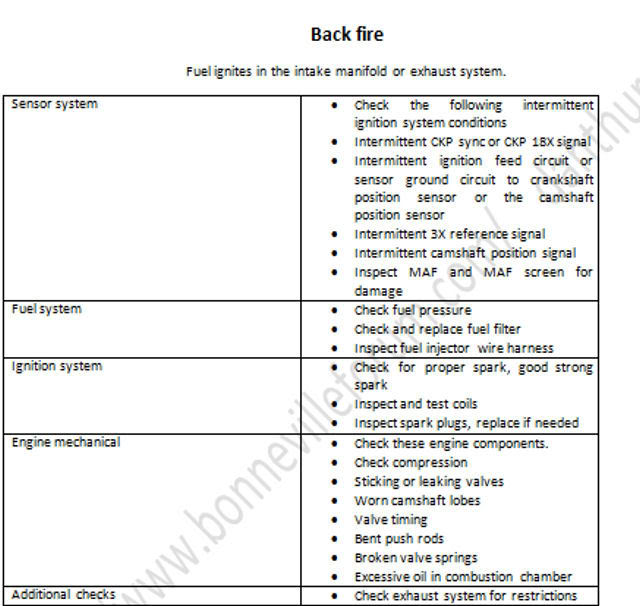

Name: enginepage6.jpg Views: 618 Size: 59.7 KB
Last edited by Danthurs; Feb 9, 2009 at 11:25 AM.
