Question 2nd opinion needed for coolant elbow

Was running at near wide open throttle today for about 12 miles headed to a wreck noticed what I thought was smoke in rear view mirror , then volts dropping due to wet belt and temp about 275 , so I pulled over and found top elbow gone completely , had it towed and fixed it for under 5 bucks.

All bolts were tight , I have 2 guesses as to what happened since I replaced both of them a year ago.

1. thermostat stuck built up to much pressure and it exploded ?

2. thermostat came apart and needle in thermo went thru intake and hit it busting it from the inside ?

Car is now operating at 165 degrees instead of the usual 200 .
Attached Thumbnails

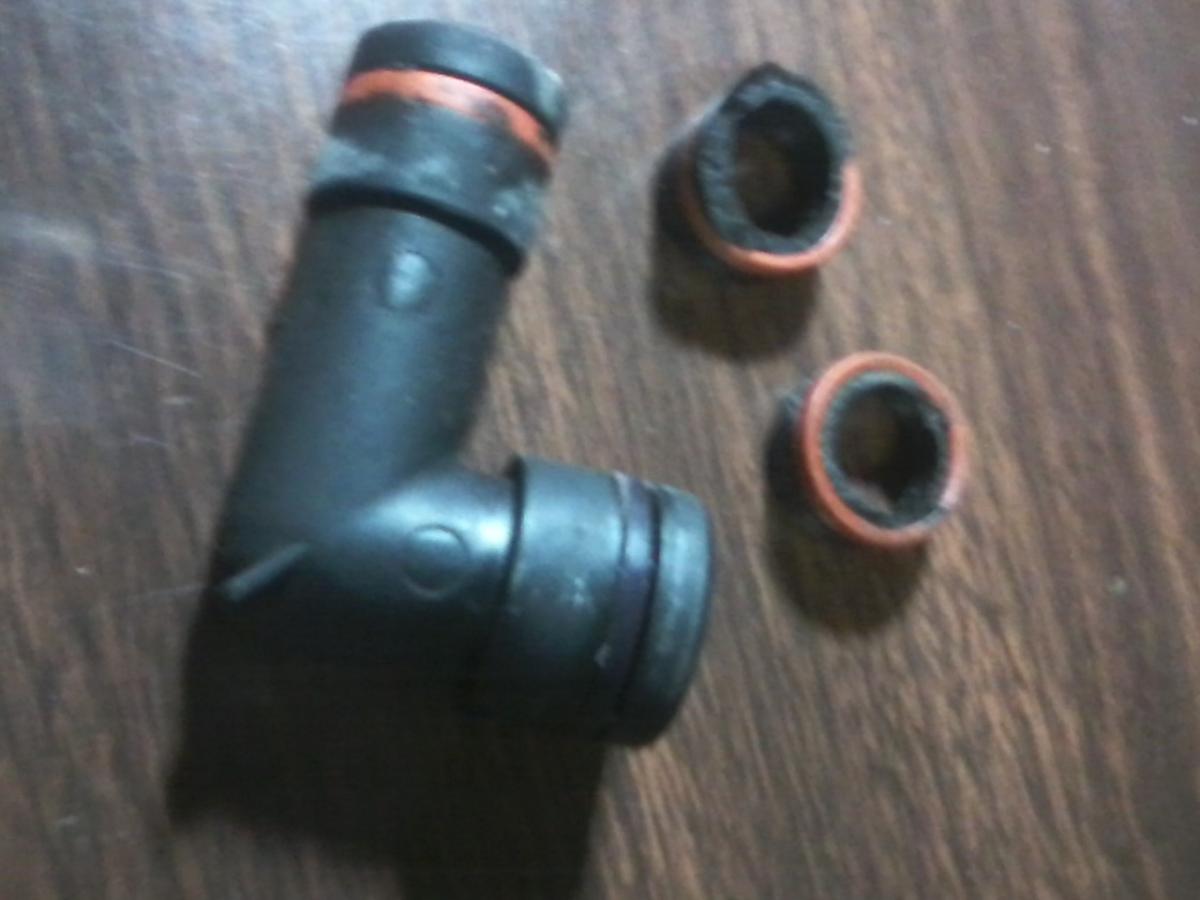

2nd opinion needed for coolant elbow-0124132156-00.jpg

Last edited by Mike; 01-25-2013 at 08:04 AM. Reason: Edited title
shortbus32 is offline   Reply With Quote
Old 01-25-2013, 08:03 AM   #2
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

It could have been numerous events that caused this to happen. I think this is the second case I have seen where it removed itself from the engine, but they are known to leak pretty bad over time. I'm going to say it was due to bad design by Dorman, higher than normal RPM ranges which = higher coolant temp/flow rate that made the elbow exlpode. Never heard of a t-stat exploding and sending shrapnel through the engine. Plus, most of it wouldn't get through the radiator.

Replace the t-stat. And I hope you replaced your coolant elbow with the upgraded aluminum elbows??
Mike is offline   Reply With Quote
Old 01-25-2013, 09:24 AM   #3
Senior Member
Posts like a Supercharger

djlarson0506's Avatar

Join Date: Jan 2013
Location: Enfield, CT
Posts: 194
Thanks: 0
Thanked 0 Times in 0 Posts
djlarson0506 is on a distinguished road
Default

If shrapnel from the t-stat made it to the elbow I think your water pump would be gone to. But it'* very unlikely that shrapnel made it this far. I just replaced the t-stat in my dodge minivan. The old one broke into 7 individual little pieces. They all just kinda sat in the housing and just needed to be fished out.
djlarson0506 is offline   Reply With Quote
Old 01-25-2013, 09:58 AM   #4
Senior Member
Posts like a Supercharger

djlarson0506's Avatar

Join Date: Jan 2013
Location: Enfield, CT
Posts: 194
Thanks: 0
Thanked 0 Times in 0 Posts
djlarson0506 is on a distinguished road
Default

Before I am harassed for owning a Dodge I just want to add that I got the car for free. Just needed to be resurrected from the dead. New t-stat, battery, valve covers, front sneakers, brakes, instrument cluster lights, radiator and some other cosmetic things that I couldn't stand.
djlarson0506 is offline   Reply With Quote
Old 01-25-2013, 10:01 AM   #5
Senior Member
Posts like a Supercharger

djlarson0506's Avatar

Join Date: Jan 2013
Location: Enfield, CT
Posts: 194
Thanks: 0
Thanked 0 Times in 0 Posts
djlarson0506 is on a distinguished road
Default

All which I did myself (minus the tires) for next to nothing thanks to JY'* and advanced auto promo codes
djlarson0506 is offline   Reply With Quote
Old 01-25-2013, 10:18 AM   #6
Senior Member

True Car Nut

2kg4u's Avatar

Join Date: Sep 2006
Location: Windsor, Ontario / Detroit, Michigan
Posts: 4,804
Thanked 220 Times in 181 Posts
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

Quote:
Originally Posted by djlarson0506 View Post
Before I am harassed for owning a Dodge I just want to add that I got the car for free. Just needed to be resurrected from the dead. New t-stat, battery, valve covers, front sneakers, brakes, instrument cluster lights, radiator and some other cosmetic things that I couldn't stand.
Owning a Dodge is like riding a Moped ... fun to do but you don't want your friends to see you doing it.
2kg4u is offline   Reply With Quote
Old 01-25-2013, 11:15 AM   #7
Senior Member
Posts like a Supercharger

djlarson0506's Avatar

Join Date: Jan 2013
Location: Enfield, CT
Posts: 194
Thanks: 0
Thanked 0 Times in 0 Posts
djlarson0506 is on a distinguished road
Default

Lol so true. Luckily it'* the wife car.
