Default Hid install question

Got my raptor hid kit today but im wondering about the positive and negative wires. Do I have to run them to the battery? Shot thats a long way to go if thats the case I hope not. Can anyone explain for me please, this is going on my 03 ssei.


Attached Thumbnails

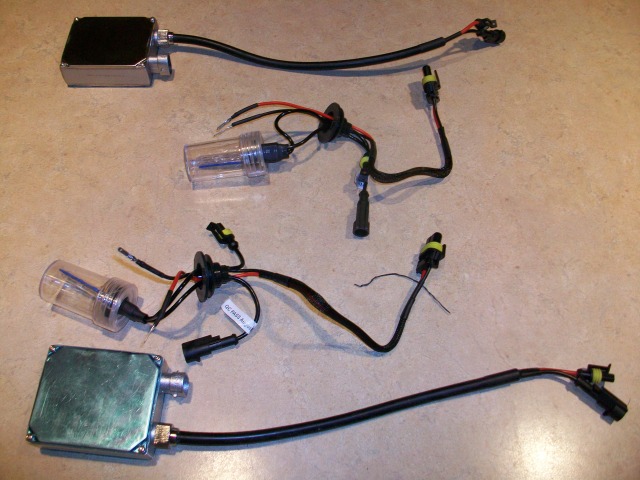

Hid install question-100_0475.jpg   Hid install question-100_0474.jpg
03SSEISUPERCHARGED is offline   Reply With Quote
Old 09-26-2011, 10:32 PM   #2
Senior Member
Certified GM nut

2k2cse's Avatar

Join Date: Jan 2011
Location: Newfoundland, Canada
Posts: 2,112
Thanked 18 Times in 17 Posts
2k2cse has a spectacular aura about2k2cse has a spectacular aura about
Default

They plug directly in place of your stock bulbs. The positive and negative go to your stock bulb socket, and the other wires go to your ballast. Unless you're using a relay harness, nothing goes directly to your battery.
2k2cse is offline   Reply With Quote
Old 09-26-2011, 10:56 PM   #3
Senior Member
Posts like a Turbo
Thread Starter

03SSEISUPERCHARGED's Avatar

Join Date: Jan 2008
Location: Sheboygan-Right Next to Road America
Posts: 437
Thanked 3 Times in 2 Posts
03SSEISUPERCHARGED is on a distinguished road
Default

Ok they are for my fogs I should of mention that. So if I am understanding this correct, the part that has the black mesh on it(the part that I thought needed to go to the battery) I don't need to use? After looking at it I can't see were those would hook up to. So the original fog look ups get plugged into the metal box things and then I just put the bulbs in the fog housing and we are set to go?
03SSEISUPERCHARGED is offline   Reply With Quote
Old 09-26-2011, 11:07 PM   #4
Senior Member
Certified GM nut

2k2cse's Avatar

Join Date: Jan 2011
Location: Newfoundland, Canada
Posts: 2,112
Thanked 18 Times in 17 Posts
2k2cse has a spectacular aura about2k2cse has a spectacular aura about
Default

Nope, the metal box is your ballast. I outlined what goes where in your picture from your first post.

Hid install question-hidwiring.jpg

The plug on your bulb that i circled in red plugs into the ballast (the box)

The two that are circled in blue plug into the two on your ballast

The ones circled in yellow should plug in to the plug for your fog light bulbs, in your car. The positive wire should go to the positive, and negative to the negative.

Hope this helped clarify it a little.
2k2cse is offline   Reply With Quote
Old 09-26-2011, 11:13 PM   #5
Senior Member
Posts like a Turbo
Thread Starter

03SSEISUPERCHARGED's Avatar

Join Date: Jan 2008
Location: Sheboygan-Right Next to Road America
Posts: 437
Thanked 3 Times in 2 Posts
03SSEISUPERCHARGED is on a distinguished road
Default

Very much so thank you very very much.
03SSEISUPERCHARGED is offline   Reply With Quote
Old 09-26-2011, 11:19 PM   #6
Senior Member
Certified GM nut

2k2cse's Avatar

Join Date: Jan 2011
Location: Newfoundland, Canada
Posts: 2,112
Thanked 18 Times in 17 Posts
2k2cse has a spectacular aura about2k2cse has a spectacular aura about
Default

You're very welcome bud
2k2cse is offline   Reply With Quote
Old 09-26-2011, 11:49 PM   #7
Senior Member
Posts like a Turbo
Thread Starter

03SSEISUPERCHARGED's Avatar

Join Date: Jan 2008
Location: Sheboygan-Right Next to Road America
Posts: 437
Thanked 3 Times in 2 Posts
03SSEISUPERCHARGED is on a distinguished road
Default

Got it done just gotta mount the boxes. Thanks again.
03SSEISUPERCHARGED is offline   Reply With Quote
Old 09-26-2011, 11:54 PM   #8
Senior Member
Certified GM nut

2k2cse's Avatar

Join Date: Jan 2011
Location: Newfoundland, Canada
Posts: 2,112
Thanked 18 Times in 17 Posts
2k2cse has a spectacular aura about2k2cse has a spectacular aura about
Default

Awesome! Mounting the ballasts is the fun part. Your wires look plenty long, so you shouldn't have a lot of trouble.
2k2cse is offline   Reply With Quote
Old 09-27-2011, 12:20 AM   #9
Senior Member
Posts like a Turbo
Thread Starter

03SSEISUPERCHARGED's Avatar

Join Date: Jan 2008
Location: Sheboygan-Right Next to Road America
Posts: 437
Thanked 3 Times in 2 Posts
03SSEISUPERCHARGED is on a distinguished road
Default

OMG its so sick I can see like a football field better lol. I'll take pics tomorrow just sick. Next time I shouldn't do it at 930pm when I have to work at 7 the next day but I wanted to so bad. They are bright as hell. They get hot but I am assuming my old fogs did as well so, no to worried about that. I am just shocked best 45 bucks I ever spent.
03SSEISUPERCHARGED is offline   Reply With Quote
Old 09-27-2011, 12:32 AM   #10
Senior Member
Certified GM nut

2k2cse's Avatar

Join Date: Jan 2011
Location: Newfoundland, Canada
Posts: 2,112
Thanked 18 Times in 17 Posts
2k2cse has a spectacular aura about2k2cse has a spectacular aura about
Default

The HIDs will get a little hotter than the stock halogen bulbs did. Just keep an eye on them for a while to make sure they don't get too hot and melt the plastic. I can't see you having any problems. My headlights are noticeably hotter, and I haven't had any problems.
