Default Help replacing camber bolts

Hello everyone.

I have a question in regards to replacing my camber bolts on my 2005 Pontiac G6 (3.5L V6 4-speed Automatic). It seems that the standard camber bolts are a bit short for adjustment so I needed to order some new ones. In watching some videos in how to replace it, I see that the mechanic was using a torque wrench to put the new ones on. The question is, how much torque do you use for these camber bolts. Again I have the following car

2005 Pontiac G6 (3.5L V6 4-speed Automatic)
4 Door Sedan

This is my exact car. Even looks like it.
2005 Pontiac G6 Base Sedan 3.5L V6 4-speed Automatic Features and Specs

Thanks in advance -

Dale
ddemott is offline   Reply With Quote
Old 02-12-2014, 02:47 PM   #2
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

assuming you are talking about the front you just loosen the two bolts tilt it in or out (bottom is oval) then tighten to 89ft lbs. not sure how longer ones would help
jwfirebird is offline   Reply With Quote
Old 02-12-2014, 03:03 PM   #3
Junior Member
Thread Starter

Join Date: Feb 2014
Location: Chicago, IL
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
ddemott is on a distinguished road
Default

Thanks for your quick reply. Firestone told me while they were doing the front end alignment that the stock camber bolts were too short and that I had to replace them so I could get more adjustment. Seeing how much they wanted to charge me for it, I figured it wasn't THAT hard to do. I purchased their lifetime alignment service from them so I figured I'll put the bolts on myself and then go back in for an alignment. Maybe they were trying to milk me for more $$$$. Not sure.

Last edited by ddemott; 02-12-2014 at 03:05 PM.
ddemott is offline   Reply With Quote
Old 02-12-2014, 04:26 PM   #4
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

certainly wasent the front. or they are feeding you crap. the rear has camber bolts but if you are out of adjustment there is normally something wrong that needs fixed, bushings, ball joints, bent control arms etc. i am not aware of "longer" cam bolts like that
jwfirebird is offline   Reply With Quote
Old 02-12-2014, 08:10 PM   #5
Junior Member
Thread Starter

Join Date: Feb 2014
Location: Chicago, IL
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
ddemott is on a distinguished road
Default

Hmm. Not sure. I was looking up two camber adjustment kits. One gave you the ability to adjust more. Notice the first one gives you +/- 1 3/4 degrees. The second one gives you +/- 2 1/2

#1

Camber Adjusting Kit - Front Susp
Part Number: NCP 2643641
Product Line: NAPA Chassis Parts
IMPORTANT INFO: w/ 12mm Bolt,Minus 1-3/4 Degree To Plus 1-3/4 Degree,Single Offset

#2

Camber Adjusting Kit - Front Susp
Part Number: NCP 2643668
Product Line: NAPA Chassis Parts
IMPORTANT INFO: w/ 12mm Bolt,Plus or Minus 2 1/2 Degree,Double Offset

Here'* the link that I was using off of NAPA

NAPA AUTO PARTS
ddemott is offline   Reply With Quote
Old 02-13-2014, 01:04 AM   #6
certified crazy person
Certified GM nut

eltatertoto's Avatar

Join Date: Sep 2010
Location: hobart indiana (1 hr from chicago)
Posts: 1,871
Thanked 64 Times in 52 Posts
eltatertoto is a jewel in the rougheltatertoto is a jewel in the rougheltatertoto is a jewel in the rougheltatertoto is a jewel in the rough
Default

justin, i agree with the OP. i have seen TONS of g6'* with premature wear on the edge of the tire. pontiac screwed up on the camber bolts.
eltatertoto is offline   Reply With Quote
Old 02-13-2014, 07:34 AM   #7
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

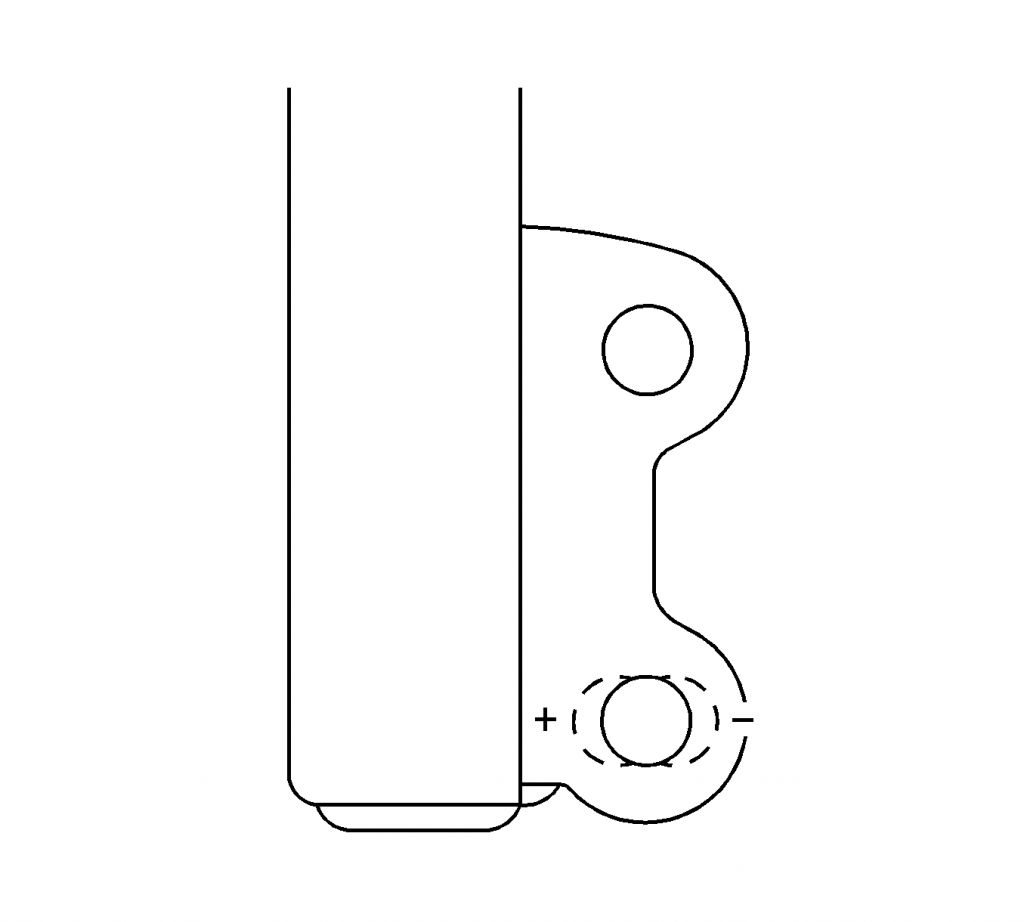

From the GM service manual for 05 G6;

•Loosen both strut to knuckle nuts just enough to allow for movement.

•If the strut has not been modified previously, perform the following steps before continuing with the wheel alignment:
3.1. Disconnect the strut from the knuckle. Refer to Strut Assembly Replacement .

3.2. File the lower hole until the outer flange slot matches the inner flange slot.

3.3. Connect the strut to the knuckle. Refer to Strut Assembly Replacement .

•Adjust the camber to specification by moving the top of the wheel in or out. Refer to Wheel Alignment Specifications .
Notice: Refer to Fastener Notice in the Preface section.
•Install the strut to knuckle nuts.
Tighten
Tighten the nuts to 120 Nm (89 lb ft).
Attached Thumbnails
Help replacing camber bolts-06g6camber_zps41bb22ee.png
jwfirebird is offline   Reply With Quote
Old 02-13-2014, 11:36 AM   #8
Junior Member
Thread Starter

Join Date: Feb 2014
Location: Chicago, IL
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
ddemott is on a distinguished road
Default

Justin -

Thanks for your replies. Very useful. I actually did call the Firestone to confirm if it it was in the front or back that needed the camber adjustment. They stated it was the front. These postings though will prove to be informative for whenever others (and possibly me) need either front or back camber adjustments. By the way, I did need the control arms replaced due to the ball joints going bad in the front. It seems that the factory G6 ball joints go bad OFTEN. Maybe its because the whole assembly is aluminum. Next time I'll consider getting an after market control arm that is made better.

Thanks man!

Dale
