Default Dagger'* Transmission

A couple weeks ago I helped a local GP buddy put a transmission into his car. He got it a while ago as a built trans. There was an odd wobble in the driveline once we got it in and on his way to work the second day something banged and there was no more movement in any direction. He asked me to pull it and go through the trans to fix it. Tonight it jumped out in about two hours and I started to tear into it. Dagger and I checked everything possible before pulling the trans. It showed input at the ISS and the diff was in good condition.

Out it came.... in a couple hours tonight. Then I tore into to for diagnosis.
Name:  IMG_6503.jpg
Views: 28
Size:  112.2 KB

The pan, clutch material and sparkling metal pieces.
Name:  IMG_6500.jpg
Views: 22
Size:  80.3 KB

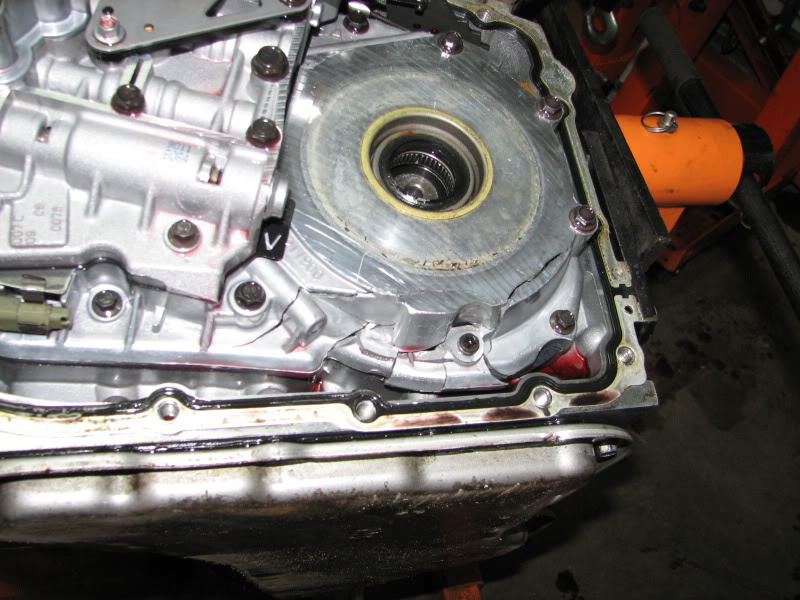

This would be the view when you pull the cover off the side of a tranmission. The channel plate is the broken item we see.
Name:  IMG_6509.jpg
Views: 22
Size:  105.7 KB
Name:  IMG_6511.jpg
Views: 23
Size:  96.9 KB

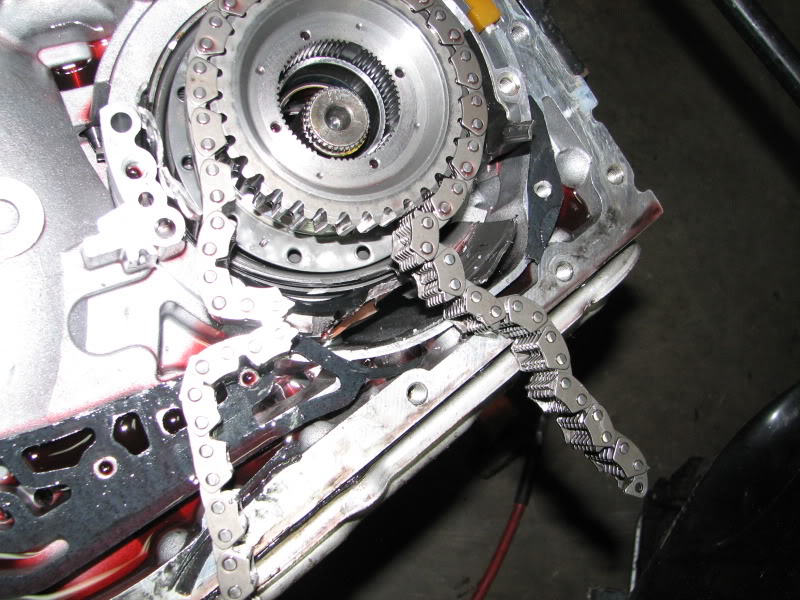

Pulled the pump, valve body, channel plate. Found a 15/16" chain a bit out of it'* normal position. Took out the fourth assembly and gouged up the trans casing.
Name:  IMG_6512.jpg
Views: 28
Size:  151.1 KB
Name:  IMG_6515.jpg
Views: 24
Size:  118.2 KB

Unsure which chain this was, made in Canada.
Name:  IMG_6517.jpg
Views: 24
Size:  142.6 KB

A lot of work later it came loose, there is more damage to the fourth assembly if we look down into the leg of the trans.
Name:  IMG_6519.jpg
Views: 33
Size:  131.9 KB
Name:  IMG_6520.jpg
Views: 19
Size:  126.7 KB
Name:  IMG_6521.jpg
Views: 22
Size:  115.9 KB
Name:  IMG_6522.jpg
Views: 18
Size:  158.4 KB

Carnage out of the case
Fourth assembly
Name:  IMG_6523.jpg
Views: 15
Size:  108.7 KB

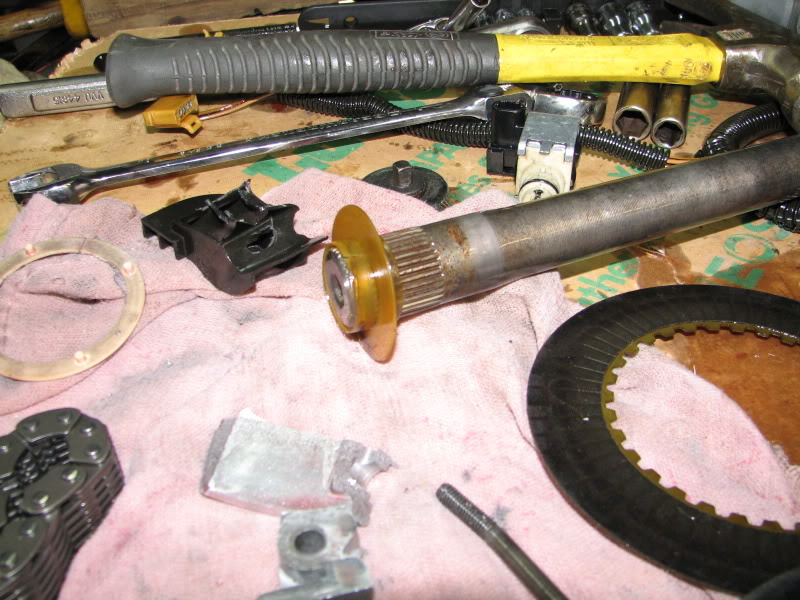

Fourth clutches were reasonably worn, lube dam got stuck on the clip of the output shaft, various other broken pieces
Name:  IMG_6524.jpg
Views: 19
Size:  138.7 KB
Name:  IMG_6525.jpg
Views: 19
Size:  119.9 KB

Diagnosis: 15/16" chain failure. Most likely from the previous owner as Daggers car is completely stock with a Wizzair intake and recently added headers.

Mike is looking for a new transmission unfortunately. The case at the bottom of the fourth assembly (leg of trans) is partially cracked and out of shape.
BillBoost37 is offline   Reply With Quote
Old 08-02-2010, 09:31 PM   #2
Senior Member
True Car Nut

Purplehazeir's Avatar

Join Date: Sep 2008
Location: Arlington, WA
Posts: 7,979
Thanks: 0
Thanked 1 Time in 1 Post
Purplehazeir is on a distinguished road
Default

That tranny had seen some better days. I suppose the failure could have been much worse, but with the case cracked it just doesn't matter.
Purplehazeir is offline   Reply With Quote
Old 08-02-2010, 09:42 PM   #3
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Hay Bill, you remember what I said on the phone when we talked about this?
Danthurs is offline   Reply With Quote
Old 08-02-2010, 10:32 PM   #4
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Quote:
Originally Posted by Danthurs View Post
Hay Bill, you remember what I said on the phone when we talked about this?
Nope... hahahaha made sense didn't it.
BillBoost37 is offline   Reply With Quote
Old 08-03-2010, 12:40 AM   #5
Senior Member
True Car Nut

xtremerevolution's Avatar

Join Date: Jun 2007
Location: New Lenox, IL
Posts: 2,478
Thanks: 0
Thanked 0 Times in 0 Posts
xtremerevolution is on a distinguished road
Default

This is the exact reason why I decided not to use my old 4T60E from the L27 in my L67 swap. Never seen that kind of damage before. Wow...
xtremerevolution is offline   Reply With Quote
Old 08-03-2010, 08:10 AM   #6
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

This is a 4T65HD trans. That had a 15/16" chain, upgraded input shaft, hardened 4th hub shaft and probably a few other goodies.

I have heard from a couple of specialized trans guys that the 15/16" is supposedly weaker than the 7/8" chain. Not sure about that as this is the first snapped chain I have pulled out. Looks like it broke right at the master link though.
BillBoost37 is offline   Reply With Quote
Old 08-03-2010, 01:43 PM   #7
Senior Member
True Car Nut

xtremerevolution's Avatar

Join Date: Jun 2007
Location: New Lenox, IL
Posts: 2,478
Thanks: 0
Thanked 0 Times in 0 Posts
xtremerevolution is on a distinguished road
Default

Quote:
Originally Posted by BillBoost37 View Post
This is a 4T65HD trans. That had a 15/16" chain, upgraded input shaft, hardened 4th hub shaft and probably a few other goodies.

I have heard from a couple of specialized trans guys that the 15/16" is supposedly weaker than the 7/8" chain. Not sure about that as this is the first snapped chain I have pulled out. Looks like it broke right at the master link though.
Don't know how they compare in regard to chain strength between the two, but, I have heard numerous reports of people who swapped an L67 in their 1st gen w-body equipped with a 4T60E, modded said L67, and stretched the chain within just a hundred miles or so. Just something I wasn't willing to risk given other peoples' experiences.
xtremerevolution is offline   Reply With Quote
Old 08-03-2010, 10:21 PM   #8
Senior Member
Posts like a Northstar

Join Date: Oct 2009
Location: Boston Mass
Posts: 684
Thanks: 0
Thanked 0 Times in 0 Posts
sgp358 is on a distinguished road
Default

I have NEVER seen that kind of damage in a 4T60E/4T65E trans!
sgp358 is offline   Reply With Quote
Old 08-03-2010, 11:24 PM   #9
Senior Member
Posts like a Turbo

ekidman's Avatar

Join Date: Apr 2009
Location: Sussex, WI
Posts: 252
Thanks: 0
Thanked 0 Times in 0 Posts
ekidman is on a distinguished road
Default

Ouch... I can imagine that doesn't shift so well anymore lol
ekidman is offline   Reply With Quote
Old 08-04-2010, 07:37 AM   #10
DINOSAURUS BOOSTUS

Expert Gearhead
Thread Starter

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

That'* surprising to hear Steve.
