Default 2003 grand am used engine is different!

Hey all.

2003 Grand Am 4.3

I am replacing this motor for a friend, and her son who works at a salvage yard provided me with a motor. He never said what year, but its identical except for one thing.

this motor has 2 additional (EGR possibly?) rails, one on the front and one on the back, each with its own valve attached to it. They has 2 spots on each rail where they tap into the head. it is looked above the exhaust manifold and runs the length of the motor on each bank.

What i am wondering is this a CA emission motor? and if so can I do anything to make it work. I assume you might be able to just plug the holes in the head and remove the rails, but i want some advice before I replace the intake gasket and drop the motor back in
TTThornhill is offline   Reply With Quote
Old 05-06-2012, 07:50 PM   #2
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

Is this a 2.3 or a Chevy 4.3 engine you are talking about?
Mike is offline   Reply With Quote
Old 05-06-2012, 08:00 PM   #3
Senior Member
Posts like a Camaro

rjblazer's Avatar

Join Date: Jan 2010
Location: Elmira, New York
Posts: 853
Thanked 31 Times in 29 Posts
rjblazer has a spectacular aura aboutrjblazer has a spectacular aura about
Default

It is a grand am. If its the original motor that came in it it must be a 3.4.
rjblazer is offline   Reply With Quote
Old 05-06-2012, 08:08 PM   #4
Senior Administrator








Certified Car Nut

Mike's Avatar

Join Date: Jul 2003
Location: Horseheads, NY
Posts: 15,649
Thanked 1,001 Times in 777 Posts
Mike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond reputeMike has a reputation beyond repute
Default

My GA had a 2.3 in it. That was a 95. Just sayin.
Mike is offline   Reply With Quote
Old 05-06-2012, 08:12 PM   #5
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

That year car came with a 2.2 or a 3.4. My manual has nothing about having 2 EGR on the engine. But if for some reason it does, you can simply block it off. Might cause a problem with a SES light.
Danthurs is offline   Reply With Quote
Old 05-06-2012, 08:14 PM   #6
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Hmm, reading it again, that sounds like the fuel rails.
Danthurs is offline   Reply With Quote
Old 05-06-2012, 08:27 PM   #7
Senior Member
Posts like a Camaro

rjblazer's Avatar

Join Date: Jan 2010
Location: Elmira, New York
Posts: 853
Thanked 31 Times in 29 Posts
rjblazer has a spectacular aura aboutrjblazer has a spectacular aura about
Default

I checked the GM parts site they dont list any differnce between federal and cali emissions.

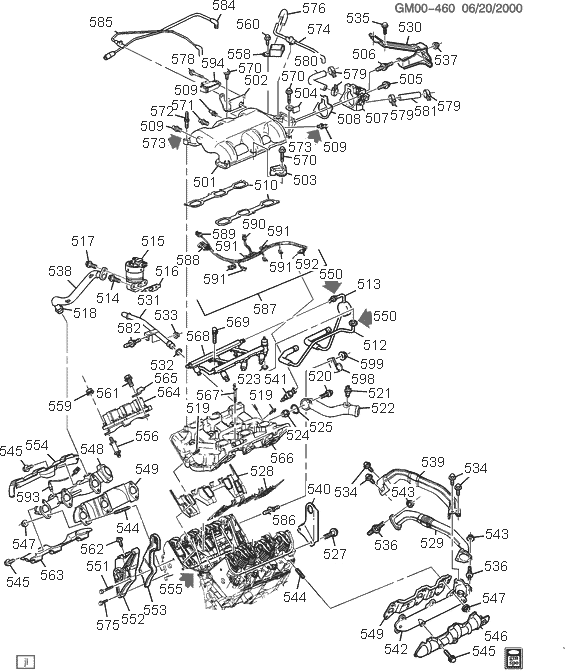

Attached Thumbnails
2003 grand am used engine is different!-engine-asm-3-4l-v6-part-5-manifolds-fuel-gm0046001.png
rjblazer is offline   Reply With Quote
Old 05-07-2012, 10:59 AM   #8
Junior Member
Thread Starter

Join Date: May 2012
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
TTThornhill is on a distinguished road
Default

Guys,
after doing a little research and parts # cross referencing. looks like this is an air injection system thats on this motor. Im pretty sure i can remove everything and block off the holes. just wanted a second opinion.
TTThornhill is offline   Reply With Quote
Old 05-07-2012, 12:35 PM   #9
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

if the car that its going into doesnt have air injection its not going to be looking for that
jwfirebird is offline   Reply With Quote
