Default 1997 Bonneville Transmission

What all transmissions will interchange with the one from a 1997 bonneville, no super charger, 3.8L????

I found one from a 2002 Grand Prix 3.8L, will this fit?

thanks
nighthawk12 is offline   Reply With Quote
Old 01-24-2012, 02:15 PM   #2
Senior Member

True Car Nut

sseidriver97's Avatar

Join Date: Mar 2010
Location: Portage mi
Posts: 7,124
Thanked 3 Times in 3 Posts
sseidriver97 is on a distinguished road
Default

The trans i used in my 97 was out of a 99 gp and worked fine
sseidriver97 is offline   Reply With Quote
Old 01-24-2012, 04:30 PM   #3
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

theres two non supercharges trans. the sse like mine has a different ratio. i was told that you can use the diff from the original to make it work.
jwfirebird is offline   Reply With Quote
Old 01-24-2012, 04:56 PM   #4
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Any 4t65e. If you get a 4t65e-hd, it'* not a big deal. Swap out the output shaft, diff, and diff cover and your all set. You will need to watch for newer ones, 2004+ I believe it is. Those have the park neutral switch internal. Yours is external. Only other difference might be the trans mounts, but those can be changed easy enough.
Danthurs is offline   Reply With Quote
Old 01-25-2012, 10:20 AM   #5
Senior Member
Certified GM nut

SignOfZeta's Avatar

Join Date: Mar 2005
Location: New Milford, CT
Posts: 2,284
Thanked 16 Times in 13 Posts
SignOfZeta has a spectacular aura aboutSignOfZeta has a spectacular aura about
Default

Quote:
Originally Posted by nighthawk12 View Post
What all transmissions will interchange with the one from a 1997 bonneville, no super charger, 3.8L????

I found one from a 2002 Grand Prix 3.8L, will this fit?

thanks
The non-supercharged 1997 was the last one to use the 4T60-E transmission. You'll need to find one of those instead. They were used on several other 3800-powered cars. Best bet is to grab one from a 1995-97 car.

You can modify your car to accept a 4T65-E or -EHD; however, I can never remember what needs to be changed to support that.
SignOfZeta is offline   Reply With Quote
Old 01-25-2012, 02:47 PM   #6
Retired Senior Admin

Expert Gearhead

Danthurs's Avatar

Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Thanks: 0
Thanked 16 Times in 13 Posts
Danthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to allDanthurs is a name known to all
Default

Oh, ya. You are correct. I keep forgetting the 97 was the last year that had 2 different transmissions.
Danthurs is offline   Reply With Quote
Old 01-26-2012, 09:27 AM   #7
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Not sure if all 4T60'* had the proper case either. The 4T65'* have a different case in some year/models.

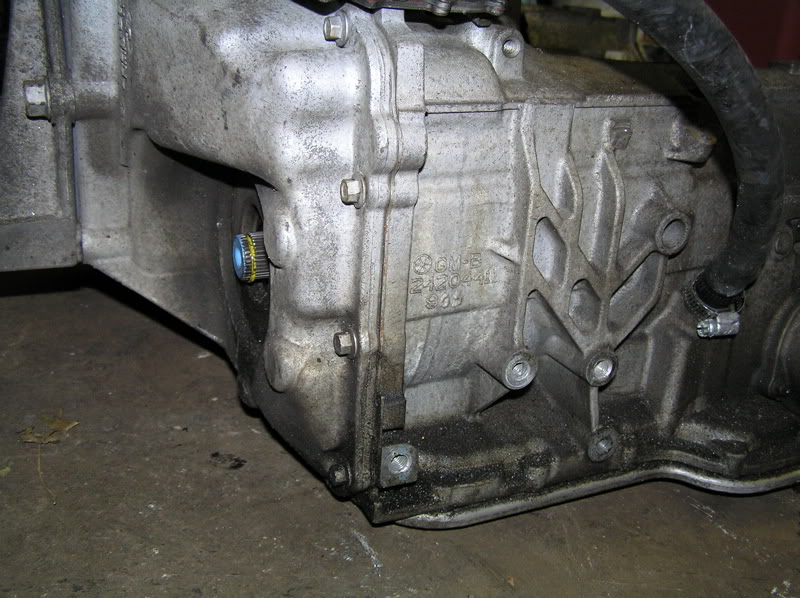

Your car requires this webbing and the added bolt holes for your transmission mount

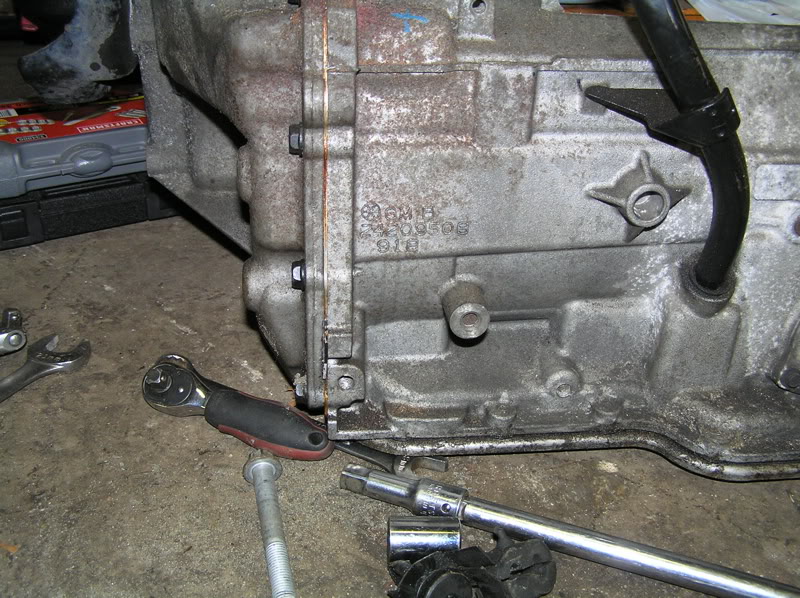

This is one that can be used on a different body style (say W body) because they have a mount in a different location on the 4T65'*.


If we were talking about a 4t65. I wouldn't see the internal PNP vs external as an issue. Reason being is 97 would have used an external and they are easy to bolt to the selector and adjust properly. the bolt holes are on all of the trans cases for this switch.

One item that is tougher to get around, but not too tough is the click vs screw type cooler lines. Again..it wouldn't challenge someone doing a trans swap for more than a run to the parts store/jy.
Attached Thumbnails
1997 Bonneville Transmission-transwebb.jpg   1997 Bonneville Transmission-transwo.jpg
