Default Where to cut?

Where do i cut to gut my airbox?

Name:  DSC00817.jpg
Views: 0
Size:  29.3 KB

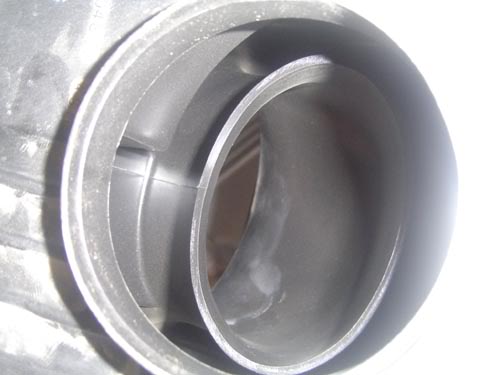

Name:  DSC00818.jpg
Views: 0
Size:  24.8 KB

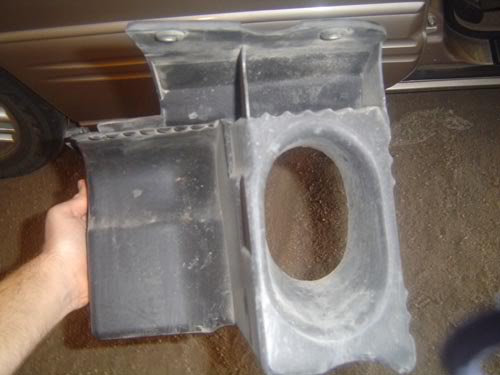

Name:  DSC00820.jpg
Views: 0
Size:  28.5 KB

Name:  DSC00821.jpg
Views: 0
Size:  30.0 KB
96bonniessei is offline   Reply With Quote
Old 05-17-2006, 05:17 PM   #2
Senior Member
True Car Nut

Join Date: Jan 2005
Location: Montevideo, MN MWBF '05, '06, '07 WCBF '06 '07 survivor
Posts: 3,882
Thanks: 0
Thanked 0 Times in 0 Posts
sonoma_zr2 is on a distinguished road
Default

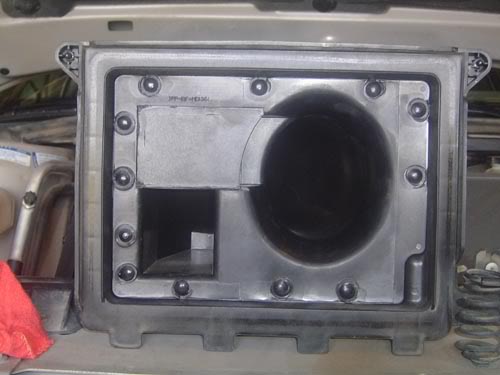

on your first pic, where ever you see a plastic rivet, drill or cut off. Whatever falls out, throw away. reinstall shell
sonoma_zr2 is offline   Reply With Quote
Old 05-17-2006, 05:41 PM   #3
Senior Member
Certified Car Nut

Join Date: Oct 2003
Posts: 19,756
Thanks: 0
Thanked 0 Times in 0 Posts
1993 SLE is on a distinguished road
Default

and on your 4th pic i believe you can leave that out too, no too surew tho
1993 SLE is offline   Reply With Quote
Old 05-21-2006, 03:30 AM   #4
Senior Member
Posts like a Supercharger

Join Date: Mar 2006
Location: Chicago
Posts: 193
Thanks: 0
Thanked 0 Times in 0 Posts
BlownBuick is on a distinguished road
Default

No, you need the part in the 4th picture, It holds the other side of the air filter in the box. If you want to, you could try cutting that oval out all the way to a rectangle and, if you're so inclined, you could cut the side where your fingers are in the 4th picture.

You'll end up up with the front and side cut out, with a lot off room for air to enter. Just make sure to only cut where the little fillet things are, because if you cut all the way to the edge, if won't seal against your filter anymore.
BlownBuick is offline   Reply With Quote
