Default Walbro 255l/hr fuel pump install pics

First of all, this is NOT a one-person job. I suggest 2 to remove, 3 to re-install the tank. I had this sucker so empty, it barely made it a mile to the gas station when we were done, and it was still a BITCH.

Tank removed from the car:

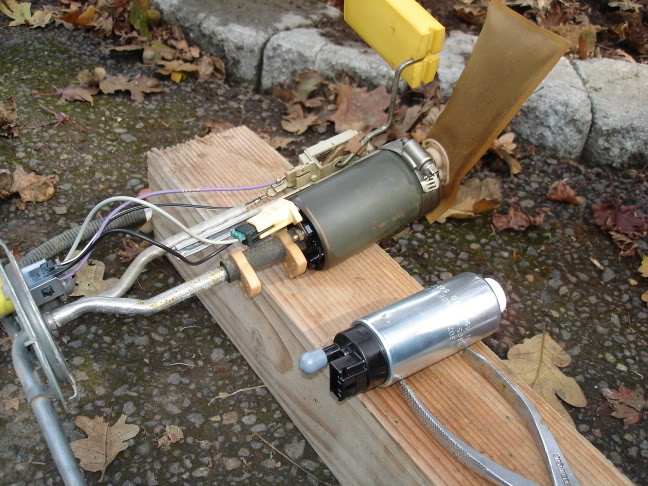

Sending unit/pump/strainer (OEM) next to the new Walbro pump:
Name:  walbro4.jpg
Views: 25
Size:  93.3 KB

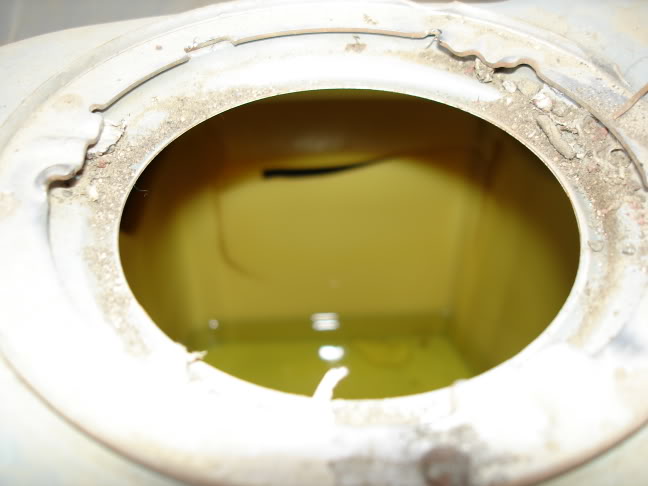

Debris on the rim of the tank. This was removed by putting duct tape around the INSIDE of the lip of the tank, sticky side up, then gently brushing the debris onto the tape for removal. You don't want to use vacuum here. One little spark can ruin your whole day:
Name:  walbro1.jpg
Views: 12
Size:  35.0 KB

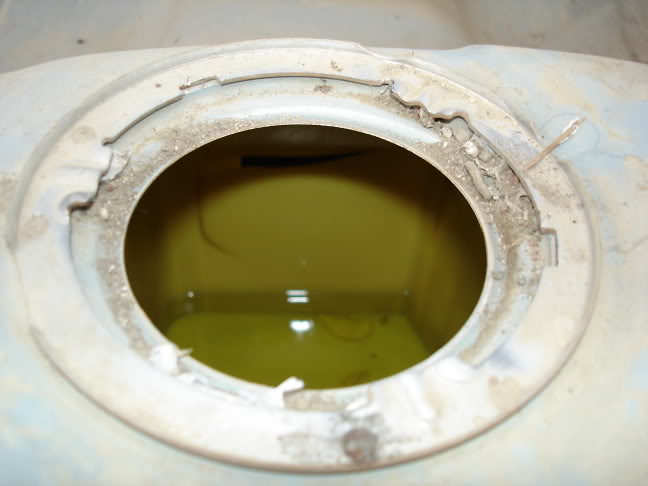

Broken baffle:
Name:  walbro2.jpg
Views: 12
Size:  33.8 KB

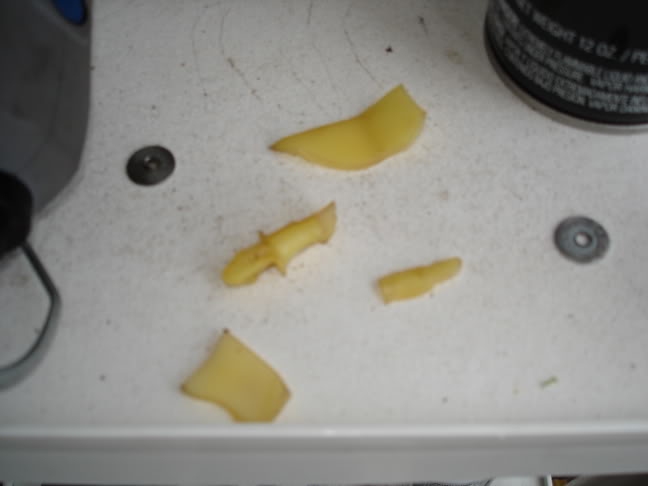

Broken pieces of the baffle that were removed:


Name:  walbro7.jpg
Views: 12
Size:  22.5 KB

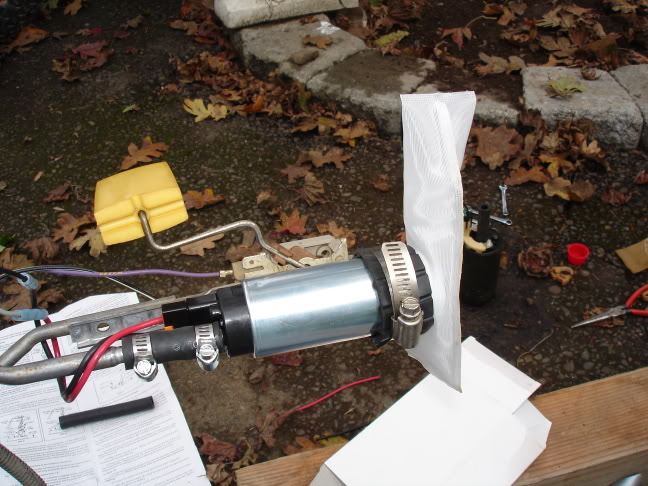

Assembly ready for install:
Name:  walbro5.jpg
Views: 11
Size:  77.1 KB

The baffle shouldn't cause any problems, as it cracked on the upper portion. The 93 still has a more accurate and stable sending unit than the 95 anyway. On of my strap bolt anchors broke during install, and I have it rednecked now. I'll have to order the retainer nut and a new bolt for a 15min fix later.
willwren is offline
Old 10-17-2005, 01:39 PM   #2
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

Man up, bud. I did it three times all by myself with enough fuel to get me to town, 20 miles and still have enough to run errands first.

I had the same shaped baffle pieces come out of my tank.

You can get the anchor from the help section at Autozone.

EDIT: I never even dropped the exhuast...
J Wikoff is offline
Old 10-17-2005, 04:22 PM   #3
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Quote:
Originally Posted by jwikoff99

You can get the anchor from the help section at Autozone.

EDIT: I never even dropped the exhuast...
I went with OEM anchors and bolts. Just ordered from the dealer, they'll be here tomorrow morning.

I didn't 'drop' the exhaust, but I did undo the rear hangers and pull it to the side.
willwren is offline
Old 10-17-2005, 04:27 PM   #4
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Thanks: 0
Thanked 0 Times in 0 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Bill..on that three person install is that two for holding the tank and one to connect wiring?

I think that'* what we did on Frank..but he was also pretty high up on jackstands at that point. And I think Toasty took a gas tank hit to the forehead too.
BillBoost37 is offline
Old 10-17-2005, 04:28 PM   #5
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

3 to install would make it MUCH easier. Not for the wiring or fuel lines, but to jimmy it up into position and hold it for the straps.
willwren is offline
Old 10-17-2005, 05:19 PM   #6
Guest
Posts like a Northstar

Join Date: Nov 2004
Posts: 584
Thanks: 0
Thanked 0 Times in 0 Posts
ssei1995 is on a distinguished road
Default

It is a three person job...two to remove and put the tank back in place and a thrid person to hold Willwren'* cold beverage...
ssei1995 is offline
Old 10-17-2005, 09:16 PM   #7
Senior Member
True Car Nut

Join Date: May 2003
Location: Lethbridge, Alberta, _______Canada._______ West Coast Bonneville Fest ___05,06,07 Survivor___
Posts: 8,134
Thanks: 0
Thanked 0 Times in 0 Posts
SSEimatt93 is on a distinguished road
Default

Looks awesome..how much fuel did the gage say you had when it was that low..looks like its defintally a gallon..maybe? 3 people would be doing it the nice way, nice on yourself that is, which is important lol.
SSEimatt93 is offline
Old 10-17-2005, 09:59 PM   #8
Senior Member
Posts like a Turbo

Join Date: Aug 2005
Posts: 235
Thanks: 0
Thanked 0 Times in 0 Posts
optmusprimer is on a distinguished road
Default

Bill how would you rank a bonneville tank dropping to other vehicles you have done?
optmusprimer is offline
Old 10-18-2005, 04:07 PM   #9
Senior Member
Posts like a Corvette

Join Date: Jul 2004
Location: Bolingbrook, IL Location: Clarkston, MI
Posts: 1,256
Thanks: 0
Thanked 0 Times in 0 Posts
llBlazin_llLo is on a distinguished road
Default

I just got done doing this on my car. . . .I feel your pain Willwren! I did it by myself and couldn't drop the exhaust in the back because it was so rusty.

I curious to see what you FP will be now. I was going to do the same pump as you but then Zoom talked me out of it when he said that he isn't sure if the bonne FP wiring is as bad as the GP'* but if it is there would be chance that it could flow worse if voltage isn't high enough. So I just went with a GM one figuring I'd never get to the point where my pump won't flow enough let alone my injectors.
llBlazin_llLo is offline
Old 10-18-2005, 08:58 PM   #10
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Blazin, I'm at 48psi with the key on, engine off. I jump to 51 idling if I disconnect my vac line. No problem with the wiring current carrying capacity for the Bonneville.
willwren is offline
