Default Turbo Regal Update

I've been making a turbo log setup for my buddies Regal GS for a while now.
There isn't any immediate rush so I do a little bit every once in a while.
Here is an old thread with just the logs tacked.

I fab and tacked the front & rear log, the crossover, the wastegate tube, and some of the 3" DP. Then recently my buddy had the front & rear logs, and the turbo flange TIGed but left the crossover tacked just in case there was any warping. There was a little bit. So, I'm going to make up for that before he brings it back to get welded.

Pics:

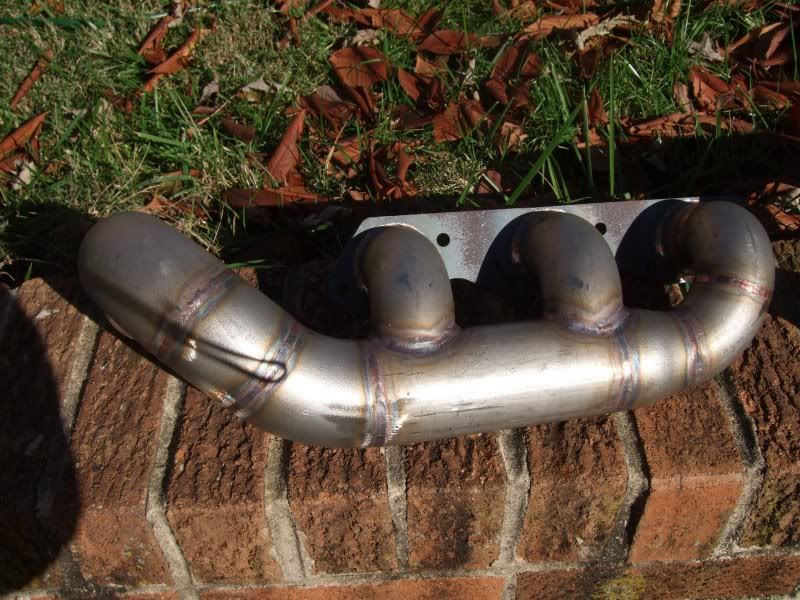

Ther rear:
Name:  DSCF0960.jpg
Views: 0
Size:  120.1 KB

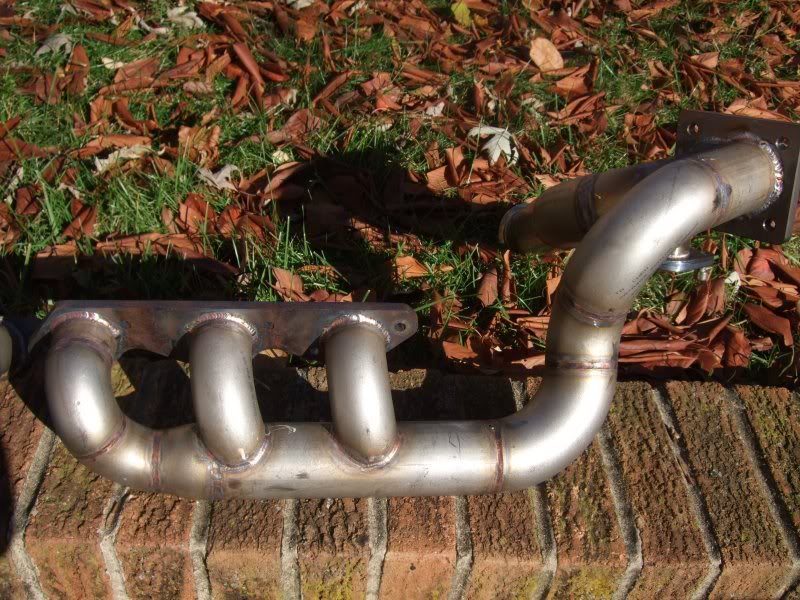

The front and crossover:
Name:  DSCF0961.jpg
Views: 0
Size:  126.2 KB

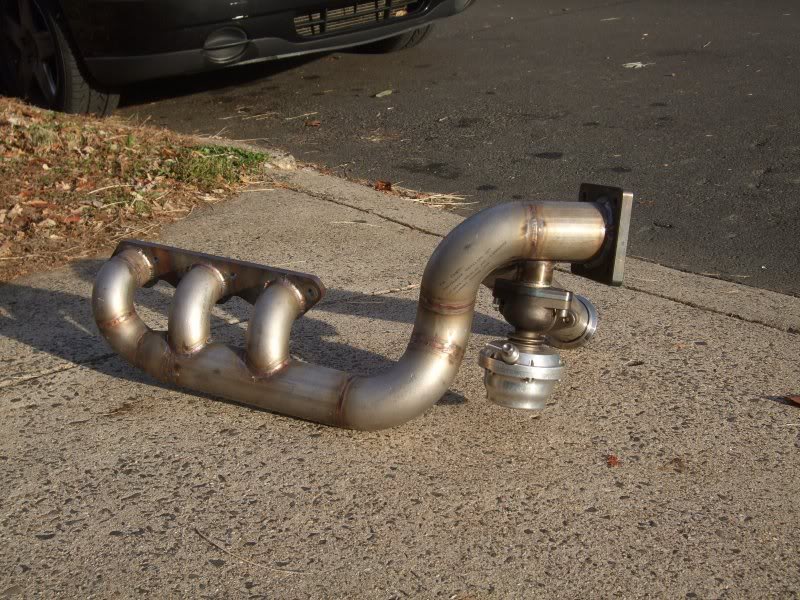

Name:  DSCF0966.jpg
Views: 0
Size:  126.2 KB

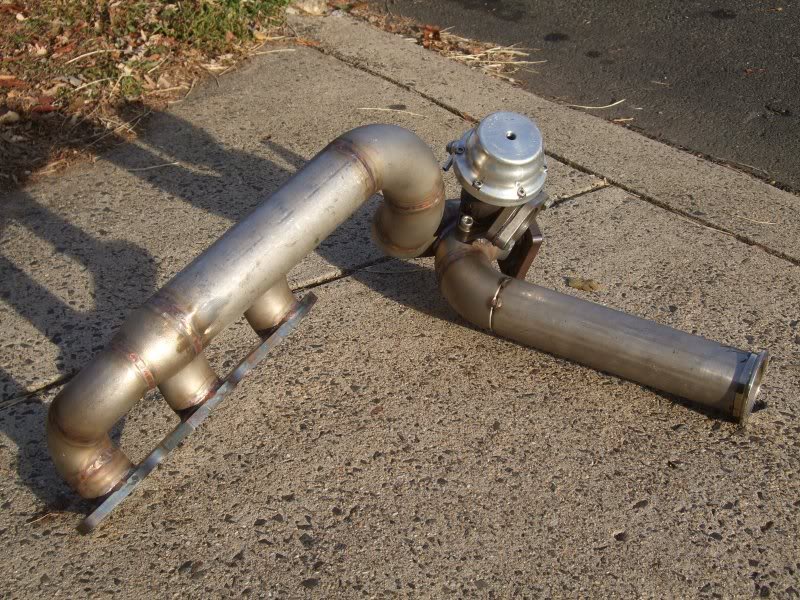

Name:  DSCF0967.jpg
Views: 0
Size:  147.2 KB

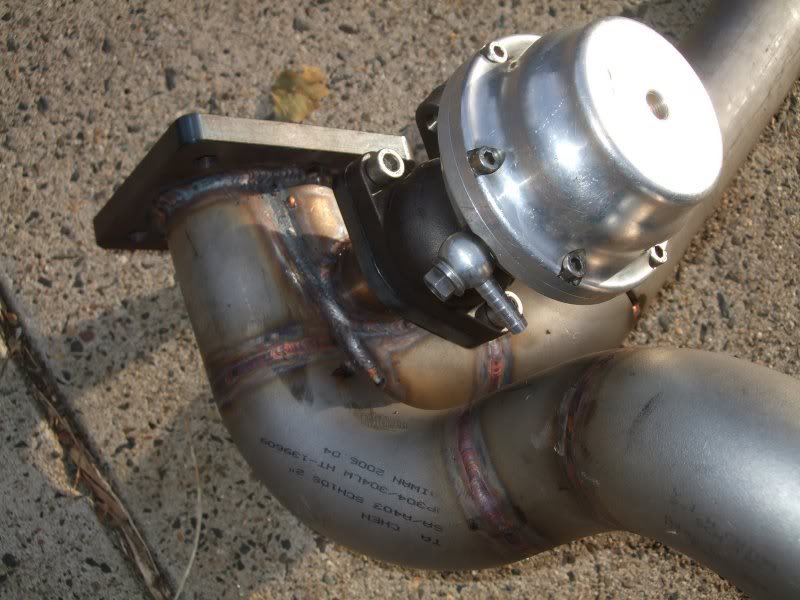

Name:  DSCF0968.jpg
Views: 0
Size:  71.6 KB

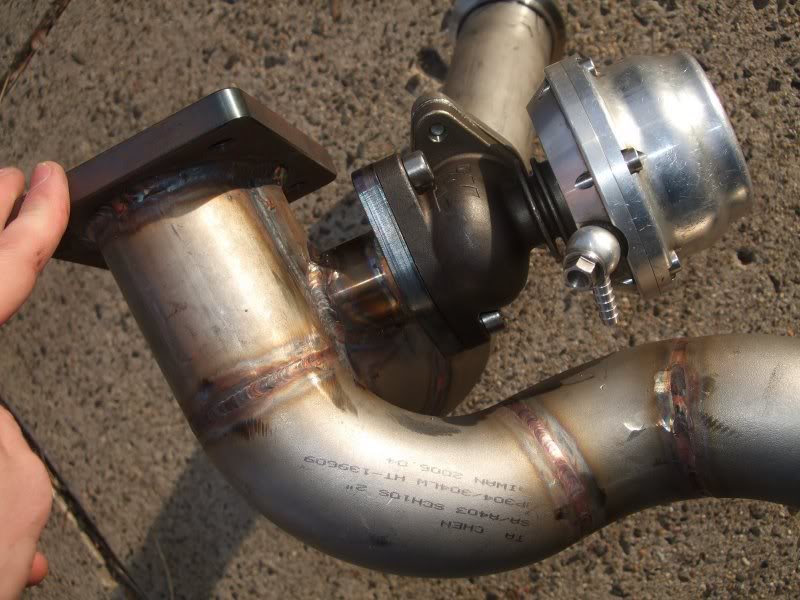

Name:  DSCF0969.jpg
Views: 0
Size:  75.4 KB

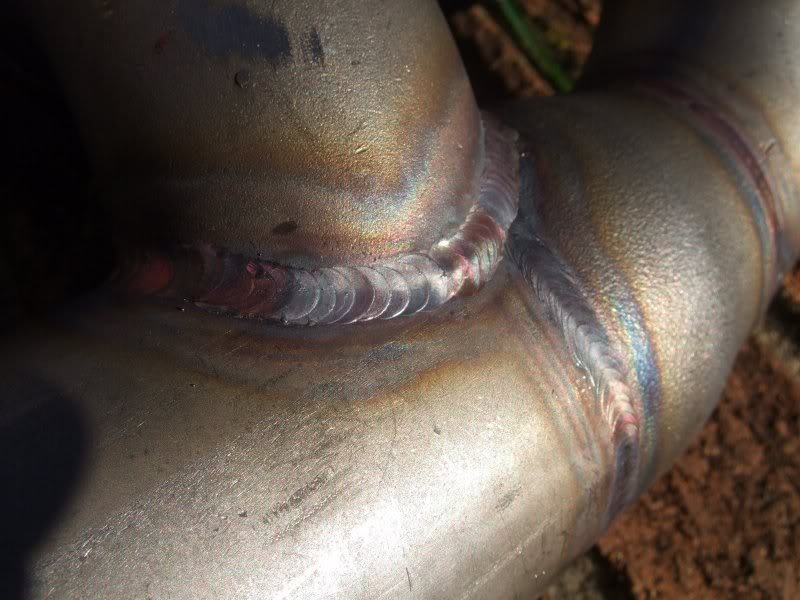

Close up of the welds:
Name:  DSCF0962.jpg
Views: 0
Size:  69.3 KB

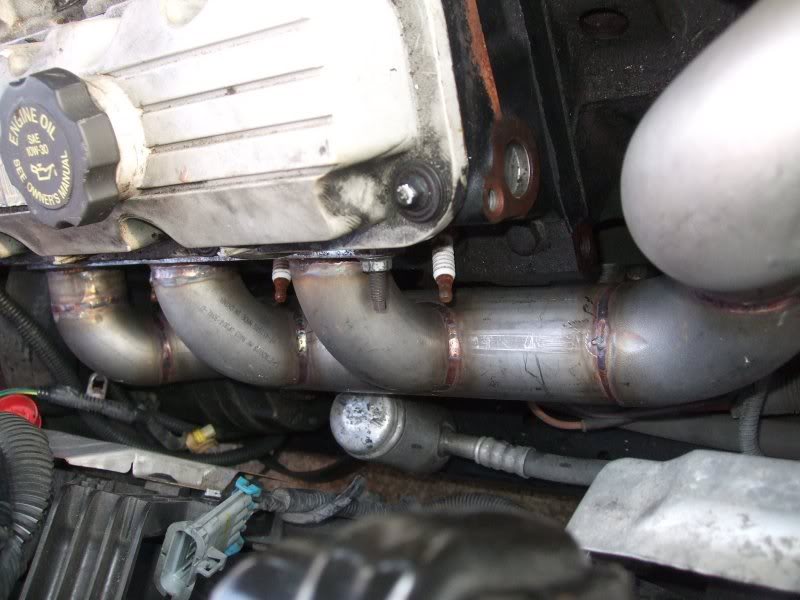

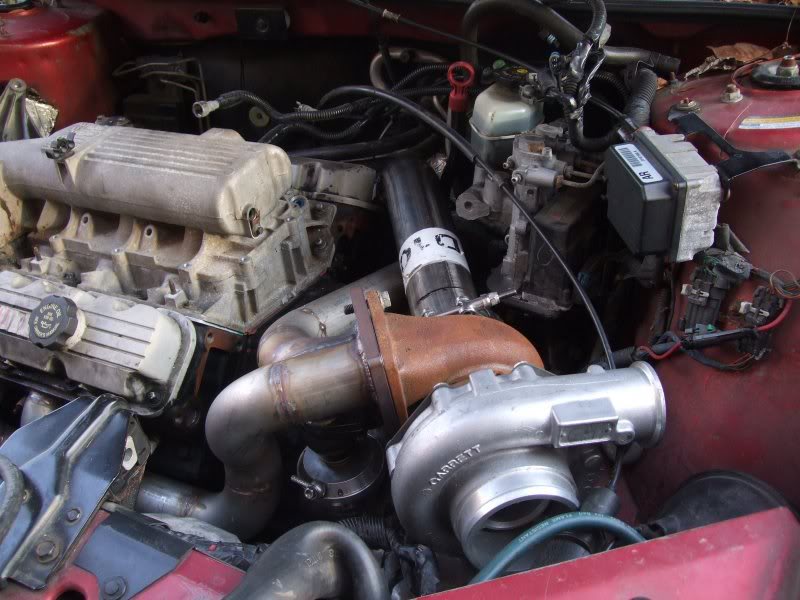

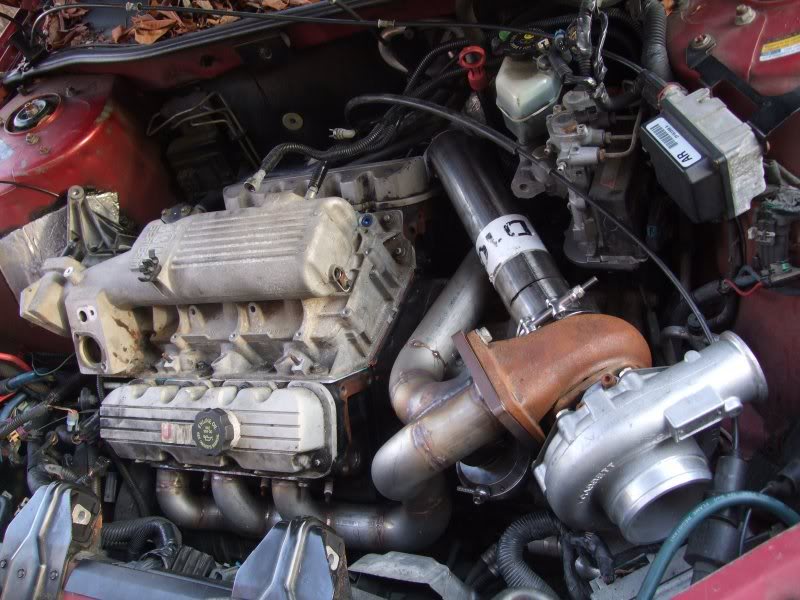

In the car:
Name:  DSCF0970.jpg
Views: 0
Size:  87.4 KB
Name:  DSCF0972.jpg
Views: 0
Size:  78.5 KB
Name:  DSCF0973.jpg
Views: 0
Size:  62.3 KB

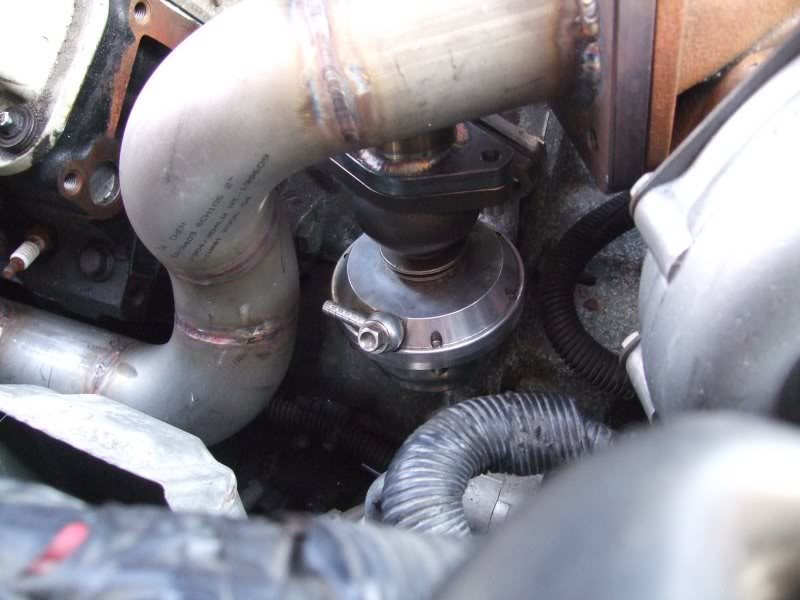

Nice and hidden wastegate:
Name:  DSCF0971.jpg
Views: 0
Size:  54.3 KB

I still have to make tranny to turbo brackets, something to support the DP away from the valvecover, complete the recirculating wastegate, and finish the DP. That should wrap up the hot side.

The cold side will be cake and I just have to work out all the nickel and dime stuff with the F-body manifold.

So waddya think?
95naSTA is offline   Reply With Quote
Old 12-01-2007, 08:40 PM   #2
Senior Member
True Car Nut

Join Date: Dec 2005
Location: August 07 COTM....NEBF '06, CEBF '06 OHMM '06 ONBF '07 CEBF '07
Posts: 4,064
Thanks: 0
Thanked 0 Times in 0 Posts
PRD2BDF is on a distinguished road
Default

I'm just curious, if the turbo wasn't there, would that be the ideal angle for N/A? I'm assuming smaller primaries for the N/A too..

And good job on the manifolds
PRD2BDF is offline   Reply With Quote
Old 12-01-2007, 10:10 PM   #3
Senior Member
True Car Nut
Thread Starter

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

Quote:
Originally Posted by fuelforthesoul1999
I'm just curious, if the turbo wasn't there, would that be the ideal angle for N/A? I'm assuming smaller primaries for the N/A too..

And good job on the manifolds
A little more angled would be better in general but I didn't want to go too close the spark plug wires.

For an n/a engine, it would be ideal to have 32-33" long 1.5" diameter primaries. (Yep smaller)

Thanks.
95naSTA is offline   Reply With Quote
Old 12-01-2007, 10:14 PM   #4
Senior Member
Certified GM nut

Join Date: Oct 2006
Location: burb of detroit. 2 miles north of 8 mile Rd.
Posts: 2,028
Thanks: 0
Thanked 0 Times in 0 Posts
samueljackson is on a distinguished road
Default

is that an f body uim?

and beautiful welds, i need much practice to get to where ur at. i really admire that work

TIG FTW
samueljackson is offline   Reply With Quote
Old 12-01-2007, 10:16 PM   #5
Junior Member

Join Date: Jun 2002
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
2000SilverBullet is on a distinguished road
Default

Nice job.
Sch.10S 304L stainless pipe is a great choice and the welds look very good.
Did you use TIG?

Use some pickling paste (phosphoric acid) to clean up the blueing in the heat affected zone to minimize surface rusting later. It will just look prettier longer.
2000SilverBullet is offline   Reply With Quote
Old 12-01-2007, 10:33 PM   #6
Senior Member
True Car Nut
Thread Starter

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

Yep, that'* the earlier sytle F-body upper and lower. The later style dosen't angle the TB.
And yep the TIG welds came out great.
He had a local shop do it. I wish my TIG welds looked a quarter as good as that.
I just fab and tacked.
I'll look into the pickling paste.
Thanks.
95naSTA is offline   Reply With Quote
Old 12-01-2007, 10:39 PM   #7
Senior Member
True Car Nut

Join Date: Sep 2006
Location: Bloomington, MN
Posts: 3,693
Thanks: 0
Thanked 0 Times in 0 Posts
GoldenBullet is on a distinguished road
Default

i was gunna compliment the welds also, TIG FTMFW! (i cant do it though)
GoldenBullet is offline   Reply With Quote
Old 12-01-2007, 11:52 PM   #8
Senior Member
Certified GM nut

Join Date: May 2005
Location: Wickliffe, Ohio
Posts: 2,155
Thanks: 0
Thanked 0 Times in 0 Posts
McGrath is on a distinguished road
Default

Looks very nice! Those welds are beautiful. I suck at welding


Ed
McGrath is offline   Reply With Quote
Old 12-03-2007, 04:24 PM   #9
Senior Member
Posts like a Turbo

Join Date: Mar 2007
Location: Knob Noster, MO
Posts: 250
Thanks: 0
Thanked 0 Times in 0 Posts
93Bonne is on a distinguished road
Default

Now, question? How well would this work on my car?
93Bonne is offline   Reply With Quote
Old 12-03-2007, 04:50 PM   #10
Senior Member
True Car Nut
Thread Starter

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Thanks: 0
Thanked 0 Times in 0 Posts
95naSTA is on a distinguished road
Default

Quote:
Originally Posted by 93Bonne
Now, question? How well would this work on my car?
The ports wouldn't line up, the heads are physically farther apart, the trans vac modulator would be in the way, the compressor map dosen't really fit your engine'* efficiency/potential, and the downpipe might not clear.

In other words, the S1 Bonnie is a totally different animal.

No doubt a similar setup could be made for a L27 but it would NOT be cheap.
95naSTA is offline   Reply With Quote
