Default TB cleaning and a little more .. install complete, UPDATE

Today I finally was able to clean the throttle body in hopes of at least fixing my rough cold idle. Instead of just cleaning it I planned on doing some "porting" and polishing. I didn't really remove much material, I mainly just focused on one section, and then polished the hell out of the rest. So here are some pics..

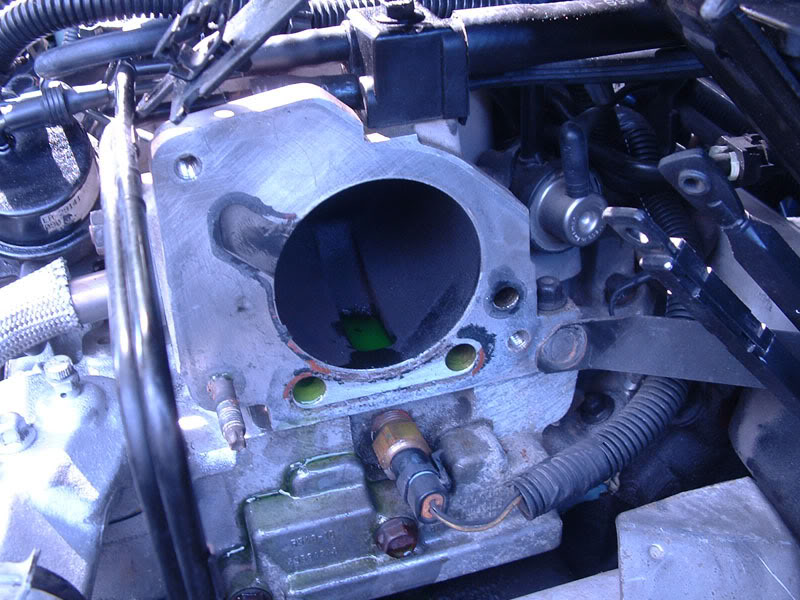

Took off the TB and was disgusted with the SC inlet. Someday I'm removing that and cleaning it. I did clean a little of it while it was on the car. Don't mind the coolant in the SC, it got inside while removing the TB
Name:  DSCF0005-2.jpg
Views: 1
Size:  111.7 KB

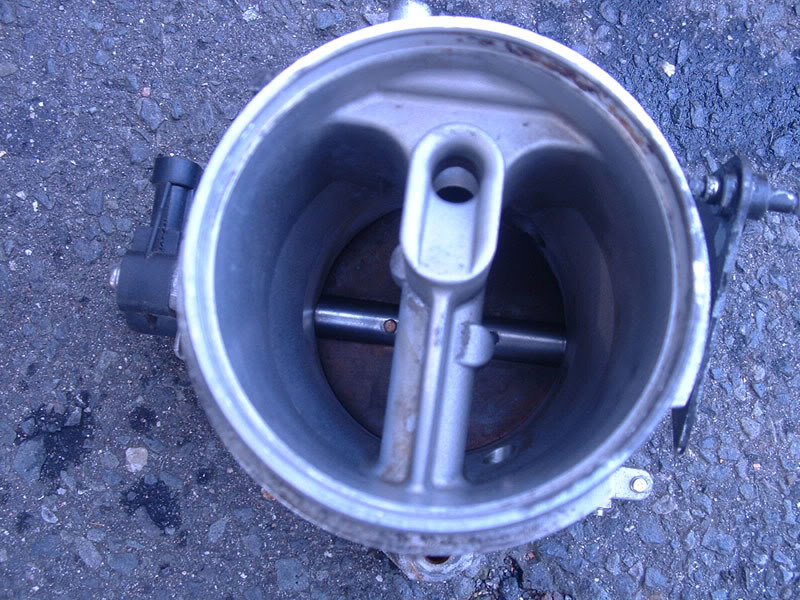

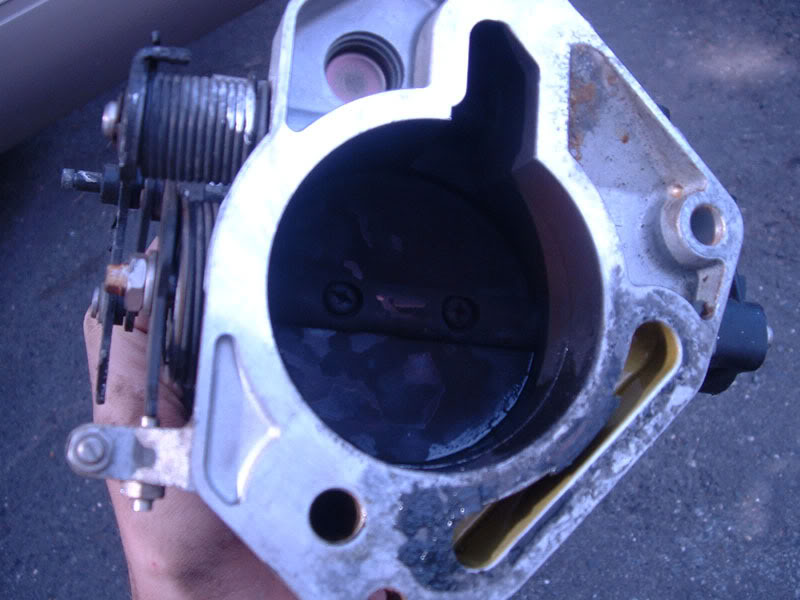

Dirty TB, from both sides:
Name:  DSCF0006.jpg
Views: 1
Size:  134.1 KB

Name:  DSCF0007-1.jpg
Views: 1
Size:  72.4 KB

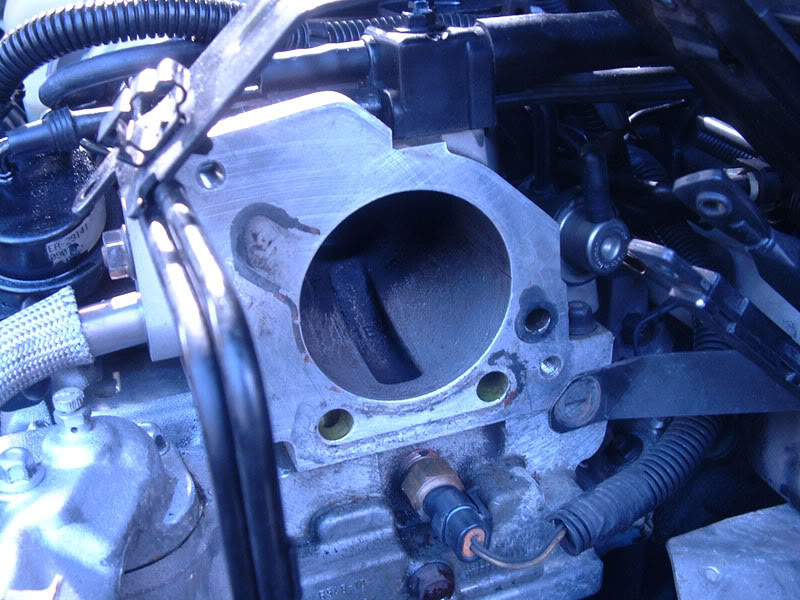

SC inlet after some careful cleaning:
Name:  DSCF0007b.jpg
Views: 1
Size:  105.5 KB

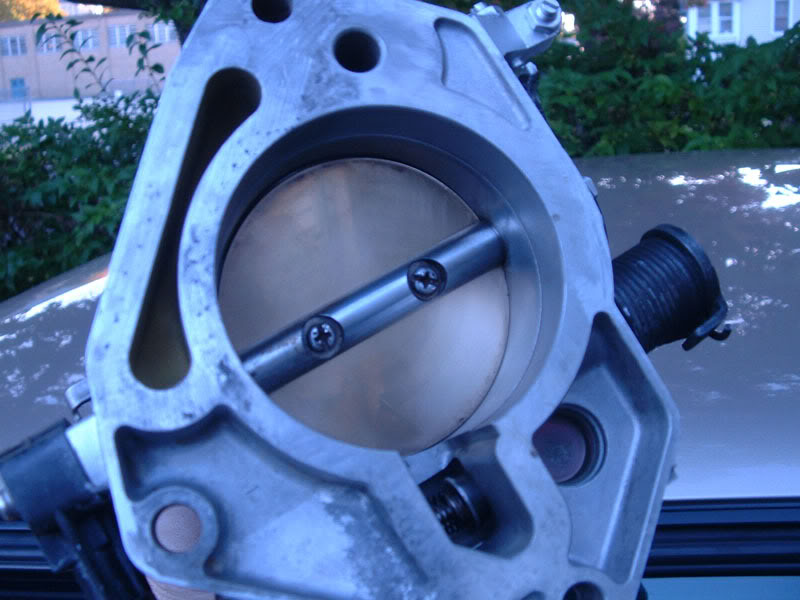

I removed the plate to clean it better. Reinstalled and cleaner than ever.
Name:  DSCF0008-1.jpg
Views: 1
Size:  74.1 KB

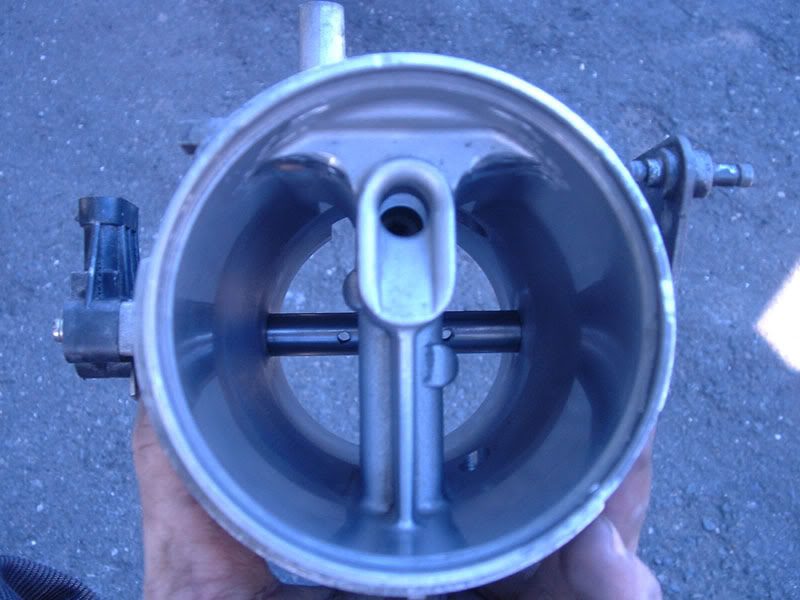

Here you can see at the top where I removed some material on both sides. I didn't have "ideal" dremel attachments, just sanding cylinders. It isn't the prettiest job, but it'* smooth and much more rounded at those edges. I polished it by hand with 1000-2000 grit sandpaper since that'* all I had. It wasn't that hard either.
Name:  DSCF0009-1.jpg
Views: 2
Size:  71.6 KB

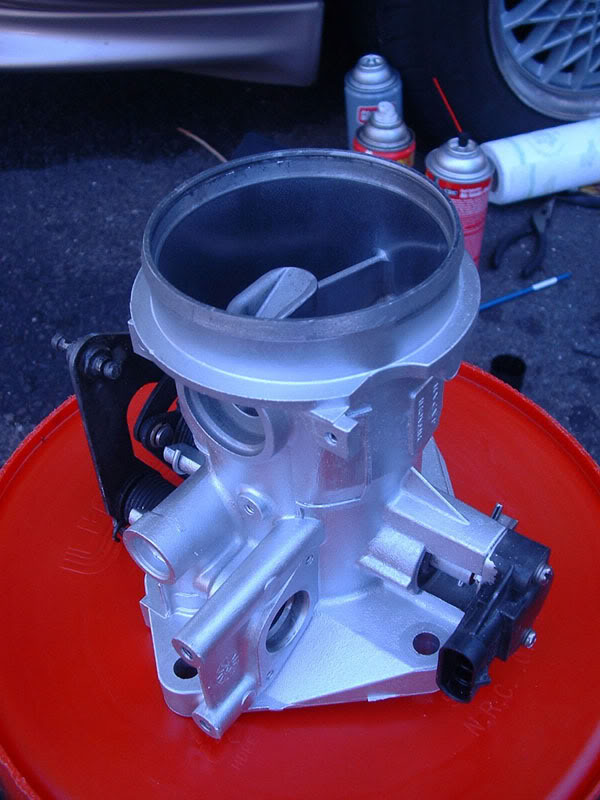

Cleaned and painted on the outside...ready to install! No pics of it installed yet...got dark, and I need to get the right socket to fit my torque wrench I tightened it very well without the tq wrench, but tomorrow I will get the right socket and torque it to 89 in/lbs. If anything, right now it is tighter than needed, but I want to know for sure.
Name:  DSCF0010.jpg
Views: 1
Size:  78.2 KB

And this is what is going on tomorrow morning!!
Name:  DSCF0011.jpg
Views: 1
Size:  124.6 KB
bonnie94ssei is offline   Reply With Quote
Old 10-07-2006, 10:40 PM   #2
Senior Member
True Car Nut

Join Date: May 2003
Location: Lethbridge, Alberta, _______Canada._______ West Coast Bonneville Fest ___05,06,07 Survivor___
Posts: 8,134
Thanks: 0
Thanked 0 Times in 0 Posts
SSEimatt93 is on a distinguished road
Default

Oooohhh!
You are going to LOVE that CAI, trust me..
Pete, the TB looks simply amazing..nice work!
SSEimatt93 is offline   Reply With Quote
Old 10-08-2006, 02:10 AM   #3
Senior Member
Certified Car Nut
Thread Starter

Join Date: Oct 2002
Posts: 11,307
Thanks: 0
Thanked 0 Times in 0 Posts
bonnie94ssei is on a distinguished road
Default

I can't WAIT to get the intake on! Should make a substantial difference, not to mention the cleaned up TB.
bonnie94ssei is offline   Reply With Quote
Old 10-08-2006, 02:25 AM   #4
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Your welcome.

89 inch/lbs? You have an L36? Try 18 ft/lbs.
willwren is offline   Reply With Quote
Old 10-08-2006, 02:29 AM   #5
Senior Member
Certified Car Nut
Thread Starter

Join Date: Oct 2002
Posts: 11,307
Thanks: 0
Thanked 0 Times in 0 Posts
bonnie94ssei is on a distinguished road
Default

Quote:
Originally Posted by willwren
Your welcome.

89 inch/lbs? You have an L36? Try 18 ft/lbs.
Thanks Bill! I was on the phone last night w/ Bill as he was explaining the process of porting/polishing the TB, among other things.

89 in/lb vs. 20 ft/lb has been a debate. Check out my 92-99 TB thread...
bonnie94ssei is offline   Reply With Quote
Old 10-08-2006, 02:36 AM   #6
Junior Member
Posts like a Ricer Type-R

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

I already did.
willwren is offline   Reply With Quote
Old 10-08-2006, 02:39 AM   #7
Senior Member
Certified Car Nut
Thread Starter

Join Date: Oct 2002
Posts: 11,307
Thanks: 0
Thanked 0 Times in 0 Posts
bonnie94ssei is on a distinguished road
Default

Quote:
Originally Posted by willwren
I already did.
Yep, thanks Bill.

So how did I do on the TB?
bonnie94ssei is offline   Reply With Quote
Old 10-08-2006, 12:06 PM   #8
Senior Member
Expert Gearhead

Join Date: Dec 2002
Location: Mississauga, Ontario
Posts: 20,892
Thanks: 0
Thanked 1 Time in 1 Post
Jim W is on a distinguished road
Default

Nice to see my SSEi is getting the dire attention it needed.

<--- much happier now that the car is a primary car instead of a 2nd car

Great work Pete!
Jim W is offline   Reply With Quote
Old 10-08-2006, 04:22 PM   #9
Senior Member
Certified Car Nut
Thread Starter

Join Date: Oct 2002
Posts: 11,307
Thanks: 0
Thanked 0 Times in 0 Posts
bonnie94ssei is on a distinguished road
Default

Quote:
Originally Posted by Jim W
Nice to see my SSEi is getting the dire attention it needed.

<--- much happier now that the car is a primary car instead of a 2nd car

Great work Pete!
Got everything back together and the intake is on...I'm going to take it for a spin in about an hour!
bonnie94ssei is offline   Reply With Quote
Old 10-08-2006, 04:28 PM   #10
Junior Member

Join Date: Mar 2004
Location: Purgatory
Posts: 0
Thanks: 0
Thanked 0 Times in 0 Posts
harofreak00 is on a distinguished road
Default

any theme going for this car?
nice work on the TB
