Performance, Brainstorming & Tuning Talk about modifications, or anything else associated with performance enhancements. Have a new idea for performance/reliability? Post it here. No idea is stupid! (please use Detailing and Appearance for cosmetic ideas)

steering wheel positioning sensor

Thread Tools

Search this Thread

Old Oct 31, 2008 | 08:48 PM
  #1
buffstuffbuddha's Avatar
Thread Starter
Member
Posts like a V-Tak

Joined: Oct 2007
Posts: 80
Likes: 0
From: Cleveland, OH
buffstuffbuddha is on a distinguished road
Default steering wheel positioning sensor

i read on all-data that you need to pull the air bag, pull the column, and take apart the entire assembly to swap the sensor. But a post on here said the sensor swap was a 20 minute ordeal. Which one is right? Anybody ever do this? Sorry I accidentally posted this in the wrong forum, how can I move it?

Last edited by buffstuffbuddha; Oct 31, 2008 at 08:49 PM. Reason: posted in wrong forum
Reply
Old Nov 3, 2008 | 03:27 PM
  #2
BLKssei02's Avatar
Junior Member

Joined: Oct 2008
Posts: 8
Likes: 0
BLKssei02 is on a distinguished road
Default

I am in the same boat as you let me know what you find out. toolmannava@gmail.com
Reply
Old Jul 23, 2009 | 01:13 PM
  #3
ClayKreiling's Avatar
Member
Posts like a V-Tak

Joined: Sep 2006
Posts: 44
Likes: 0
From: New Orleans, LA
ClayKreiling is on a distinguished road
Default

bump for an answer....
Reply
Old Jul 25, 2009 | 02:00 PM
  #4
Pologuy's Avatar
Senior Member
Posts like a Turbo

Joined: Sep 2007
Posts: 310
Likes: 3
From: Wisconsin
Pologuy is on a distinguished road
Default

Are you getting the "Service Stability System Soon" warning also?

Reply
Old Jul 15, 2013 | 11:54 AM
  #5
buffstuffbuddha's Avatar
Thread Starter
Member
Posts like a V-Tak

Joined: Oct 2007
Posts: 80
Likes: 0
From: Cleveland, OH
buffstuffbuddha is on a distinguished road
Default

I know it'* a few years later but hopefully this answer will still help someone. Yes it was giving me the "service stability system" message. All you need to is unbolt the end of the steering shaft, take off the old sensor and pop the new one back on. It'* super simple and takes about 10 min...just make sure you don't accidentally spin the wheel while the everything is unbolted because nobody likes a broken clock spring.
Reply
Old Jul 15, 2013 | 09:02 PM
  #6
2kg4u's Avatar
Senior Member
True Car Nut

Joined: Sep 2006
Posts: 4,816
Likes: 245
From: Windsor, Ontario / Detroit, Michigan
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

Any chance you could take a picture of where you disconnected the shaft and post it? I always thought it was a much bigger job to change it.
Reply
Old Jul 16, 2013 | 11:30 PM
  #7
buffstuffbuddha's Avatar
Thread Starter
Member
Posts like a V-Tak

Joined: Oct 2007
Posts: 80
Likes: 0
From: Cleveland, OH
buffstuffbuddha is on a distinguished road
Default

I'll try to get you a picture tomorrow after work
Reply
Old Jul 17, 2013 | 08:31 AM
  #8
2kg4u's Avatar
Senior Member
True Car Nut

Joined: Sep 2006
Posts: 4,816
Likes: 245
From: Windsor, Ontario / Detroit, Michigan
2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of2kg4u has much to be proud of
Default

That would be great.
Reply
Old Jul 17, 2013 | 06:58 PM
  #9
buffstuffbuddha's Avatar
Thread Starter
Member
Posts like a V-Tak

Joined: Oct 2007
Posts: 80
Likes: 0
From: Cleveland, OH
buffstuffbuddha is on a distinguished road
Default

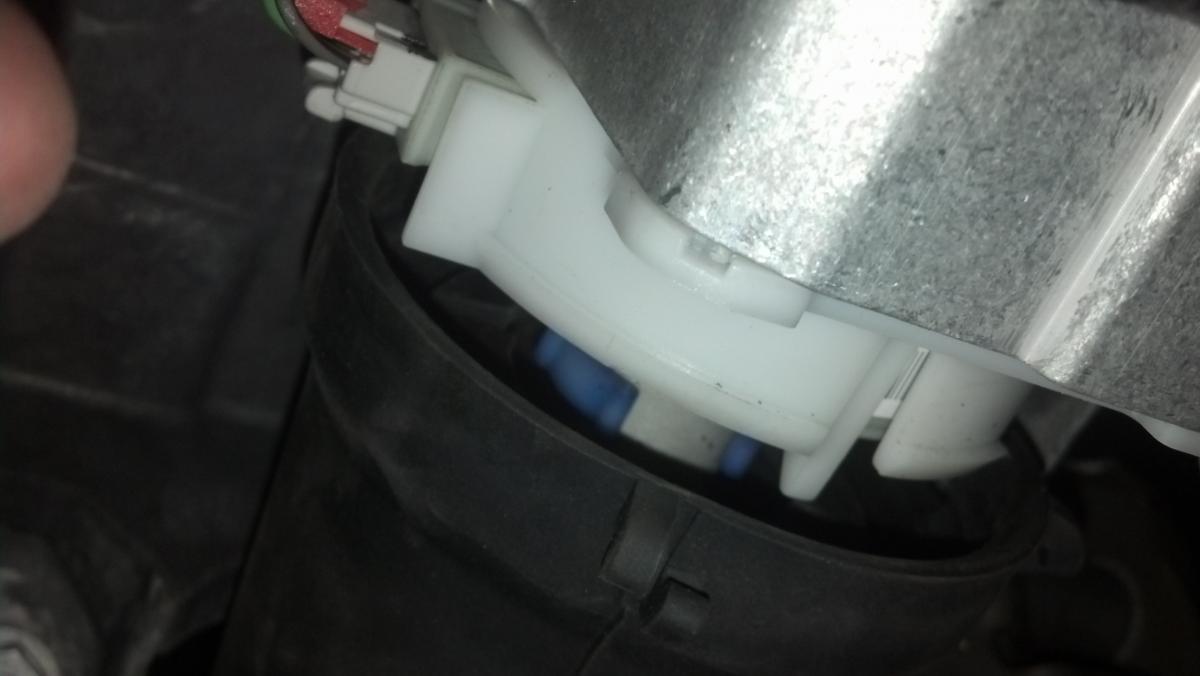

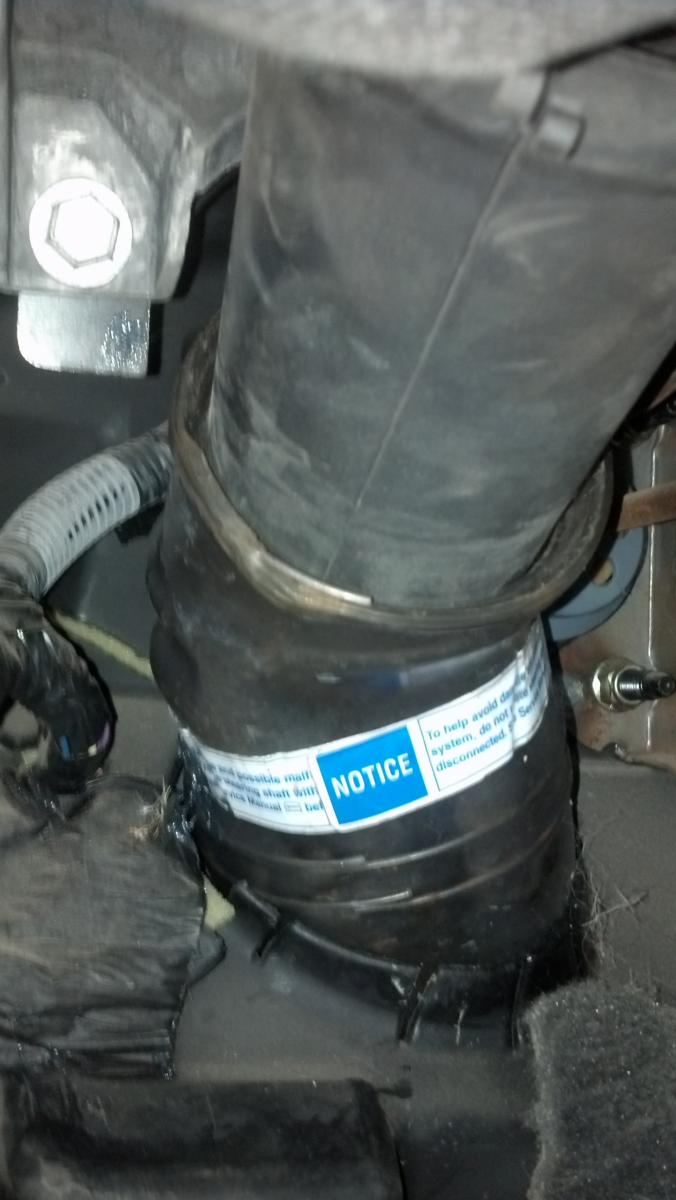

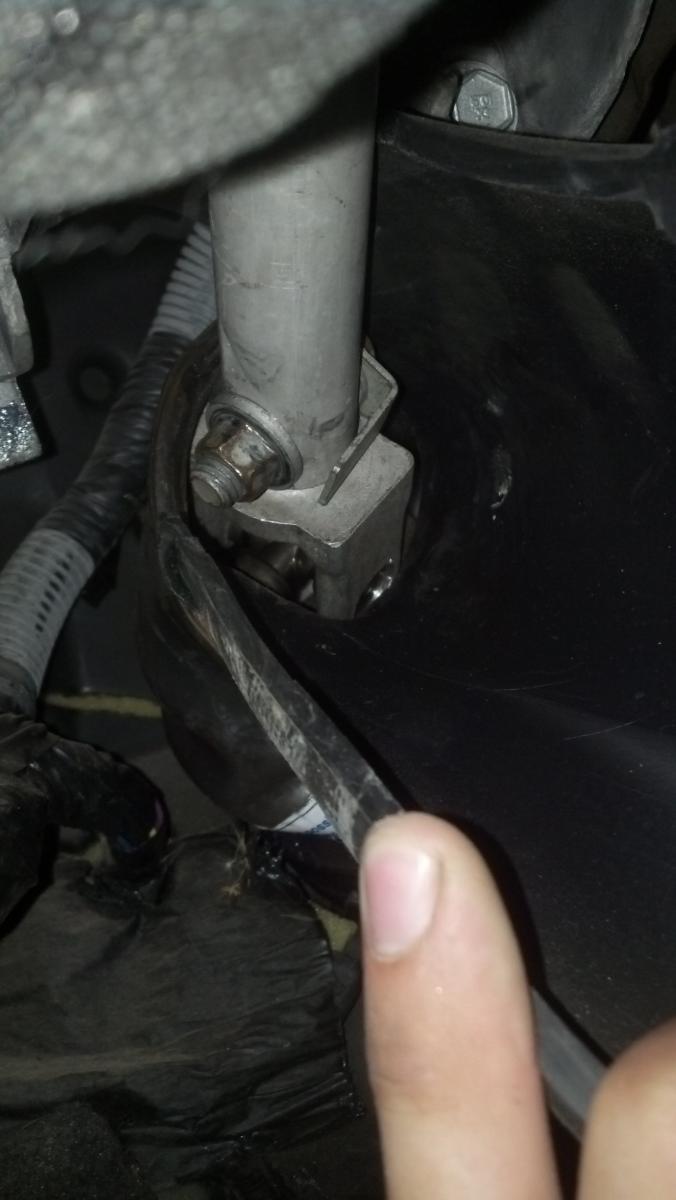

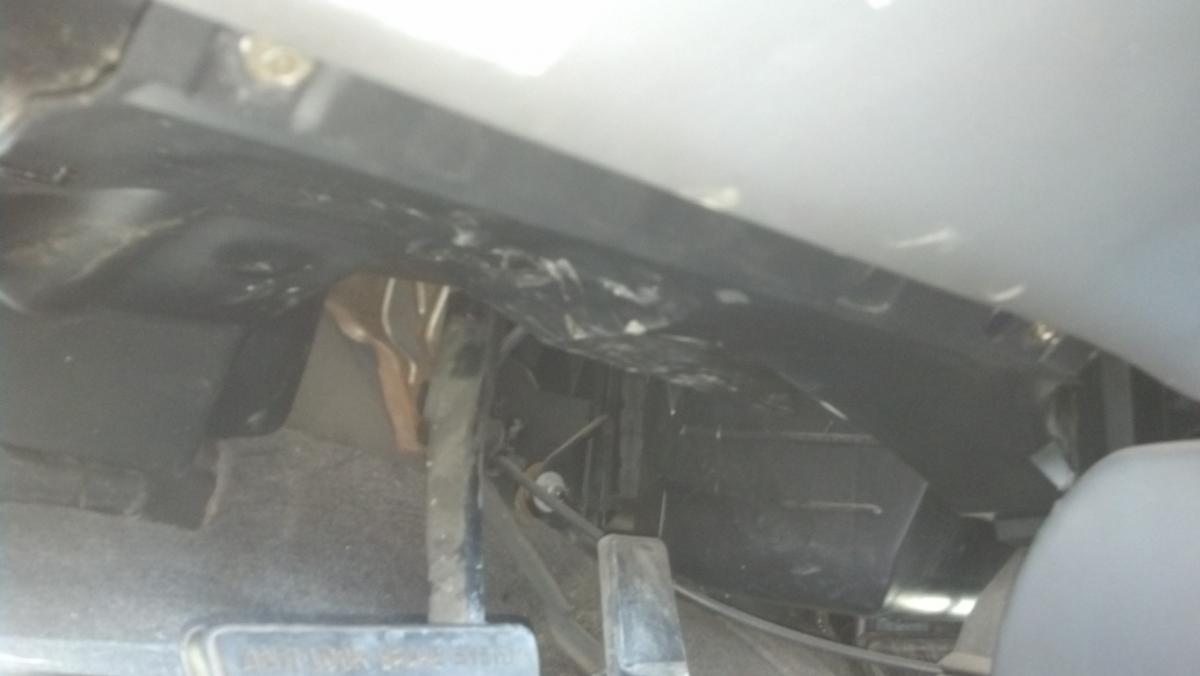

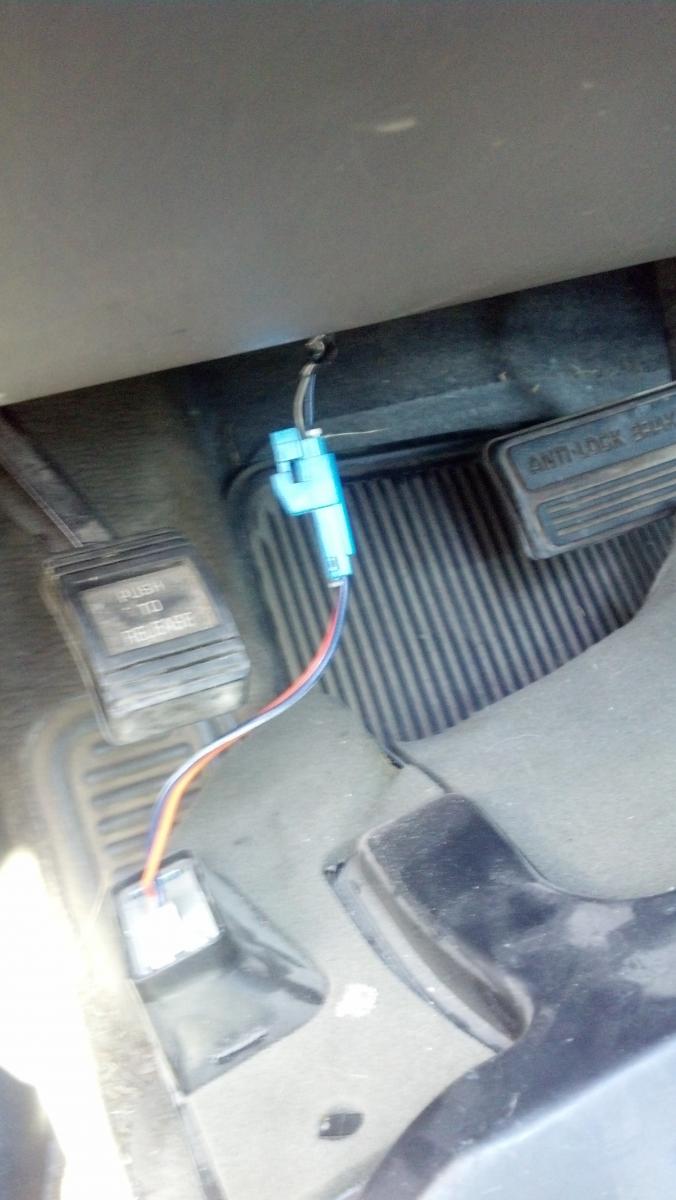

Take off the black panel under the dash. There are two 7mm bolts and a push pin. Once you get that off, go ahead and disconnect the 2 plugs. There'* a rubber boot over the shaft that you can slice with a razor blade. Once that is out of the way go ahead and disconnect the shaft. Disconnect the steering sensor and remove it. Then just reverse the procedure for installation.
Attached Thumbnails steering wheel positioning sensor-img_20130717_183718_356.jpg   steering wheel positioning sensor-img_20130717_175043_162.jpg   steering wheel positioning sensor-img_20130717_175038_595.jpg   steering wheel positioning sensor-img_20130717_174902_606.jpg   steering wheel positioning sensor-img_20130717_174833_344.jpg

steering wheel positioning sensor-img_20130717_175005_108.jpg
Reply
Old Jul 17, 2013 | 07:10 PM
  #10
buffstuffbuddha's Avatar
Thread Starter
Member
Posts like a V-Tak

Joined: Oct 2007
Posts: 80
Likes: 0
From: Cleveland, OH
buffstuffbuddha is on a distinguished road
Default

It'* been a while since I did this but I'm pretty sure that'* all it was. It'* pretty self explanatory once you get down there and you can see what'* going on. Takes about 10-20 min.
