Default Spent the day at FIE (pics and video)

Posting here due to the benefit for performance.

Katie and I headed over to FIE (about 15 minutes from me) to help Chris get out from underneath some of his backlog, put a matched set together for PeterG, and re-flow the Zilla'* injectors again for a health checkup.

Katie kept Aleaha occupied for us while we worked ( http://www.bonnevilleclub.com/forum/...ic.php?t=57008 ) and while she napped, Katie went down and had some fun with the horses, goats, and Llama.

All told, we cleaned and tested 24 injectors that JimmyFloyd sent, re-flowed mine, and re-flowed the last 6 that were left in the S1 L67 pool.

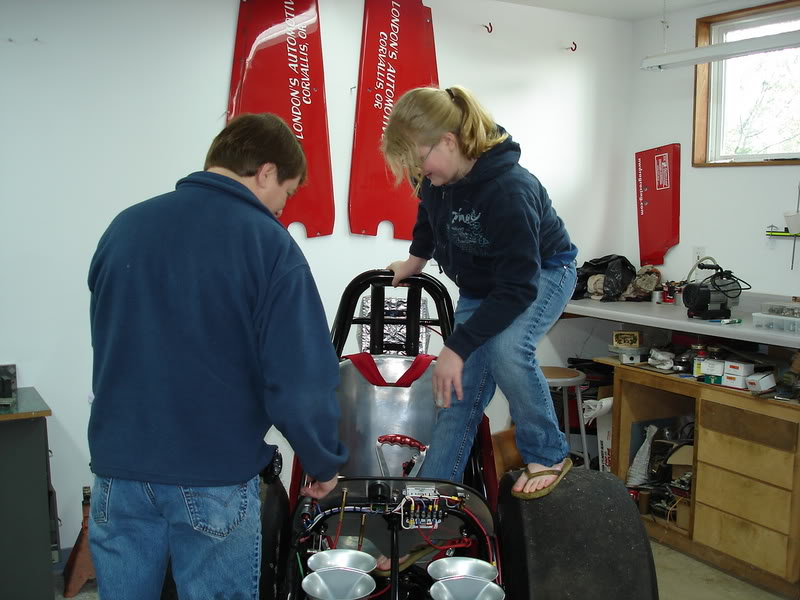

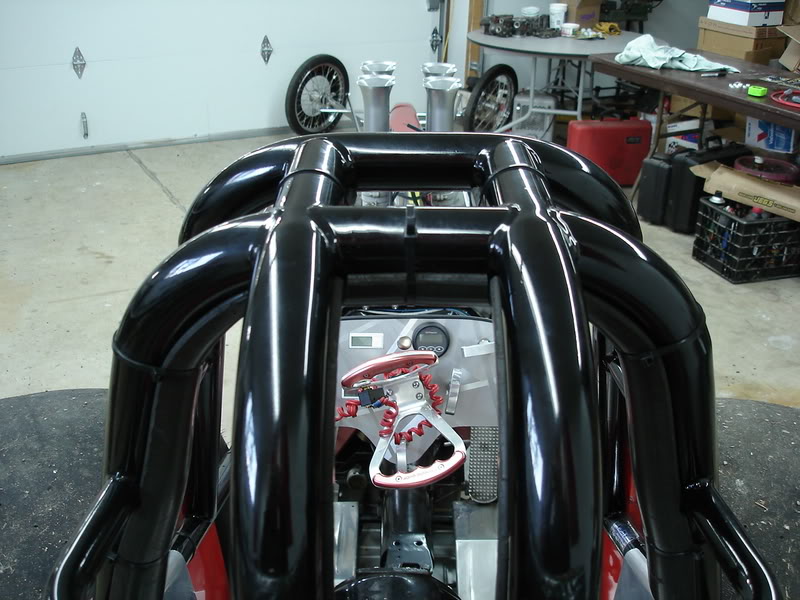

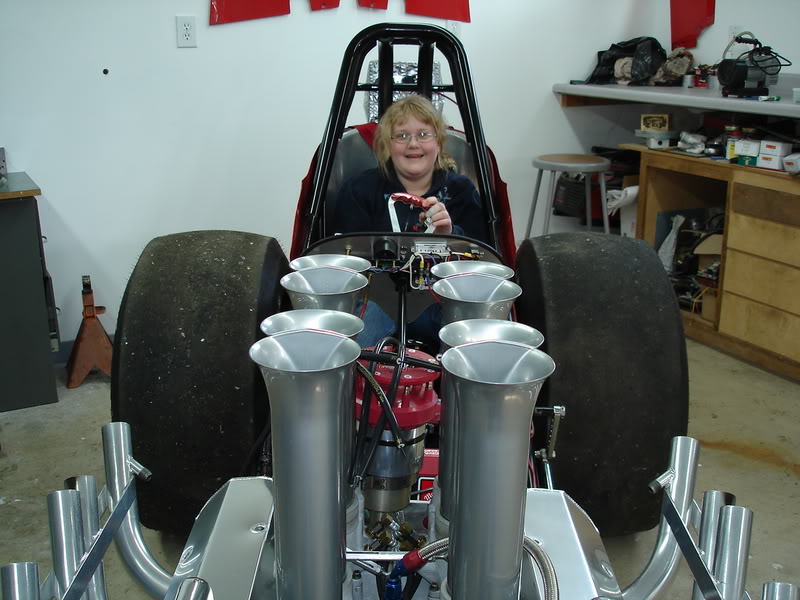

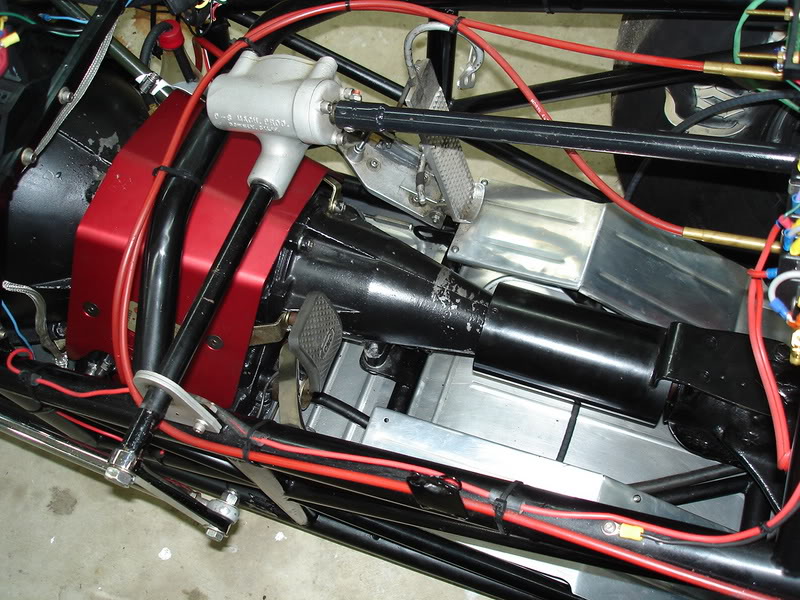

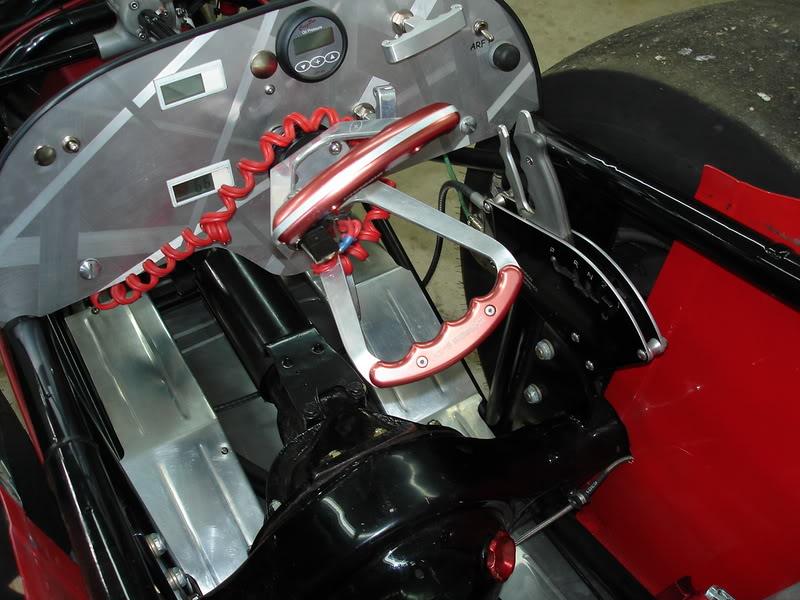

Katie playing around on the toy. This sucker does 0-60 in 0.9 seconds, and runs in the 7'* at 180mph. Yup, it has a 'chute:
Name:  DSC03792.jpg
Views: 0
Size:  83.2 KB

Name:  DSC03793.jpg
Views: 0
Size:  84.8 KB



Name:  DSC03795.jpg
Views: 0
Size:  94.3 KB

Name:  DSC03796.jpg
Views: 0
Size:  131.7 KB

Name:  DSC03797.jpg
Views: 0
Size:  91.7 KB

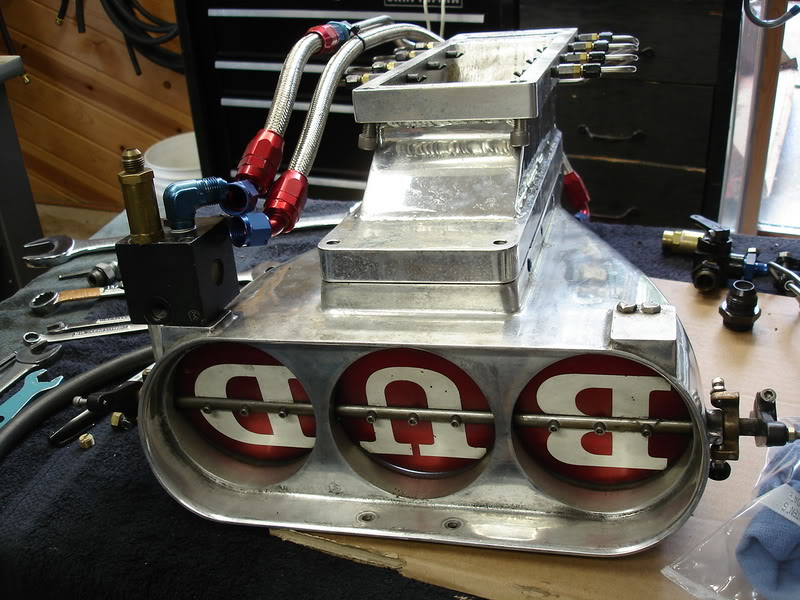

This is one of Kenny Bernstien'* old 'hats'. Sits on top of the SC on the top fuelies. That bag of injectors in the blue rag to the bottom right are mine. Yup. My injectors hung out with Kenny Bernstien for awhile:
Name:  DSC03798.jpg
Views: 0
Size:  106.8 KB
(owned by a customer of FIE, this unit is in for repair/rebuild)

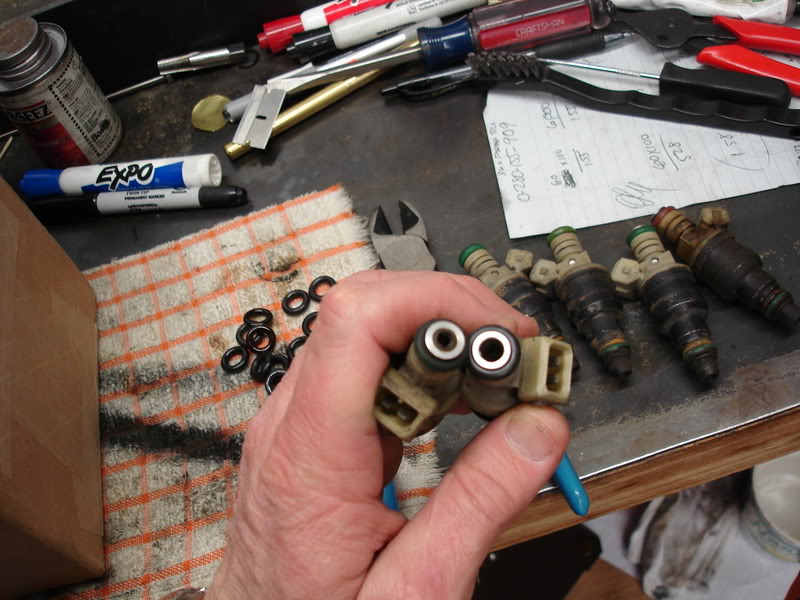

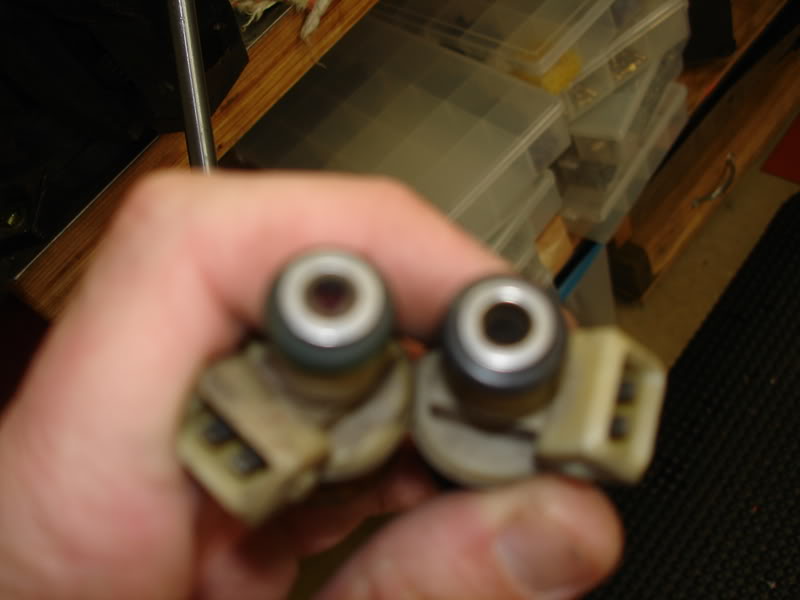

Stripping and removing filters (Chris got hard labor out of me, this is actually quite a tricky process, and is rather tiring after 30 injectors):
Name:  DSC03799.jpg
Views: 0
Size:  52.8 KB

Name:  DSC03800.jpg
Views: 0
Size:  39.0 KB

Name:  DSC03801.jpg
Views: 0
Size:  89.5 KB


Who'* that on FIE'* work board?
Name:  DSC03802.jpg
Views: 0
Size:  79.3 KB

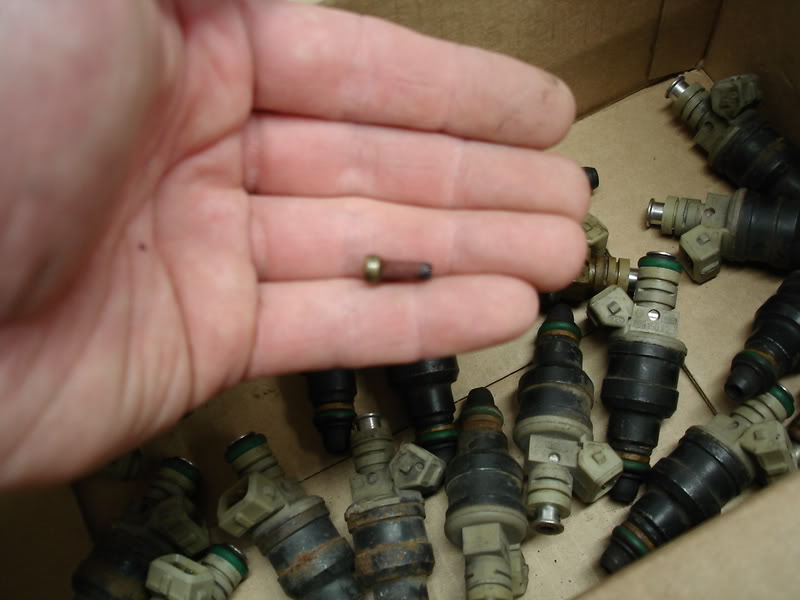

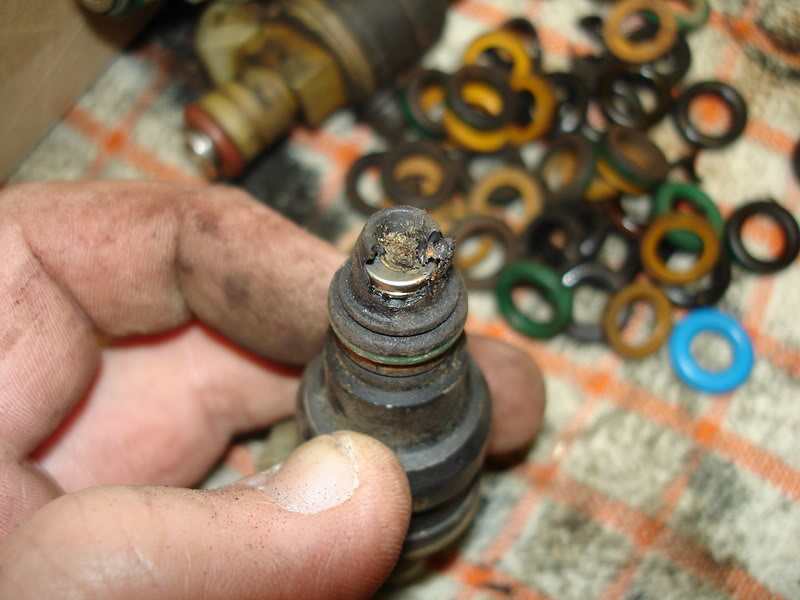

Stripping pintle caps. This one is a beauty. This is what you call 'organic deposits'. This injector was fine after cleaning:
Name:  DSC03803.jpg
Views: 0
Size:  62.1 KB

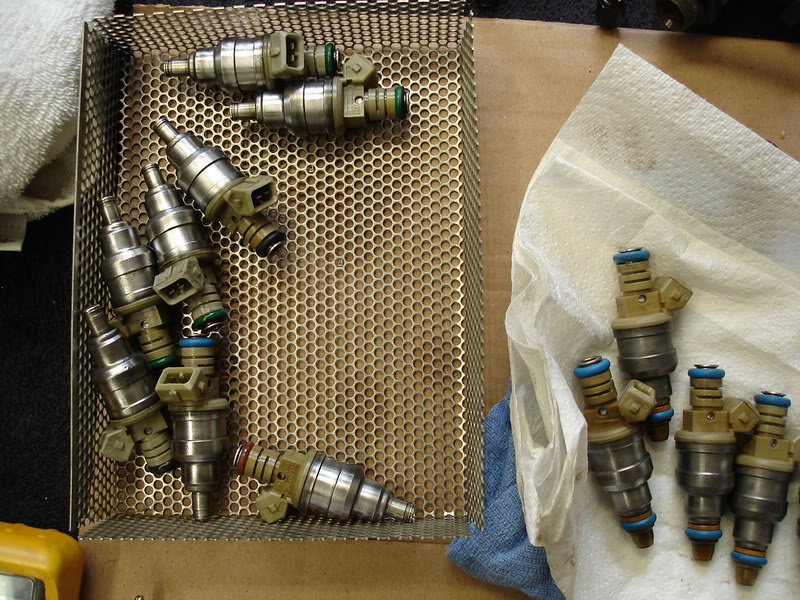

'Pool' injectors on the left, awaiting their turn in the recirculating ultrasonic cleaning process. I wire-wheeled all of these and then handed them to Chris, who ran them through the rest of the exterior cleaning in a solvent tank. Zilla'* injectors awaiting their turn on the right:

Name:  DSC03805.jpg
Views: 0
Size:  160.3 KB


Injectors running in a recirculating ultrasonic cleaner. This is after stripping and wire-wheeling them:



Lunch break:
Name:  DSC03806.jpg
Views: 0
Size:  84.1 KB

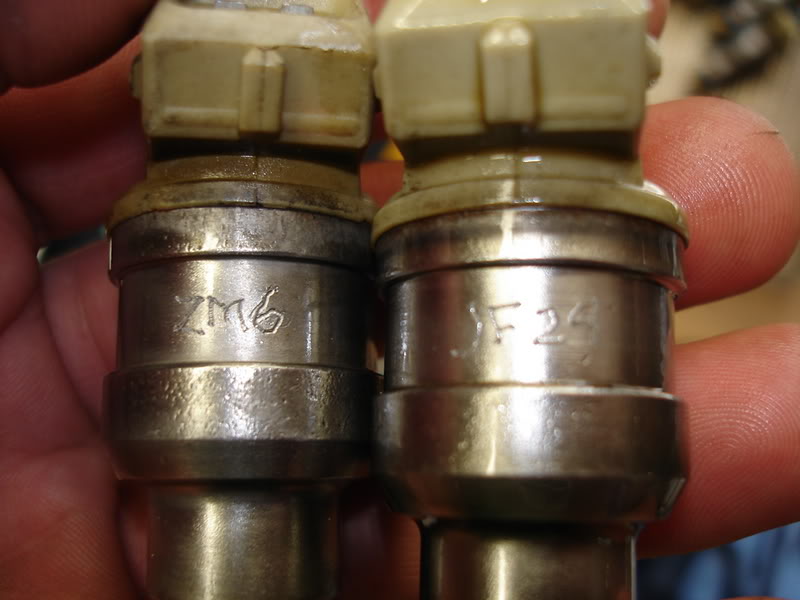

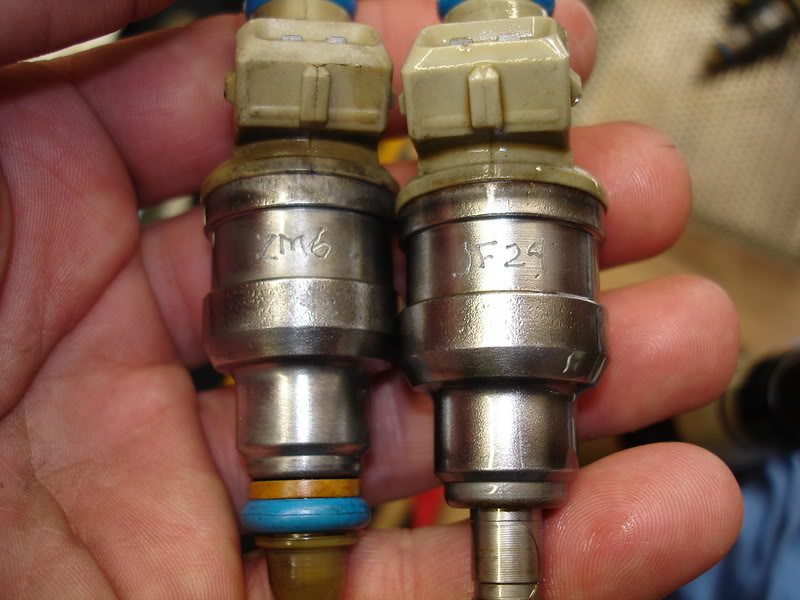

All injectors are coded and numbered by who donated them and given a serial number. Any member can figure out where theirs came from by figuring it out. These two are obvious:
Name:  DSC03808.jpg
Views: 0
Size:  55.8 KB

Name:  DSC03809.jpg
Views: 0
Size:  68.1 KB

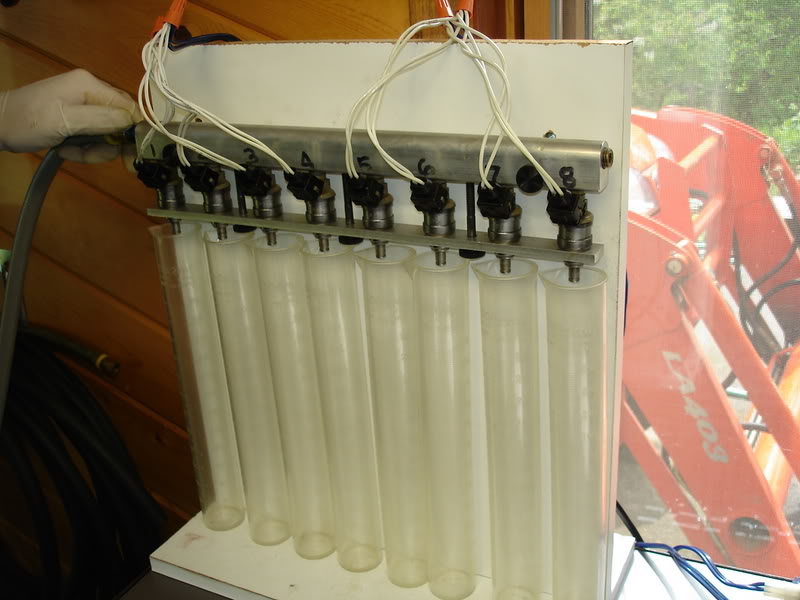

Flow-testing 8 at a time. These are tested at 80% duty cycle and static (wide open, or 100% duty cycle):
Name:  DSC03810.jpg
Views: 0
Size:  68.7 KB

Vid of them running:

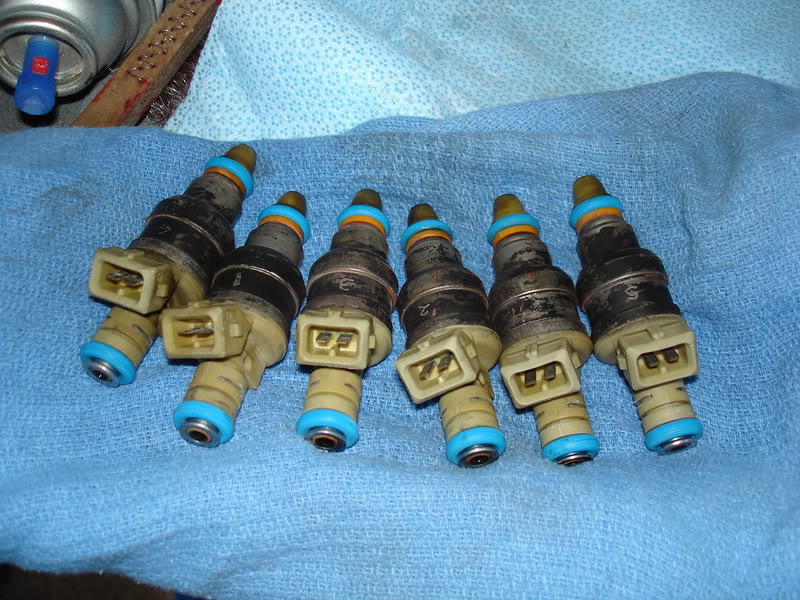

Mine before they went this morning:
Name:  DSC03791.jpg
Views: 0
Size:  147.4 KB

Vid of my spray pattern before flow-testing:

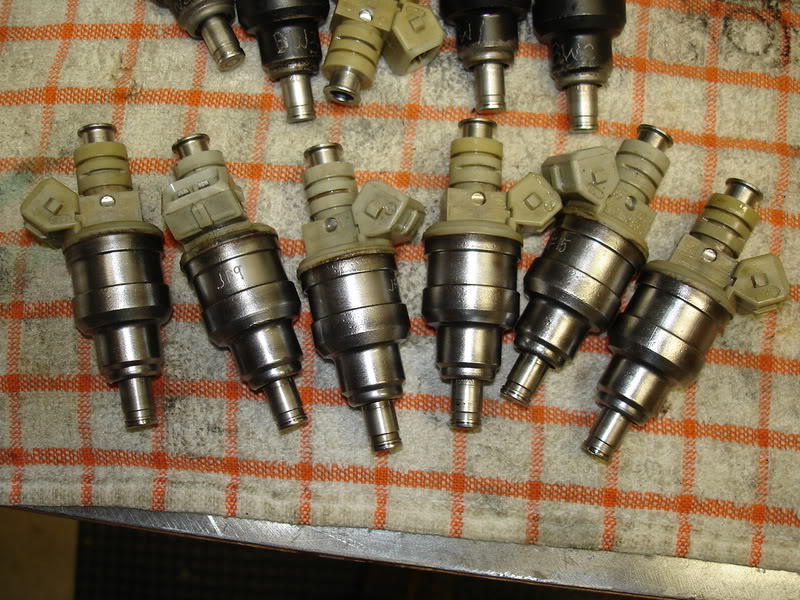

Peter'* perfect set. 0% spread between all 6 injectors:
Name:  DSC03814.jpg
Views: 0
Size:  145.0 KB



IIRC, there are two more sets ready to go now at 0.4% for the Series 1 L67 (a phenomenal low matched number) which could go to 0% easily with another set of 6.. I'll know more numbers shortly when FIE emails me the spreadsheet for the other drivetrain'* pool inventory numbers. Two of today'* new injectors we worked over were DOA. Some of the older pool injectors were also.

All the injectors you see here will get new spacers, pintle caps, filters, and o-rings before they go out the door, not to mention being re-blacked. Peter will take pics of his when he gets them.
willwren is offline   Reply With Quote
Old 04-15-2007, 12:58 AM   #2
Senior Member
True Car Nut

Join Date: Jan 2006
Location: NEBF:06,07 | NYBF:06,07 | ONBF:06,07 | CNBF:06 & more............
Posts: 8,029
Thanks: 0
Thanked 0 Times in 0 Posts
bandit is on a distinguished road
Default

wow those are loud i never knew

tat looks like it was a lot of fun
bandit is offline   Reply With Quote
Old 04-15-2007, 12:59 AM   #3
Senior Member
True Car Nut

Join Date: Mar 2005
Posts: 2,688
Thanks: 0
Thanked 0 Times in 0 Posts
dillcc is on a distinguished road
Default

Wow, interesting operation going on there! I'm still getting around to getting flow-matched injectors...
dillcc is offline   Reply With Quote
Old 04-15-2007, 12:59 AM   #4
Senior Member
Certified Car Nut

Join Date: Mar 2003
Posts: 12,432
Thanks: 0
Thanked 0 Times in 0 Posts
J Wikoff is on a distinguished road
Default

I've got a set to send in.
J Wikoff is offline   Reply With Quote
Old 04-15-2007, 01:03 AM   #5
Junior Member
Posts like a Ricer Type-R
Thread Starter

Join Date: Aug 2002
Posts: 10
Thanks: 0
Thanked 0 Times in 0 Posts
willwren is on a distinguished road
Default

Keep in mind that in your car, all 6 don't run at exactly the same moment. They won't be as loud as this.

Chris personally designed and built this entire setup. He provides alot of other related services. Dragster blower fuel nozzles (these suckers are damn near wide-open tubes), magneto service, etc.

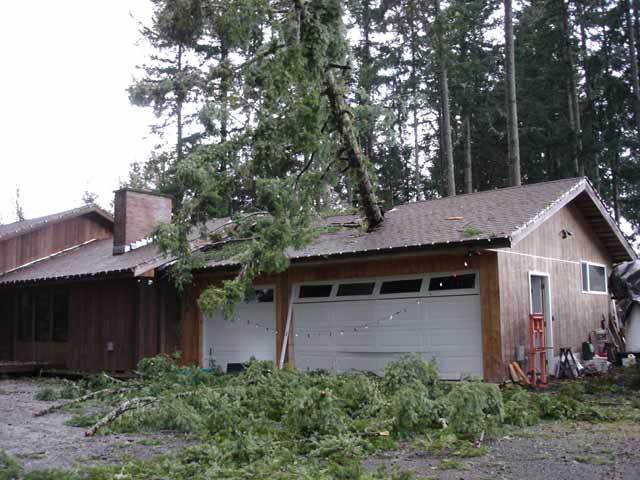

Now that his garage is repaired from being cut in half ( http://www.bonnevilleclub.com/forum/...ic.php?t=68365 ) I'll probably be going back out to his place to help him move all his equipment back to the shop. It'* currently downstairs in a spare room (carpet ripped out due to the nasty chemicals involved here).
